Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 1 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd MFV701, MFV702, MFV703, MFV704 MBP701, MBP702, MBP703, MBP704 Digital Photo Frame with Video-in-Picture The features described in this user’s guide are subject to modifications without prior notice. Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 2 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome... to your new Motorola Digital Photo Frame with Video-in-Picture! Thank you for purchasing the Motorola product – the Digital Photo Frame with Video-in-Picture is more than just a Photo Frame. It’s a multimedia trip down memory lane, and with the addition of the Wireless Camera and Live Video Feed, it’s also a way of protecting what matters most. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada 1-888-331-3383 (FOR US VERSION) UK 0845 218 0890 (FOR UK VERSION) ROI 08187 62092 (FOR UK VERSION) On the Web: www.motorola.com This User’s Guide provides you with all the information you need to get the most from your product. Before you use the digital photo frame, please read the Safety Instructions on page xx before you install the units. Got everything? • Digital photo frame (MFV701PU, MFV702PU, MFV703PU, MFV704PU, MBP701PU, MBP702PU, MBP703PU, MBP704PU) • Camera unit(s) (MFV701BU, MFV702BU, MFV703BU, MFV704BU, MBP701BU, MBP702BU, MBP703BU, MBP704BU) • Power adapter for the Digital photo frame • Power adapter(s) for the Camera unit(s) • Remote control In multi-camera packs, you will find one or more additional camera units with power adapters. Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 3 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd Overview of your Digital photo frame Front panel 1 Link indicator On when the digital photo frame is powered on and linked to the camera unit. Flashes when the digital photo frame is out of range from the camera unit. Off when the digital photo frame is powered off. Rear panel 1 ON/OFF button 2 Navigation and buttons 3 Video ON/OFF button 4 Remote control For remote control functions, please refer to page xx. 5 Memory card slot For inserting an SD, SDHC, MMC memory card that contains the photos or music you want to play. 6 USB connector For inserting a USB memory drive that contains the photos or music you want to play. NOTE Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 4 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd This digital photo frame supports memory cards and USB drives with a memory capacity of 2GB or up to 16GB. Overview of the Camera unit 1 Infrared Lights 4 IR LEDs for night vision WARNING IR emitted from this product. Do not stare at operating lamp. 2 Camera Lens 3 Power Indicator On steadily when the camera unit is switched on and linked to the digital photo frame. Flashes quickly when the camera unit is in registration mode. Flashes slowly when the camera unit is out of range or not registered to the digital photo frame. Off when the camera unit is switched off. 4 Volume + Press to increase the speaker volume. 5 Power Press to power on the camera unit. Press and hold to power off the camera unit. 6 Volume - Press to decrease the speaker volume. 7 Stop During melody playback, press to stop the melody playback. 8 Play Press to play the selected melody. 9 Melody Press to play the selected melody. During melody playback, press to select and play the other melodies. 10 Light Detector Photo-detector to sense when night vision is required. Important guidelines for installing your Digital photo frame Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 5 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd z To use your camera unit and digital photo frame together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. z Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the camera unit and digital photo frame may block the radio signal. z The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. z If the signal is poor, try moving the digital photo frame and/or the camera unit to different positions in the rooms. Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP70x, MFV70x Page(s) : 6 of 24 This document contains confidential and proprietary information of VTech Telecommunications Ltd TABLE OF CONTENTS 1 SAFETY INSTRUCTIONS.................................................................................................................................................7 2 GETTING STARTED .........................................................................................................................................................8 2.1 CONNECTING CAMERA UNIT TO POWER..........................................................................................................................8 2.2 CONNECTING DIGITAL PHOTO FRAME TO POWER............................................................................................................8 2.3 INSERTING A MEMORY CARD............................................................................…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ Appendix B1 Letter of Agency for FCC Certification February 6, 2012 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . March 2, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8402-03 Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Binatone Electronics International Limited reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Binatone Electronics International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Paul Tsui Product Operation Director

March 2, 2012 To whom it may concern, Declarations FCC ID: VLJ80-8402-03 IC: 4522A-80840203 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the parent unit (digital photo frame unit) will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Parent Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Remove power from companion device B 4 Switch-off device A 5 On hook device NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards,

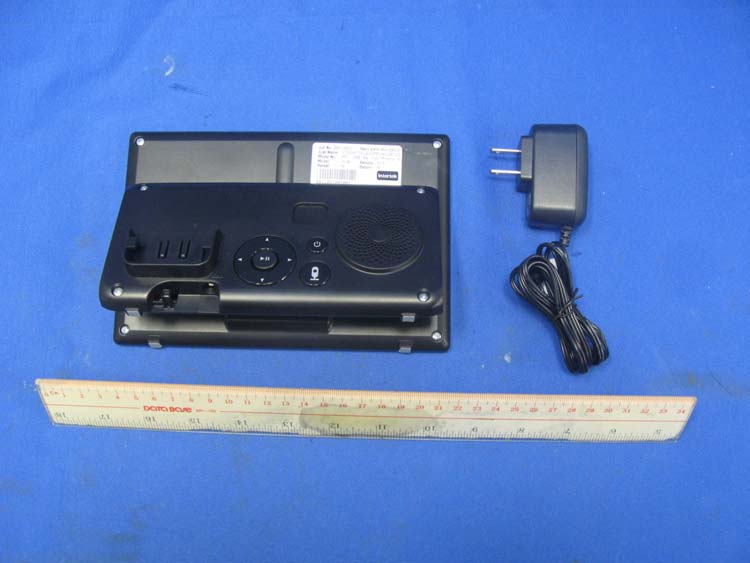

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 external photos - 1 of 2 HK12011021 Job Number HK12011021 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 external photos - 2 of 2 HK12011021 Job Number

Engraved in glossy Raised 0.2mm Engraved in glossyRaised 0.2mm Engraved in glossy Raised 0.2mm Lable paper : 40X20 mm   Engraved in glossy Raised 0.3mm label area MFV7xx/MBP7XX BU MFV7XX&MBP7XX PU MFV700 S/N : Model : MFV701BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MFV701PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 Dimension: 40*20 mm Material: 80g art paper Fram label Dimension: 40*20 mm Material: 80g art paper Frame Rear This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference; and 2) This device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference; and 2) This device must accept any interference received, including interference that may cause undesired operation. Dimension: 40*30 mm Material: 80g art paper 92-019994-010-100 FCC LBL TEXT TYPE: Arial TEXT SIZE: Point 6 S/N : Model : MFV702PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MFV702BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MFV702BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MFV703BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MFV704BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MBP701BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MBP702BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MBP703BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MBP704BU Made in China IC : 4522A-80840202 FCC ID : VLJ80-8402-02 DC 6V 600mA S/N : Model : MFV702PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MFV703PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MFV704PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MBP701PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MBP702PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MBP703PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03 S/N : Model : MBP704PU DC 5V 1A Made in China IC : 4522A-80840203 FCC ID : VLJ80-8402-03

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 internal photos - 1 of 5 Digital Photo Frame Unit assembly (View 1) Digital Photo Frame Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 internal photos - 2 of 5 Digital Photo Frame Unit Main PCB comp side Digital Photo Frame Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 internal photos - 3 of 5 Digital Photo Frame Unit LED front side Digital Photo Frame Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 internal photos - 4 of 5 Digital Photo Frame Unit Antenna front side Digital Photo Frame Unit Antenna rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8402-03 IC: 4522A-80840203 internal photos - 5 of 5 Digital Photo Frame Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-8402-03 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the digital photo frame unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the digital photo frame unit of tested model of MFV702PU, the maximum field strength measured (FS) was 118.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in one baby unit operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 207.55 mW The radiated (EIRP) source-based time-averaging output power = (207.55 * 0.375) mW = 77.83 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0155 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the digital photo frame unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8402-03 26bw - 1 of 1 Digital Photo Frame unit, Lowest channel, Traffic carrier Digital Photo Frame unit, Highest channel, Traffic carrier A0

Report No.:HK12011021-2 Mode: Standby AC Mains Ctrl No.: N/A 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.MAR.2012 09:59:39 Report No.:HK12011021-2 Mode: Standby AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 172.5 kHz 48.03 N gnd -16.80 1 Quasi Peak 217.5 kHz 42.49 L1 gnd -20.41 1 Quasi Peak 348 kHz 39.67 N gnd -19.33 2 CISPR Average348 kHz 33.52 L1 gnd -15.48 2 CISPR Average433.5 kHz 29.90 L1 gnd -17.28 Date: 6.MAR.2012 09:59:22 Report No.:HK12011021-2 Mode: USB Slideshow with Music Playing AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 1.MAR.2012 17:55:36 Report No.:HK12011021-2 Mode: USB Slideshow with Music Playing AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 150 kHz 41.67 N gnd -24.32 2 CISPR Average334.5 kHz 31.96 L1 gnd -17.37 2 CISPR Average424.5 kHz 30.51 L1 gnd -16.84 Date: 1.MAR.2012 17:55:21 Report No.:HK12011021-2 Mode: SD Card Slideshow with Music Playing AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 1.MAR.2012 17:51:34 Report No.:HK12011021-2 Mode: SD Card Slideshow with Music Playing AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average330 kHz 31.76 L1 gnd -17.68 2 CISPR Average429 kHz 28.79 L1 gnd -18.48 Date: 1.MAR.2012 17:51:15

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8402-03 inband - 1 of 1 Digital Photo Frame unit, Lowest channel, Traffic carrier Digital Photo Frame unit, Highest channel, Traffic carrier A0

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8402-03 IC: 4522A-80840203 peaktp - 1 of 2 A0 Digital Photo Frame unit, Lowest channel, Traffic carrier Digital Photo Frame unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8402-03 IC: 4522A-80840203 peaktp - 2 of 2 A0 Digital Photo Frame unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8402-03 psd - 1 of 1 Digital Photo Frame unit, Lowest channel, Traffic carrier Digital Photo Frame unit, Highest channel, Traffic carrier A0
