VLJ80-8623-001.9GHz Video Baby Monitor - Baby Unit

Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP28 Page(s) : 1 of 17 This document contains confidential and proprietary information of VTech Telecommunications Ltd MBP28, MBP28/2, MBP28/3, MBP28/4 Baby Monitor The features described in this user’s guide are subject to modifications without prior notice. Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP28 Page(s) : 2 of 17 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP28. Now you can see and hear your baby sleeping in the another room or you can monitor your older children in their play room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada 1-888-331-3383 (FOR US VERSION) UK 0845 218 0890 (FOR UK VERSION) ROI 08187 62092 (FOR UK VERSION) On the Web: www.motorola.com This User’s Guide provides you with all the information you need to get the most from your product. Before you use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the mains power to carry it to another location. Please read the Safety Instructions on page xx before you install the units. Got everything? • Parent unit (MBP28 PU, MBP28/2 PU, MBP28/3 PU, MBP28/4 PU) • Camera unit(s) (MBP28 BU, MBP28/2 BU, MBP28/3 BU, MBP28/4 BU) • Rechargeable Ni-MH battery pack for the Parent unit • Battery door for Parent unit • Belt clip for Parent unit • Power adapter for the Parent unit • Power adapter(s) for the Camera unit(s) In multi-camera packs, you will find one or more additional camera units with power adapter units. Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP28 Page(s) : 3 of 17 This document contains confidential and proprietary information of VTech Telecommunications Ltd Overview of your Parent unit 1 Power Indicator On when the parent unit is powered on. Flashes when the parent unit is searching for a camera unit. Off when the parent unit is powered off. 6 LCD On/Off In monitoring mode: Press to turn on/off the LCD display. In menu mode: Press to go back to idle mode. 2 c / Volume + In idle mode: Press to increase the speaker volume. In menu mode: Press to move up the menu list. 7 Power / Back In power off mode: Press to power on the parent unit. In monitoring mode: Press to switch to the next camera unit. In idle or menu mode: Press and hold to power off the parent unit. In menu mode: Press to cancel settings and back to the previous level. 3 Menu / OK In idle mode: Press to access the main menu. In menu mode: Press to access the sub-menu, or confirm the settings. 8 Battery/Charging Indicator On steadily when in charging mode. Flashes when low battery is detected. 4 d / Volume – In idle mode: Press to decrease the speaker volume. In menu mode: Press to move down the menu list. 9 Color Display Screen (LCD) 5 Talk 1 2 3 4 56 7 8 9 Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP28 Page(s) : 4 of 17 This document contains confidential and proprietary information of VTech Telecommunications Ltd In idle or menu mode: Press and hold to talk back through the camera unit. Release to quit the talk mode. When LCD is off: Press to turn on the LCD. Parent Unit Display Icons Behaviors Description Indicates the signal strength between the camera unit and parent unit. The more the blocks, the stronger the connection signal. Disappears when no connection between the camera unit and parent unit. Indicates when the speaker of the parent unit is muted. Indicates the speaker volume level of the parent unit, from 1 (quite) to 5 (loud). Indicates when the camera unit is playing a lullaby. Indicates when the current camera unit is being previewed on the screen. 24°C Indicates the temperature detected at the current camera unit, between 14°C (57°F) and 39°C (102 °F). Indicates the timer alarm is activated. Indicates the sound alert is set to on. Indicates when the parent unit is connected with the power adapter but no battery pack installed. Low battery, needs charging. 1/2 battery level. More bars inside mean higher battery capacity. Full battery level. Internal bars cycling indicates the battery is charging. Menu Structure of Parent Unit MAIN MENU BU SELECTION LANGUAGE TIMER BRIGHTNESS SOUND ALERT ALERT TONES REGISTER RESET SUB MENU Baby Unit 1 Baby Unit 2 Baby Unit 3 Baby Unit 4 All Baby Units Note: Only Baby Units registered will be shown in the list. Activation Set Timer Level 1 ~ 5 On Off Low Battery No Link Doc Title : Product Data – User’s Guide Revision : R.00 Model : MBP28 Page(s) : 5 of 17 This document contains confidential and proprietary information of VTech Telecommunications Ltd Overview of your Camera unit 1 Infrared Lights 4 x infra-red LEDs for night vision illumination. 6 d / Volume – Press to decrease the speaker volume. 2 Camera Lens 7 Stop Press to stop the lullaby playing. 3 Power/Link Indicator On steadily when the camera unit is switched on and linked to the parent unit. Flashes quickly when the camera unit is in registration mode. Flashes slowly when the camera unit is out of range or not registered to a parent unit. Off when the camera unit is switched off. 8 Play Press to start playing the selected lullaby. 4 c / Volume + Press to increase the speaker volume. 9 Lullaby Press to start playing the selected lullaby when the camera unit is linked with the parent unit. During lullaby playing, press to select and play the other lullabies. 5 Power Press to power on the camera unit. Press and hold to power off the camera unit. 10 Photo sensor Light sensor to detect when night vision is required. Important guidelines for ins…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Appendix B1 Letter of Agency for FCC Certification November 10, 2011 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . November 10, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8623-00 Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Binatone Electronics International Limited reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Binatone Electronics International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Paul Tsui Product Operation Director

February 21, 2012 To whom it may concern, Declarations FCC ID: VLJ80-8623-00 IC: 4522A-80862300 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the baby unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device A 2 On hook by companion device NA 3 Remove power from companion device A 4 Switch-off device C 5 On hook device NA 6 Remove power from device C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards,

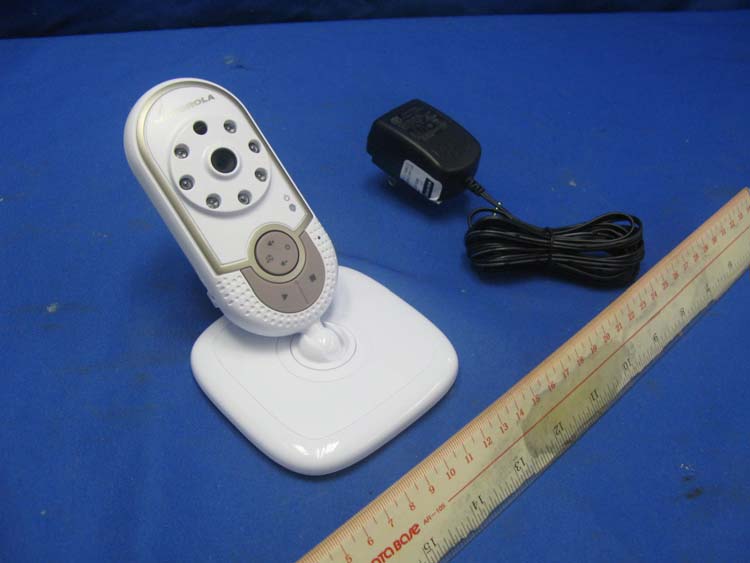

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8623-00 IC: 4522A-80862300 external photos - 1 of 1 HK11110386 Job Number HK11110386 Job Number

  Engraved in glossyRaised 0.3mm MBP28 BU label area MBP28 BU-(US/CA)SIZE: 40X20mm S/N : Model : MBP28 BU Made in China IC : 4522A-80862300 FCC ID : VLJ80-8623-00 DC 6V 600mA S/N : Model : MBP28 BU Made in China IC : 4522A-80862300 FCC ID : VLJ80-8623-00 DC 6V 600mA MBP28-2 BU-(US/CA)SIZE: 40X20mm S/N : Model : MBP28/2 BU Made in China IC : 4522A-80862300 FCC ID : VLJ80-8623-00 DC 6V 600mA MBP28-3 BU-(US/CA)SIZE: 40X20mm S/N : Model : MBP28/3 BU Made in China IC : 4522A-80862300 FCC ID : VLJ80-8623-00 DC 6V 600mA MBP28-4 BU-(US/CA)SIZE: 40X20mm S/N : Model : MBP28/4 BU Made in China IC : 4522A-80862300 FCC ID : VLJ80-8623-00 DC 6V 600mA

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8623-00 IC: 4522A-80862300 internal photos - 1 of 4 Baby Unit assembly Baby Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8623-00 IC: 4522A-80862300 internal photos - 2 of 4 Baby Unit Main PCB solder side (View 1) Baby Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8623-00 IC: 4522A-80862300 internal photos - 3 of 4 Baby Unit Camera PCB front side Baby Unit Camera PCB rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8623-00 IC: 4522A-80862300 internal photos - 4 of 4 Baby Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-8623-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the baby unit of tested model of MBP28/2 BU, the maximum field strength measured (FS) was 113.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time- averaging duty factor in one parent unit operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 65.63 mW The radiated (EIRP) source-based time-averaging output power = (65.63 * 0.375) mW = 24.61 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0049 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8623-00 26bw - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier

Report no.: HK11110386-1 Baby Unit Mode: Talk with Lullaby Playing AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.JAN.2012 18:21:16 Report no.: HK11110386-1 Baby Unit Mode: Talk with Lullaby Playing AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 163.5 kHz 37.77 L1 gnd -27.50 1 Quasi Peak 213 kHz 30.90 L1 gnd -32.18 1 Quasi Peak 469.5 kHz 31.58 L1 gnd -24.93 2 CISPR Average487.5 kHz 27.20 L1 gnd -19.00 1 Quasi Peak 627 kHz 30.40 N gnd -25.59 1 Quasi Peak 816 kHz 28.83 L1 gnd -27.17 1 Quasi Peak 1.302 MHz 25.96 L1 gnd -30.04 1 Quasi Peak 1.653 MHz 26.05 L1 gnd -29.94 Date: 30.JAN.2012 18:20:58

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8623-00 inband - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8623-00 IC: 4522A-80862300 peaktp - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8623-00 IC: 4522A-80862300 peaktp - 2 of 2 A0 Baby unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8623-00 psd - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: VLJ80-8623-00 Model: MBP28 BU, MBP28/2 BU, MBP28/3 BU, MBP28/4 BU IC: 4522A-80862300 Model: MBP28 BU, MBP28/2 BU, MBP28/3 BU, MBP28/4 BU Test Report Number: HK11110386-1 Issue Date: February 20, 2012 MN/cl INTERTEK TESTING SERVICES Test Report Number: HK11110386-1 Page 1 of 49 FCC ID: VLJ80-8623-00 IC: 4522A-80862300 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 7 2.4 Test Facility............................................................................................................. 7 3.0 System Test Configuration...................................................................................... 9 3.1 Justification ............................................................................................................. 9 3.2 Conducted Emission Test Configuration ................................................................ 10 3.3 Conducted Monitoring and Operational Test Configuration.................................... 10 3.4 EUT Exercising Software....................................................................................... 10 3.5 Details of EUT and Description of Peripherals....................................................... 11 3.6 Measurement Uncertainty ..................................................................................... 11 4.0 Measurement Results............................................................................................ 13 4.1 Antenna Requirement........................................................................................... 13 4.2 Digital Modulation Techniques............................................................................... 13 4.3 Emission Bandwidth.............................................................................................. 14 4.4 Directional Gain of the Antenna ............................................................................. 14 4.5 Peak Transmit Power ............................................................................................ 15 4.6 Power Spectral Density ......................................................................................... 16 4.7 Automatic Discontinuation of Transmission............................................................ 16 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 17 4.9 Emissions Outside the Sub-Band .......................................................................... 18 4.9.1 Radiated Emissions Configuration Photographs ................................................. 19 4.9.2 Radiated Emissions Data ................................................................................... 19 4.9.3 Field Strength Calculation................................................................................... 23 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 24 4.10 Radiated Emissions from Receiver ...................................................................... 24 4.10.1 Radiated Emission Configuration Photographs ................................................. 25 4.10.2 Radiated Emissions Data ................................................................................. 25 4.11 AC Power Line Conducted Emissions ................................................................. 27 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 28 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 28 4.12 Radio Frequency Radiation Exposure.................................................................. 29 4.13 Radio Frequency Exposure Compliance.............................................................. 29 4.14 Frame Repetition Stability .................................................................................. 30 4.15 Frame Period and Jitter ...............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: VLJ80-8623-00 IC: 4522A-80862300 config photos (radiated emission - baby unit) - 1 of 1 Radiated Emission - Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Receiving IC: 4522A-80862300 config photos (radiated emission - baby unit) - 1 of 1 Radiated Emission - Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Lullaby Playing FCC ID: VLJ80-8623-00 IC: 4522A-80862300 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Lullaby Playing FCC ID: VLJ80-8623-00 IC: 4522A-80862300 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
