Doc Title : User’s Guide Revision : 1.0 Model : Motorola S70×BT Page(s) : 1 of 29 This document contains confidential and proprietary information of VTech Telecommunications Ltd User’s Guide S701BT / S702BT / S703BT / S704BT / S705BT DECT 6.0 Digital Cordless Phone with Bluetooth ® Wireless Technology, Speaker Pod and Answering Machine Warning Use only the adapter and telephone line cord provided in the box. Doc Title : User’s Guide Revision : 1.0 Model : Motorola S70×BT Page(s) : 2 of 29 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome to your new Motorola Phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com .30 name and number phonebook. .Answering machine with up to 15 minutes digital recording time. * .Caller ID shows you who is calling and includes details of the last 30 callers in a calls list. ** .Register up to 5 handsets or speaker pods to a single base. .Make internal calls, transfer external home calls, hold 3-way conversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu and outgoing announcements. **You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary. This ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Doc Title : User’s Guide Revision : 1.0 Model : Motorola S70×BT Page(s) : 3 of 29 This document contains confidential and proprietary information of VTech Telecommunications Ltd This User’s Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages. IMPORTANT Use only the supplied telephone line cord. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? . Handset .Base .Power Adapters×2 .NiMH Rechargeable Battery Packs×2 .Battery Door .Speaker Pod .NiMH Rechargeable Battery Pack for Speaker Pod .Charging Cradle for Speaker Pod .Mobile Phone Stand . Telephone Line Cord .User’s Guide .Quick Start Guide In multi-handset packs, you will find one or more additional handsets, chargers with power adapters, additional rechargeable battery packs and battery doors. Doc Title : User’s Guide Revision : 1.0 Model : Motorola S70×BT Page(s) : 4 of 29 This document contains confidential and proprietary information of VTech Telecommunications Ltd TABLE OF CONTENTS 1 GETTING STARTED......................................................................................................................................... 4 1.1 CONNECTING THE BASE.................................................................................................................................... 4 1.2 INSTALLING AND CHARGING THE HANDSET BATTERY PACK......................................................................... 4 1.3 INSTALLING AND CHARGING THE SPEAKER POD BATTERY PACK.................................................................. 4 1.4 SETTING THE DISPLAY LANGUAGE.................................................................................................................. 4 1.5 SETTING DATE AND TIME.................................................................................................................................. 4 2 GETTING TO KNOW YOUR PHONE ............................................................................................................ 4 3 USING THE PHONE .......................................................................................................................................... 4 3.1 INTRODUCING BLUETOOTH.............................................................................................................................. 4 3.2 BLUETOOTH SETUP........................................................................................................................................... 4 3.2.1 SETUP CELLULAR............................................................................................................................................. 4 3.2.2 REPLACING A PAIRED DEVICE.......................................................................................................................... 4 3.2.3 PAIRED DEVICES............................................................................................................................................... 4 3.3 MAKING A HOME CALL USING YOUR LANDLINE............................................................................................. 4 3.4 MAKING A CELLULAR CALL USING YOUR CORDLESS DECT HANDSET......................................................... 4 3.5 SPEED DIAL CALLING........................................................................................................................................ 4 3.6 ANSWERING A HOME CALL...............................................................................................................................4 3.7 ANSWERING A CELLULAR CALL....................................................................................................................... 4 3.8 RECEIVING A CELLUL…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ Appendix B1 Letter of Agency for FCC Certification March 1, 2012 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Paul Tsui Product Operation Director

March 1, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8815-00 Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Binatone Electronics International Limited reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Binatone Electronics International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards,

March 1, 2012 To whom it may concern, Declarations FCC ID: VLJ80-8815-00 IC: 4522A-80881500 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. The Speaker Pod will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Speaker Pod 1 Switch-off companion device B N/A 2 On hook by companion device B N/A 3 Remove power from companion device B A 4 Switch-off device N/A C 5 On hook device N/A C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N/A – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards,

March 1, 2012 To whom it may concern, Label Location Justification FCC ID: VLJ80-8815-00 Request is hereby submitted by Binatone Electronics International Limited to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for Speaker Pod will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches:  Marketing the device without the battery installed, or  Providing instruction (stated on the box, user manual or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely,

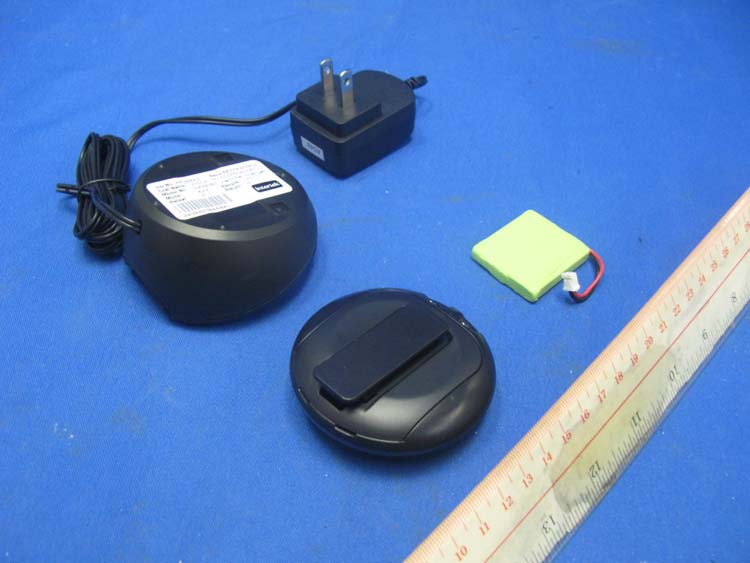

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8815-00 IC: 4522A-80881500 external photos - 1 of 1 HK12030022 Job Number HK12030022 Job Number

S70XBT Mini-speaker HS 30-013757-010-110 S70XBT Mini-speaker charger 30-013770-000-110 24.60 20.60 FCC ID:VLJ80-8815-00 IC:4522A-80881500 Model : S703BT S/N: XXXXXXXXXXX FCC ID:VLJ80-8815-00 IC:4522A-80881500 Model : S70BT S/N: XXXXXXXXXXX Model : S703BT S/N: XXXXXXXXXXX FCC/IC-LABEL S/N-LABEL Model : S70BT S/N: XXXXXXXXXXX Model : S70BT S/N: XXXXXXXXXXX 7.60 20.60 Background:Textured DC 6V 300mA MADE IN CHINA CORDLESS TELEPHONE 4H20 Accessory Model : S703BT S/N: XXXXXXXXXXX Model : S70  BT S/N: XXXXXXXXXXX S/N- LABEL Model : S703BT S/N: XXXXXXXXXXX Model : S70  BT S/N: XXXXXXXXXXX Model : S70  BT S/N: XXXXXXXXXXX

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8815-00 IC: 4522A-80881500 internal photos - 1 of 4 Speaker Pad assembly Speaker Pad Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8815-00 IC: 4522A-80881500 internal photos - 2 of 4 Speaker Pad Main PCB solder side Speaker Pad Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8815-00 IC: 4522A-80881500 internal photos - 3 of 4 Speaker Pad Keypad rear side Speaker Pad Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8815-00 IC: 4522A-80881500 internal photos - 4 of 4 Speaker Pad Oscillator PCB comp side

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1203FS17 Applicant ： Binatone Electronics International Limited EUT Type ： 1.9GHz DECT6.0 Speaker Pod FCC ID ： VLJ80-8815-00 Trade Name ： Motorola Model Number ： S702BT Dates of Receive ： Mar. 22, 2012 Dates of Test ： Mar. 23, 2012 Date of Issued ： Mar. 29, 2012 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.033 W/kg UPCS Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 1 of 59 Contents 1. Description of Equipment under Test (EUT) .................................................................................................. 3 2. Introduction .................................................................................................................................................... 4 3. SAR Definition ............................................................................................................................................... 5 4. SAR Measurement Setup .............................................................................................................................. 6 5. System Components ..................................................................................................................................... 8 5.1 DASY4 E-Field Probe System.............................................................................................................. 8 5.2 Data Acquisition Electronic (DAE) System..........................................................................................11 5.3 Robot...................................................................................................................................................11 5.4 Measurement Server...........................................................................................................................11 5.5 Device Holder for Transmitters........................................................................................................... 12 5.6 Phantom - SAM v4.0.......................................................................................................................... 12 5.7 Data Storage and Evaluation.............................................................................................................. 13 6. Test Equipment List ..................................................................................................................................... 16 7. Tissue Simulating Liquids ............................................................................................................................ 17 7.1 Ingredients.......................................................................................................................................... 18 7.2 Recipes............................................................................................................................................... 18 7.3 Liquid Confirmation............................................................................................................................. 19 8. Measurement Process................................................................................................................................. 20 8.1 Device and Test Conditions................................................................................................................ 20 8.2 Sys tem Performanc e Check............................................................................................................... 21 8.3 Dosimetric Assessment Setup............................................................................................................ 23 8.4 Spatial Peak SAR Evaluation............................................................................................................. 25 9. Measurement Uncertainty............................................................................................................................ 26 10. SAR Test Results Summary ........................................................................................................................ 29 10.1 Body SAR........................................................................................................................................... 29 10.2 Std. C95.1-1992 RF Exposure Limit................................................................................................... 30 11. Conclusion ................................................................................................................................................... 31 12. References .................................................................................................................................................. 31 Appendix A - System Performance Check .............................................................................................. 32 Appendix B - SAR Measurement Data.…

Text truncated - open the document above for the full version.

SAR EUT Photographs EUT Photo ( 1 ) EUT Photo ( 2 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 1 of 5 EUT Photo ( 3 ) EUT Photo ( 4 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 2 of 5 EUT Photo ( 5 ) EUT Photo ( 6 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 3 of 5 EUT Photo ( 7 ) EUT Photo ( 8 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 4 of 5 EUT Photo ( 9 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 5 of 5

SAR Test Setup Photographs EUT Back side EUT Front side EUT Top side ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 1 of 3 Body Setup (The EUT with Headset and Belt-Clip, the back surface to phantom 0mm) Figure 2. Body SAR Test Setup (Flat Section) EUT Front side EUT Top side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 2 of 3 Body Setup (The EUT with Headset and Belt-Clip, the front surface to phantom 0mm) Figure 3. Body SAR Test Setup (Flat Section) EUT Front side EUT Top side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1203FS17Page 3 of 3

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited. Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Speaker Pod) FCC ID: VLJ80-8815-00 Model: S702BT, S703BT, S704BT, S705BT, S70XBT IC: 4522A-80881500 Model: S702BT, S703BT, S704BT, S705BT Test Report Number: HK12030022-4 Issue Date: March 30, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12030022-4 Page 1 of 53 FCC ID: VLJ80-8815-00 IC: 4522A-80881500 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 18 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 19 4.9 Emissions Outside the Sub-Band .......................................................................... 20 4.9.1 Radiated Emissions Configuration Photographs ................................................. 21 4.9.2 Radiated Emissions Data ................................................................................... 21 4.9.3 Field Strength Calculation................................................................................... 26 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 27 4.10 Radiated Emissions from Receiver ...................................................................... 28 4.10.1 Radiated Emission Configuration Photographs ................................................. 29 4.10.2 Radiated Emissions Data ................................................................................. 29 4.11 AC Power Line Conducted Emissions ................................................................. 31 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.12 Radio Frequency Radiation Exposure.................................................................. 33 4.13 Radio Frequency Exposure Compliance.............................................................. 33 4.14 Frame Repetition Stability .................................................................................. 34 4.15 Frame Period and Jitter .....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8815-00 26bw - 1 of 1 A0 Speaker Pod, Lowest channel, Traffic carrier Speaker Pod, Highest channel, Traffic carrier

Report No.:HK12030022-4 Model: S702BT Mode: Talk with Charging AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 16.MAR.2012 14:39:17 Report No.:HK12030022-4 Model: S702BT Mode: Talk with Charging AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 56.20 L1 gnd -9.55 2 CISPR Average186 kHz 33.33 L1 gnd -20.88 1 Quasi Peak 217.5 kHz 50.00 N gnd -12.90 2 CISPR Average361.5 kHz 32.58 L1 gnd -16.11 1 Quasi Peak 366 kHz 41.33 L1 gnd -17.26 Date: 16.MAR.2012 14:39:00

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8815-00 inband - 1 of 1 A0 Speaker Pod, Lowest channel, Traffic carrier Speaker Pod, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8815-00 IC: 4522A-80881500 peaktp - 1 of 2 A0 Speaker Pod, Lowest channel, Traffic carrier Speaker Pod, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8815-00 IC: 4522A-80881500 peaktp - 2 of 2 A0 Speaker Pod, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8815-00 psd - 1 of 1 A0 Speaker Pod, Lowest channel, Traffic carrier Speaker Pod, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: VLJ80-8815-00 IC: 4522A-80881500 config photos (radiated emission – speaker pad) - 1 of 1 Radiated Emission – Speaker Pad Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Receiving IC: 4522A-80881500 config photos (radiated emission – speaker pad) - 1 of 1 Radiated Emission – Speaker Pad Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Charging FCC ID: VLJ80-8815-00 IC: 4522A-80881500 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Charging FCC ID: VLJ80-8815-00 IC: 4522A-80881500 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
