VLJ80-9152-011.9GHz Digital Modulation Cordless Phone with CID, Speakerphone and Bluetooth (Bluetooth Portion)

User’s Guide L601BT/ L602BT/ L603BT/ L604BT/ L605BT DECT 6.0 Digital Cordless Phone Warning Use only the adapter and telephone line cord provided in the box. Welcome... to your new Motorola Phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com 30 name and number phonebook. Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.** Register up to 5 cordless handsets to a single base. Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller. **You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary. • • • • This User’s Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages. IMPORTANT Only use the telephone line cord supplied. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? Handsets Base NiMH Rechargeable Battery Pack Battery Door Power Adapter Charger Telephone Line Cord User’s Guide In multi-handset packs, you will find one or more additional handsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. • • • • • • • • 45 Contents 1. Getting started ...................................................7 1.1 Connecting the base ................................8 1.2 Connecting the charger ............................8 1.3 Installing and charging the handset battery pack .............................................9 1.4 Setting the display language ...................9 1.5 Setting the date and time .........................9 2. Getting to know your phone ..........................10 2.1 Overview of your handset .......................10 2.2 Cordless Handset LCD Display ..............14 2.3 Overview of the base ..............................15 2.4 Overview of the charger .........................16 3. Using the phone .............................................16 3.1 Introducing Bluetooth .............................16 3.2 Bluetooth setup ......................................17 3.2.1 Add a mobile phone ...................17 3.2.2 Replace a paired mobile phone .........................................18 3.2.3 Connect the paired mobile phone .........................................19 3.3 Making a call ..........................................19 3.3.1 Preparatory dialing .....................19 3.3.2 Making a cellular call ..................19 3.3.3 Dialing from the phonebook .......19 3.3.4 Dialing from the redial list ...........20 3.3.5 Dialing from the calls list ............20 3.3.6 Dialing from the speed dial location.......................................20 3.4 Muting a call ...........................................20 3.5 Answering a call .....................................20 3.6 Ending a call ...........................................20 3.7 Adjusting volume ....................................21 3.8 Call waiting .............................................21 3.9 Redial the last number ...........................21 3.9.1 Redialing a number from the redial list .....................................22 3.9.2 Storing a redial number into the phonebook .................................22 45 3.9.3 Deleting a redial number ............22 3.9.4 Deleting the entire redial list .......22 3.10 Phonebook .............................................22 3.10.1 Reviewing an entry to the phonebook ................................23 3.10.2 Adding an entry to the phonebook ................................23 3.10.3 Storing a phonebook entry as a one touch number .....................23 3.10.4 Dialing from the phonebook ......24 3.11 Speed dial ...............................................24 3.11.1 Reviewing the entry in a speed dial location ...............................24 3.11.2 Storing an entry to a speed dial location......................................25 3.11.3 Deleting an entry in a speed dial location......................................25 3.12 Caller ID .................................................25 3.12.1 Calls List ....................................26 3.12.2 Viewing the calls list ..................26 3.12.3 Saving a number from the calls list to the phonebook .................27 3.12.4 Deleting a calls list entry ...........27 3.12.5 Deleting the entire calls list .......27 3.13 Personal settings ....................................28 3.14 Intercom .................................................29 3.14.1 Calling another handset ............29 3.14.2 Transferring a call to another handset .....................................30 3.14.3 Three-party conference call ......30 3.15 Handset settings .....................................30 3.15.1 Setting the ringer tone ...............30 3.15.2 Setting the ringer volume ..........31 3.15.3 Setting Alert tone .......................31 3.15.4 Renaming the handset ..............32 3.15.5 Setting the language .................32 3.15.6 Setting the contrast ...................32 3.16 Base settings ..........................................32 3.16.1 Setting the dial mode ................32 3.16.2 Setting the flash time .................33 67 3.16.3 Setting the area code ................33 3.17 Registration ............................................34 3.17.1…

Text truncated - open the document above for the full version.

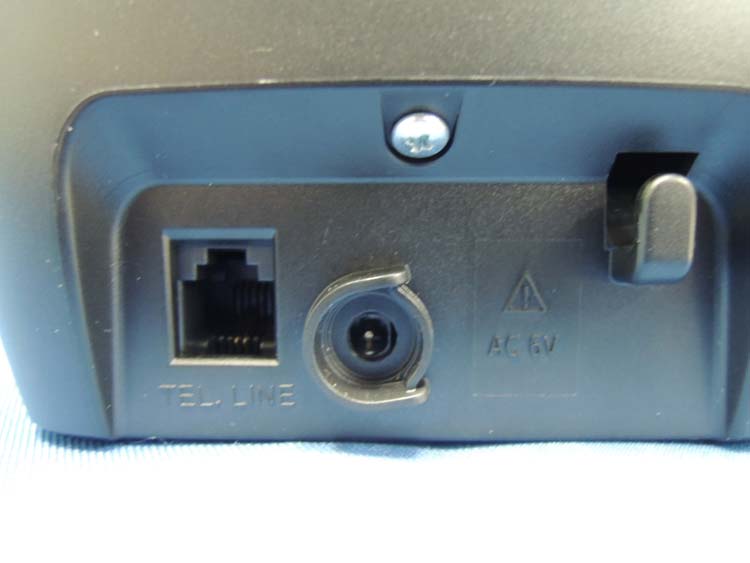

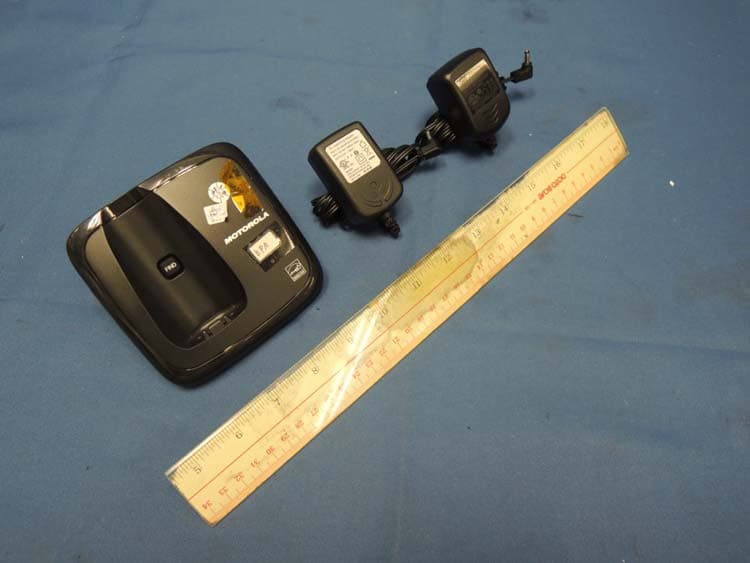

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 external photos - 1 of 2 HK13020063 Job Number HK13020063 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 external photos - 2 of 2

L60X BT slb base engraving 30-011819-000-130 for American Version 4H20 MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. DC 5V 300mA CORDLESS TELEPHONE Customer service number: US and Canada: 1-888-331-3383 Web:www.motorola.com FCC ID: VLJ80-9152-01 IC: 4522A-80915201 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-915201 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/W HAC 10.60 28.60 Background: Textured L60XBT Charger engraving 30-011812-000-130 for American Version S/N-LABLE 30-012590-000-150 13.00 21.00 FCC ID:VLJ 80-8619-00 IC:4522A- 80915201 FCC ID:VLJ80-8619-00 IC:4522A-80915201 16.50 11.00 Engraving Text Raised 0.3mm Engraving Text Raised 0.3mm DC 5V DC 5V 15.0 11.00 10.60 DC 6V 300mA MADE IN CHINA CORDLESS TELEPHONE 4H20 Accessory 23.60 Engraving Text Raised 0.3mm 21.00 40.00 Background: Textured S/N-LABLE DC 6V DC 6V DC 6V 300mA MADE IN CHINA CORDLESS TELEPHONE 4H20 Accessory This area is blank, hi-gloss,recessed 0.30mm 此处更换镶件，尺寸参考上图示。 Model : L604BT VT1302000001 Model : L605BT VT1302000001 Model : L603BT VT1302000001 Model : L602BT VT1302000001 Model : L602BTVT1302000001 Model : L601BT VT1302000001 S/N-LABEL Size: 19.5x9.5mmR1 92-024375-010-100 Model: L601BT VT 1302000001G BC Model: L602BT VT 1302000001G BC Model: L602BT VT 1302000001G BC Model: L603BT VT 1302000001G BC Model: L604BT VT 1302000001G BC Model: L605BT VT 1302000001G BC BS S/N-LABEL Size: 27.5x9.7mm R1 92-024518-010-100 Model:L602BT VT 1302000001G BC Model:L602BT VT 1302000001G BC Model:L603BT VT 1302000001G BC Model:L604BT VT 1302000001G BC Model:L605BT VT 1302000001G BC S/N-LABEL Size: 23x9.7mm R1 92-024375-01X-100

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 internal photos - 1 of 5 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 internal photos - 2 of 5 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 internal photos - 3 of 5 Base Unit Antenna Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 internal photos - 4 of 5 Base Unit Page Key rear side Base Unit Bluetooth Module front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-9152-01 IC: 4522A-80915201 internal photos - 5 of 5 Base Unit Bluetooth Module rear side Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-9152-01 RF exposure info - 1 of 3 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. EUT Companion Device Spectrum Analyze r Directional Coupler INTERTEK TESTING SERVICES FCC ID: VLJ80-9152-01 RF exposure info - 2 of 3 For the 1.9GHz DECT Transmission of tested model: L60XBT, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum). The antenna gain of L60XBT is 0 dBi = 1.00 (num gain) and its maxi mum source-based time-averaging duty factor is 20.8% (5/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 a s follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.208) mW = 26.19 mW The power density at 20cm = 26.19 *1.00/ 4R 2 = 0.0052 mW cm -2 For the 2.4GHz Bluetooth Transmission of tested model: L60XBT, the measured powers among all t he measured channels were within its production tolerance: -6 dBm (Minimum) and +4 dBm (Maximum). The antenna gain of L60XBT is 0 dBi = 1.00 (num gain) and its maxi mum source-based time-averaging duty factor is 83.3% (5/6 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 a s follow: The Conducted Power = 4 dBm = 2.5 mW The Conducted Power source-based time-averaging output power = (2.5 * 0.833) mW = 2.09 mW The power density at 20cm = 2.09 *1.00/ 4R 2 = 0.00042 mW cm -2 INTERTEK TESTING SERVICES FCC ID: VLJ80-9152-01 RF exposure info - 3 of 3 Per KDB 447498 D01 v05, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio for DECT Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0052 mW c m -2 / 1.0 mW cm -2 = 0.0052 The MPE ratio for Bluetooth Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.00042 mW c m -2 / 1.0 mW cm -2 = 0.00042 The sum of the MPE ratios for all simultaneous transmitting antennas = 0.0052 + 0.00042 = 0.0056 As the sum of MPE ratios for all simultaneous transmitting antennas is ≤ 1.0, simultaneous transmission MPE test exclusion will be applied. Conclusion In frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As simultaneous transmission MPE test exclusion is applied and the measured power density at 20cm from all the standalone transmissions is lower than the MPE limi t, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or near by persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13020063HKG-002 Page 1 of 33 FCC ID: VLJ80-9152-01 IC: 4522A-80915201 GENERAL INFORMATION Applicant Name: Binatone Electronics International Limited Applicant Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong FCC Specification Standard: FCC Part 15, October 1, 2011 Edition FCC ID: VLJ80-9152-01 FCC Model(s): L601BT, L602BT, L603BT, L604BT, L605BT, L60XBT IC Specification Standard: RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 RSS-310 Issue 3, December 2010 IC: 4522A-80915201 IC Model(s): L601BT, L602BT, L603BT, L604BT, L605BT Type of EUT: Transmitter Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Speakerphone and Bluetooth– Base Unit Serial Number: N/A Sample Receipt Date: February 01,.2013 Date of Test: March 05 – 07, 2013 Report Date: April 25, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13020063HKG-002 Page 2 of 33 FCC ID: VLJ80-9152-01 IC: 4522A-80915201 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.3 Test Methodology.................................................................................................... 7 2.4 Test Facility............................................................................................................. 7 3.0 System Test Configuration...................................................................................... 9 3.1 Justification ............................................................................................................. 9 3.2 EUT Exercising Software....................................................................................... 10 3.3 Details of EUT and Description of Accessories...................................................... 11 3.4 Measurement Uncertainty ..................................................................................... 11 4.0 Test Results............................................................................................................ 13 4.1 Field Strength Calculation...................................................................................... 13 4.2 Radiated Emissions............................................................................................... 14 4.2.1 Radiated Emission Configuration Photograph ..................................................... 14 4.2.2 Radiated Emission Data ..................................................................................... 14 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 23 4.3 Radiated Emission on the Bandedge..................................................................... 24 4.4 AC Power Line Conducted Emission ..................................................................... 27 4.4.1 AC Power Line Conducted Emission Configuration Photograph.......................... 27 4.4.2 AC Power Line Conducted Emission Data .......................................................... 27 5.0 Equipment List...................................................................................................... 33 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13020063HKG-002 Page 3 of 33 FCC ID: VLJ80-9152-01 IC: 4522A-80915201 EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13020063HKG-002 Page 4 of 33 FCC ID: VLJ80-9152-01 IC: 4522A-80915201 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Antenna Requirement 15.203 7.1.2 # Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.249(a), 209, & 109 15.249(d) A2.9(a) A2.9(b) Pass Pass 4.2 4.3 Radiated Emission in Restricted Bands 15.205 2.2 Pass 4.2 AC Power Line Conducted Emission 15.207 &…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: VLJ80-9152-01 IC: 1135B-80915201 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “Ten Pao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: VLJ80-9152-01 IC: 1135B-80915201 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “Ten Pao”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: VLJ80-9152-01 IC: 1135B-80915201 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “Ten Pao”) Left Side View
