VLJC100-LX-HSDigital Cordless Telephone (Handset Unit)

Connecting the base 1. Plug the telephone line cord into the socket marked on the underside of the base. 2. Plug the power adapter into the socket marked on the underside of the base and plug the other end into the electrical outlet wall outlet. Switch on the electrical outlet. Installing and charging the handset 1. Remove the battery cover from the back of the handset and insert the rechargeable Ni-MH battery pack supplied. Please note the ’+’ and ’-’ markings inside the battery compartment and insert in the correct direction. 2. Slide the battery cover back into place. 3. If you are charging the battery for the first time, place the handset on the base to charge for at least 24 hours continuously. 4. When the handset is fully charged, f icon will appear steady on the display. Plug the other end of the telephone line cord (make sure that one end is already plugged into the base) into the telephone wall outlet. Connecting the handset and charger (for multi-pack only) If you have purchased a multiple pack, you will need to carry out this process for all the handsets and chargers. 1. Plug the power adapter into the socket marked on the underside of the charger and plug the other end into the electrical outlet wall socket. 2. Remove the battery cover from the back of the handset and insert the AAA 2.4v 300mAh Ni-MH rechargeable battery supplied. Please note the ’+’ and ’-’ markings inside the battery compartment and insert in the correct direction. 3. Slide the battery cover back into place. 4. If you are charging the battery for the first time, place the handset on the charger to charge for at least 24 hours continuously. 4.5 Delete all entries 1. Press m. The display shows Phonebook. 2. Press m. The display shows View. 3. Scroll d to Delete all and press m. 4. The display shows Confirm?. 5. Press m to confirm or b to cancel. 5. Phone setup 5.1 Sounds 5.1.1 Ringer volume You can adjust the ringer volume and set different volume levels. Choose from 5 volume levels or Off. 1. Press m, scroll d to Phone setup. 2. Press m. The display shows Sounds. 3. Press m. The display shows Ring volume. 4. Press m, scroll u or d to select the volume (1 -5 or OFF) . 5. Press m to confirm or b to return to the previous menu. 5.1.2 Ringer tones You can set different ringer melodies for your internal and external calls. Choose from 10 different ringer melodies. NOTE You will hear a sample ring as you scroll to each ring melody. 1. Press m, scroll d to Phone setup. 2. Press m. The display shows Sounds. 3. Press m. Scroll d to Ring tones. 4. Press m, scroll u or d to select the melody (1 -10) . 5. Press m to confirm or b to return to the previous menu. 5.1.3 Key tones on/off When you press a button on the handset keypad, you will hear a beep. You can switch these beeps on or off. WRITING TIPS Press b to delete the last character or digit. Press u or d to move between characters. Press 0 to insert a space. 4.2 View or dial an entry 1. Press u. 2. Scroll u or d to the entry you want. OR Enter the first letter of the name to search alphabetically. The first name that starts with this letter or the nearest letter in the alphabet will be displayed. Scroll u or d to the entry you want. 3. Press t to dial or e to return to standby. 4.3 Edit a name and number 1. Press m. The display shows Phonebook. 2. Press m. The display shows View. 3. Scroll d to Edit and press m. 4. Scroll u or d to the entry you want to edit, or search alphabetically and press m. The existing name is displayed. 5. Press b to delete the name if required, then enter the new name and press m. The existing number is displayed. 6. Press b to delete the number if required, then enter the new number and press m to save. 4.4 Delete an entry 1. Press m. The display shows Phonebook. 2. Press m. The display shows View. 3. Scroll d to Delete and press m. 4. Scroll u or d to the entry you want to delete, or search alphabetically and press m. The display shows Confirm?. 5. Press m to confirm or b to cancel. 4. Phonebook You can store up to 50 names and numbers in the phonebook. Names can be up to 14 characters long and numbers up to 24 digits. 4.1 Store a name and number If the C100xLX is connected to a PABX, you may need to enter a pause in a stored number. This gives the PABX time to find an outside line. A pause is normally stored after the PABX access code (e.g. 9). When storing a number, press and hold # until the display shows P. You can then continue storing the phone number. If you have subscribed to Caller ID Service and wish to display the name of your caller as well as the number, save the full telephone number including the area code to your phonebook. You can store multiple entries, a telephone number may only be saved once. However, to prevent unnecessary duplicated entries, you can only store the same number once. 1. Press m. The display shows Phonebook. 2. Press m. The display shows View. 3. Scroll down to Add new. 4. Press m. The display shows Enter name. 5. Enter the name and press m. The display shows Enter number. 6. Enter the number and press m to save. ENTERING NAMES Use the keypad letters to enter names, e.g. to store TOM: Press 8 once to enter T. Press 6 three times to enter O. Press 6 once to enter M. 6. Edit the number if necessary, then press m to save. 3.7.3 Delete an entry 1. Press r to open the Redial list. 2. Scroll u or d to the entry you want. Press m. 3. Scroll d to Delete and press m. The display shows Confirm?. 4. Press m to confirm or b to cancel. 3.7.4 Delete the entire Redial list 1. Press r to open the Redial list. 2. Press m. Scroll d to Delete all. The display shows Confirm?. 3. Press m to confirm or b to cancel. 3.8 Lock / unlock the keypad When the keypad is locked, you can still answer incoming calls and operate the handset in a normal fashion during a call. When the call ends, the keypad lock resumes in place. NOTE When the keypad is locked, you can still answer incoming calls and operate the handset in a normal fash…

Text truncated - open the document above for the full version.

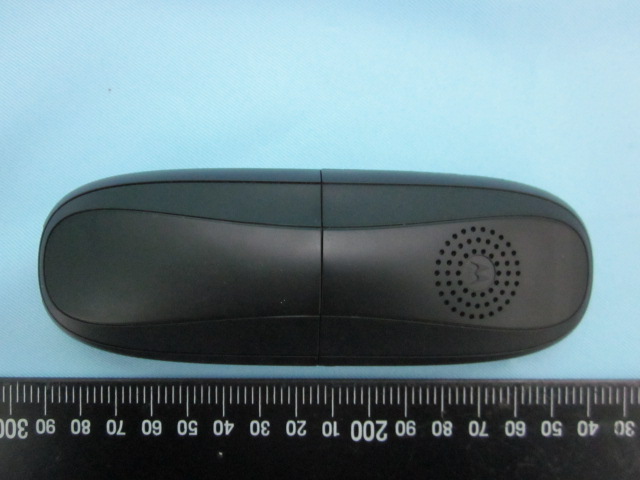

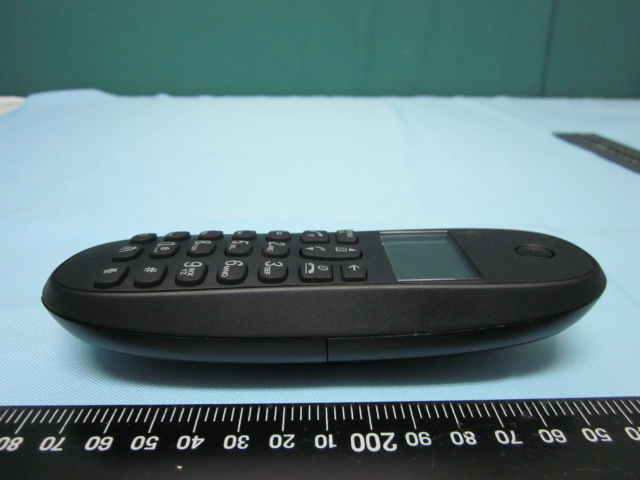

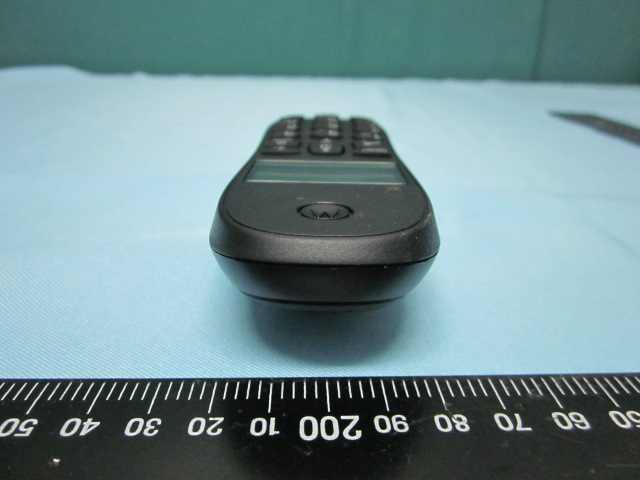

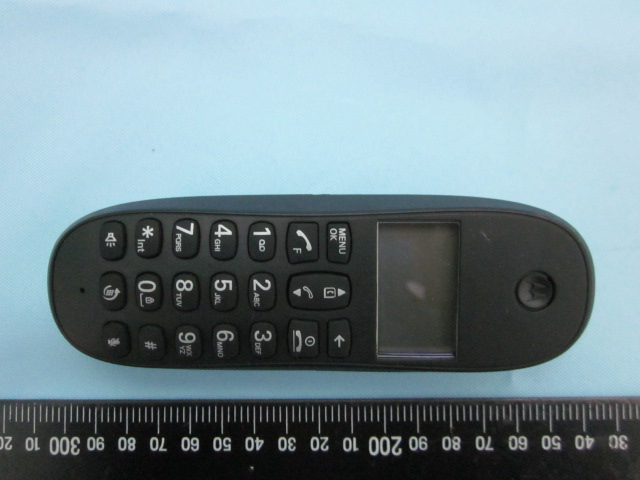

ETC Report No. : 14-02-RBF-009-02 Sheet 1 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 14-02-RBF-009-02 Sheet 2 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Front View of EUT 4. Side View of EUT ETC Report No. : 14-02-RBF-009-02 Sheet 3 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Rear View of EUT 6. Side View of EUT

PRODUCT LABEL ARTWORK Model: C401 GR Fil e: PL_C401_GR_v1.pdf Contact: [email protected] Date: 2 Mar 2011 Ver sion: 1 BASE Label size: W 50.5mm x H 17.9mm (r=1.5mm) SCALE 1:1 LABELS IN POSITION HANDSET SN label size: W 20mm x H 10mm S/N: YYMMTWXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX PRODUCT LABEL ARTWORK Model: C1001LX| Colour: Black | Country: US File: PL_C1001LX_ US_Black_v3 Contact: [email protected] Date: 2014-03-28 Version: 3 Label font: Moto Sans LABELS IN POSITION Handset Label Handset label size: W 43mm x H 16mm BASE LABEL-1BASE LABEL-2 LABELS IN POSITION Engraving size: W35mm x H 34mm Base label size: W 34.5mm x H 33.5mm Base label size: W 50mm x H 13mm FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES. THIS EQUIPMENT MEETS THE APPLICABLE INDUSTRY CANADA TERMINAL EQUIPMENT & TECHNICAL SPECIFICATION. FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES. THIS EQUIPMENT MEETS THE APPLICABLE INDUSTRY CANADA TERMINAL EQUIPMENT & TECHNICAL SPECIFICATION. SGYYMMXXXXXXG Use only supplied Battery C1001LX FCC ID: VLJC100-LX-HS US: BINW400BC100-LX IC: 4522A-C100LX HAC CORDLESS TELEPHONE E235447 SGYYMMXXXXXXG Use only supplied Battery C1001LX FCC ID: VLJC100-LX-HS US: BINW400BC100-LXIC: 4522A-C100LX HA C CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China IC: 4522A-C100LX RINGER EQUIVALENCE:0.0B USOC JACK:RJ11C/W HAC Customer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.com C1001LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China IC: 4522A-C100LX RINGER EQUIVALENCE:0.0B USOC JACK:RJ11C/W HAC Customer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.com C1001LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447

PRODUCT LABEL ARTWORK Model: C401 GR Fil e: PL_C401_GR_v1.pdf Contact: [email protected] Date: 2 Mar 2011 Ver sion: 1 BASE Label size: W 50.5mm x H 17.9mm (r=1.5mm) SCALE 1:1 LABELS IN POSITION HANDSET SN label size: W 20mm x H 10mm S/N: YYMMTWXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX PRODUCT LABEL ARTWORK Model: C1002LX| Colour: Black | Country: US File: PL_C1002LX_ US_Black_v4 Contact: [email protected] Date: 2014-03-28 Version: 4 Label font: Moto Sans LABELS IN POSITION Handset Label Handset label size: W 43mm x H 16mm BASE LABEL-1 BASE LABEL-2 LABELS IN POSITIONLABELS IN POSITION Engraving size: W35mm x H 34mm Base label size: W 34.5mm x H 33.5mm Base label size: W 50mm x H 13mm CHARGER Engraving size: W 25mm x H 25mm Charger label size: W 24.5mm x H 24.5mm SGYYMMXXXXXXG Use only supplied Battery Model: C1002LX FCC ID: VLJC100-LX-HS US: BINW400BC100-LX IC: 4522A-C100LX CORDLESS TELEPHONE E235447 HAC SGYYMMXXXXXXG Use only supplied Battery Model: C1002LX FCC ID: VLJC100-LX-HSUS: BINW400BC100-LXIC: 4522A-C100LX CORDLESS TELEPHONE E235447 HA C FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES. THIS EQUIPMENT MEETS THE APPLICABLE INDUSTRY CANADA TERMINAL E QUIPMENT & TECHNICAL SPECIFICATION. FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES . THIS E QUIPMENT MEETS THE APPLIC ABLE INDUSTR Y CANADA TERMINAL E QUIPMENT & TE CHNIC AL SPE CIFIC ATION. Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China IC: 4522A-C100LX RINGER EQUIVALENCE:0.0B USOC JACK:RJ11C/W HAC Customer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.com Model: C1002LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in ChinaIC: 4522A-C100LXRINGER EQUIVALENCE:0.0BUSOC JACK:RJ11C/W HACCustomer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.comModel: C1002LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1002LX CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1002LX CORDLESS TELEPHONE E235447

PRODUCT LABEL ARTWORK Model: C401 GR Fil e: PL_C401_GR_v1.pdf Contact: [email protected] Date: 2 Mar 2011 Ver sion: 1 BASE Label size: W 50.5mm x H 17.9mm (r=1.5mm) SCALE 1:1 LABELS IN POSITION HANDSET SN label size: W 20mm x H 10mm S/N: YYMMTWXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX PRODUCT LABEL ARTWORK Model: C1003LX| Colour: Black | Country: US File: PL_C1003LX_ US_Black_v1 Contact: [email protected] Date: 2014-03-28 Version: 1 Label font: Moto Sans LABELS IN POSITION Handset Label Handset label size: W 43mm x H 16mm BASE LABEL-1 BASE LABEL-2 LABELS IN POSITIONLABELS IN POSITION Engraving size: W35mm x H 34mm Base label size: W 34.5mm x H 33.5mm Base label size: W 50mm x H 13mm CHARGER Engraving size: W 25mm x H 25mm Charger label size: W 24.5mm x H 24.5mm SGYYMMXXXXXXG Use only supplied Battery Model: C1003LX FCC ID: VLJC100-LX-HS US: BINW400BC100-LX IC: 4522A-C100LX CORDLESS TELEPHONE E235447 HAC SGYYMMXXXXXXG Use only supplied Battery Model: C1003LXFCC ID: VLJC100-LX-HSUS: BINW400BC100-LXIC: 4522A-C100LX CORDLESS TELEPHONE E235447 HA C FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES. THIS EQUIPMENT MEETS THE APPLICABLE INDUSTRY CANADA TERMINAL E QUIPMENT & TECHNICAL SPECIFICATION. FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES . THIS E QUIPMENT MEETS THE APPLIC ABLE INDUSTR Y CANADA TERMINAL E QUIPMENT & TE CHNIC AL SPE CIFIC ATION. Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China IC: 4522A-C100LX RINGER EQUIVALENCE:0.0B USOC JACK:RJ11C/W HAC Customer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.com Model: C1003LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in ChinaIC: 4522A-C100LXRINGER EQUIVALENCE:0.0BUSOC JACK:RJ11C/W HACCustomer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.comModel: C1003LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1003LX CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1003LX CORDLESS TELEPHONE E235447

PRODUCT LABEL ARTWORK Model: C401 GR Fil e: PL_C401_GR_v1.pdf Contact: [email protected] Date: 2 Mar 2011 Ver sion: 1 BASE Label size: W 50.5mm x H 17.9mm (r=1.5mm) SCALE 1:1 LABELS IN POSITION HANDSET SN label size: W 20mm x H 10mm S/N: YYMMTWXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX C401 Digital Cordless Telephone P/N: C38000D48O1AGR03 Made in China XXXXXXXXXXXX PRODUCT LABEL ARTWORK Model: C1004LX| Colour: Black | Country: US File: PL_C1004LX_ US_Black_v1 Contact: [email protected] Date: 2014-03-28 Version: 1 Label font: Moto Sans LABELS IN POSITION Handset Label Handset label size: W 43mm x H 16mm BASE LABEL-1 BASE LABEL-2 LABELS IN POSITIONLABELS IN POSITION Engraving size: W35mm x H 34mm Base label size: W 34.5mm x H 33.5mm Base label size: W 50mm x H 13mm CHARGER Engraving size: W 25mm x H 25mm Charger label size: W 24.5mm x H 24.5mm SGYYMMXXXXXXG Use only supplied Battery Model: C1004LX FCC ID: VLJC100-LX-HS US: BINW400BC100-LX IC: 4522A-C100LX CORDLESS TELEPHONE E235447 HAC SGYYMMXXXXXXG Use only supplied Battery Model: C1004LXFCC ID: VLJC100-LX-HSUS: BINW400BC100-LXIC: 4522A-C100LX CORDLESS TELEPHONE E235447 HA C FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES. THIS EQUIPMENT MEETS THE APPLICABLE INDUSTRY CANADA TERMINAL E QUIPMENT & TECHNICAL SPECIFICATION. FCC ID: VLJC100-LX-BS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. US: BINW400BC100-LX PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.COMPLIES WITH 47 CFR PA RT 68 AND IC CS-03 RULES . THIS E QUIPMENT MEETS THE APPLIC ABLE INDUSTR Y CANADA TERMINAL E QUIPMENT & TE CHNIC AL SPE CIFIC ATION. Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China IC: 4522A-C100LX RINGER EQUIVALENCE:0.0B USOC JACK:RJ11C/W HAC Customer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.com Model: C1004LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in ChinaIC: 4522A-C100LXRINGER EQUIVALENCE:0.0BUSOC JACK:RJ11C/W HACCustomer serivice number: US and Canada: 1-888-331-3383 Web: www.motorola.comModel: C1004LX ONLY USE THE PROVIDED ADAPTOR! CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1004LX CORDLESS TELEPHONE E235447 Digital Cordless Telephone DC 7.5V 300mA SGYYMMXXXXXXG Made in China Model: C1004LX CORDLESS TELEPHONE E235447

ETC Report No. : 14-02-RBF-009-02 Sheet 4 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Battery ETC Report No. : 14-02-RBF-009-02 Sheet 5 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Component View of PCB ETC Report No. : 14-02-RBF-009-02 Sheet 6 of 6 Sheet FCC ID:VLJC100-LX-HS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. Solder View of PCB

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1403FS17 Applicant ： Binatone Electronics International Limited EUT Type ： Digital Cordless Telephone FCC ID ： VLJC100-LX-HS Trade Name ： Motorola Model Number ： C1001LX, C1002LX, C1003LX, C1004LX Date of Received ： Mar. 26, 2014 Test Period ： Mar. 27 ~ 28, 2014 Date of Issued ： Apr. 01, 2014 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2013 IEEE Std. 1528a-2005 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r03 KDB 865664 D02 RF Exposure Reporting v01r01 Max. SAR ： 0.00391 W/kg UPCS Head SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1403FS17Page 1 of 61 ©2014 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT) .................................................................................................. 3 2. Introduction .................................................................................................................................................... 4 3. SAR Definition ............................................................................................................................................... 4 4. SAR Measurement Setup .............................................................................................................................. 5 5. System Components ..................................................................................................................................... 6 5.1 DASY52 E-Field Probe System....................................................................................................... 6 5.2 Data Acquisition Electronic (DAE) System ...................................................................................... 9 5.3 Robot ............................................................................................................................................... 9 5.4 Measurement Server ....................................................................................................................... 9 5.5 Device Holder for Transmitters ...................................................................................................... 10 5.6 Phantom - SAM v4.0 ..................................................................................................................... 10 5.7 Data Storage and Evaluation..........................................................................................................11 6. Test Equipment List ..................................................................................................................................... 14 7. Tissue Simulating Liquids ............................................................................................................................ 15 7.1 Ingredients ..................................................................................................................................... 16 7.2 Recipes.......................................................................................................................................... 16 7.3 Liquid Depth................................................................................................................................... 17 8. Measurement Process................................................................................................................................. 18 8.1 Device and Test Conditions ........................................................................................................... 18 8.2 Conducted power .......................................................................................................................... 18 8.3 SAR Testing with RF Transmitters................................................................................................. 19 8.4 System Performance Check.......................................................................................................... 21 8.5 Dosimetric Assessment Setup....................................................................................................... 23 8.6 Spatial Peak SAR Evaluation ........................................................................................................ 25 9. Measurement Uncertainty............................................................................................................................ 26 10. SAR Test Results Summary ........................................................................................................................ 29 10.1 Head SAR...................................................................................................................................... 29 10.2 Std. C95.1-1992 RF Exposure Limit .............................................................................................. 30 11. Conclusion ................................................................................................................................................... 31 12. SAR Measurement Guidance ..............................................................................…

Text truncated - open the document above for the full version.

FCC ID: VLJC100-LX-HS ETC Report No.: 14-03-MAS-213-01 IC ID:4522A-C100LX Sheet 1 of 42 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D (15.323c) and Industry Canada RSS-213, Issue 2（4.3.4b） Report No.: 14-03-AS-213-01 Client: Binatone Electronics International Limited Product: Digital Cordless Telephone Model: C1001LX (Multiple Model List please see page 4.) FCC ID: VLJC100-LX-HS IC ID: 4522A-C100LX Manufacturer/supplier: Shenzhen Guo Wei Electronics Co., Ltd. Date test item received: 2014/03/12 Date test campaign completed: 2014/03/27 Date of issue: 2014/03/31 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 42 pages Test Engineer Checked By Approved By John Li Perry Lin James Cheng FCC ID: VLJC100-LX-HS ETC Report No.: 14-03-MAS-213-01 IC ID:4522A-C100LX Sheet 2 of 42 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION.........................................................................................................3 1.1 Testing Laboratory..................................................................................................................... 3 1.2 Client Information....................................................................................................................... 3 1.3 Manufacturer.............................................................................................................................. 3 2 TEST INFORMATION..................................................................................................................4 2.1 Description of Tested Device(s).............................................................................................. 4 2.2 Test Environment....................................................................................................................... 4 3 TEST REPORT SUMMARY........................................................................................................5 3.1 Test Summary............................................................................................................................ 5 3.2 Other Comments........................................................................................................................ 6 4 TEST SETUP.................................................................................................................................7 4.1 Monitoring Tests......................................................................................................................... 7 5 TEST EQUIPMENT LIST.............................................................................................................8 6 TEST RESULT...............................................................................................................................9 6.1 Monitoring time........................................................................................................................... 9 6.2 Monitoring threshold................................................................................................................ 10 6.3 Maximum transmit period....................................................................................................... 11 6.4 System Acknowledgement..................................................................................................... 13 6.5 Least Interfered Channel, LIC................................................................................................ 20 6.6 Random waiting....................................................................................................................... 29 6.7 Monitoring bandwidth and reaction time.............................................................................. 30 6.8 Monitoring antenna.................................................................................................................. 37 6.9 Monitoring threshold relaxation............................................................................................. 38 6.10 Duplex system LBT............................................................................................................... 39 6.11 Co-located device LBT......................................................................................................... 40 6.12 Fair Access............................................................................................................................. 41 A PPENDIX1 MANUFACTURER DECLARATION...................................................................................42 FCC ID: VLJC100-LX-HS ETC Report No.: 14-03-MAS-213-01 IC ID:4522A-C100LX Sheet 3 of 42 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 1 GENERAL INFORMATION 1.1 Testing Laboratory Name: Electronic Testing Center, Taiwan Address: No. 8, Lane 29, Wenming Rd., Leshan Tsuen, Guishan Shiang, Taoyuan Country, 33383, Taiwan, R.O.C. Telephone: 886-3-3280026 Fax: 886-3-3276188 NVLAP lab registration #: 200133-0 IC OATS registration #: IC 2949-1 E-Mail: [email protected] 1.2 Client Information Name: Binatone Electronics International Limited Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong 1.3 Manufacturer Name: Shenzhen Guo Wei Electronics Co., Ltd. Address: No.3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China FCC ID: VLJC100-LX-HS ETC Report No.: 14-03-MAS-213-01 IC ID:4522A-C100LX Sheet 4 of 42 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shian…

Text truncated - open the document above for the full version.

FCC Part 15 Subpart D Test Report of E.U.T. : Digital Cordless Telephone (Handset Unit) MODEL : C1001LX; C1002LX; C1003LX; C1004LX FCC ID. : VLJC100-LX-HS for APPLICANT : Binatone Electronics International Limited ADDRESS : Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw; e-mail ： [email protected] Report Number : 14-02-RBF-009-02 ETC Report No. : 14-02-RBF-009-02 FCC ID:VLJC100-LX-HS Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Manufacturer : Shenzhen Guo Wei Electronics Co., Ltd. No.3038, Luosha Road, Liantang, Luohu District, Shenzhen, Guangdong, China Description of EUT a) Type of EUT : Digital Cordless Telephone (HandsetUnit) b) Trade Name : Motorola c) Model No. : C1001LX; C1002LX; C1003LX;…
