VNH-IK-CSR8645BLUETOOTH MODULE

[IK-CSR8645] Bluetooth Module for Audio Features - Dual-mode Bluetooth / Bluetooth low energy radio - Stereo codec with 2 microphone inputs - Fast Charging support up to 200mA with no external components - Multipoint support for A2DP connection to 2 A2DP source for music playback - aptX, SBC, MP3, AAC and Fast stream decoder - Built-in Reference Clock: 26MHz - RoHS Compliant Applications - Stereo headsets - Wired stereo headset and headphones - Portable stereo speakers Device Overview Dimensions RF specification Parameter (BDR transmitter) Min Typ Max Bluetooth Spec Unit Maximum Transmit Power - - - -6 ~ +4 dBm Power Density - - - - dBm Power Control - - Frequency Range 2402 - 2480 MHz 20dB Bandwidth for modulation carrier - 925 1000 ≤1000 kHz Adjacent Channel power F=F 0 ±2MHz - -36 -20 ≤-20 dBm F=F 0 ±3MHz - -42 -40 ≤-40 dBm F=F 0 ±≥3MHz - <-60 -40 ≤-40 dBm Modulation Characteristics △F1avg 140 165 175 140<F zavg <175 kHz △F2max 115 135 - ≥115 kHz △F2avg/△F1avg 0.8 0.9 - ≥0.80 - Initial Carrier Frequency Tolerance -75 - 75 ±75 kHz Carrier Frequency Drift - - 5 20 ≤20 kHz Single slot packet- 6 25 ≤25 kHz Five slot packet - 7 40 ≤40 kHz Parameter (BDR receiver) Min Typ Max Unit Sensitivity level(at 0.1% BER) - 82 -88 ≤-70 dBm Maximum received signal(at 0.1% BER) - -20 >-10 ≥-20 dBm C/I co-channel - 5 11 ≤11 dB Maximum level of intermodulation interface -39 -30 - ≥-39 dBm Parameter (EDR transmitter) Min Typ Max Unit Relative transmit power -4 -1 - -4 to 1 dB π/4 DQPSK max carrier frequency stability I ωο I - 1 10 ≤10 for all blocks kHz I ωi I - 1 75 ≤75 for all packets I ωο+ ωi I - 2 75 ≤75 for all blocks 8 DPSK max carrier Frequency stability I ωο I - 1 10 ≤10 for all blocks kHz I ωi I - 1 75 ≤75 for all packets I ωο+ ωi I - 1.5 75 ≤75 for all blocks π/4 DQPSK modulation RMS DEVM - 6 20 ≤20 % 99% DEVM - 12 30 ≤30 Peak DEVM - 16 35 ≤35 8DPSK modulation Accuracy RMS DEVM - 6 13 ≤13 99% DEVM - 12 20 ≤20 Peak DEVM - 15 25 ≤25 In-band spurious Emissions F>F 0 +3MHz - <-60 -40 ≤-40 dBm F< F 0 -3MHz - <-60 -40 ≤-40 F= F 0 -3MHz - <-38 -35 ≤-40 F= F 0 -2MHz - -28 -20 ≤-20 F= F 0 -1MHz - -32 -26 ≤-26 dB F= F 0 +1MHz - -32 -26 ≤-26 dB F= F 0 +2MHz - -31 -20 ≤-20 dBm F= F 0 +3MHz -45 -40 ≤-40 Block Diagram PIN Description Antenna / Chip Antenna Frequency Range : 2 400 ~ 2 483.5 MHz Peak Gain : 3.40 dBi Regulatory USA The IK-CSR8645 module has been labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside host audio device. Then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as follows: Contains FCC ID: VNH-IK-CSR8645 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, And (2) this device must accept any interference received, Including interference that may cause undesired operation A user’s manual for the product should include the following statement The following statement must be included as a CAUTION statement in manuals to alert users of FCC RF exposure compliance: CANADA The IK-CSR8645 module has been labeled with its own IC number, and if the IC is not visible when the module is installed inside host audio device. Then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as follows: Contains IC: 10581A-IKCSR8645 A user’s manual for the product should include the following statement

Inkel Corporation. 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea Date: February 13, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Inkel Corporation. 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Bon-Keun, Koo / Principal Research Eng. Inkel Corporation. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Inkel Corporation. 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea Subject: Request for Modular Transmitter Approval In accordance with Part 15.212 Modular Transmitters approval FCC ID: VNH-IK-CSR8645 Inkel Corporation. Requests single modular transmitter approval for the IK-CSR8645 module. This letter addresses the numbered requirements below. Modular approval requirement Yes No (i) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; ✔ (ii) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; ✔ (iii) The module must contain power supply regulation on the module; ✔ (iv) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); ✔ (v) The module must demonstrate compliance in a stand-alone configuration; ✔ (vi) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display ✔ (vii) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; ✔ (viii) The module must comply with RF exposure requirements ✔ Sincerely Yours, Bon-Keun, Koo / Principal Research Eng. Inkel Corporation.

Inkel Corporation. 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: VNH-IK-CSR8645 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Bon-Keun, Koo / Principal Research Eng. Inkel Corporation.

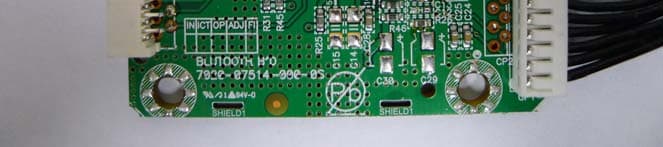

External photos of EUT Front view of EUT Rear view of EUT

Label location

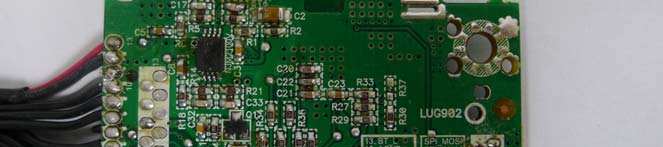

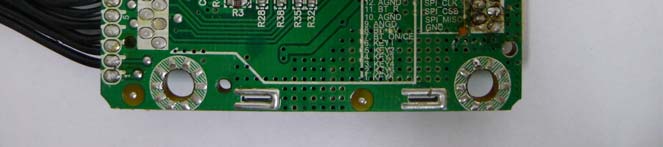

Internal photos of EUT Internal photo (Front) Internal photo (Rear) Internal photo Removed Shield RF part Bluetooth Antennal (Internal Chip type antenna)

MOVON CORPORATION Report Number: MOV-14-RF-I006 Page : (1) of (67) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 RSS-210 ISSUE No. :8 Test Report Equipment Under Test Bluetooth module Model Name IK-CSR8645 Applicant Inkel Corporation. FCC ID VNH-IK-CSR8645 IC 10581A-IKCSR8645 Manufacturer Inkel Corporation. Date of Test(s) 2014. 01. 17 ~ 2013. 02. 13 Date of Issue 2014. 02. 14 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by Inkel Corporation. 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea Tel.: +82-32-650-6141 Fax: +82-32-6466 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-14-RF-I006 Page : (2) of (67) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- Feb 14, 2014 Initial -- MOVON CORPORATION Report Number: MOV-14-RF-I006 Page : (3) of (67) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS.............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 6 3. INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 6 4. MEASUREMENT EQUIPMENT ...................................................................................... 7 5. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 8 6. CONDUCTED POWER LINE TEST .............................................................................. 31 7. RECEIVER RADIATED SPURIOUS EMISSIONS ........................................................ 34 8. 20 ㏈ BANDWIDTH MEASUREMENT & 99 % BANDWIDTH MEASUREMENT ........ 39 9. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 46 10. HOPPING CHANNEL SEPARATION ......................................................................... 51 11. NUMBER OF HOPPING FREQUENCY ...................................................................... 53 12. TIME OF OCCUPANCY (DWELL TIME) .................................................................... 55 13. ANTENNA REQUIREMENT ....................................................................................... 62 14. RF EXPOSURE EVALUATION .................................................................................. 63 15. TEST SETUP PHOTO OF EUT .................................................................................. 65 MOVON CORPORATION Report Number: MOV-14-RF-I006 Page : (4) of (67) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 1. Attestation of test results 1.1. Details of applicant Applicant / Manufacturer : Inkel Corporation. Address : 93, Cheongjung-Ro, Bupyeong-Gu, Incheon, 403-853, Republic of Korea Contact Person : Bon-Keun, Koo Telephone : +82-32-650-6141 Fax : +82-32-650-6466 1.2 . Factory Information Factory 1 : Dongguan Inkel Electronics Co., Ltd. Address : Shang qiao Industrial Road No.36, Dongcheng District, Dongguan City, Guangdong Province, 523111, People’s Republic of China. Factory2 : Inkel Viet Nam Co.,Ltd. Address : Block 26, Quang Minh Industrial Zone, Quang Minh Town, Me Linh District, Hanoi City, 100000, Vietnam. MOVON CORPORATION Report Number: MOV-14-RF-I006 Page : (6) of (67) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Bluetooth module Model Name IK-CSR8645 Serial Number N/A Power supply DC 5.0 V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique GFSK(1Mbps), π/4DQPSK(2Mbps), 8DPSK(3Mbps) Number of channels 79 Antenna gain 3.40㏈i (Max.) TEST SITE REGISTRATION NUMBER FCC(670686) , IC(6432B-1) 2.1. Declarations by the manufacturer None 2.2. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. Example of a 79 hopping sequence in data mode: 40,21,44,23,42,53,46,55,48,33,52,35,50,65,54... 3.2 Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 3.3 System Receiver Input Bandwidth The input bandwidth of the receiver is 1㎒. In every connection one Bluetooth device is the master and the other one is slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single of multispor…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒ Photo of Conducted emission at below 30 ㎒
