VNK15555TRUST US DS-3200 WLOPT SL DESK

UK DE FR IT ES PL NL PT GR DK SE HU CZ FI NO TR RU User’s manual DS-3200 Wireless Optical Slimline Deskset Version 1.0 SK DS-3200 Wireless Optical Slimline Deskset Q P L M K J I D E F C B A O N H G 1 2 3 4 DS-3200 Wireless Optical Slimline Deskset 5 6 7 8 21 1 2 9 10 2 1 ... DS-3200 Wireless Optical Slimline Deskset 1 UK Product information Keyboard A: Internet keys B: Multimedia keys C: Battery low indicator D: Open My computer E: Open calculator F: Standby button G: Connect button H: Battery compartment Mouse I: Left button J: Scroll wheel Button K: Right button L: Browser forward button M: Browser backward button N: Motion sensor O: Battery compartment Receiver P: Connect button Q: Active indicator Steady lit: powered Flashing: connect/active Installation 1 Insert batteries to mouse 2 Insert batteries to keyboard 3 Connect USB to PC 4 Computer on 5 Connect Mouse 1. Press connect button on receiver 2. Press connect button on mouse 6 Connect Keyboard 1. Press connect button on receiver 2. Press connect button on keyboard The product is ready to use! Install Easy Configure Program 7 Place Trust CD in CD-ROM drive 8 Install software 9 Click ‘Next’. Follow onscreen instructions. 10 1. Select ‘Yes, I want to restart my computer now’ 2. Click ‘Finish’. Installation finished. Keyboard and mouse are ready for use. Reminder Less performance • Metal object close to or in between the device • Material of the surface which may cause sensor imprecision. Use a mousepad to avoid it • Place receiver on same hight as mouse • Follow connect mouse or keyboard procedure to change wireless ID in case of disturbace • Batteries (almost) empty • Another wireless device is close by DS-3200 Wireless Optical Slimline Deskset 2 General usage • Adjust the speed of mouse pointer: (1) Open Windows Help (Start → Help). (2) Search “adjust the speed of mouse pointer”. (3) Follow instructions • Read the manual on CD for the use of the configuration program • Num/Scroll/Cap Lock icon is displayed on taskbar once the program is installed • All Windows, Fn+F11: lock keyboard. In Window98SE, Fn+Standby/Sleep: Sleep • Re-connect mouse or keyboard is required after battery is replaced • Install Trust Easy Configuration software on CD to configure the mouse buttons or hot keys • Do not use old and new batteries at the same time, because the old batteries may deplete the new ones If you have any problems, go to www.trust.com/14627 for FAQ, software and manuals. This product may have other item no. due to various keyboard layout, but they are basically the same as 14627’s. Safety • Do not open or repair this device. • Keep this device away from liquids, such as water. • This device meets the essential requirements and other relevant conditions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.trust.com/14627/ce Wireless • This wireless device works at a frequency of 27MHz. It meets the essential requirements and other relevant conditions of R&TTE Directive 1999/5/EC and can be used in EU countries plus: EU candidates and NO/CH/RU/HR/IS/UA. There are no limitations per channel for the above-mentioned countries. Go to www.trust.com/14627 for an updated list of the countries where the use of this device is permitted. • There may be restrictions for the use of this device outside of the EU. If this device is used outside of the EU, check whether this device meets local regulations. Frequency: Mouse: 27.045MHz, Keyboard: 27.145MHz; Bandwidth: 6KHz, Power: 0.5mW. • Nowadays, there are an increasing number of wireless products (video, audio, computer, etc.), which work in the same frequency range as this device. It may, therefore, be possible that the functionality of this product is limited by or is limiting for other wireless products. This can only be avoided by paying attention to the distance between products and, where possible, by changing channels. • Be careful when using wireless devices if you have a pacemaker or are dependent on other life-saving, sensitive electronic equipment, because this product transmits radio signals. • If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste. Warranty & copyright • This product has a two-year manufacturer's warranty which is effective from the date of purchase. For more information see www.trust.com/warranty • Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.

Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including i nterference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

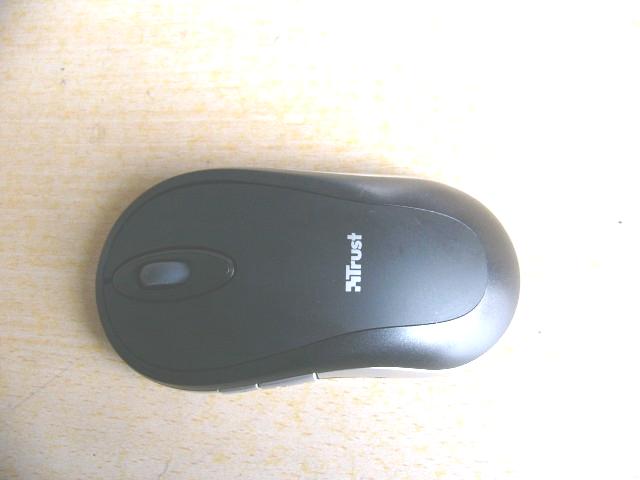

EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: VNK15555

EUT inside whole view Main board component side Main board solder side

X3 the 27.045 crystal oscillator driver the base of U2 the final/buffer amplifier into the same base (U2) is the modulation provided by U2 , the output of U2 has the matching network consisting of C 1 4 , C13, C12 and the C16 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna ground and power source There is no external ground connection .the ground is only that of the printed circuit board. electric current is supplied by 2*AAA batteries.

1 2 34 ABCD 4 3 2 1 D CBA PCBANT SW4 SW ENCODER R410M L21.8uH C422PC522P C3104 SW5 C7100P C812P X1 76.8K C20220p C633P C134P X2 27.045MHz C1427P SW3SW2SW1 DCVRSVDIN LBUT 7 MBUT 6 RBUT 5 VDD 4 OSC2 3 VSS 2 OSC1 1 RFOUT 8 ORFIN0 9 ORFO 10 TXD 11 PD 12 WA 13 WB 14 Z1IN 15 Z2IN 16 X2IN 17 X1IN 18 BATL 19 Y1IN 20 Y2IN 21 TXCB 22 BBUT 23 FBUT 24 SVDIN 25 DCVR 26 VL 27 VL_NM 28 U2MA6223-Q17K -+ VBAT1UM-4(X2) L1100uH D1IN5819 + C1220U C24104 VBT + C9 220U C10104 R5*16K R6*30K R12910K R131.2M VBT DCVRSVDIN LED1LED R9 10KR8 220K C17 220U C150.1U YB YAXBXA PD PD YAYBXBXA XY-LED 1 VDD 2 NC 3 VSS 4 NC 5 YA 6 YB 7 XB 8 XA 9 OSC 10 VSSA 11 VDDA 12 U1ATA2180 Q1 2N3906 R7 27R Units Scale sheet mm 1 of 1 rev1.0 DR HUYUQING CHKD APPD Title: 010 52-mlk096 5 MA622 3 AEP011052512400 MLKIndustries(shenzhen)Limited

The test report consists 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: Trust International BV Laan van Barcelona 600, 3317 DD Dordrecht, Postbus 8043, 3301 CA Dordrecht, The Netherland November 28, 2007 FCC ID: VNK15555 EUT: TRUST US DS-3200 WLOPT SL DESK Model: 15555 Report Type: Original Report Test Engineer: Jacky Huang Test Date: November 26, 2007 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Trust International BV FCC ID: VNK15555 KMO FCC ID Report Report #: KSZ2007090401J01 Page 2 of 2 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................3 2. Technical Test...............................................................................................................................................................4 2. 1 Summary of Test Results.........................................................................................................................................4 2. 2 Antenna Requirement..............................................................................................................................................4 3. EUT Modifications.......................................................................................................................................................4 4. Conducted Power Line Test.........................................................................................................................................5 4. 1 Test Equipment.......................................................................................................................................................5 4. 2 Test Procedure........................................................................................................................................................5 4. 3 Test Setup...............................................................................................................................................................5 4. 4 Configuration of The EUT.......................................................................................................................................6 4. 5 EUT Operating Condition........................................................................................................................................7 4. 6 Conducted Power Line Emission Limits..................................................................................................................7 4. 7 Conducted Power Line Test Result...........................................................................................................................7 5. Radiated Emission Test................................................................................................................................................8 5. 1 Test Equipment.......................................................................................................................................................8 5. 2 Test Procedure........................................................................................................................................................8 5. 3 Radiated Test Setup.................................................................................................................................................8 5. 4 Configuration of The EUT.....................................................................................................................................10 5. 5 EUT Operating Condition......................................................................................................................................10 5. 6 Radiated Emission Limit.......................................................................................................................................10 5. 7 Radiated Emission Test Result...............................................................................................................................11 6. Band Edge..................................................................................................................................................................12 6. 1 Test Equipment..........................................................................................................…

Text truncated - open the document above for the full version.

Radiated emission test view
