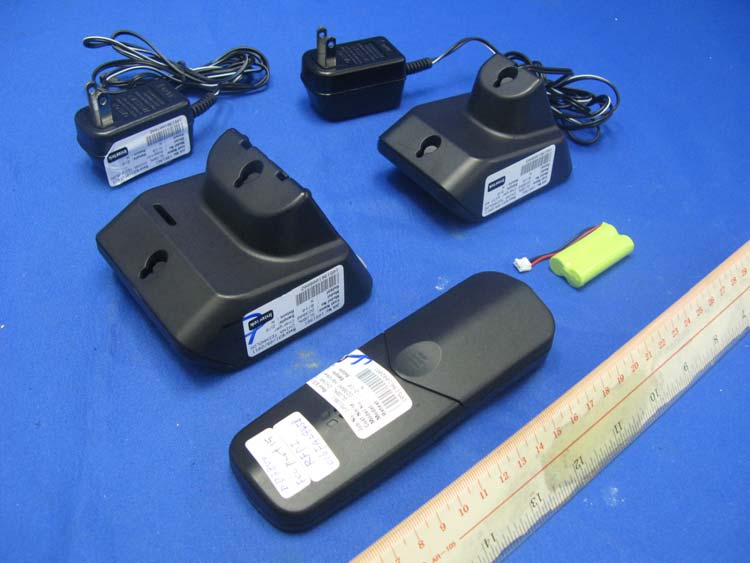

INTERTEK TESTING SERVICES External Photos - Model: DD3800-2-BK FCC ID: VNN-DD3800 external photos - 1 of 4 HK11051961 Job Number HK11051961 Job Number INTERTEK TESTING SERVICES External Photos - Model: DD3800-2-BK FCC ID: VNN-DD3800 external photos - 2 of 4 INTERTEK TESTING SERVICES External Photos - Model: DD3802-2-BK FCC ID: VNN-DD3800 external photos - 3 of 4 INTERTEK TESTING SERVICES External Photos - Model: DD3802-2-BK FCC ID: VNN-DD3800 external photos - 4 of 4

1 3 2 5 4 FCC ID: VNN-DD3800 MADE IN CHINA Battery Pack: 2.4V 400mAh Ni-MH Disconnect the telephone line from the equipment before replacing batteries 22.00 mm 17.00 mm 4.1 6 8 DC6V 7 9 FCC REGISTRATION No.:THIS UNIT COM PLIES WITH 47 CFR PART 68 FCC RULES US 7ARW401BDD3802 FCC ID: VNN-DD3800RINGER EQUIVALENCE NO.: 0.0BREQUIRED CONNECTOR RJ11C DC 6V 400mA CLASS 2 MADE IN CHINA 7.1 22.00 mm 32.00 mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. DC6V 6 7 FCC REGISTRATION No.:THIS UNIT COMPLIES WITH 47 CFR PART 68 FCC RULES HAC US : 7ARW400BDD3800 FCC ID: VNN-DD3800RINGER EQUIVALENCE NO.: 0.0BREQUIRED CONNECTOR RJ11C DC 6V 200mA CLASS 2 MADE IN CHINA 32.00 mm 17.00 mm 7.1

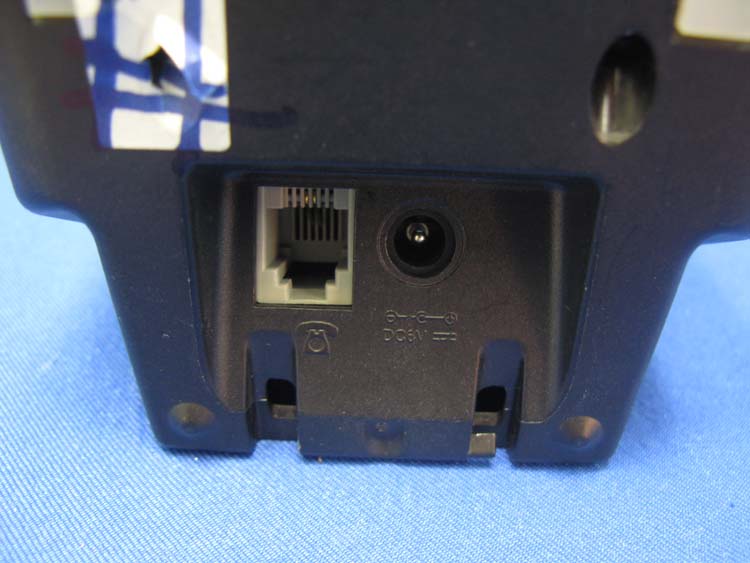

INTERTEK TESTING SERVICES Internal photos - Model: DD3800-2-BK FCC ID: VNN-DD3800 internal photos - 1 of 7 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DD3800-2-BK FCC ID: VNN-DD3800 internal photos - 2 of 7 Base Unit Main PCB solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DD3802-2-BK FCC ID: VNN-DD3800 internal photos - 3 of 7 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DD3802-2-BK FCC ID: VNN-DD3800 internal photos - 4 of 7 Base Unit Main PCB solder side Base Unit Telephone Line Jack and AC Jack front side INTERTEK TESTING SERVICES Internal photos - Model: DD3802-2-BK FCC ID: VNN-DD3800 internal photos - 5 of 7 Base Unit Telephone Line Jack and AC Jack rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DD3800-2-BK & DD3802-2-BK FCC ID: VNN-DD3800 internal photos - 6 of 7 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DD3800-2-BK & DD3802-2-BK FCC ID: VNN-DD3800 internal photos - 7 of 7 Handset Main PCB Keypad side Handset Oscillator PCB comp side

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1107FS19-02 Applicant ： Global China Technology Limited EUT Type ： 1.9GHz DECT6.0 Handset FCC ID ： VNN-DD3800 Trade Name ： GCT/ Emerson Model Number ： DD3800-X-YY, DD3802-X-YY / EM6000-X-YY, EM6120-X-YY, EM6150-X-YY, EM61X0-YY Dates of Test ： Jul. 07, 2011 Date of Issued ： Dec. 19, 2012 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 IEEE Std. 1528a-2005 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.005320 W/kg UPCS Head SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Sam Chuang ) (Alex Wu) ©2012 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 1 of 62 Contents 1. Description of Equipment under Test (EUT) .................................................................................................. 3 2. Introduction .................................................................................................................................................... 4 3. SAR Definition ............................................................................................................................................... 5 4. SAR Measurement Setup .............................................................................................................................. 6 5. System Components ..................................................................................................................................... 8 5.1 DASY4 E-Field Probe System.............................................................................................................. 8 5.2 Data Acquisition Electronic (DAE) System ..........................................................................................11 5.3 Robot ...................................................................................................................................................11 5.4 Measurement Server ...........................................................................................................................11 5.5 Device Holder for Transmitters........................................................................................................... 12 5.6 Phantom - SAM v4.0 .......................................................................................................................... 12 5.7 Data Storage and Evaluation.............................................................................................................. 13 6. Test Equipment List ..................................................................................................................................... 16 7. Tissue Simulating Liquids ............................................................................................................................ 17 7.1 Ingredients .......................................................................................................................................... 18 7.2 Recipes............................................................................................................................................... 18 7.3 Liquid Confirmation............................................................................................................................. 19 8. Measurement Process................................................................................................................................. 20 8.1 Device and Test Conditions ................................................................................................................ 20 8.2 System Performance Check............................................................................................................... 21 8.3 Dosimetric Assessment Setup............................................................................................................ 23 8.4 Spatial Peak SAR Evaluation ............................................................................................................. 25 9. Measurement Uncertainty............................................................................................................................ 26 10. SAR Test Results Summary ........................................................................................................................ 29 10.1 Head SAR........................................................................................................................................... 29 10.2 Std. C95.1-1992 RF Exposure Limit................................................................................................... 30 11. Conclusion ................................................................................................................................................... 31 12. References .................................................................................................................................................. 31 Appendix A - System Performance Check...............................................................................…

Text truncated - open the document above for the full version.

SAR Test Setup Photographs EUT Back side EUT Front side EUT Top side ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 1 of 3 Right Head Setup Figure 2. Right Head SAR Test Setup (Cheek) Figure 3. Right Head SAR Test Setup (Tilted) EUT Top side EUT Back side EUT Front side ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 2 of 3 Left Head Setup Figure 4. Left Head SAR Test Setup (Cheek) Figure 5. Left Head SAR Test Setup (Tilted) EUT Top side EUT Front side EUT Back side ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 3 of 3

SAR EUT Photographs EUT Photo ( 1 ) EUT Photo ( 2 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 1 of 4 EUT Photo ( 3 ) EUT Photo ( 4 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 2 of 4 EUT Photo ( 5 ) EUT Photo ( 6 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 3 of 4 EUT Photo ( 7 ) EUT Photo ( 8 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS19-02Page 4 of 4

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-DD3800 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-DD3800 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.:HK11051961 DD3800-2-BK Talking and Charging in Base Unit Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 6DB AC dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JUN.2011 22:44:26 Report no.:HK11051961 DD3800-2-BK Talking and Charging in Base Unit Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average29.9985 MHz 32.94 L1 -17.05 Date: 20.JUN.2011 22:44:19 Report no.:HK11051961-1 DD3800-2-BK Talking Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JUN.2011 22:47:23 Report no.:HK11051961-1 DD3800-2-BK Talking Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average29.9985 MHz 33.07 L1 -16.92 Date: 20.JUN.2011 22:47:14 Report no.: HK11051961 DD3802-2-BK Base On Line Mode AC Mains Ctrl No.: N/A 6DB 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 20 ms PREAMP OFFAtt 10 dB AUTO AC 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 2.SEP.2011 20:09:16

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID:VNN-DD3800 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID:VNN-DD3800 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VNN-DD3800 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VNN-DD3800 peaktp - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN – DD3800 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN – DD3800 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Global China Technology Limited Application For 47 CFR Part 15: 2011 Certification Unlicensed Personal Communication Service Devices FCC ID: VNN-DD3800 Model: DD3800-X-YY, EM6000-X-YY, DD3802-X-YY, EM6120-X-YY, EM6150-X-YY, EM61X0-YY Test Report Number: HK11051961-1 Issue Date: December 18, 2012 MN/ KY - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: Global China Technology Limited Applicant Address: Room 308, 3/F., Kwong Sang Hong Centre, 151-153 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: VNN-DD3800 FCC Model(s): DD3800-X-YY, EM6000-X-YY, DD3802-X-YY, EM6120-X-YY, EM6150-X-YY, EM61X0-YY Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Cordless DECT Phone Serial Number: N/A Sample Receipt Date: May 31, 2011 Date of Test: June 20- July 11, 2011 Report Date: December 18, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK11051961-1 Page 1 of 59 FCC ID: VNN-DD3800 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission.......................................…

Text truncated - open the document above for the full version.

Date: 19 August 2011 To whom it may concern, Declarations FCC ID: VNN-DD3800 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The upper monitoring threshold of base unit and handset unit declared by manufacture are -57.4dBm and -59.5dBm respectively. 5. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 Remove power from device A C 3 On Hook on device side NA C 4 Switch-off device NA NA 5 Remove power from companion device B A 6 On Hook by companion device B NA A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signalling information. C – Connection is terminated but companion device transmits control or signalling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards,
