VNY-3565Color Changing Fountain & Underwater Light Show

INSTRUCTIONS FOR UNdeRwaTeR LIghT ShOw & FOUNTaIN™ NOTe: This product should be operated in at least 12 inches of water to get the maximum water height. IMPORTaNT: Place in water before turning on fountain. BaTTeRy INSTaLLaTION Make sure the product is thoroughly dry before replacing batteries. 1. Turn cap on battery casing counter clockwise to open. 2. Remove battery cover and insert four (4) “D” batteries. 3. Line up the notch of the battery cover with the notch on the battery casing and press firmly. 4. Screw cap on battery casing and tighten securely to ensure that water does not seep into battery casing. To replace the batteries in the remote control 1. Unscrew battery door on the back of the remote control. 2. Lift battery door off and remove batteries. 3. Insert two (2) “AA” batteries. 3. Re-insert battery door and screw closed. Make sure to tighten securely. NOTe! • Use Alkaline batteries only. • Do not dispose battery into fire. • Do not use rechargeable batteries. • Non-rechargeable batteries are • Do not mix old and new batteries. not to be recharged. • Do not mix alkaline, standard, or rechargeable batteries. • The supply terminal is not to be • Remove exhausted batteries promptly and dispose of properly. short circuited. • Batteries are to be inserted with the correct polarity. ON/OFF & SeLeCTINg The LIghT ShOw All the shows can be controlled by using the button on the unit or by the remote control. The Underwater Light Show and Fountain offers multiple light shows for the fountain and for the underwater light show. Mix & match the fountain and the underwater light shows to create your own water and light fantasy. There are many combinations to choose from. FOUNTaIN ShOwS UNdeRwaTeR LIghT ShOwS Disco Party Lights Flash Randomly Starry Night Chasing Lights Color Shifter Two Speed Flashing Randomly cycles through all shows Color Changing Fountain can be turned on without the lights All Lights On Randomly cycles through all shows ON/OFF/MOde BUTTON ON UNIT The left side of the button controls the fountain light show; the right side controls the underwater light show. • To turn on, press the button once. • Pressing the button again will select the next light show. • To turn off, press and hold the button down until the product shuts off (approximately 3 seconds). continued FoUNTAiN UNDeRwATeR LighT Show great American Merchandise & events (gAMe) 16043 N. 82nd Street Scottsdale, AZ 85260 - 1800 USA tel: 888DUCKY88 (382.5988) fax: 602.957.PooL (7665) email: [email protected] www.game-group.com © 2007 gAMe: great American Merchandise & events. All rights reserved. 3565 Ro iNSTR 122707 (12.2007) ON/OFF/MOde BUTTON ON ReMOTe CONTROL • The top half of the button controls the fountain light show; the bottom half controls the underwater light show. • To turn on, press the button once. • Pressing the button again will select the next light show. • To turn off, press and hold the button down until the product shuts off (approximately 3 seconds). IMPORTaNT: do not submerse unit in water as this could damage the electronic components. Make sure lid is securely fastened before use. Remove from pool when not in use or while cleaning so unit is not damaged by skimmers or other devices. WARNING: SeIZUReS - PeOPLe wITh PhOTOSeNSITIve ePILePSy CaN have SeIZUReS TRIggeRed By FLICkeRINg OR FLaShINg LIghTS SUCh aS STROBe OR dISCO LIghTS. keeP OUT OF ReaCh OF ChILdReN. ThIS IS NOT INTeNded aS a TOy. CaUTION: Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTe: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. however, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTe: The MANUFACTUReR iS NoT ReSPoNSiBLe FoR ANY RADio oR TV iNTeRFeReNCe CAUSeD BY UNAUThoRiZeD MoDiFiCATioNS To ThiS eQUiPMeNT. SUCh MoDiFiCATioNS CoULD VoiD The USeR AUThoRiTY To oPeRATe The eQUiPMeNT. LIMITed waRRaNTy STaTeMeNT general Terms This Limited warranty applies to the product enclosed (“the Product”) distributed by great American Duck Races, inc., an Arizona corporation, doing business as great American Marketing and events (“gAM e”), sold with this Limited warranty Statement. This Limited warranty is applicable in all countries. • gAM e warrants that the Product you have purchased from gAM e is free from defects in materials or workmanship under normal use during the warranty period. The warranty period starts on the date of purchase and continues for ninety (90) days. Your dated sales or delivery receipt, showing the date of purchase of the Product, is your proof of the purchase date. • During the warranty period, gAMe will repair or replace any defective parts with new parts, or, at gAMe’s discretion, us…

Text truncated - open the document above for the full version.

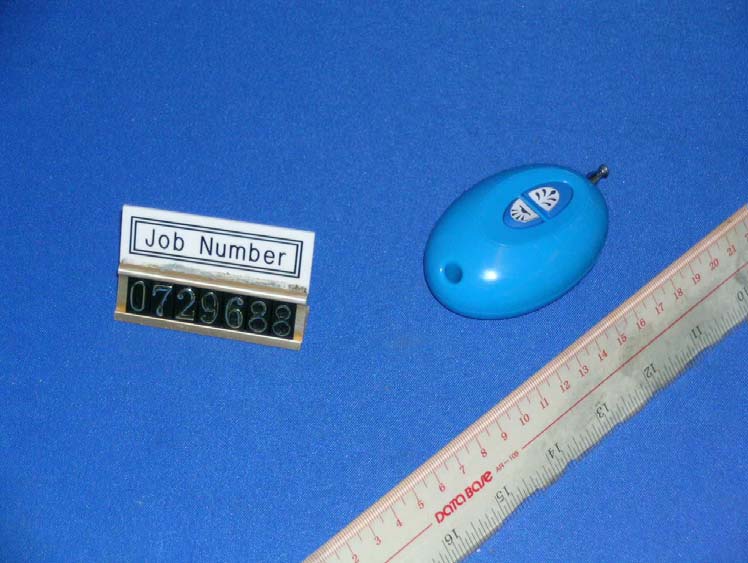

External Photo FCC ID : VNY-3565 External Photo - front External Photo - rear

16.0m m 2.0m m

Internal Photo FCC ID : VNY-3565 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : VNY-3565 Internal Photo - 3

CIRCUIT DESCRIPTION: IN TRANSMIT MODE: After TX unit press either K1, K2, the transmit frequency is oscillated by Y1 and mixed with the encoded signal from SO port (pin 8) of U1 (TX-2B) by Q1then coupled through L3 to 260MM rod antenna The low pass filter made up of C2, L3 & C11, which is connected to the 260MM rod antenna. 3Vdc (2 x 1.5Vdc, “AA” size) Alkaline Batteries supplies energy.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-Jan-2008 Sheet of File: D:\xie 文件夹 \ 喷水灯 \TY 30 08-11 -09 .dd b Drawn By: 11 Right 1 Test 2 GND 3 BACK 4 For 5 Turbob 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 LEFT 14 U1=TX-2B TX-2B ANT C5 27P C7 82P C3 104P R5 150 R1 100R R2 220K C1 100uF L2 3.9uH Q2 C945P Q1 C945P K2Right K1Left Y1 27.145MHz VCC=3V R3 20K 3V C6 56P C11 18P VDD so LEFT RIGHT OSCO OSCI PC C10 102P R4 56K C9 102P L1 5.6uH L34.7uH C4 104P C2 202P C833P TY3008D01-TX SCH

- The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Great American Duck Races, Inc. Application For Certification (FCC ID: VNY-3565) Transmitter 0729688 BH/ SL January 10, 2008 INTERTEK TESTING SERVICES FCC ID: VNY-3565 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: VNY-3565 MEASUREMENT/TECHNICAL REPORT Great American Duck Races, Inc. - MODEL: 3565 FCC ID: VNY-3565 January 10, 2008 This report concerns (check one:) Original Grant X ii Class II Change Equipment Type: DXX - Part 15 Low Pwr Com. Device Tx (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 / 505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: VNY-3565 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Bandedge Plot ................................................................................................. 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Emissions Test Procedures .............................................................................. 25 INTERTEK TESTING SERVICES FCC ID: VNY-3565 iv List of attached file Exhibit type File Description filename Cover Letter Letter of Agency letter.pdf Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandedge Plot be.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User …

Text truncated - open the document above for the full version.

Job No.: 0729688

Test Setup FCC ID : VNY-3565 Radiated - front Radiated - rear 3565 3565
