VON-BAT-01BLUETOOTH TRANSMITTER

Motorcycle Communication System BAT-01 User Manual Getting Start • BAT-01 connections- hooking up your non-Bluetooth gear • State diagram- navigating your way around the various connected devices • Navigation 101- some simple rules to keep track of where you are • The panic button- if all else fails • Channel priorities • Radio transceiver Pairing mode C (BAT-01 audio transmitter): Turn the power on, then press the pairing button for 3~5 seconds until green/red flash. BAT-01 only can be paired with headset automatically. BAT-01 connections The following diagram maps out the normal operating states of the BSH-01, the buttons to press to select them, and the sounds you hear when you get there. Navigation 101 This assumes you have the standard configuration with a BAT-01 on device 1, your Bluetooth phone on device 2, and a second BSH-01 on device 3. Refer to the state diagram until you get used to operating your BlueVirtu system. Switching to device 3 (intercom) • If you are not currently connected to device 3, press button C to connect (3 beeps). Switching to device 2 (phone) • If you are not currently connected to device 2, press button B to connect (2 beeps). Switching to device 1 (BAT-01) • If you are currently connected to device 2 (phone), press button B to connect (1 beep). • If you are currently connected to device 3 (intercom), press button C to connect (1 beep). • If you aren't sure which device you are currently connected to, 1 or 2 presses of either button B or C will get you home (1 beep) Switching to an unassigned device • If you attempt to switch to a device which has not been assigned to a paired device, the connection will immediately revert back to the current device. Switching to an assigned but unavailable device • If you attempt to switch to a device which has been paired but is currently not available, the BSH-01 will search for about 10 seconds for that device. • During the search, the blue LED will flash rapidly. • If found, the new connection will be made. • If not found, the connection will revert back to the current device. • In either case, the number of beeps will tell you where you end up! Channel priorities There are 6 possible sound sources in a typical BlueVirtu configuration. It could get real messy with them all on at the same time! But the system sorts that out for you by assigning priorities to all the channels, and switching to the highest priority active channel at any time. You can also manually select a device and park on it for outgoing calls (intercom, phone, radio). Priorities Device Source Tones Comments 1 highest 3 BSH-01 intercom Blip-Blip-Blip Tap button C on either BSH-01 to open/close this channel 2 2 Bluetooth phone Blip-Blip Opens automatically on incoming call, hold button B to manually switch to this channel 3 1 BAT-01 Blip the 'background' device 3.1 Phone mutes any lower priority sources until quiet for about 5 seconds 3.2 Radio mutes any lower priority sources until quiet for about 5 seconds 3.3 Audio 1 mutes any lower priority sources until quiet for about 5 seconds 3.4 lowest Audio 2 mutes any lower priority sources until quiet for about 5 seconds Stacking your sound sources You can make use of these priorities to build your system up. Think of it like a building, starting from the basement, with each level having higher priority than the ones below Level Device Typical audio source 6 3 BSH-01 Intercom 5 2 Bluetooth mobile phone 4 1 BAT-01 phone Non-Bluetooth mobile phone 3 1 BAT-01 Radio VHF or PRS radio transceiver 1 1 BAT-01 Audio 1 GPS navigator or radar detector Basement 1 BAT-01 Audio 2 MP3 player for background music Radio transceiver • Once you have paired up with your BAT-01 on device 1, connected your VHF or PRS radio, connected your PTT (push to talk) button, selected your desired channel or frequency, you are ready to roll. • Incoming radio traffic will switch you to device 1 (assuming no higher priority device active) with 1 beep. • Press the PTT to transmit. Wait a second between pressing the PTT and talking to ensure your first word/s are not lost in transmission. • For outgoing radio calls, hold button B or button C once or twice to switch through to device 1 (1 beep), then use your PTT to transmit. You will need to adjust your squelch control to prevent the transceiver from hogging the BAT-01 inputs and never reverting to background music on the audio 1 or 2 inputs Guidelines for safe use • Do not expose your product to fire or extreme high temperature. • Do not inverted battery. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t…

Text truncated - open the document above for the full version.

DIMTON CO., LTD. 8F.-3, No.37, Sec. 2, Sanmin Rd., Banciao City, Taipei County 220, Taiwan (R.O.C.) (T) 02-23710663 (F) 02-23718591 Date: October 12, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Andrew Chen / Manager (Director) DIMTON CO., LTD. Tel: 02-23710663 Fax: 02-23718591 E-Mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

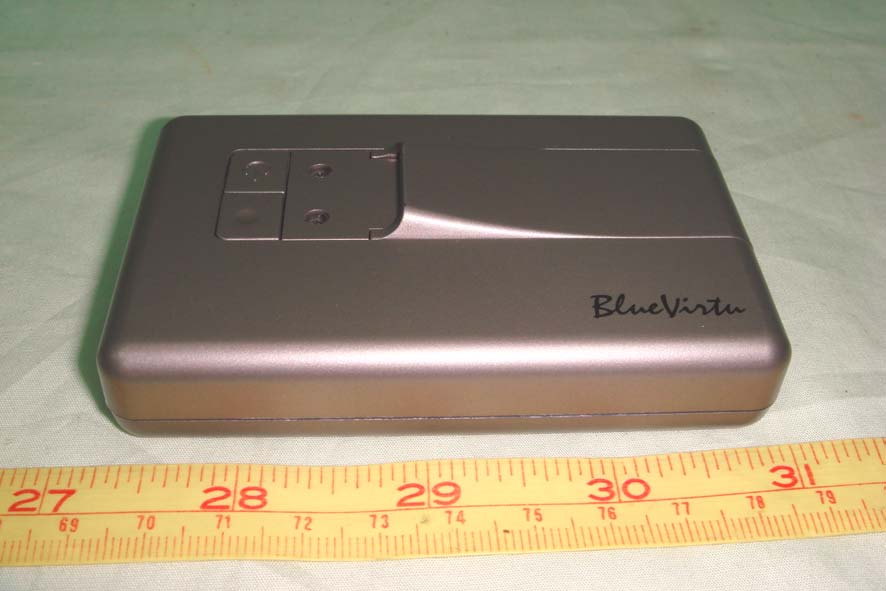

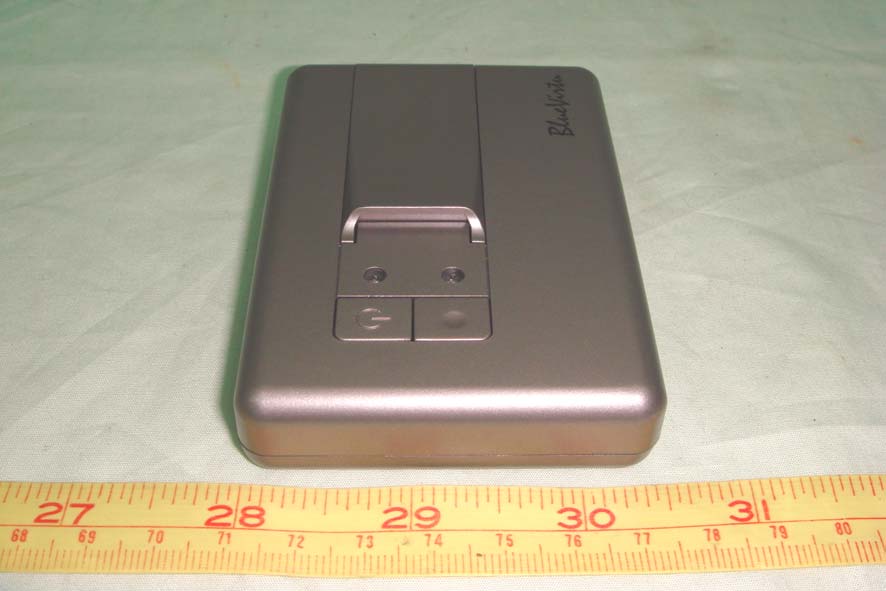

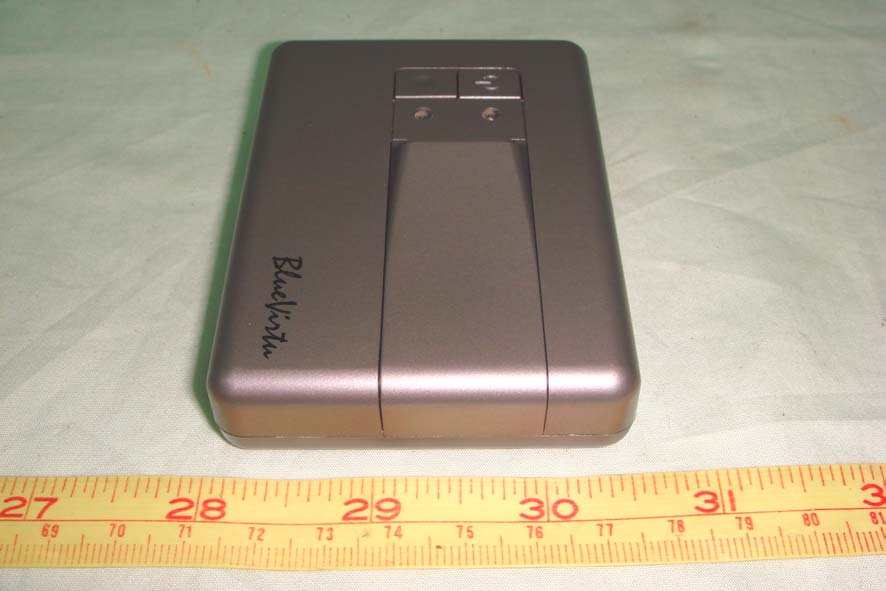

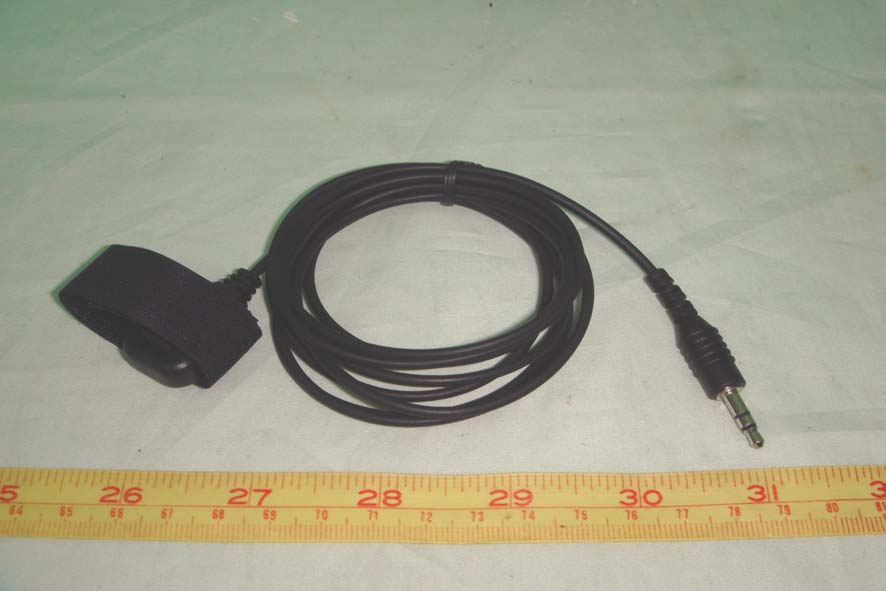

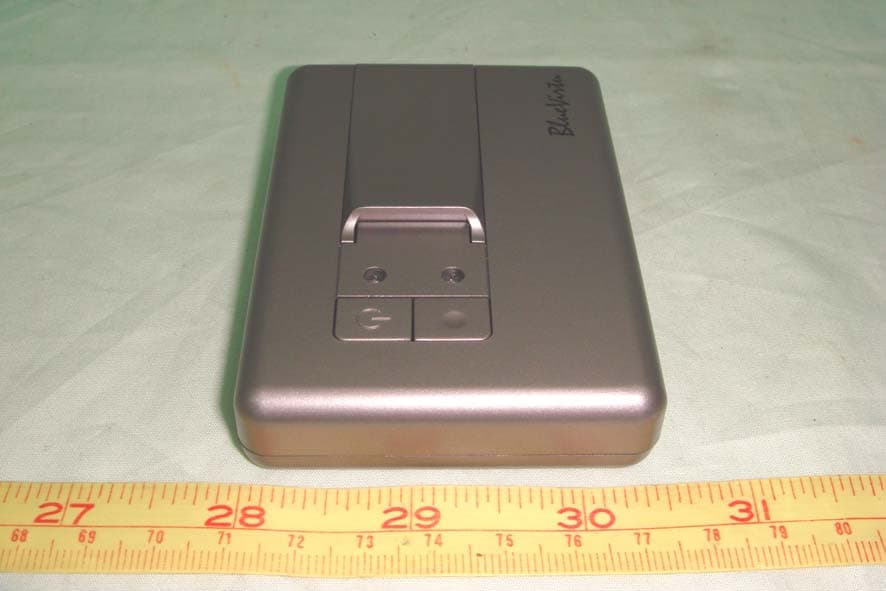

Compliance Certification Services Inc. Report No.: 70926105 Date of Issue: October 3, 2007 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70926105 Date of Issue: October 3, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 70926105 Date of Issue: October 3, 2007 Page 3 Rev. 00

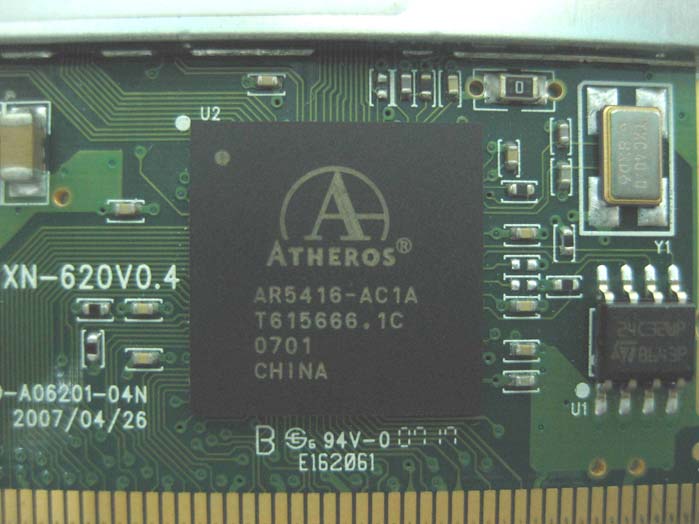

Compliance Certification Services Inc. Report No.: 70926105 Date of Issue: October 3, 2007 Page 1 Total Page: 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70926105 Date of Issue: October 3, 2007 Page 2 Rev. 00 Antenna

1 CHANT SINCERE CO.,LTD. CHANT SINCERE CO.,LTD. 7-2,No.188, Sec.3, Ta Tung Road, Hsi Chih City, Taipei Hsien,221Taiwan, R.O.C. E-mail: [email protected] Tel:886-2-8647-1251 # 1606 Fax:886-2-8647-1744 TITLE



CHIP ANTENNA MEASUREMENT AND PERFORMANCE REPORT REPORT CUSTOMER



        PRODUCT NAME



BT RECEIVER SAMPLE NO.



920D07E15225013 DESCRIPTION



BLUETOOTH CHIP ANTENNA FOR BLUETOOTH BAND (2.4-2.483 GHz) APPLICATION PAGE NO.12 DOCUMENT NO.
CAMR-07071901 DATE
2007-07-19 WEB SITE
www.coxoc.com.tw APPROVAL BY
Aaron MEASURED BY
C. L. Liao CHANT SINCERE CO.,LTD 2 Outline Outline SummaryProduct FeatureS Parameter Measurement
Return Loss (S11) of Bluetooth Chip Antenna 3D Far-Field Radiation Pattern Test Antenna Efficiency Summarization Table 3 Summary Summary
       0

     ! " # $ % & ' ( ) *  + Pi    ,  -  pad ' . / 0 1 2 3  & 4  5 6 7 8 9 :  2 3 & 0402  7 8 9 : ; <
 = > ? 390MHz  @  A + B C  D E F G H  = I J )  K L M N  O P F Q R  = S  T A  + U V W X Y .  Z [ \  = I ] N I ^ % _ ? 30-40%  ` M a b  U V N I c d < 4 Product Feature Product Feature
 0
  Pad       Layout  0402               ! " # $  % & ' ( 5 S Parameter Measurement S Parameter Measurement Measurement Environment ) (Agilent E5071B ENA, 300KHz~8.5GHz) 6 S Parameter Measurement S Parameter Measurement (Agilent E5071B ENA, 300KHz~8.5GHz) Measurement Instrument Return loss (S11) Test Report for Bluetooth Chip Antenna 7 3D Far 3D Far - - Field Radiation Pattern Test Field Radiation Pattern Test Measurement Environment ) 3D Far-field Anechoic Chamber AUT setup condition Receiver Terminal Transmission Terminal 8 3D Far 3D Far - - Field Radiation Pattern Test Field Radiation Pattern Test f = 2400MHz 9 3D Far 3D Far - - Field Radiation Pattern Test Field Radiation Pattern Test f = 2450MHz 10 3D Far 3D Far - - Field Radiation Pattern Test Field Radiation Pattern Test f = 2483MHz 11 3D Far 3D Far - - Field Radiation Pattern Test Field Radiation Pattern Test f = 2500MHz 12 Antenna Efficiency Summarization Antenna Efficiency Summarization Table Table






                                 !

" # #          !

       $ %   & '  ( &   !



  )  *$ % '  & +   !            ) & , *$ % '  & +   !

      ) & , *)   & +   !           $ %   & '        !


  )   -        !


 ) & ,  -        !

     !    . ' / + 0 /  1

   !    . ' / +  /  1


 ( &   !








           !            2   + % +  !


   & 3  4    !

       0  + &     !       $  +   +4  # - +    !
      5   6 -     )  7

Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 42 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For BLUETOOTH TRANSMITTER Model: BAT-01 Trade Name: Bluevirtu Issued to DIMTON CO., LTD. 8F-3, No. 37, Sec. 2, Sanmin Rd., Banciao City, Taipei County 220, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................7 4.2 MEASUREMENT EQUIPMENT USED......................................................................................7 5. FACILITIES AND ACCREDITATIONS ...........................................................................................8 5.1 FACILITIES ......................................................................................................................................8 5.2 EQUIPMENT.....................................................................................................................................8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS....................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................10 6.1 SETUP CONFIGURATION OF EUT....................................................................................................10 6.2 SUPPORT EQUIPMENT ............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 PEAK POWER.................................................................................................................................11 7.2 BAND EDGES MEASUREMENT .............................................................................................12 7.3 FREQUENCY SEPARATION....................................................................................................17 7.4 NUMBER OF HOPPING FREQUENCY ...................................................................................19 7.5 TIME OF OCCUPANCY (DWELL TIME)................................................................................21 7.6 SPURIOUS EMISSIONS .............................................................................................................28 7.7 POWERLINE CONDUCTED EMISSIONS............................................................................................38 8. APPENDIX I RADIO FREQUENCY EXPOSURE .........................................................................39 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP ........................................................................41 Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: DIMTON CO., LTD. 8F-3, No. 37, Sec. 2, Sanmin Rd., Banciao City, Taipei County 220, Taiwan (R.O.C.) Equipment Under Test: BLUETOOTH TRANSMITTER Trade Name: Bluevirtu Model: BAT-01 Date of Test: September 28 ~ October 2, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: S.C. Wang Miller Lee Executive Vice President Deputy Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product BLUETOOTH TRANSMITTER Trade Name Bluevirtu …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Page 41 Rev. 00 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 70926105-RP1 FCC ID: VON-BAT-01 Date of Issue: October 3, 2007 Page 42 Rev. 00 Radiated Emission Setup Photos
