VON-BMD-01Bluetooth Transmitter

A. Overview： 1. Button: Power On(Off), Pairing, Change mode Light Indicator 2. 2.5mm Phone Jack 3. Battery Cover Left B. Install and Change Battery Put the battery into the unit and close the battery cover (Pic. 1) Check the cover indication “ ” is aimed at “ ”as show on Pic. 1. Close the cap by rotating the battery cover clockwise about 45 degrees. Clockwise 45 C. Pairing mode : 5sec. 3sec. Object : BSH-02 a. Turn on the BSH-02 device and go to pairing mode ( press the button A about 8 sec.)。 D. Change mode E、Light indicator table F.Specifion 1. Install the Battery When you want change the battery. Rotate counterclockwise 45 degrees, as show on Pic. 2. Pull the battery cover and change the battery. Counterclockwise 45 2. Change Battery 3. Power On When the unit is power off, please press the button about 3 sec. till the indicator light flashes green. b.Confirm the BMD-01 is power Off. Press the BMD-01 button about 6 sec. till the indicator light flashes green and red. 3 sec. 3 sec. 3 sec. c. When those units have been successfully paired, their indicator lights flash green. BMD-01 have 3 modes can be selected, A2DP, HSP standby and HSP always On. Different modes will connect different channeal. Press the button to change mode. For Example： a. If you want to use Radio, and need play music from mobile phone. You need set the BMD-01 to HSP standby mode. If your Radio communication is the most important, you need set the BMD-01 to HSP always On mode. b. If you want to use audio player (ex. Navigation device or ipod), you need set the BMD-01 to A2DP mode. BMD-01 function Light inducator Turn On Green light 1 time Searching Green light flash quickly.(15 sec.) Turn Off Green light flash 5 times. Paining mode Green and red lights flash (60 sec.) A2DP Mode Green light flash 1 time every 2 Sec. HSPAO Mode Green light flash 2 times every 2 Sec. HSPS Mode Green light flash 3 times every 2 Sec. Standby Green light flash 1 time every 6 Sec. Low Power Red light flash every 6 Sec. ChipsetCSR BC05 V2.1+EDR ProfileHSP, A2DP Frequency 2402~2480 MHz Range 10 meters (Open area) Power Supply 1 x AAA battery Dimensions60(L)x 36(W)x 16(H)mm Weight18g (Without battery weight) Standby time 120hrs Use timeMusic 17 hrs / Talking 19 hrs 3. HSP Always On mode： When BMD-01 setting on HSP Always On mode (HSPAO) ; This mode will continue connect with BSH-02, no matter the signal is incoming or no signal. This mode is suitable for highly use Radio, and hope no lose timing by communication from Radio. The light will continue flash green light 3 times evey 2 sec. 2. HSP Standby mode： When BMD-01 setting on HSP Standby mode (HSPS) ; When you have a signal income or push the PTT (Push to Talk) , it will auto connect with BSH-02. This mode is suitable for you want listen music from BHS-02 by A2DP profile and use Radio from BMD-01. The light will continue flash green light 2 times every 2 sec. Pic. 1 4. Power Off Press the button about 3 sec. till the indicator green light flashes 3 times. 3 sec. 1. A2DP mode：(Default setting) The BMD-01 will set at A2DP Profile, this mode is useful by connect with music audio devices. (ex. Audio player, GPS, Radar detector). The light will continues flash green light 1 time every 2 sec. E. Wack Up Function If the range between BMD-01 and BSH-02 over 10 meters, they will be disconnected. Press BMD-01 button, it will be auto searching and connect to BSH-02. Pic. 2 Federal Communication Commission Interference Statement You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement 1. This Transmitter must not be co ‐ located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual.

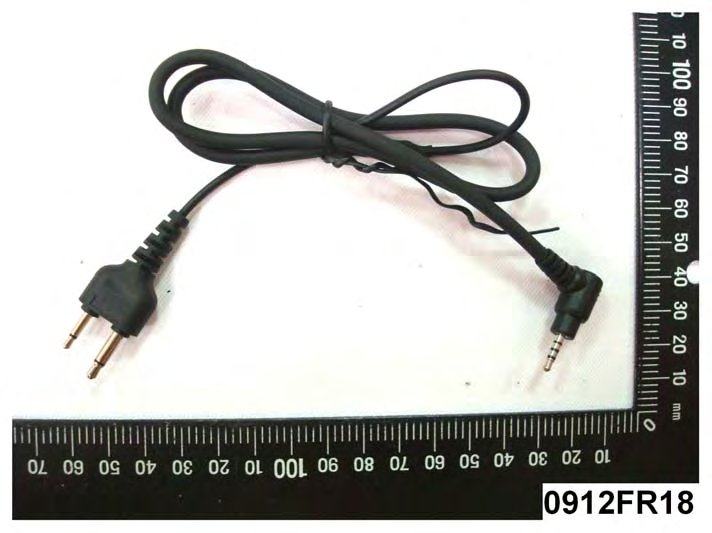

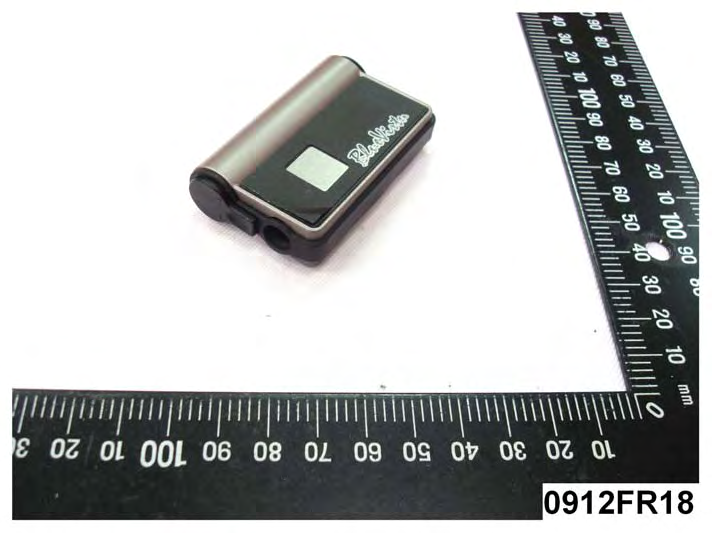

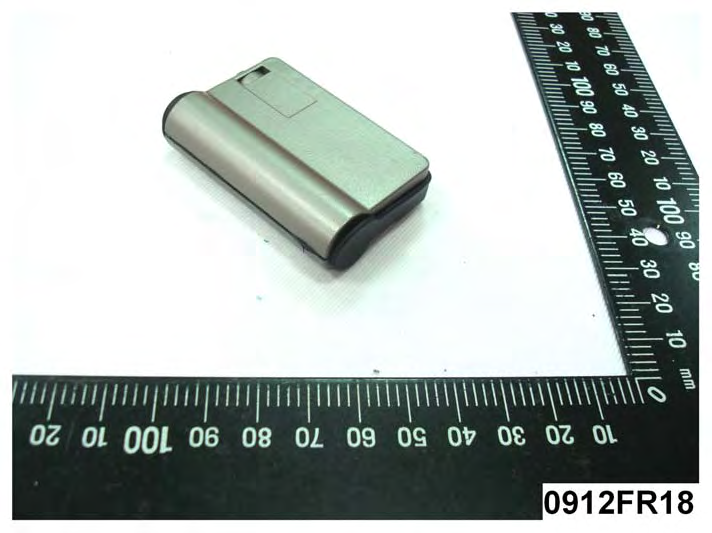

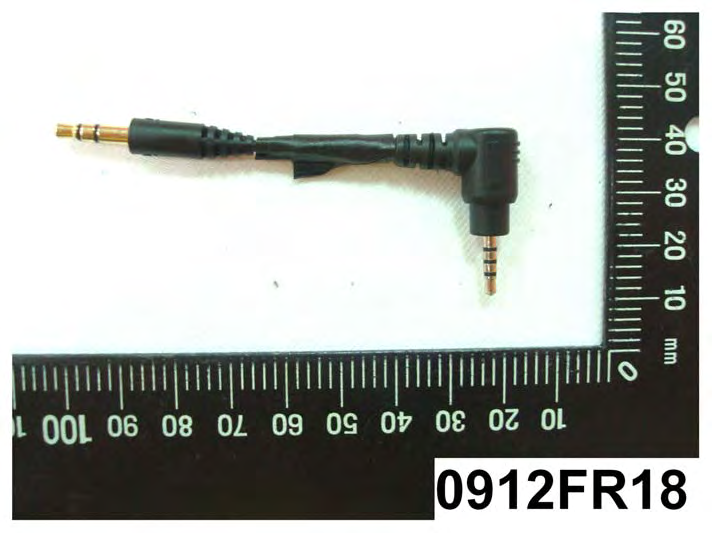

1 of 5 External Photos Model Number: BMD-01 FCC ID: VON-BMD-01 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) Battery #1 5 of 5 EUT Photo 7 ) Battery #2

1 of 6 Internal Photos Model Number: BMD-01 FCC ID: VON-BMD-01 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 7 EUT Photo 9 ) EUT Photo 10 ) 7 of 7 EUT Photo 11 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1006FS11 Applicant ： DIMTON CO., LTD. Manufacturer ： DIMTON CO., LTD. Product Type ： Bluetooth Transmitter Trade Name ： BlueVirtu Model Number ： BMD-01 FCC ID ： VON-BMD-01 Dates of Test ： Jun. 01, 2010 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1999 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Sam Chuang 20100601 Alex Wu 20100601 Approve Signer Testing Engineer ©2010 A Test Lab Techno Corp. Report Number: 1006FS11Page 1 of 6 Contents 1. Description of Equipment under Test (EUT) ................................................................................................. 3 1.1 RF Output Power ................................................................................................................................ 4 2. Human Exposure Assessment ..................................................................................................................... 5 2.1 Test Result .......................................................................................................................................... 6 ©2010 A Test Lab Techno Corp. Report Number: 1006FS11Page 2 of 6 1. Description of Equipment under Test (EUT) Applicant DIMTON CO., LTD. Applicant Address 15F., No. 866, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan (R.O.C) Manufacturer DIMTON CO., LTD. Manufacturer Address 15F., No. 866, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan (R.O.C) Product Type Bluetooth Transmitter Trade Name BlueVirtu Model Number BMD-01 Frequency Range 2402 - 2480 MHz (GFSK, π/4-DQPSK, 8DPSK) Transmit Power GFSK: 0.00117 W / 0.69 dBm (mean conducted power) π/4-DQPSK: 0.00062 W / -2.05 dBm 8DPSK: 0.00062 W / -2.05 dBm Modulation Technique DSSS Antenna Specification 1.3 dBi Antenna Designation Internal Type Temperature Range -30 ~ +70°C The above equipment was tested by Compliance Certification Services Inc. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties ©2010 A Test Lab Techno Corp. Report Number: 1006FS11Page 3 of 6 1.1 RF Output Power Modulation Type Channel Frequency (MHz) Packet Type Peak Power (dBm) Average Power (dBm) Worst Case Low 2402 DH1 0.34 0.17 □ Low 2402 DH3 0.19 0.10 □ Low 2402 DH5 0.17 0.13 □ Middle 2441 DH1 0.77 0.69 ■ Middle 2441 DH3 0.66 0.62 □ Middle 2441 DH5 0.80 0.62 □ High 2480 DH1 -0.03 -0.06 □ High 2480 DH3 -0.05 -0.08 □ GFSK High 2480 DH5 -0.08 -0.15 □ Low 2402 2DH1 -1.75 -2.29 □ Low 2402 2DH3 -1.71 -2.30 □ Low 2402 2DH5 -1.74 -2.30 □ Middle 2441 2DH1 -1.62 -2.05 ■ Middle 2441 2DH3 -1.51 -2.13 □ Middle 2441 2DH5 -1.55 -2.17 □ High 2480 2DH1 -2.56 -3.03 □ High 2480 2DH3 -2.41 -3.03 □ π/4-DQPSK High 2480 2DH5 -2.45 -3.01 □ Low 2402 3DH1 -1.54 -2.24 □ Low 2402 3DH3 -1.57 -2.22 □ Low 2402 3DH5 -1.48 -2.30 □ Middle 2441 3DH1 -1.35 -2.05 ■ Middle 2441 3DH3 -1.38 -2.14 □ Middle 2441 3DH5 -1.10 -2.14 □ High 2480 3DH1 -2.18 -3.01 □ High 2480 3DH3 -2.37 -3.13 □ 8DPSK High 2480 3DH5 -2.27 -3.08 □ ©2010 A Test Lab Techno Corp. Report Number: 1006FS11Page 4 of 6 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. ©2010 A Test Lab Techno Corp. Report Number: 1006FS11Page 5 of 6 2.1 Test Result Band Packet Type Frequency (MHz) Limit (mw) Distance (cm) [R] Power (dBm) [P] ANT Gain (dBi) [G] [P]+ [G] (W) [TP] Powe…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C Product Type ： Bluetooth Transmitter Applicant ： DIMTON CO., LTD. Address ： 15F., No. 866, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan (R.O.C) Trade Name ： BlueVirtu Model Number ： BMD-01 Test Specification ： FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Issue Date ： May 03, 2010 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan Country 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. A Test Lab Techno Corp. Report No: 1002FR18-01 Page 1/72 Revision History Rev. Issue Date Revisions Revised By 00 Apr. 23, 2010 Initial Issue 01 May 03, 2010 Revised product name, trade name, model number. Joyce Liao A Test Lab Techno Corp. Report No: 1002FR18-01 Page 2/72 Verification Issued Date: 2010/05/03 Product Type : Bluetooth Transmitter Applicant : DIMTON CO., LTD. Address : 15F., No. 866, Zhongzheng Rd., Zhonghe City, Taipei County 23586, Taiwan (R.O.C) Trade Name : BlueVirtu Model Number : BMD-01 FCC ID : VON-BMD-01 EUT Rated Voltage : DC 1.5V, AAA Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART C: Oct., 2009 ANSI C63.4-2003 Test Result : Complied Performed Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan Country 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm The above equipment has been tested by A Test Lab Techno Corp., and found compliance with the requirements set forth in the Electromagnetic Compatibility Directive 2004/108/EC and technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By ： Reviewed By ： (Manager) (Miller Lee ) (Testing Engineer)(Gary Wu) A Test Lab Techno Corp. Report No: 1002FR18-01 Page 3/72 TABLE OF CONTENTS 1 General Information................................................................................................. 6 2 EUT Description....................................................................................................... 7 3 Test Methodology .................................................................................................... 8 3.1. Mode of Operation ............................................................................................. 8 3.2. EUT Exercise Software...................................................................................... 9 3.3. Configuration of Test System Details ................................................................. 9 3.4. Test Site Environment ........................................................................................ 9 4 Conducted Emission Measurement ..................................................................... 10 4.1. Limit ................................................................................................................. 10 4.2. Test Instruments .............................................................................................. 10 4.3. Test Setup........................................................................................................ 10 4.4. Test Procedure..................................................................................................11 4.5. Test Result........................................................................................................11 5 Radiated Interference Measurement .................................................................... 12 5.1. Limit ................................................................................................................. 12 5.2. Test Instruments .............................................................................................. 12 5.3. Setup ............................................................................................................... 13 5.4. Test Procedure................................................................................................. 13 5.5. Test Result....................................................................................................... 15 6 Maximum Conducted Output Power Measurement ............................................25 6.1. Limit .................................................................................................................25 6.2. Test Setup........................................................................................................25 6.3. Test Instruments ..............................................................................................25 6.4. Test Procedure.................................................................................................25 6.5. Test Result.......................................................................................................26 6.6. Test Graphs.....................................................................................................28 7 Minimum 20dB RF Bandwidth Measurement......................................................37 7.1. Limit .................................................................................................................37 7.2. Test Setup........................................................................................................37 7.3. Test Instruments .......................................…
