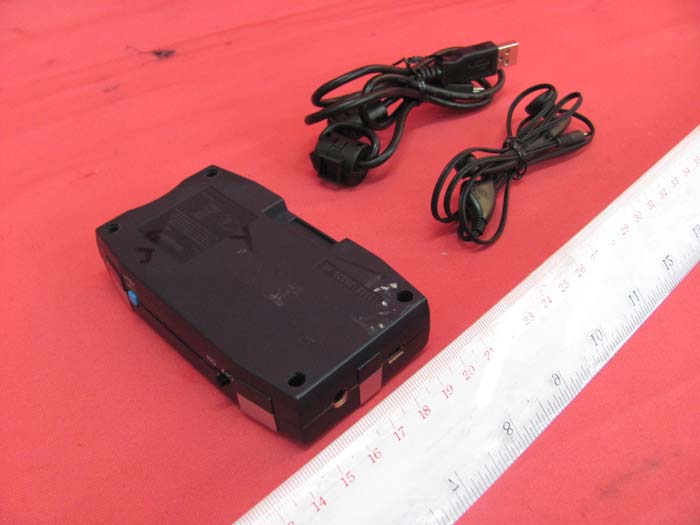

INTERTEK TESTING SERVICE Report No.: HK12071201-2 FCC ID: VPC-89303 Equipment Photographs Model: 89303 (Internal) INTERTEK TESTING SERVICE Report No.: HK12071201-2 FCC ID: VPC-89303 Equipment Photographs Model: 89303 (Internal) INTERTEK TESTING SERVICE Report No.: HK12071201-2 FCC ID: VPC-89303 Equipment Photographs Model: 89303 (Internal) INTERTEK TESTING SERVICE Report No.: HK12071201-2 FCC ID: VPC-89303 Equipment Photographs Model: 89303 (Internal) INTERTEK TESTING SERVICE Report No.: HK12071201-2 FCC ID: VPC-89303 Equipment Photographs Model: 89303 (Internal)

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12071201-2 Citiwell International Inc. Application For Certification (Original Grant) (FCC ID: VPC-89303) Transceiver Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 20, 2012 INTERTEK TESTING SERVICES Report No.: HK12071201-2 FCC ID: VPC-89303 i GENERAL INFORMATION Citiwell International Inc. BRAND NAME: EyeSpy SpyderCam, MODEL: 89303 FCC ID: VPC-89303 Grantee: Citiwell International Inc. Grantee Address: 55 Administration Road, Unit #30, Concord, Canada. Contact Person: Paula Miguel Tel: 905-760-9686 Ext. 222 Fax: 416-736-6118 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: EyeSpy SpyerCam Model: 89303 Type of EUT: Transceiver Description of EUT: Toy Vid Cam EyeSpy Bendable Arms (SpyderCam) Serial Number: N/A FCC ID: VPC-89303 Date of Sample Submitted: July 25, 2012 Date of Test: July 25, 2012 to August 07, 2012 Report No.: HK12071201-2 Report Date: August 20, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12071201-2 FCC ID: VPC-89303 ii SUMMARY OF TEST RESULT Citiwell International Inc. BRAND NAME: EyeSpy SpyderCam, MODEL: 89303 FCC ID: VPC-89303 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12071201-2 FCC ID: VPC-89303 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ...............................................4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs ................................................................................ 8 5.0 Product Labelling ........................................................................................... 8 6.0 Technical Specifications ................................................................................ 8 7.0 Instruction Manual......................................................................................... 8 8.0 Miscellaneous Information ....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12071201-2 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) A Att 10 dB * DC * RBW 300 kHz VBW 1 MHz SWT 2.5 ms 3DB Ref 0 dBm 1 PK VIEW Center 2.393 GHzSpan 30 MHz3 MHz/ -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -21.02 dB m 2.405600000 GHz 1 Delta 1 [T1 ] -51.50 dB -15.360000000 MHz F1 Date: 31.JUL.2012 17:06:24 Ref 0 dBmAtt 10 dB * A * RBW 300 kHz VBW 1 MHz SWT 2.5 ms DC Center 2.491 GHzSpan 30 MHz3 MHz/ 3DB 1 PK VIEW -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -17.77 dB m 2.477500000 GHz 1 Delta 1 [T1 ] -52.04 dB 18.540000000 MHz F2 Date: 31.JUL.2012 17:14:15 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass)

Report No.: HK12071201-2 Model: 89303 Mode: Tx with charging Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Report No.: HK12071201-2 Model: 89303 Mode: Tx with charging Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 51.26 N gnd -12.75 2 CISPR Average190.5 kHz 42.20 N gnd -11.81 1 Quasi Peak 213 kHz 39.29 L1 gnd -23.79 2 CISPR Average253.5 kHz 35.04 L1 gnd -16.59 1 Quasi Peak 307.5 kHz 32.46 L1 gnd -27.57 2 CISPR Average316.5 kHz 31.78 N gnd -18.01 1 Quasi Peak 447 kHz 34.48 N gnd -22.44 2 CISPR Average447 kHz 30.69 N gnd -16.23 2 CISPR Average573 kHz 30.83 N gnd -15.16 2 CISPR Average1.0185 MHz 28.88 N gnd -17.11 2 CISPR Average1.464 MHz 27.49 N gnd -18.50 2 CISPR Average2.0985 MHz 19.08 L1 gnd -26.92 2 CISPR Average2.9265 MHz 16.25 L1 gnd -29.74 1 Quasi Peak 2.931 MHz 33.62 N gnd -22.37 1 Quasi Peak 3.2415 MHz 18.05 N gnd -37.94 2 CISPR Average3.8175 MHz 11.22 L1 gnd -34.77 2 CISPR Average4.263 MHz 12.16 L1 gnd -33.83 1 Quasi Peak 4.7085 MHz 19.38 L1 gnd -36.61 2 CISPR Average6.4275 MHz 12.54 L1 gnd -37.45 2 CISPR Average15.36 MHz 35.11 L1 gnd -14.88
