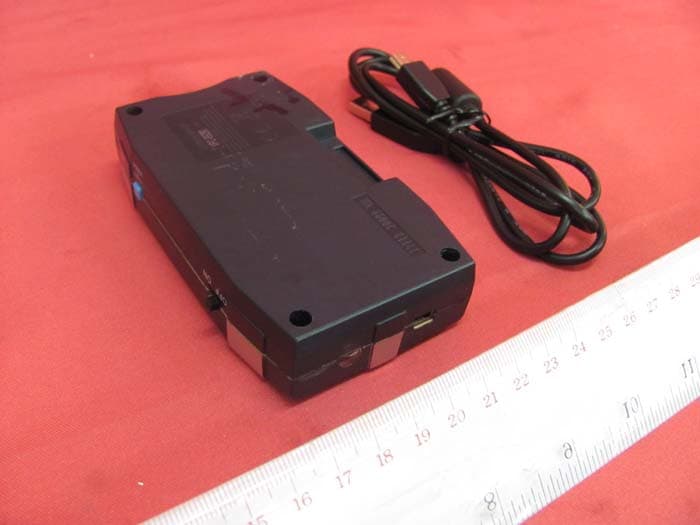

INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (External)

VPC-89367 VPC-89367 Label location/size: 3 x 3.5 cm

INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-2 FCC ID: VPC-89367 Equipment Photographs Model: 89365 (Internal)

Report No.: HK12080263-2 Model: 89365 Mode: Tx & Charging Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Report No.: HK12080263-2 Model: 89365 Mode: Tx & Charging Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 50.66 N -13.35 2 CISPR Average190.5 kHz 41.65 N -12.36 1 Quasi Peak 244.5 kHz 35.10 L1 -26.83 2 CISPR Average253.5 kHz 34.75 L1 -16.88 1 Quasi Peak 316.5 kHz 37.77 N -22.02 2 CISPR Average316.5 kHz 31.93 N -17.86 2 CISPR Average447 kHz 30.58 N -16.34 1 Quasi Peak 573 kHz 32.69 N -23.30 2 CISPR Average573 kHz 30.86 N -15.14 2 CISPR Average1.0185 MHz 28.66 N -17.33 2 CISPR Average1.401 MHz 28.96 N -17.04 2 CISPR Average2.0355 MHz 22.13 L1 -23.87 1 Quasi Peak 2.868 MHz 34.64 N -21.35 2 CISPR Average2.9265 MHz 16.07 L1 -29.92 1 Quasi Peak 3.1785 MHz 21.77 N -34.22 2 CISPR Average4.074 MHz 16.06 L1 -29.93 2 CISPR Average4.2 MHz 13.11 L1 -32.88 1 Quasi Peak 4.6455 MHz 18.75 L1 -37.24 1 Quasi Peak 15.36 MHz 40.84 L1 -19.15 2 CISPR Average15.36 MHz 39.93 L1 -10.06 Report No.: HK12080263-2 Model: 89365 Mode: Tx & Charging Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average21.5025 MHz 36.70 N -13.29

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12080263-2 Citiwell International Inc. Application For Certification (Original Grant) (FCC ID: VPC-89367) Transceiver Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Aug 31, 2012 INTERTEK TESTING SERVICES Report No.: HK12080263-2 FCC ID: VPC-89367 i GENERAL INFORMATION Citiwell International Inc. BRAND NAME: EyeSpy Xplorer, MODEL: 89365 FCC ID: VPC-89367 Grantee: Citiwell International Inc. Grantee Address: 55 Administration Road, Unit #30, Concord, Canada. Contact Person: Paula Miguel Tel: 905-760-9686 Ext 222 Fax: 416-736-6118 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: EyeSpy Xplorer Model: 89365 Type of EUT: Transceiver Description of EUT: Eyespy Xplorer Display Serial Number: N/A FCC ID: VPC-89367 Date of Sample Submitted: Aug 06, 2012 Date of Test: Aug 06, 2012 to Aug 10, 2012 Report No.: HK12080263-2 Report Date: Aug 31, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12080263-2 FCC ID: VPC-89367 ii SUMMARY OF TEST RESULT Citiwell International Inc. BRAND NAME: EyeSpy Xplorer, MODEL: 89365 FCC ID: VPC-89367 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12080263-2 FCC ID: VPC-89367 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results ........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data............................................................................. 5 4.0 Equipment Photographs ................................................................................ 9 5.0 Product Labelling ........................................................................................... 9 6.0 Technical Specifications ................................................................................ 9 7.0 Instruction Manual......................................................................................... 9 8.0 Miscellaneous Information .......................................................................... 10 8.1 Measured Ba…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: 89365 INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Worst-Case Line-Conducted Emissions (Left View) Model: 89365 INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Worst-Case Line-Conducted Emissions (Right View) Model: 98365

INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 89365 Radiated Emission 89365 HK12080263 A ; INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 89365 Radiated Emission 89365 HK12080263 B ; INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Radiated Emissions (Front View) Model: 89365 Radiated Emission 89365 HK12080263 A ; INTERTEK TESTING SERVICE Report No: HK12080263-2 FCC ID: VPC-89367 Configuration Photographs Radiated Emissions (Back View) Model: 89365 Radiated Emission 89365 HK12080263 B ;
