VPC-89366Eyespy Xplorer

TROUBLE-SHOOTING © 2012 EyeSpy TM is a registered trademark of EyeSpy Toys Ltd. All rights reserved. Manufactured for and distributed by Citiwell International Inc. Conforms to the safety Requirements of ASTM F963 and EN-71(1). WARNING! . Not suitable for children under 3 years of age due to small parts. In an effort to continually improve our products, the items inside this package may vary slightly from the photographs 9-401 Magnetic Drive, Toronto,Canada, M3J 3H9 Customer Care:1866 469 9686 MADE IN CHINA PRINTED IN CHINA www.eyespytoys.com Contains LiPo battery pack. • Battery pack must be recycled or disposed of properly. • If at any time in the future you should need to dispose of this product please note that Waste Electrical Products should NOT be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive). INSTRUCTION GUIDE surveillance technology 6+6+ If at any time the camera unit or viewer/controller unit stops working, or works in an unexpected fashion: 1. Check the condition of the AAA and AA batteries. If necessary, replace with fresh batteries. 2. Check the battery condition icon on the viewing screen. If indicated remaining life is low, please recharge the unit with the USB cord. 3. Turn both units off for 15 seconds and then turn them both back on. This will reset the electronic systems in both units. For any other problems or concerns, please contact us via the EyeSpy website www.eyespytoys.com or call our Customer Assistance Line at 1866 469 9686 www.eyespytoys.com Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. Xplorer: – With its rugged rubber tracks – like those of a bulldozer or a tank – the Xplorer vehicle can go almost anywhere, carrying its color camera on board and sending back images to the viewing screen unit atop the remote control. USB Cord : - The USB cord is used to charge the viewer’s lithium-polymer rechargeable battery, and connects the viewer to the USB port that is commonly found on most computers. Viewer: - This hand-held viewer lets you see images being sent by the camera. You can watch live action views, record snapshots or movies (saved to a user-supplied SD memory card), review pictures and movies that you have created, and set the camera to record a movie after a pre-set delay of between one and five minutes. Remote Control: - The simple controls allow you to steer the xplorer easily. The camera angle can also be adjusted remotely. CONTENTS LIST AND PARTS IDENTIFICATION KEY FEATURES 1.6. XplorerViewer Add SD Card Remote Control To record a movie, press the Select button (check mark). The red dot in the upper right corner of the screen will begin to flash on and off and a timer will appear that shows the duration of the movie. To stop the recording, press the button with the Back button (up-arrow).You can also instantly start a recording by pressing the large round button on top of the camera. REVIEW – When you choose this screen option and press the check mark button, you will be given the choice of reviewing any photos or movies you have taken. The SD memory card containing the photos or movies must be inserted in the viewer to use this function. Once you choose to review either photos or movies you will be shown a list of the items stored on the SD memory card. Move the cursor down with the down buttons. Press the check mark button to choose which item you wish to review. Press the up-arrow button to return to the item choice menu. Press the up-arrow again to return to the main screen menu. TIMER – Use the Next button (down-arrow) to choose the timer function, then press the Select button (check-mark). A timer display is shown and you are given the choice of adding time or confirming your choice (OK). The timer display will increase by one minute every time you choose to “Add Time”, up to a maximum of 5 minutes. If you continue pushing the Select button the timer display will return to “00:01” (one minute). Choosing “OK” will start the countdown to “00:00.” Movie recording will then start, and will continue for 90 seconds. The timer will then begin the countdown again, using the preselected time. Another 90 second movie will be recorded. This will continue until the user-installed SD memory card is full. The number of movies you can record and save will depend on the memory capacityof the SD card you are using. DELETE – Choosing this function and pressing the check-mark button lets you delete any photo or movie by choosing it and then pressing the check-mark button. You will be asked to confirm your choice by pressing the check-mark button aga…

Text truncated - open the document above for the full version.

Citiwell International Inc. 55 Administration Road Unit #30 Canada. Tel: 905-469-9686 Fax: 416-736-6118 Letter of Agency “I, an officer of Citiwell International Inc. do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in {1.2002(b) of CFR 47, 2004} to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Date this 13 th day August of 2012 By (Signature): Printed Name: Paula Miguel Title: Manager

Citiwell International Inc. 55 Administration Road, Unit #30 Canada Tel: 905-469-9686 Fax: 416-736-6118 Confidential Request Letter Attention: Intertek Testing Services Re: Request for confidentiality Applicant: Citiwell International Inc. FCC ID: VPC-89366 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Citiwell International Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: 1. Schematics. 2. Detailed Block diagrams. 3. Detailed Operational/Functional Description Citiwell International Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Product Director Citiwell International Inc.

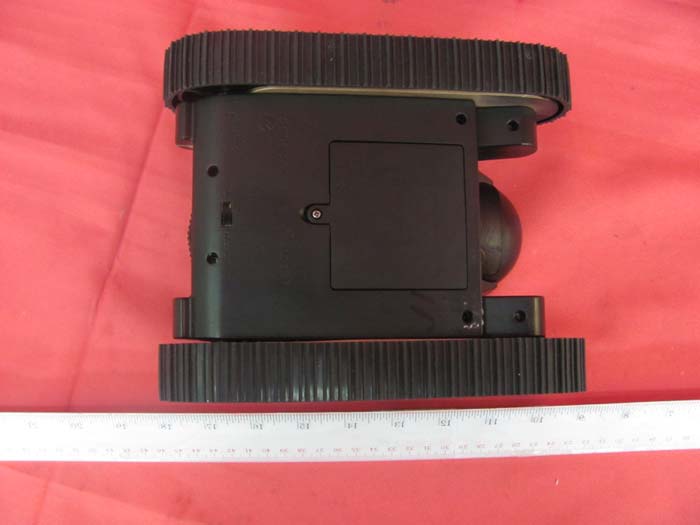

INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (External) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (External)

Label location/ size: 45mm(W)×15mm(H)

INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080263-1 FCC ID: VPC-89366 Equipment Photographs Model: 89365 (Internal)

INTERTEK TESTING SERVICES Report No.:HK12080263-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) A Att 10 dB * DC * RBW 300 kHz VBW 1 MHz SWT 2.5 msRef 0 dBm 3DB 1 PK VIEW Center 2.392 GHzSpan 30 MHz3 MHz/ -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -16.42 dB m 2.404540000 GHz 1 Delta 1 [T1 ] -50.28 dB -15.120000000 MHz F1 X2 Date: 7.AUG.2012 12:48:01 A Att 10 dB * Ref 0 dBm 3 MHz/Start 2.476 GHzStop 2.506 GHz * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms DC 1 PK VIEW -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -18.21 dB m 2.477500000 GHz 1 Delta 1 [T1 ] -51.03 dB 16.020000000 MHz F2 X2 Date: 7.AUG.2012 12:03:40 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass)

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12080263-1 Citiwell International Inc. Application For Certification (Original Grant) (FCC ID: VPC-89366) Transceiver Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Aug 31, 2102 INTERTEK TESTING SERVICES Report No.: HK12080263-1 FCC ID: VPC-89366 i GENERAL INFORMATION Citiwell International Inc. BRAND NAME: EyeSpy Xplorer, MODEL: 89365 FCC ID: VPC-89366 Grantee: Citiwell International Inc. Grantee Address: 55 Administration Road, Unit #30, Concord, Canada. Contact Person: Paula Miguel Tel: 905-760-9686 Ext 222 Fax: 416-736-6118 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: EyeSpy Xplorer Model: 89365 Type of EUT: Transceiver Description of EUT: Eyespy Xplorer Serial Number: N/A FCC ID: VPC-89366 Date of Sample Submitted: Aug 06, 2012 Date of Test: Aug 06, 2012 to Aug 10, 2012 Report No.: HK12080263-1 Report Date: Aug 31, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12080263-1 FCC ID: VPC-89366 ii SUMMARY OF TEST RESULT Citiwell International Inc. BRAND NAME: EyeSpy Xplorer, MODEL: 89365 FCC ID: VPC-89366 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12080263-1 FCC ID: VPC-89366 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 8 5.0 Product Labelling........................................................................................... 8 6.0 Technical Specifications ................................................................................ 8 7.0 Instruction Manual ......................................................................................... 8 8.0 Miscellaneous Information............................................................................ 9 8.1 Measured Bandwidth .................................................................................... 9 8.2 Discussion of Pulse Desensitization .............................................................. 9 8.3 Calcula…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12080263-1 FCC ID: VPC-89366 Configuration Photographs Radiated Emissions (Front View) Model: 89365 Radiated Emission 89365 HK12080263 A ; INTERTEK TESTING SERVICE Report No: HK12080263-1 FCC ID: VPC-89366 Configuration Photographs Radiated Emissions (Back View) Model: 89365 Radiated Emission 89365 HK12080263 B ;
