Citiwell International Inc. 55 Administration Road, Unit #30 Canada Tel: 905-469-9686 Fax: 416-736-6118 Confidential Request Letter Attention: Intertek Testing Services Re: Request for confidentiality Applicant: Citiwell International Inc. FCC ID: VPC-89327 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Citiwell International Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: 1. Schematics. 2. Detailed Block diagrams. 3. Detailed Operational/Functional Description Citiwell International Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Product Director Citiwell International Inc.

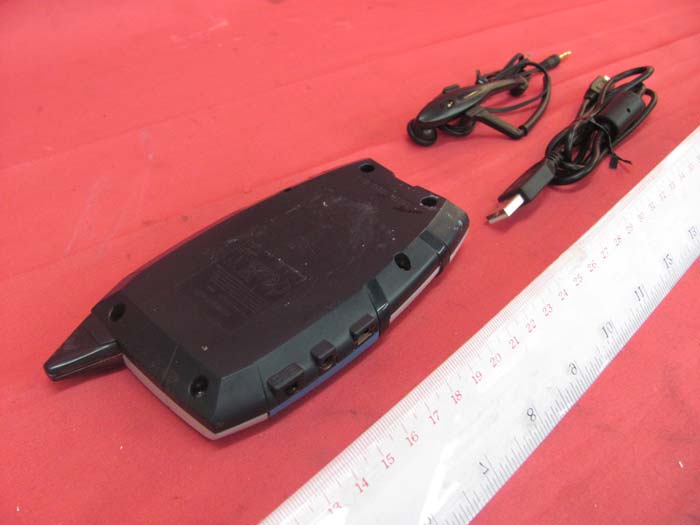

INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (External)

Label location/ Size

INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (Internal) INTERTEK TESTING SERVICE Report No.: HK12080164-1 FCC ID: VPC-89327 Equipment Photographs Model: 89327 (Internal)

INTERTEK TESTING SERVICES Report No.:HK12080164-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Att 10 dB * A * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms DC Ref 0 dBm Center 2.3925 GHzSpan 30 MHz3 MHz/ 1 PK VIEW -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -28.35 dB m 2.405580000 GHz 1 Delta 1 [T1 ] -35.35 dB -5.760000000 MHz F1 X2 Date: 2.AUG.2012 15:55:39 Att 10 dB * A Ref 0 dBm * 3DB RBW 300 kHz VBW 1 MHz SWT 2.5 ms DC Center 2.491 GHzSpan 30 MHz3 MHz/ 1 PK VIEW -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -34.65 dB m 2.477500000 GHz 1 Delta 1 [T1 ] -35.39 dB 6.240000000 MHz F2 X2 Date: 2.AUG.2012 16:44:56 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass) OATS = 85.6dBuV/m Field Strength (Peak) = 85.6 – 35.3 dBuV/m = 50.3 dBuV/m (Limit: 54 dBuV/m) OATS = 84.3dBuV/m Field Strength (Peak) = 84.3 – 35.3 dBuV/m = 49.0 dBuV/m (Limit: 54 dBuV/m)

Report No.: HK12080164-1 Model: 89327 Mode: Tx with Charging FCC ID:VPC-89327 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Report No.: HK12080164-1 Model: 89327 Mode: Tx with Charging FCC ID:VPC-89327 EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 52.13 N -11.87 2 CISPR Average190.5 kHz 42.94 L1 -11.06 2 CISPR Average253.5 kHz 36.03 L1 -15.60 1 Quasi Peak 258 kHz 39.69 N -21.80 2 CISPR Average316.5 kHz 33.84 N -15.95 1 Quasi Peak 321 kHz 38.01 N -21.67 1 Quasi Peak 442.5 kHz 32.59 N -24.42 2 CISPR Average505.5 kHz 26.13 N -19.86 2 CISPR Average636 kHz 29.12 N -16.87 2 CISPR Average888 kHz 26.71 N -19.28 2 CISPR Average1.4595 MHz 24.16 N -21.83 2 CISPR Average2.094 MHz 18.13 L1 -27.86 2 CISPR Average2.9175 MHz 10.33 L1 -35.66 1 Quasi Peak 2.922 MHz 31.48 N -24.51 1 Quasi Peak 3.552 MHz 24.03 L1 -31.96 2 CISPR Average4.0605 MHz 11.69 L1 -34.30 2 CISPR Average4.3125 MHz 13.10 L1 -32.89 1 Quasi Peak 4.821 MHz 20.07 L1 -35.92 2 CISPR Average15.36 MHz 39.56 L1 -10.43 2 CISPR Average21.5025 MHz 30.73 L1 -19.26

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12080164-1 Citiwell International Inc. Application For Certification (Original Grant) (FCC ID: VPC-89327) Transceiver Prepared and Checked by: Approved by: Signed On File Cheung Hung Ngai, Mark Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: August 20, 2012 INTERTEK TESTING SERVICES Report No.: HK12080164-1 FCC ID: VPC-89327 i GENERAL INFORMATION Citiwell International Inc. BRAND NAME: EyeSpy Linx, MODEL: 89327 FCC ID: VPC-89327 Grantee: Citiwell International Inc. Grantee Address: 55 Administration Road, Unit #30, Concord, Canada. Contact Person: Paula Miguel Tel: 905-760-9686 ext 222 Fax: 416-736-6118 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: EyeSpy Linx Model: 89327 Type of EUT: Transceiver Description of EUT: Toy Wky Taky EyeSpy LCD Display (Linx) Serial Number: N/A FCC ID: VPC-89327 Date of Sample Submitted: August 03, 2012 Date of Test: August 03, 2012 to August 07, 2012 Report No.: HK12080164-1 Report Date: August 20, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12080164-1 FCC ID: VPC-89327 ii SUMMARY OF TEST RESULT Citiwell International Inc. BRAND NAME: EyeSpy Linx, MODEL: 89327 FCC ID: VPC-89327 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12080164-1 FCC ID: VPC-89327 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs................................................................................ 8 5.0 Product Labelling ........................................................................................... 8 6.0 Technical Specifications................................................................................ 8 7.0 Instruction Manual ......................................................................................... 8 8.0 Miscellaneous Information ........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Radiated Emissions (Front View) Model: 89327 Radiated Emission 89327 HK12080164 A ; INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Radiated Emissions (Back View) Model: 89327 Radiated Emission 89327 HK12080164 B ; INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 89327 Radiated Emission 89327 HK12080164 A ; INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 89327 Radiated Emission 89327 HK12080164 B ;

INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: ES200 INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Worst-Case Line-Conducted Emissions (Left View) Model: ES111 INTERTEK TESTING SERVICE Report No: HK12080164-1 FCC ID: VPC-89327 Configuration Photographs Worst-Case Line-Conducted Emissions (Right View) Model: ES200
