VPOFLYSKY0029ch RADIO CONTROL SYSTEM

INSTRUCTION MANUAL FS-TH9X Technical updates available at: Http://www.flyskychina.com Entire Contents c Copyright 2007 Table of contents 6.1 Display 1.Introduction 2.Service 5.Radio installation 5.1 Receiver and servo connections 5.2 Charging the Ni-Cd batteries 5.3 Range Testing Your R/C System 6.Multi LCD and Programming controls 6.2 Main manu 7.The systematic function for setting 7.1 mode selections 7.2 user name editors 7.3 Type selections 7.4 modulates mode selection 7.5 Stick mode selections 7.6 Mode copy 7.7 Lcd contrast adjust 8.The helicopter basic function for setting 8.1 Reverse setting 8.2 Throttle curve setting 8.3 Pitch curve setting 8.4 Sub-Trim 8.5 End-point 8.6 Throttle Hold 8.7 Auxiliary channal 8.8 Swash setup 8.9 Dual Rate and exponential 8.10 Trim 8.11 Revolution Curve 8.12 Fail safe 8.13 Hover Throttle setup 8.14 Hover Pitch setup 8.15 Trainer setup 8.16 Servo Display 8.17 Timer 8.18 Gyro sence 8.20 Program mixing(1.2.3) 8.19 Stnt.trim 9.The plane basic function for setting 9.1 Reverse setting 9.2 Trainer 9.3 Sub-Trim 9.4 End-point 9.5 Throttle Hold 9.6 Flaperon 9.7 Dual Rate and exponential 9.8 Timer 9.9 Idel down 9.10 Fail safe 9.11 Timer 9.12 Servo Display 9.13 Flap Trim 9.16 ELE.Flap 9.17 V_Tail 9.18 ELEVON 9.19 Snap-roll 9.20 THR.needle Mixing 9.21 PROG.MIX 9.23 THR.delay 9.2 _4 AUX CH 9.22 AILVTAOL 10.The glider basic function for setting 10.1 Reverse setting 10.2 Sub-Trim 10.3 End-point 10.4 Dual Rate and exponential 10.5 Trim 10.6 Fail safe 10.7 Timer 10.8 Flap Trim 10.10 ELE.Flap 10.9 AilDiff 10.11 V_Tail 10.12 PROG.MIX 10.13 Butterfly 10.17 Tranier 10.14 Startofs 10.18 Flaperon 10.15 Speedofs 10.19 Elevon 10.16 Display 10.20 AUX-CH ......2 ......2 ......3 ......5 ......7 ......7 ......8 ......8 ......10 ......10 ......10 ......11 ......11 ......12 ......12 ......14 ......14 ......15 ......15 ......16 ......16 ......17 ......17 ......18 ......18 ......19 ......19 ......20 ......20 ......21 ......21 ......22 ......22 ......23 ......23 ......24 ......24 ......25 ......26 ......28 ......28 ......29 ......29 ......30 ......30 ......31 ......31 ......32 ......32 ......33 ......33 ......34 ......34 ......35 ......35 ......36 ......36 ......37 ......37 ......38 ......38 ......40 ......40 ......41 ......42 ......42 ......43 ......43 ......44 ......44 ......45 ......45 ......46 ......46 ......47 ......47 ......48 ......50 ......52 ......49 ......51 ......50 ......52 ......51 ......53 9.15 AIR BRAKES 3.Meaning of special markings 4.Transmitter controls ......25 FS-TH9X 9.14 AilDiff 1.Introduction Suggestion:If,while reading the instructions,you are unclear of some of the procedures or functions and become stuck,continue to read on anyway.Often,the function or procedure will ge explained again later in a different way providing another perspedctive from which to understand it.Another suggestion is to connect the battery,switch and servos to the receiver and actually operate the radio of your wordbench as you make programming changes.Then,you'll be able to see the effects of your programming inputs. Thank you for purchasing the digital proportional remot control system.If this your first computer radio.rest assured that it is designed to make initial setup and field- tuning of your more accurate than would be if using a non-computer radio.Although this is a geginner or sport system with the requirements of those flyers in mind,in order to make the best use of your FLYSKY FS-TH9X and to operate it safely,you must carefully read all of the instructions. 2.Service If any difficulties are encountered while setting up or operating your system,please consult the instruction manual first.For further assistance you may also refer to yout hobby dealer,or contact the Service Center at the web site. Http:\\www.flyskychina.com FS-TH9X 2 3.Meaning of special markings Pay special attention to safety where indicated by the following marks: DANGER-Procedures which may lead to dangerous conditions and cause death/serious injury if not carried out properly. WARNING-Procedures which may lead to a dangerous condition or cause death or serious injury to the user if not carried out properly,or procedures where the probability of superficial injury or physical damage is high. CAUTIO-procedures wher e the possibi lity of serious inj uty to the user is smal l,but there is a danger of inj uty,or physical damage,if not carri ed out properly. Warning:Always keep electrical components away from small children. =Prohibited=Mandatory FLYING SAFETY To ensure the safety of yorself and others,please bserve the following precautions: Have regular maintenance performed.Although our TH9X super protects the model memories with non-volatile EEPROM memory(which does not require periodic replacement)and not a battery, it still should have regular checkups for wear and tear,We recommend sending your system to the FLYSKY Service Center annually during your non-flying-season for a complete checkup and service. NI-Cd Battery Charge the batteries!(See Charging the Ni-Cd batteries,p.9,for details.)Always recharge the transmitter and receiver batteries for at least 8 hours before each flying session.A low battery will soon die,causing loss of control and a crash.When you begin your flying session,reset your TH9Xsuper's built-in timer,and during the session pay attention to the duration of usage. Stop flying long before your batteries become low on charge.Do not rely on yout radio's low battery warning systems,intended only as a precaution,to tell you when to techarge. Always check yout transmitter and receiver batteries prior to each flight. Aways pay particular attention to the flying field's rules,as well as the presence and location of spectators,the wind direction,and any obstacles on the field.Be very careful flying in areas near power lines,tall buildings,or communication facilities as there maybe radio interference in theit vicinity. Before flying,be sure that the frequency you intend to fly with is not in us…

Text truncated - open the document above for the full version.

FS-TH9X 23 Under the state of the initial picture,press MENU key forlong, access the main menu. Under the state of the initial picture,press MENU key forlong, access the main menu. Press UP/DOWN key choose HOV PIT menu, press MENU key for short and enter the page to establish. Press UP/DOWN key choose TRAINER menu, press MENU key for short and enter the page to establish. Press MENU key for short to keep resultand return last menu.Press EXIT key go not keep and return last menu. Press UP/DOWN key to choose the HOV PIT screen. Press UP/DOWN key to choose the TRAINER screen. 8.14HOV PITCH Press "+"or"-" key to change the select channel NORM or FUNC). Press "+"or"-" key to change the selected(INH or ACT). Press "+"or"-" key to change the select CHANNEL(NORM or FUNC). Press the UP or DOWM key to select the HOV PIT screen. Press the UP or DOWM key to select the TRAINER screen. Press the MENU key to save and return last menu. Press the MENU key to save and return last menu. Press the EXIT key to not keep and return last menu. Press the EXIT key to not keep and return last menu. 8.15TRAINER H o v e r i n g p i t c h a r e f i n e-t u n i n g a d j u s t m e n t s fo r th e co ll ec ti ve pi tc h cu rv es in di vi du al ly,af ec ti ng pe rf or ma nc e on ly ar ou nd th e ce nt er po in t an d on ly in th e no rm al co nd it io n. Th e al lo w in-fl ig ht or id ea l se tu p. HOVERING PITCH: Press "+"or"-" key to change the selected (INH or ACT). TRAINER: For training novice pilots with optional trainer cord connecting 2 transmitters.The instructor has several levels of controllability. NORM:When the trainer switch is ON,the channel set to this mode can be controlled by the student. The set channel is controlled according to any programming set at the student's transmitter. FUNC:When the trainer switch is ON,the channde set to this mode can be controlled by student, controlled according to any mixing set at the instructor's transmitter. STEPS: STEPS: Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. Press MENU key for short to keep result and return last menu. press EXIT key for short to not keep and treurn to last menu. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. HELICOPTER HELICOPTER FS-TH9X 24 Under the state of the initial picture,press MENU key forlong, access the main menu. Under the state of the initial picture,press MENU key forlong, access the main menu. Press UP/DOWN key choose DISPLAY menu, press MENU key for short and enter the page to establish. Press UP/DOWN key choose TIMER menu, press MENU key for short and enter the page to establish. Press MENU or EXIT key return last menu. Press MENU key for short to keep resultand return last menu.Press EXIT key go not keep and return last menu. Press UP/DOWN key to choose the TIMER screen. 8.16DISPLAY Press "+"or"-" key to change the select channel (INT or ACT). Press "+"or"-" key to change the select CHANNEL(INT or ACT). Press the UP or DOWM key to select the TEST(ON or OFF). Press the UP or DOWM key to select the TEST(ON or OFF). Press the UP or DOWM key to select the TIMER screen. Press the MENU key to return last menu. Press the MENU key to save and return last menu. Press the EXIT key to return last menu. Press the EXIT key to not keep and return last menu. 8.17TIMER DISPLAY: Display radio's output to channels 1-8. The servo submenu includes two features: Real-tune bar-graph display to demonstrate e- xactly what commands the transmitter is sending to the servos.(This can be particularly handy in setting up models with complicated mixing functions,because the results of each stick, lever,knob,switch input and delay circuit may be immediately seen.) Servo cycle function to help locate servo problens prior to in-flight failures. The time-recorder is used calculating comparable bo stipulated time unexpectedly,or the possible time of flight under the state that the fuel fill it up with,it is very convenient.The pattern of the time-recorder is the count-down.Pour time- recorder from set for time is it is it count to change,show surplus time at interface to begin. The time-recorder can set forthe settlement time of 99 minutes and 59 seconds altogether at most. STANTE:INH forbids this function,ACT lauches the function. TIMER: START:Press TRN switch. STOP:Press trn switch REST TIMER:Press EXIT key for long time of the initial picture. Warn the sound:After establishing time for less than 59 seconds,warning sound appears in one second in every interval[Bi]:It sets for time to finish long and loud. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. STEPS: STEPS: HELICOPTER HELICOPTER FS-TH9X 25 Under the state of the initial picture,press MENU key forlong, access the main menu. Under the state of the initial picture,press MENU key forlong, access the main menu. Press UP/DOWN key choose GYRO SENS menu, press MENU key for short and enter the page to establish. Press UP/DOWN key choose STNT TRIM menu, press MENU key for short and enter the page to establish. Press UP/DOWN key to choose the GYRO SENS screen. Press UP/DOWN key to choose the STNT TRIM screen. 8.18GYRO SENS GYRO SENS: Press "+"or"-" key to change the selected UPRATE or DNRATE value. Press "+"or"-" key to change the select AIL or ELE and RUD volue. Press "+"or"-" key to change the selected GYRO SENS value. Press "+"or"-" key to change the select value. Press the UP or DOWM key to select the GYRO SENS screen. Press the UP or DOWM key to select the STNT TRIM screen. Press the MENU key to save and return last menu. Press the MENU key to save and return last menu. Press the EXIT key to not keep and return last menu. Press the EXIT key to not keep and return last menu. 8.19STNT TRIM STNT TRIM: A gyroscope is an electronic unit that senses motion and corrects for…

Text truncated - open the document above for the full version.

FS-TH9X 9.20THRNEEDL Press the MENU key to return last menu. Press the EXIT key to return last menu. THRNEEDL: 38 9.21PROG.MIX AIRPLANE AIRPLANE THROTTLE-NEEDLE is a pre- programmed mix that automatically moves an in-flight mixture servo (CH8)in response to the THROTTLE STICK inputs for perfect engine tuning at all throttle set- tings This function is particularly popular with contest pilots who fly in a large variety of locations needing regular engine tuning adjus- tments and requiring perfect engine response at all times and in all maneuvers Also popular to minimize flooding at idle of inverted engine installations with a high tank position not needed for fuel injection engines which do this automatically. Under the state of the initial picture,press MENU key forlong, access the main menu. Press the UP or DOWM key to select the THRNEEDL screen. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. Press UP/DOWN key select the THRN EEDL menus,and press MENU key for short into next submenu. STEPS: Press MENU key for short to keep resultand return last menu.Press EXIT key go not keep and return last menu. Press "+"or"-" key to change the select volue. Press the UP or DOWM key to select the THRNEEDL screen. Press "+"or"-" key to change the select THRNEEDL volue. Under the state of the initial picture,press MENU key forlong, access the main menu. Press UP/DOWN key choose PROG.MIX menu, press MENU key for short and enter the page to establish. PressEXIT key to returnlast menu. Press UP/DOWN key to choose the PROG.MIX screen. PROG.MIX: Press MENU key for short into next usbmenu. Press the UP or DOWM key to select the PROG.MIX screen. Press the MENU key into next submenu. Press the EXIT key to return last menu. In helicopter mode the FS-TH9X offer three programmable mixes that allow stick or switch inputs to control the output of two or more servos.This function allows mixing any one channel to any other channel or the ability to mix a channel to itself.The mix canremain ON at all times,or be switched OFF in flight using a number of different switches.(Refer to chart below.)Mix values are adjustable from 0 to 100%.Each channel is identified by a four-character name (i.e.,Aileron-AILE,Elevator-ELEV,etc.).The channel appearing first is the master channel.The second channel is the slave channel.For example,AILE-ELEVwould indicate aileron-to-elevator mixing.Each time the aileron stick is moved,the elevator will deflect,and the elevator will automatically move in the direction and to the position based on the value input in the programmable mix screen. Mixing is proportional,so small inputs of the master channel will produce small outputs of the slave channel. Each programmable mix has a mixing offset.The purpose of the mixing offset is to redefine the neutral position of the slave channel. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. STEPS: Under the state of the initial picture,press MENU key forlong, access the main menu. Under the state of the initial picture,press MENU key forlong, access the main menu. Press UP/DOWN key choose PROG.MIX menu, press MENU key for short and enter the page to establish. Press UP/DOWN key choose PROG.MIX menu, press MENU key for short and enter the page to establish. Press UP/DOWN key to choose the MIX6 menu, press MENU key for short into next subnenu. Press UP/DOWN key to choose the MIX1 menu, press MENU key for short into next subnenu. 9.21.1MIX1-5 Press "+"or"-" key to change the select volue. Press "+"or"-" key to change the select volue. Press "+"or"-" key to change the select value. Press "+"or"-" key to change the select value. Pr es s th e UP or DOWM ke y to se le ct th e MI X6 sc re en. Press the UP or DOWM key to select the MIX1 screen. Press the MENU key to save and return last menu Press the MENU key to save and return last menu Press the EXIT key to not keep and return last menu Press the EXIT key to not keep and return last menu 9.21.2MIX6-7 MIX6-7: MIX1-5: INH: disable the function.ACT: enable the function. INH: disable the function. ACT: enable the function. Mix purpose to accuse of form to get rid of little mistake of organism, make it is it can take the heart conveniently even more to have not to handle. The very wanton one mixes accusing of among the channel. Mix purpose to accuse of form to get rid of little mistake of organism, make it is it can take the heart conveniently even more to have not to handle. The very wanton one mixes accusing of among the channel. MASTER:select intput channel. SLAVE:select output channel. MASTER:select intput channel. SLAVE:select output channel. SW:NOR/IDL1,IDL2,ON. SW:NOR/IDL1,IDL2,ON. Press UP/DOWN key to choose the MIX6 screen. Press UP/DOWN key to choose the MIX1 screen. CURVE:curves have five adjustable points-low, 25%,50%,75% and high. STEPS: STEPS: Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. Press UP/DOWN key select the FUNC SETTING menus,and press MENU key for short into next submenu. Press MENU key for short to keep result and return last menu. press EXIT key for short to not keep and treurn to last menu. Press MENU key for short to keep result and return last menu. press EXIT key for short to not keep and treurn to last menu. AIRPLANE AIRPLANE FS-TH9X 39 FS-TH9X 9.22AILVTAOL Press the MENU key to return last menu. Press the EXIT key to return last menu. VILVTAOL: 40 Under the state of the initial picture,press MENU key forlong, access the main menu. Press MENU key for short to keep resultand return last menu.Press EXIT key go not keep and return last menu. Press UP/DOWN key to choose the THRDELAY screen. Press "+"or"-" key to change the select THRDELAY volue. Press "+"or"-" key to change the select volue. Press the UP or DOWM key to select the THRDELAY screen. Press the MENU key to save and return last menu. Press the EXIT key to not keep and return last menu.…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM M P U Power DC 12V Functional Control Board Keyboard RF Module GFSK 2.402GHz 16MHz Crystal 4MHz Crystal 18MHz Crystal

DongGuan City FLYSKY Remote Model Co., Ltd. Confirmation Letter Product: 9ch radio control system FCC ID: VPOFLYSKY002 Note: The antenna is unique and unchangeable. Any modified by the user would void the grant. ------------------------------ Jack Wu Manager DongGuan City FLYSKY Remote Model Co., Ltd.

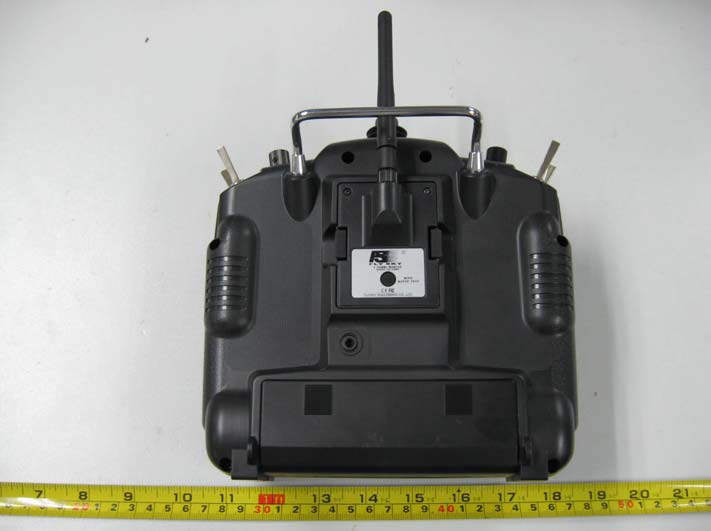

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 EXHIBIT 2 - EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: VPOFLYSKY002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: VPOFLYSKY002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 EXHIBIT 3 - INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 Solder Board-Component View 4 Solder Board-Component View 5 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 Solder Board-Component View 6 Solder Board-Component View 7 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-TH9X REPORT NO.: STR07108046I FCC PART 15.249 Solder Board-Component View 8

Atenna Configuration Diagram M3X3.5 M3X5.0 103.0 206.0 309.0 412.0 515.0 618.0 721.0 824.0 927.0 1030.0

OPERATIONAL DESCRIPTION The functional signal triggered the MPU which gets a pulse modulation then passing through the MPU working with 12 MHz crystal for producing a signal to the RF Module circuit. Carrying Wave amplified by the amplifier circuit unit, through the antenna then transmit out as 2.402 GHz. 1. Functional Control Board kit deals with the functional controlling. 2. MPU is the main functional control center, working with 12MHz crystal, deal with function control and other state indication. 3. Time frequency is a multiplied frequency to produce a extract HF signal. 4. RF Module is used for producing FM CW.













 !
