VPOFLYSKYGT3B2.4G 3CH Control Radio

G FS-GT3B FS-GT3B FS-GT3B FS-GT3B FS-GT3B FS-GT3B 7 .TRANSMITTER PARA M E TERS no more 10mW; 8 .RE CE IVER PARA M E TERS FS-GT3B 9 .RE CE I V ER CONNEC TIVITY 9 .01INSTA LLATION WHEN A MOTOR CONTROLLER IS USED: FS-GT3B 10. 02 POWER ON: 10. 03 SHUT DOWN: FS-GT3B 11 .EA CH P AR T OF TH E TRANSMITTER 1 2 5 6 3 4 1 2 3 CH3 4 5 6 Ch3 TRIM FS-GT3B B C D E F G H I J B LCD C BACK D E END F ENTER(RIGHT/LEFT) G TH TRIM(DOWN) H TH TRIM(UP) I ST TRIM(LEFT) J ST TRIM(RIGHT) FS-GT3B 12 .L CD FU NC TI ON EX PL ANA TI ON 12.01LCD DISPLAY BUTTON FUNCTION: 按键定义： 12. 02OPENING SCREEN: 13 FS-GT3B 12. 03MODEL: FS-GT3B 12. 04 NAME: FS-GT3B 12. 05 REV: Function explanation: Operation: FS-GT3B 12. 06 E. POINT: o l n 参数说明: CHANNEL:通道编号,从1到3. 100%:输出量百分比率,值越小输出越小,反之越大(此调整量为0%到120%,工厂预设值为100%）。 ：此图标表示当前你所设定调整的是那一部份(分正负两部份，由方向盘及油门扣机来选定）。 操作方法： 在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行E.POINT菜单选择，再按“确认”键 进入此菜单的操作（此时1字符闪烁),然后通过“左右旋转”键进行通道1到3通道的选择，选好要变更 的通道后按“END”键，此时三个字符会闪烁，在此状态下通过方向盘及油门扣机进行单边选择（被选 中的那边所对应的图标 会闪烁),然后按"左右旋转"键进行0-120%的设定.完成后按"END"键可进入 另一个通道的设定.依类推对三个通道进行设定. 编辑完成后按"确认"键返回并进入菜单选择状态. 在任何状态下按"返回"键进入开机画面. FS-GT3B 12. 07 TRIM: 功能说明： 此功能是对三个输出通道中立点微调的设定，调整修正机种在装配及伺服系统中心点不对产生的偏差。 以使车或船等模型在操控时更加直线。 参数说明： CHANNEL:通道编号，从1到3. R30:通道右边微调,调整量量为0-30，工厂预设值为N00. L30:通道左边微调,调整量为0-30，工厂预设值为N00. F30:通道前进微调,调整量为0-30，工厂预设值为N00. B30:通道后退微调,调整量为0-30，工厂预设值为N00. 操作方法: 在开机菜单下通过"确认"键进入菜单,通过"左右旋转"键进行TRIM菜单选择,再按"确认"键进入此菜单的 操作(此时1字符会闪烁),然后通过"左右旋转"键进行通道1到通道3的选择,选好要变更的通道后按"END" 键,此时三个字符会闪烁,在此状态下通过按"左右旋转"键进行L30-N00-R30(油门通到是F30-N00-B30) 设定调整.完成后按"END"键通道的设定.依类推对三个通道进行设定. 编辑完成后按"确认"键返回并进入菜单选择状态. 在任何状态下按:返回"键进入开机画面. FS-GT3B 12. 08 D /R : I 功能说明： 此功能是对三个输出通道做输出变化量调整设定，此项设定同时对两部份（正半部负半部份)按同一比 率进行设定,适应不通机种及不同伺服器输出的要求,以达到最佳的操控效果. 参数说明: CHANNEL:通道编号,通道1到通道3; 100%:输出量百分比率,值越小输出越小,反之越大(此调整量为0%到100%,工厂预设值;为100%),0%表示此 通道没有输出,100%表示全部输出,也就是最大输出. 操作方法: 在开机菜单下通过 “确认”键进入菜单，通过 “左右旋转”键进行D/R菜单选择,再按 "确认"键要变更 的通道后按"END"键,此时三个字符会闪烁,在此状态下按"左右旋转"键进行0-100%进入此菜单的操作(此 时1字符会闪烁),然后通过"左右旋转"键进行通道1到通道3的选择,选好的设定.完成后按"END"键可进入 另一个通道的设定。依类推对三个通道进行设定。 编辑完成后按“确认”键返回并进入菜单选择状态。 在任何状态下按“返回”键进入开机画面。 FS-GT3B 12. 09 EXP: 功能说明： 此功能是对三个输出通道作指数变化量调整设定，适应不通机种对不同赛道以及不同人的操作习惯，以 达到最佳的操控效果。 参数说明： CHANNEL:通道编号，通道1到通道3.100%:指数输出百分比率,-100%表示中心点位置反应会越小,也就 是反应越迟钝;100%表示中心点位置反应会越大,也就是反应越灵敏,EXP调整量为:-100%到100%(工厂预 设值为0%）。 操作方法： 在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行EXP菜单选择，再按“确认”键在进 入此菜单的操作（此时1字符会闪烁）然后通过 "左右旋转"键进行通道1到通道3的选择,选好要变更的通 道后按" END"键,此时三个字符会闪烁,在此时状态下按"左右旋转"键进行-100%到100%的设定.完成后按" END"键可进入另一个通道的设定.依类推对三个通道进行设定. 编辑完成后按 "确认"键返回并进入菜单选择状态. 在任何状态下按 "返回"键进入开机画面. FS-GT3B 12. 10 ABS: 功能说明： 此功能是对油门输出通道作自动刹车（点刹）设定，适应不同机种赛道以及不同人的操作习惯，以 达到最佳刹车效果及弯道的操控效果，而不至于有甩尾及转弯不足现象出现。 参数说明： CHANNEL:通道编号，只有第二通道（油门通道）有此功能; OFF:表示ABS功能关闭（工厂预设值为OFF); SLW: 表示ABS输出频率是最慢的; NOR:表示ABS输出频率一般; FST:表示ABS输出频率最快; 注:此几个参数需依据不同机型及不同种类的伺服器决定.不一定输出频率最快就最好,最慢就最差. 操作方法: 在开机菜单下通过"确认"键进入菜单,通过"左右旋转"键进行ABS菜单选择，再按确认键进入此菜单的 操作（此时三个字符会闪烁），然后通过“左右旋转”键进行OFF-SLW-NOR-FST的设定。 编辑完成后按确认键"返回"并进入菜单选择状态. 在任何状态下按"返回"键进入开机画面. FS-GT3B 13 .TRANSMITTER FUN C TI ON NO TE S 13. 01STEERING CONTROL: 功能说明： 此功能是进行方向控制,当方向舵往右旋转时车子前轮会跟着往右（如图），当方向舵往左旋转时车子前 轮会跟着往左(如图）。 操作方法: Function explanation: This function is to control the direction,When the steering turn to right then the front wheel will turn to right (see the picture),When the steering turn to left then the front wheel will turn to left (see the picture). Operation: Adjust the dual rate of the steering by adjusting the D/R knob. FS-GT3B 14 .FA IL S AFE FU NC TI ON 失控保护功能是对模型车或船进行失控保护，避免因失控造成损失。主要是对油门通道进行控制，当接 收机接收不到控制信号时，接收机的油门通道将自运行到当初设定的值，以免误动作。 Fa ilsafe aims to prevent out-of-control driving of RC Car or RC Bo at.If the Rec eiver is not able to receive any signal, from the control to Th rottle, the parameter of Th rottle on Rec eiver wi ll turn back to its original setting. Max. ambient Temp. ： 25°C The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Dong Guan City FLYSKY Remote Model Co.,Ltd Date: Sep 28,2010 Dear Sir/Madam, This is the letter of Confirmation to declare the information as following: Product Name: 2.4G 3CH Control Radio Product Model: FS-GT3B Brand Name: FS FCC ID: VPOFLYSKYGT3B The device is only battery operated, and will not have the DC and Trainer socket access to the user Yours sincerely, Jack Wu Signature and company stamp corporate entity

Dong Guan City FLYSKY Remote Model Co.,Ltd Dong Guan City FLYSKY Remote Model Co.,Ltd No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China Date :Sep 15,2010 FCC ID: VPOFLYSKYGT3B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “Dong Guan City FLYSKY Remote Model Co.,Ltd” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) circuit diagram (4) block diagram The refore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Yours sincerely, Jack Wu Signed & dated by the Company Representative.

Dong Guan City FLYSKY Remote Model Co.,Ltd Date : Sep 15,2010 Federal Communications Commission Equipment Approval Services P. O. Box 358315 Pittsburgh. PA15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd, Mr. KC Lee .as agent for Dong Guan City FLYSKY Remote Model Co.,Ltd & No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of Dong Guan City FLYSKY Remote Model Co.,Ltd Product name : 2.4G 3CH Control Radio Model: FS-GT3B This authorization will expire one year from the date of this letter. Yours sincerely, Jack Wu

Dong Guan City FLYSKY Remote Model Co.,Ltd Date : Sep 15,2010 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T. Hong Kong Attn: Mr.Patrick Wong Dear Sir, Re.: Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured , imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd.10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, Jack Wu Signature with title

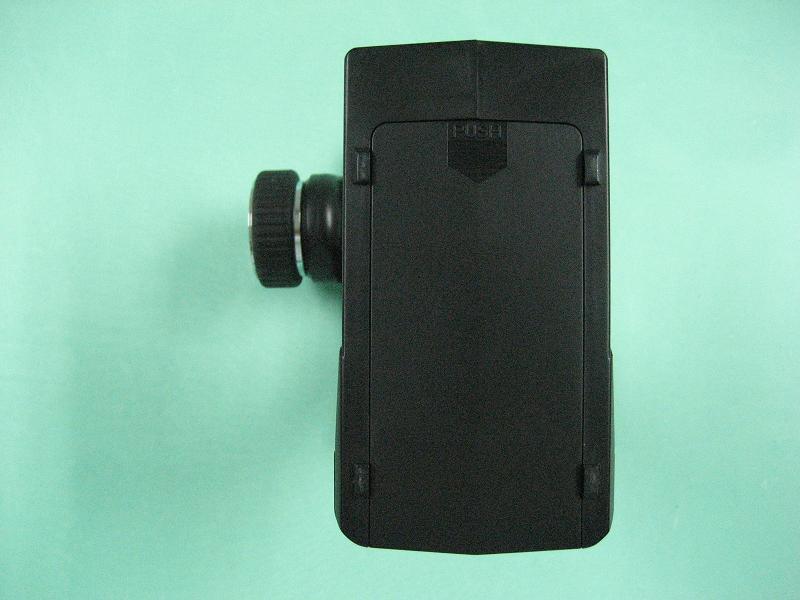

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

STC Test Report Date : 2010-09-17 Page 1 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (C00001): Dong Guan City FLYSKY Remote Model Co., Ltd. No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China Manufacturer: Dong Guan City FLYSKY Remote Model Co., Ltd. No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China Description of Sample(s): Product: 2.4G 3CH Control Radio Brand Name: FS Model Number: FS-GT3B FCC ID: VPOFLYSKYGT3B Date Sample(s) Received: 2010-08-23 Date Tested: 2010-09-13 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2010-09-17 Page 2 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Sample Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 2.0 Technical Details 2.1 Investigations Requested Page 6 of 21 2.2 Test Standards and Results Summary Page 6 of 21 3.0 Test Results 3.1 Radiated Emission Page 7-16 of 21 STC Test Report Date : 2010-09-17 Page 3 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 17 of 21 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 21 Appendix C Photographs Page 20-21 of 21 STC Test Report Date : 2010-09-17 Page 4 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Dong Guan City FLYSKY Remote Model Co., Ltd. No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China Manufacturer Dong Guan City FLYSKY Remote Model Co., Ltd. No 41 Road West, BanHu Village, HuangJiang Town, DongGuan City, GuangDong Province, China STC Test Report Date : 2010-09-17 Page 5 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Product: 2.4G 3CH Control Radio Manufacturer: Dong Guan City FLYSKY Remote Model Co., Ltd. Brand Name: FS Model Number: FS-GT3B Input Voltage: 12Vd.c. (“AA” size battery x 8) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Dong Guan City FLYSKY Remote Model Co., Ltd., 2.4G 3CH Control Radio. The transmission signal is frequency hopping with channel frequency range 2401.-2480MHz during normal use. The EUT was set to fixed frequency test mode by application 1.4 Date of Order 2010-08-23 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2010-09-13 1.7 Country of Origin China STC Test Report Date : 2010-09-17 Page 6 of 21 No. : MH184446 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 Regulations …
