VPOFLYSKY0034CH RADIO CONTROL SYSTEM

USER MANUAL Direction Stick Dirc. Trim Rear Trim Oil Stick Power OnOff Bind Power LED Oil Trim Trim 2.4G Antenna 2. Functional descriptions A) Direction Stick: Controller including 4 CHs. CH1: auxiliary wing. CH2: up and down. CH3: Accelerograph. CH4: Directions. B) Trim: Tiny tuner including 4 CHs. CH1: auxiliary wing. CH2: up and down. CH3: Accelerograph. CH4: Directions. C) Power Switch: On and Off. D) Bind: used for the encoding locking. E) Power LED: indicating the working power which green LED showed full power and red LED showed low power. F) VRA/VRB : encode button A and B G) SWA/SWB: encode switcher for button A and B H) Battery: Battery Box I) DIN connector: Simulator for test, not for the normal use. Battery Box DIN 3. Specifications * Channel：4 * Frequency band: 2.4GHz * Power resource：1.5V*8 "AA"Battery * Program type: PPM * Modulation type: GFSK * RF power：≤10mW * Static current：≤250mA * Voltage display type：LED * Size：189*97*218mm * Weight: 575g * Color: black * Heli-120/Heli-90/Acro * Sub Trim ：2 * Thro Cuv: Encode functional * Pith Cuv: Encode functional * Support 3 users * Support angle, turner, rear pad and channel turntable. 4. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna provided is a unique antenna. By installation of unauthorized antenna to this equipment. Such unauthorized installation could void the user's authority to opearte the equipment. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

BLOCK DIAGRAM M P U Power DC 12V Functional Control Board Keyboard RF Module GFSK 2.402GHz 12MHz Crystal 4MHz Crystal 18MHz Crystal

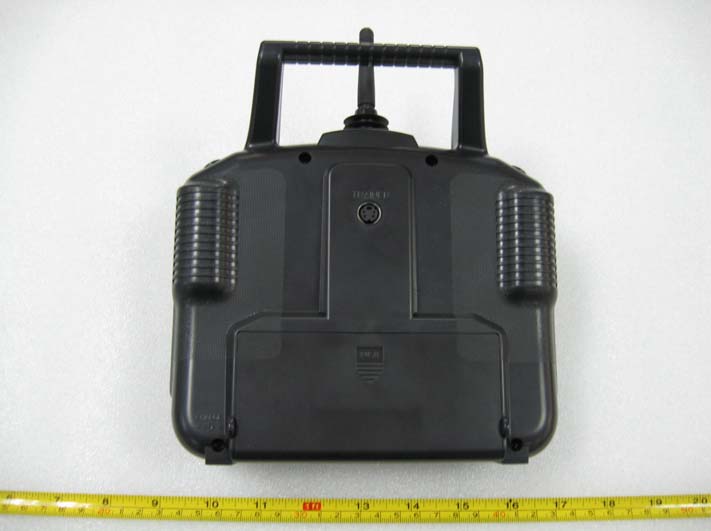

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 EXHIBIT 2 - EXTERANL PHOTOGRAPHS EUT View 1 EUT View 2

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: VPOFLYSKY003 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC Label Format FCC ID: VPOFLYSKY003 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 EXHIBIT 3 - INTERANL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 Solder Board-Component View 2 Solder Board-Component View 3 DONGGUAN CITY FLYSKY REMOTE MODEL CO., LTD. MODEL: FS-T4A REPORT NO.: STR07108044I FCC PART 15.249 Solder Board-Component View 4 Solder Board-Component View 5

OPERATIONAL DESCRIPTION The functional signal triggered the MPU which gets a pulse modulation then passing through the MPU working with 12 MHz crystal for producing a signal to the RF Module circuit. Carrying Wave amplified by the amplifier circuit unit, through the antenna then transmit out as 2.402 GHz. 1. Functional Control Board kit deals with the functional controlling. 2. MPU is the main functional control center, working with 12MHz crystal, deal with function control and other state indication. 3. Time frequency is a multiplied frequency to produce a extract HF signal. 4. RF Module is used for producing FM CW.













 !
