VR8-SSIINTR004Wireless Lighting Control Equipment

1 of 2 Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2014-2015 Acuity Brands Lighting, Inc. All rights reserved. 08/09/15 nIO BT Example: nIO BT LT SeriesTemp / Humidity nIO BTHandheld Programmer[blank]Standard LTLow Temp OVERVIEW The nLight Handheld Programmer uses a Bluetooth Low Energy (BLE) Radio Module to allow wireless communication between the local nLight zone and iOS/ Android smart phone application. This device offers two RJ-45 ports to be placed in any location on a local nLight zone, and the unit powers up directly off of the nLight bus. The smart phone application offers secure pairing with the BLE device when within range (range specifications below), and once connected can be used for identifying and programming devices within that zone. FEATURES • Communicates two-way with local nLight network and iOS/Android Smart Phone Application • Remotely Configurable/Upgradeable • Push-Button Programmable • Inline Wired – No Mounting Required • Self-powered from nLight bus nIO BT Handheld Programmer ORDERING INFORMATION SPECIFICATIONS Warranty Five-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx Note: Actual performance may differ as a result of end-user environment and application. Specifications subject to change without notice. Catalog Number: Date:Project: Example: nIO EZ PH ER Size (Inline Wired): 2.54”H x 1.98”W x 1.00”D (6.45 cm x 5.03 cm x 2.54cm) Weight: 2oz Color: Clear (blue LED) nLight Network Ports: 2 RJ-45 Bus Power Consumption: ~7 mA Wires: None Operating Temp: Standard: 14°-160°F (-10° to 71°C) LT Option: -40º to 160ºF (-40º to 71ºC) Relative Humidity: Standard: 20% to 75% non-condensing LT Option 20 to 90% non-condensing Wireless Frequency: BLE Wireless Range Guidelines: Line of Site: ~50 ft Plasterboard/Dry Wood: ~30 ft Concrete: ~15 ft RoHS Compliant, Title 24 Component 2 of 2 Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2014-2015 Acuity Brands Lighting, Inc. All rights reserved. 08/09/15 nIO BT: 911-00092-004 WIRING • Interconnect unit with other nLight devices in lighting zone using CAT-5e cables • Once power is received via CAT-5e connection, BLE radio will begin broadcasting presence • Open nLight Handheld Programmer App via Android/iOS smart phone, and follow instructions for pairing INSTALLATION CAT-5e CAT-5e CAT-5e nBRG nIO BT nPODM DX nCM PDT 9 RJB CAT-5e nPP16 D

nIO BT: FCC: VR8-SSIINTR004 IC: 7791A-SSIINTR004 These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAN RSS-Gen/CNR-Gen: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. COMPLIANCE INFORMATION • To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards please read all warnings and instructions included with and on the fixture box and all fixture labels. • Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.• Installation and service should be performed by a qualified licensed electrician.• Maintenance should be performed by qualified person(s) familiar with the products’ construction and operation and any hazards involved. Regular maintenance programs are recommended. READ AND FOLLOW ALL SAFETY INSTRUCTIONS! SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION • DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that no parts should have been damaged during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced. CAUTION: RISK OF PRODUCT DAMAGE √ Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding equipment should be worn during all installation or servicing of the unit. √ Do not touch individual electrical components, as this can cause ESD and affect product performance. √ Do not stretch or use cable sets that are too short or are of insufficient length. √ Do not tamper with contacts. √ Do not modify the product. √ Do not change or alter internal wiring or installation circuitry. √ Do not use product for anything other than its intended use. WARNING - RISK OF BURN or FIRE √ Do not exceed maximum wattage, ratings, or published operation conditions of product. √ Do not overload. √ Follow all manufacturer’s warnings, recommendations and restrictions to ensure proper operation of product. CAUTION - RISK OF INJURY √ Wear gloves and safety glasses at all times when installing, servicing or performing maintenance. WARNING - RISK OF ELECTRIC SHOCK √ Disconnect or turn off power before installation or servicing. √ Verify that supply voltage is correct by comparing it with the product information. √ Make all electrical and grounded connections in accordance with the National Electrical Code (NEC) and any applicable local code requirements. √ All wiring connections should be capped with UL approved recognized wire connectors. √ All unused connector openings must be capped. 911-00092-005 WarrantyFive-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspxNote: Actual performance may differ as a result of end-user environment and application.

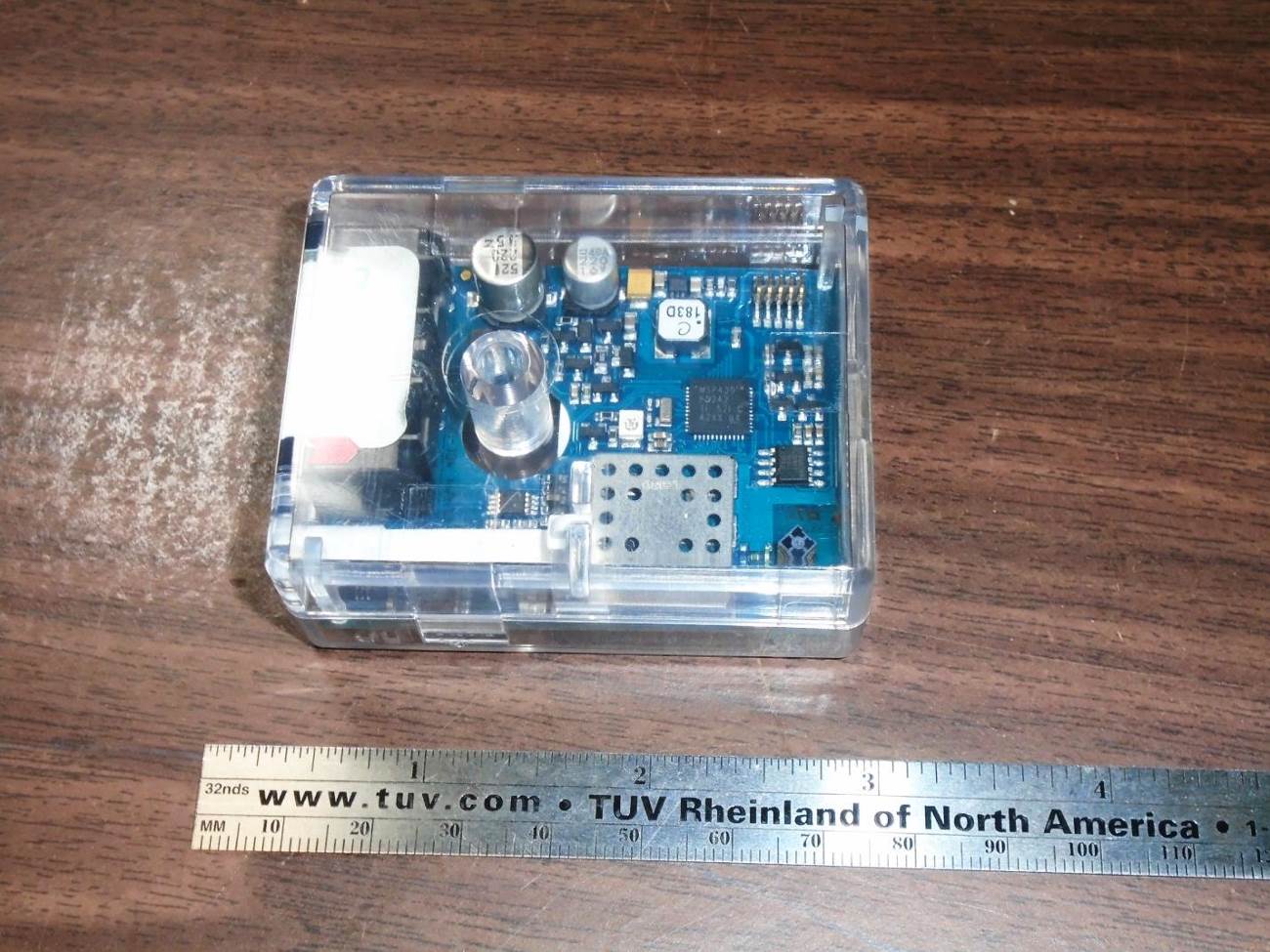

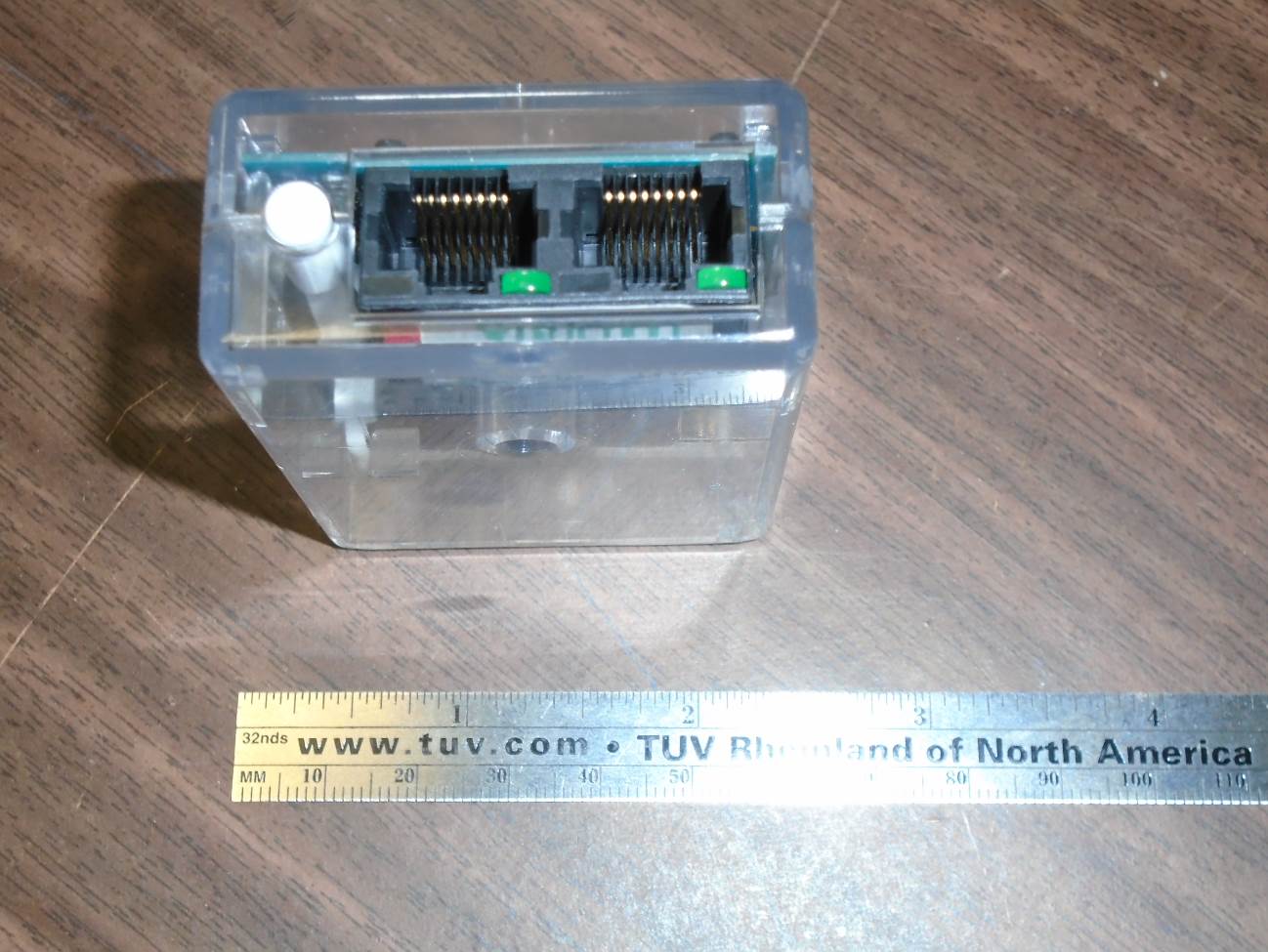

TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - External Photos Page 1 of 4 EUT: BLE Device, Model: nIO-BT External Photos EUT Name: BLE Device EUT Model: nIO-BT FCC ID: VR8-SSIINTR004 IC ID: 7791A-SSIINTR004 FCC Title 47, Part 15C, ANSI C63.10 Prepared for: Frank Pelliccio Sensor Switch 900 Northrop Rd. Wallingford, CT 06492 USA Tel: (203) 303-5447 Fax: Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 18 September 2015 Report Number: Supplement to 31551027.001 & 31551027.002 - External Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - External Photos Page 2 of 4 EUT: BLE Device, Model: nIO-BT External Photos: Figure 1: Top View of EUT SMD Antenna RF Shield TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - External Photos Page 3 of 4 EUT: BLE Device, Model: nIO-BT Figure 2: Bottom View of EUT RF absorbing material TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - External Photos Page 4 of 4 EUT: BLE Device, Model: nIO-BT Figure 3: Edge View of EUT

Label Artwork

Date: August 13, 2015 Subject: Device label for FCC ID: VR8-SSIINTR004, IC ID : 7791A-SSIINTR004 A thermally-printed label will be permanenty affixed to the back of the unit enclosure, and feature the following text : nIO BT BlueTooth Low Energy Communication Module for Wireless Communication to nLight Zone 12-24VAC/VDC – 7mA FCC ID: VR8-SSIINTR004 IC ID: 7791A-SSIINTR004 DATE CODE WWYY Assembled in Mexico UL LISTED 3D62 This graphical representation is a mock-up only. Refer to “SensorSwitch_Label Artwork.pdf” for final version.

TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - Internal Photos Page 1 of 3 EUT: BLE Device, Model: nIO-BT Internal Photos EUT Name: BLE Device EUT Model: nIO-BT FCC ID: VR8-SSIINTR004 IC ID: 7791A-SSIINTR004 FCC Title 47, Part 15C, RSS-210 Issue 8, ANSI C63.10 Prepared for: Frank Pelliccio Sensor Switch 900 Northrop Rd. Wallingford, CT 06492 USA Tel: (203) 303-5447 Fax: Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 18 September 2015 Report Number: Supplement to 31551027.001 & 31551027.002 - Internal Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - Internal Photos Page 2 of 3 EUT: BLE Device, Model: nIO-BT Internal Photos: SMD Antenna TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 IC ID: 7791A-SSIINTR004 Report Number: Supplement to 31551027.001 & 31551027.002 - Internal Photos Page 3 of 3 EUT: BLE Device, Model: nIO-BT Figure 1: Top View of EUT with RF Shield removed. Figure 2: Rear View of circuit board with the RF-absorbing material removed.

FCC ID: VR8-SSIINTR004 Report No.: 31551027.001 Page 1 of 32 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 MS-0005232 Revision 3.0 Electromagnetic Compatibility Test Report Tested To: FCC Part 15C On BLE Device Model: nIO-BT 900 Northrop Rd. Wallingford, CT 06492 USA Prepared by: TUV Rheinland of North America, Inc. FCC ID: VR8-SSIINTR004 Report No.: 31551027.001 Page 2 of 32 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 MS-0005232 Revision 3.0 Manufacturer’s statement - attestation The manufacturer; Sensor Switch, as the responsible party for the equipment tested, hereby affirms: a) That he has reviewed and concurs that the test shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That all changes (in hardware and software/firmware) to the subject device will be reviewed. d) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving (certifying) the subject equipment. Frank Pelliccio Printed name of official Signature of official 900 Northrop Road Wallingford, CT 06492 USA 13 August 2015 Address Date (203) 303-5447 [email protected] Telephone number Email address of official FCC ID: VR8-SSIINTR004 Report No.: 31551027.001 Page 3 of 32 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 MS-0005232 Revision 3.0 Client: 900 Northrop Rd. Wallingford, CT 06492 USA Frank Pelliccio Ph: (203) 303-5447 Fax: Email: [email protected] Identification: BLE Device Serial No.: PRODUCTION PROTOTYPE Test item: Model: nIO-BT Date tested: 05 August 2015 Testing location: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596-9470 U.S.A. Tel: (919) 554-3668 Fax: (919) 554-3542 Test specification: Emissions: FCC Part 15, Subpart C; FCC Parts 15.207(a), FCC Parts 15.249(d), 15.209 and 15.215(c) FCC Part 15.249, FCC Parts 15.249(a) and 15.249(c), FCC Part 2.1093, Test Result The above product was found to be Compliant to the above test standard(s) tested by: Mark Ryan reviewed by: Michael Moranha 18 September 2015 Date Signature 18 September 2015 Date Signature Other Aspects: None Abbreviations: OK, Pass, Compliant, Complies = passed Fail, Not Compliant, Does Not Comply = failed N/A = not applicable Industry Canada 90552 and 100881 Testing Cert #3331.05 2932H-1 and 2932H-2 FCC ID: VR8-SSIINTR004 Report No.: 31551027.001 Page 4 of 32 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 MS-0005232 Revision 3.0 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................... 5 1.1 S COPE ......................................................................................................................................................... 5 1.2 P URPOSE ..................................................................................................................................................... 5 1.3 R EVISION HISTORY ..................................................................................................................................... 5 1.4 S UMMARY OF TEST RESULTS ..................................................................................................................... 6 2 LABORATORY INFORMATION ................................................................................................................ 7 2.1 A CCREDITATIONS ....................................................................................................................................... 7 2.2 M EASUREMENT UNCER…

Text truncated - open the document above for the full version.

TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 1 of 9 EUT: BLE Device Model: nIO-BT Test Setup Photos EUT Name: BLE Device EUT Model: nIO-BT FCC ID: VR8-SSIINTR004 FCC Title 47, Part 15C, ANSI C63.10:2009 Prepared for: Frank Pelliccio Sensor Switch 900 Northrop Rd. Wallingford, CT 06492 USA Tel: (203) 303-5447 Fax: Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 18 September 2015 Report Number: Supplement to 31551027.001 - Test Setup Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 2 of 9 EUT: BLE Device Model: nIO-BT Test Setup Photos: Figure 1: Typical Radiated Emissions – 30 MHz to 1 GHz shown, front view TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 3 of 9 EUT: BLE Device Model: nIO-BT Figure 2: Typical Radiated Emissions – 30 MHz to 1 GHz shown, rear view Orientation “B” shown TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 4 of 9 EUT: BLE Device Model: nIO-BT Figure 3: Typical Radiated Emissions – 1 GHz to 18 GHz shown, to ANSI C63.10:2009 TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 5 of 9 EUT: BLE Device Model: nIO-BT Figure 4: Typical Radiated Emissions – 18 GHz to 25 GHz shown, to ANSI C63.10:2009 TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 6 of 9 EUT: BLE Device Model: nIO-BT Figure 5: Radiated Emissions – Orientation A Investigation for highest emissions TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 7 of 9 EUT: BLE Device Model: nIO-BT Figure 6: Radiated Emissions – Orientation B Investigation for highest emissions Note: Orientation B provided the highest emissions TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 8 of 9 EUT: BLE Device Model: nIO-BT Figure 7: Radiated Emissions – Orientation C Investigation for highest emissions TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: VR8-SSIINTR004 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31551027.001 - Test Setup Photos Page 9 of 9 EUT: BLE Device Model: nIO-BT Figure 8: Conducted Emissions on AC Mains Representative Host Supply EUT LISN
