VSODX-300Digital 2W Portable Radio

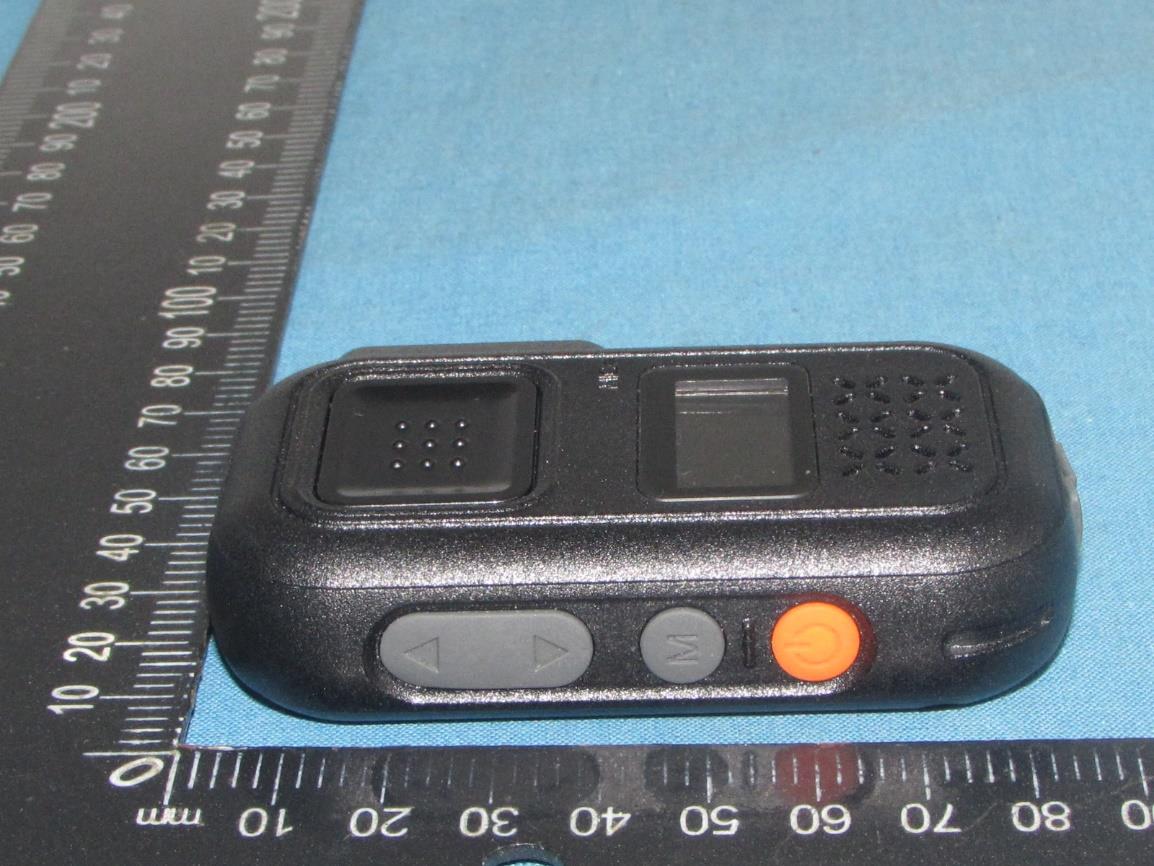

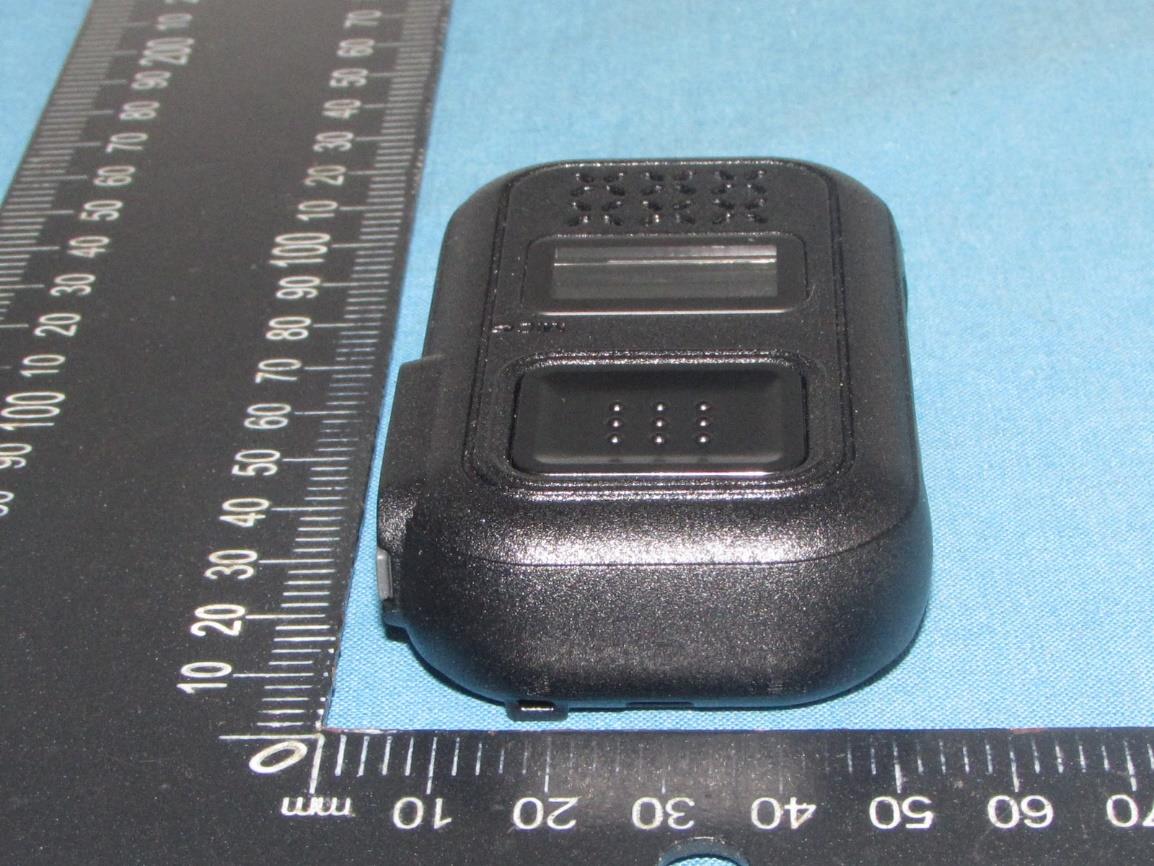

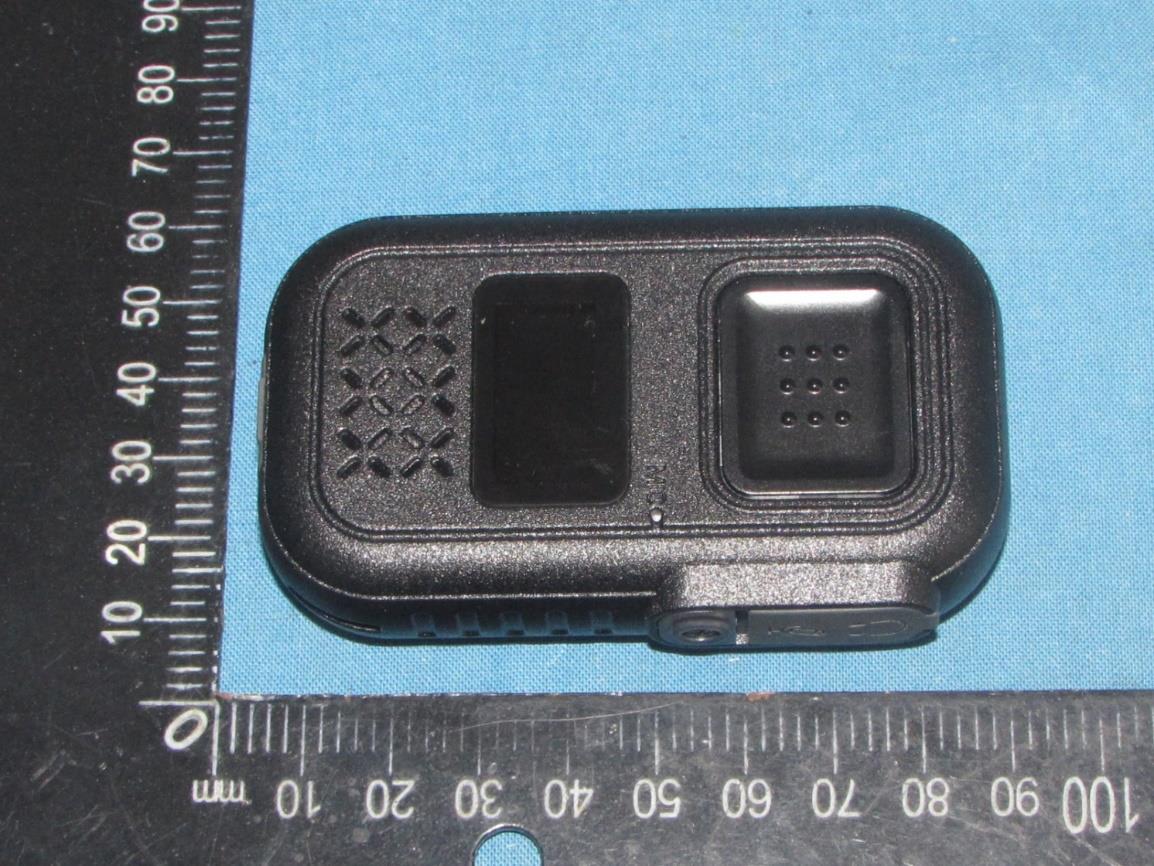

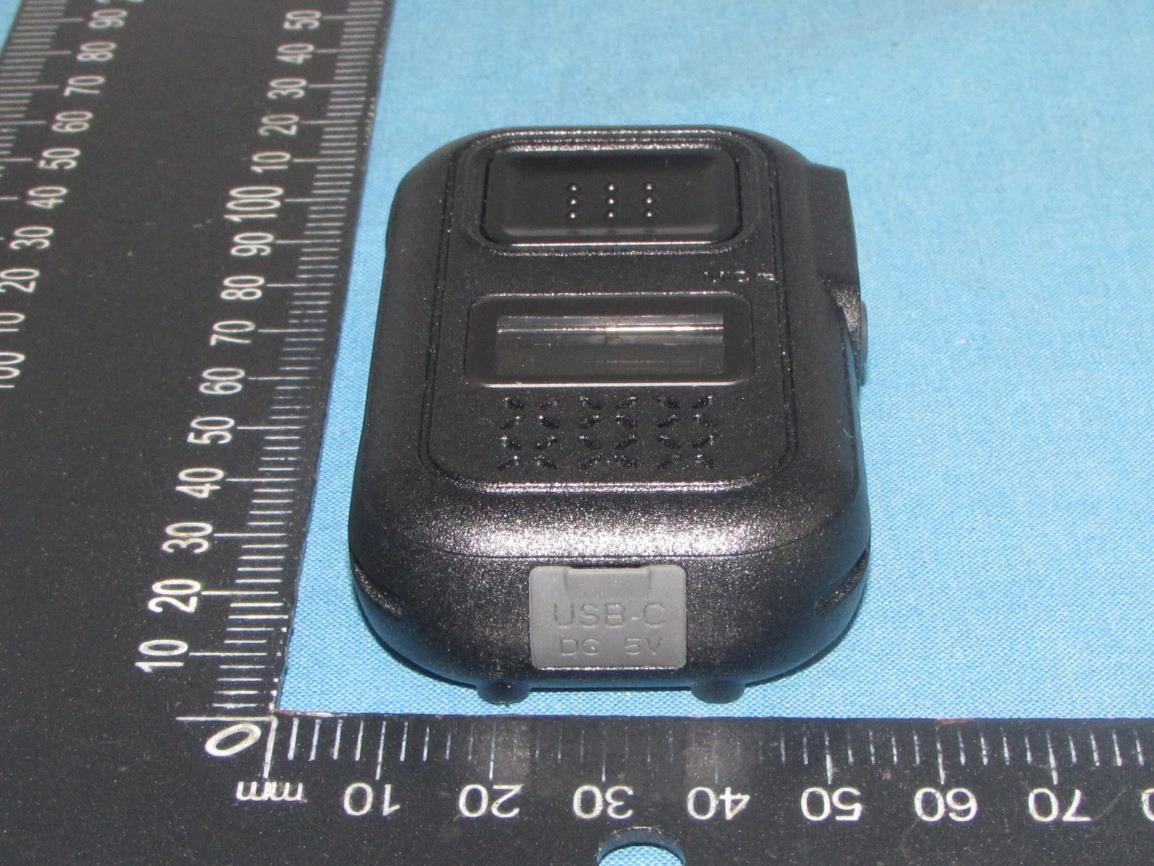

User Manual Version #1 (2023-05-30) UHF Transceiver DX-300 2 1. DX-300 Features With built-in antennas, the DX-300 is simple and easy to carry with it, as it fits perfectly in the palm of your hand. Swivel belt clips minimize inconvenience and provide convenience for users to act freely when the radio is attached to the body. DX-300 provides stress-free communication through activities such as hotels, restaurants, large shops, amusement facilities, and various leisure sports. ⚫ Digital (TierI, II TDMA) or Analog Mode. ⚫ 512 Channel Capacity; 1 Zones 16 (1zone = Max 16 Channels) ⚫ Mixed Channel Operation (Analog reception in Digital mode) ⚫ 2 / 0.5 Watt RF Power Setting ⚫ Encryption Mode (AES256) ⚫ Single equipment running Business Radio(DMR)/GMRS/FRS ⚫ Channel Announcement ⚫ Battery Remaining Announcement ⚫ Multiple Scan Modes ⚫ Time-Out Timer (TOT) ⚫ Safety mode(Lone Worker) ⚫ Emergency / Siren ⚫ Etiquette (Vibration) Function (Option) ⚫ Electronic volume control ⚫ Voice recording and playback ⚫ VOX (Voice Operated Transmit) ⚫ Remote Radio Stun / Revive ⚫ Built in Speaker & MIC ⚫ 1Watt Audio output ⚫ Swivel Belt Clip ⚫ 2 Pin accessory connector ⚫ Bright and vivid TFT LCD screen ⚫ IP67 waterproof ⚫ DC+3.7V Li-ion / 2,000Mah 3 2. Specification DX-300 General Frequency Range Frequency Stability Programmable Channels Channel Spacing Digital Vocoder Dimensions Weight Power Source Current Drain (maximum) DX-300 : 440 ~470 MHz ±1.5ppm 512 (1 Zones = Max16 Channels) 12.5KHz AMBE++ Voice Compression Algorithm 86mm(H) x 51.5mm(W) x 22mm(D) 100g DC +3.7V Li-ion 2,000mAH Battery Receive mode, rated audio out – 420 (Audio Max) Transmit mode – 1,200mA Standby mode – 100mA Receiver Sensitivity Squelch Sensitivity Selectivity Spurious and Harmonic Rejection FM Hum and Noise Audio Output Power Audio Distortion Audio Response Input Impedance 0.25uV 12 dB SINAD 0.22uV 10dB SINAD 60dB (12.5KHz) -57dBm(<1GHz), -47dBm(>1GHz) 40dB (12.5KHz) 1 Watt across an 8ohm load Less than 3% at rated output +1, -3 dB from 6dB per octave de-emphasis Characteristic from 300 ~ 3000Hz 50 ohms Transmitter RF Power Output Adjacent Channel Power Spurious and Harmonic FM Hum and Noise Audio Distortion Audio Frequency Response Output Impedance 1/0.5 Watt 60dB -36dBm(<1GHz), -30dBm(>1GHz) 40dB (12.5KHz) 3% maximum with 1KHz modulation +1, -3dB from 6dB per octave pre-emphasis Characteristic from 300 ~ 3000Hz 50ohms 4 3. DX-300 Package Contents Radio Unit Swivel Belt Clip 1 Slot Charger User Manual Figure 3-1) DX-300 Main Package Contents 5 4. Control Buttons & LCD Display Figure 4-1) Appearance DX-300 6 Figure 4-2) LCD Icon Explanation 5. Button and Jack Operations Button & Jack Operation Description Power ON/OFF Pressing the Power ON/OFF button will cause the MAXON logo to appear on the LCD and power on with a sound. Pressing the Power ON/OFF switch for more than 2 seconds with the Radio on will turn off the power with the "Goodbye" comment. On the menu mode, to return to the upper Menu, press the "Power On/Off" button. PTT Button The radio transmits voice when pressing PTT button. It receives Voice when releasing the PTT button. In order to have clear sound when transmitting, it is recommended to speak around 5~7cm away from the MIC. Volume UP Button If you press Volume/Channel UP Button with Radio turned on, the voice becomes louder one step at a time. Volume consists of a total of 16 steps. To select the Menu options, press the "Volume/Channel UP/down Button" to move from side to side menu. Volume Down Button If you press Volume/Channel Down Button with Radio turned on, the voice increases or decreases step by step. Volume consists of a total of 16 steps. To select the Menu options, press the "Volume/Channel UP/down Button" to move from side to side menu. Menu Button To Enter the Menu mode, press the "Menu Button". Digital mode provides three menu options such as Contacts, Record, and Settings. And Analog mode provides only the Setting option. On the menu mode, to dismiss the menu options and return to the welcome screen, press the "Menu button" for about 2 seconds. 2 Pin MIC Jack 2 Pin MIC Jack is used for : 1) the Accessory Speaker MIC 2) programming cable to set CPS Program 3) communicating with external terminals 7 6. Installation and Removal 6.1 Belt Clip Installation and Removal Please refer to figure 6-1. To attach the Swivel belt clip to DX-300, align the belt clip to the back of DX-300 as shown the figure 5-1 and push it down to direction 1. The clip will "click" when locked. To remove the belt clip, push the belt clip locking tab into direction 2 and pull the belt clip up to direction 3. In case the user wears the DX-300 around the waist, the belt clip can turn to direction 4 or 5 to make it more convenient. Figure 6-1) Belt Clip Installation and Removal 6.2 External Accessory Connector Jack To connect external accessories as shown in figure 6-2, open the accessory jack cover, align the DX-300 and the accessory, and then push-in the accessory. To remove the accessory, carefully pull-out the accessory connector from the middle of the connector and close the accessory cover to re-seal the jack. 8 Figure 6-2) Jack for an external Accessory 7. Charging the Battery When the DX-300 is inserted into the XC-400D charger, the LCD screen displays the state of charge and the battery Icon indicates the full charge when charging is complete. DX-300 can be charged by a USB C-type adapter for a mobile phone. 7.1 The Time of Charging Low battery voltage may reduce communication coverage and also degrade performance. Please charge the battery in case of the following: 1) When the performance has been degraded. 2) When the battery Icon blinks indicating low battery. 3) When you hear the 'Warning sound' during operation. 7.2 How to Charge DX-300 can be charged with an XC-400D charger and a USB C-type adapter for mobile phones. 1) Charging 9 Figure 7-1) XC-400D Charger 2) Charging with USB C-Type charger Inset a USB C-type adapter into …
