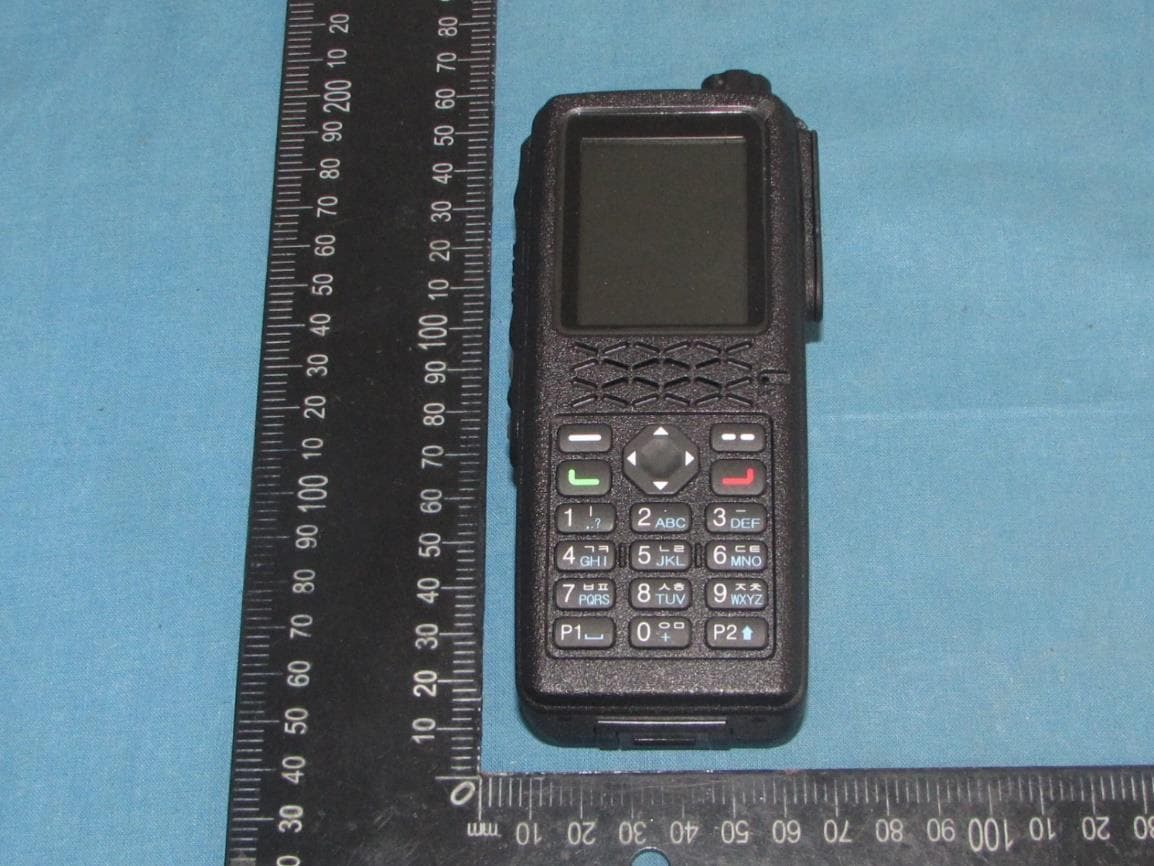

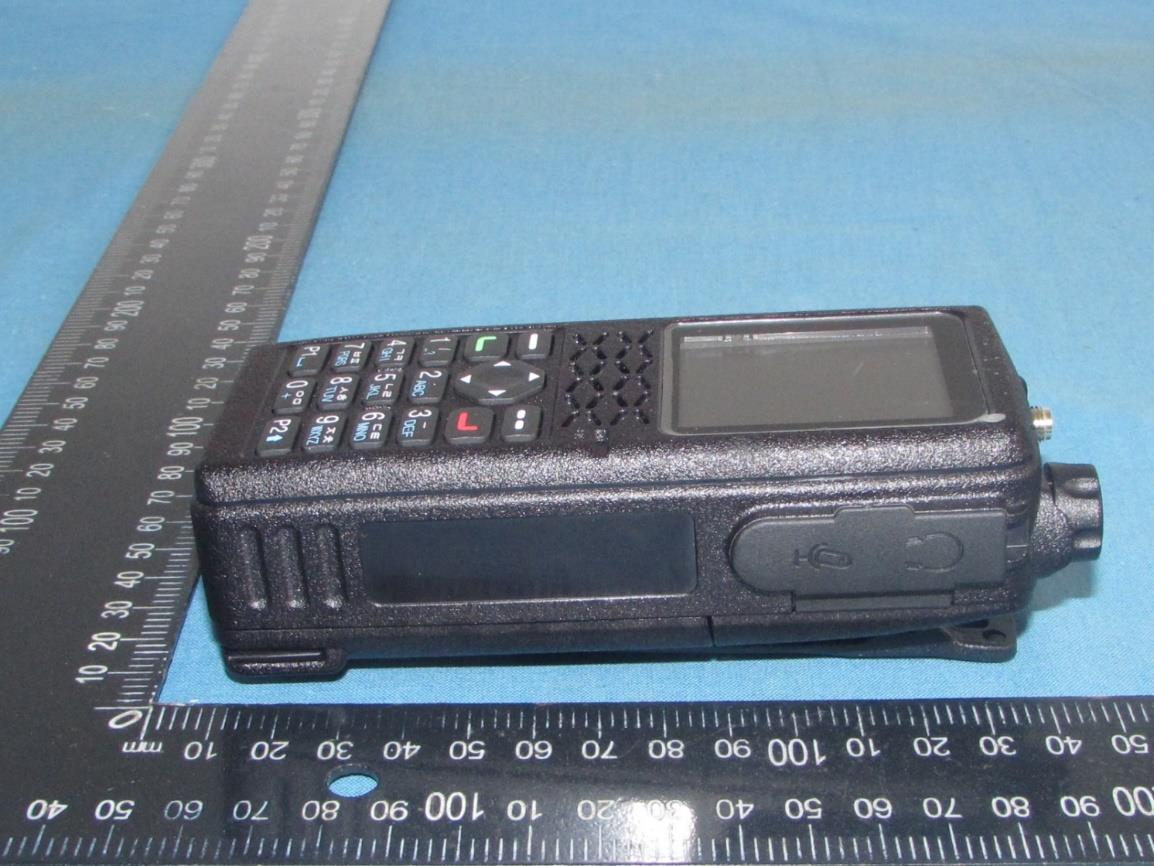

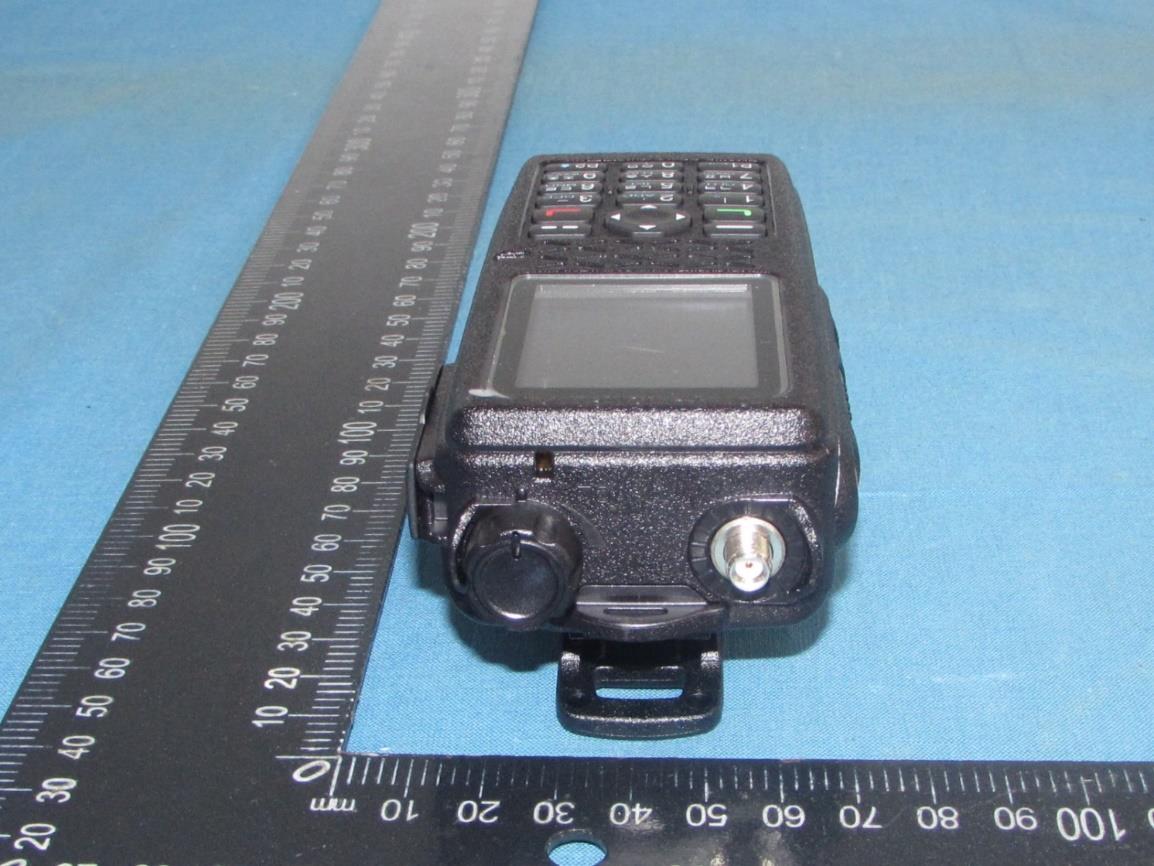

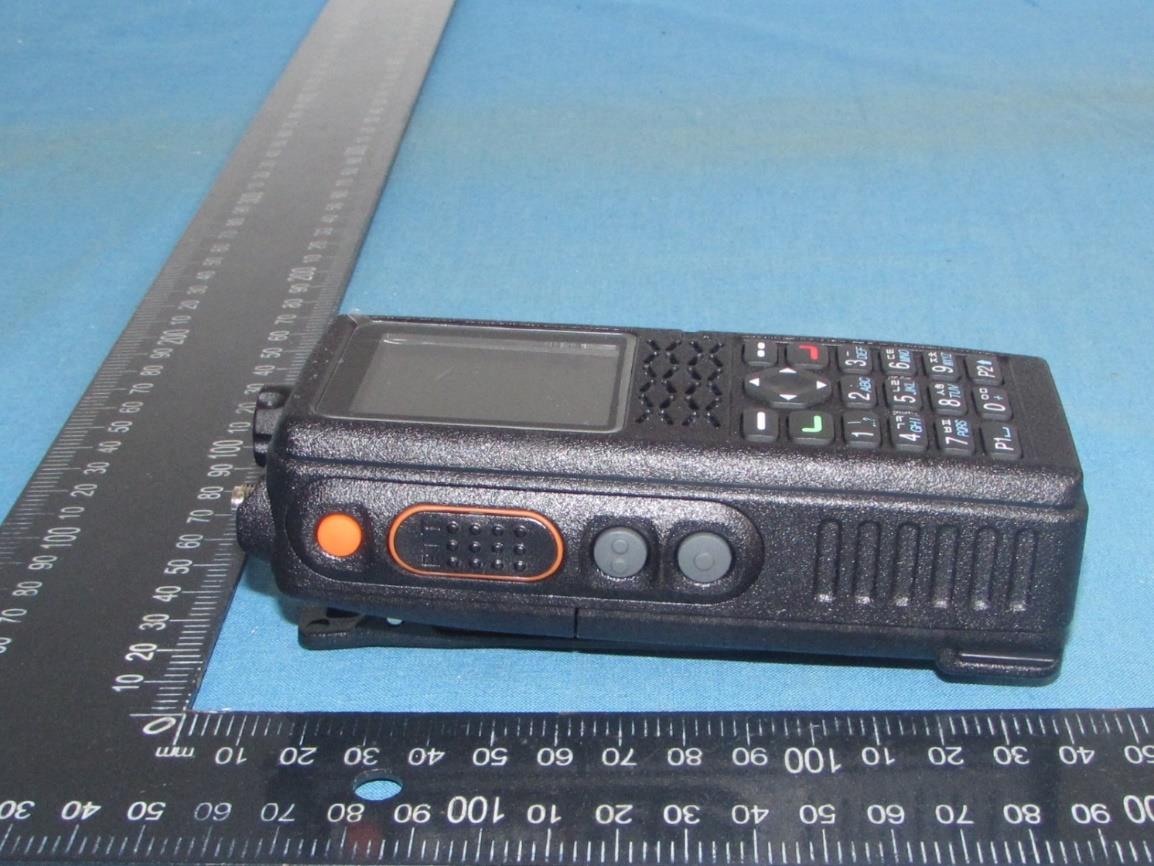

VSODX-7400Digital 5W Portable Radio

User Manual Version #1 (2023-05-30) VHF/UHF Transceiver DX-7100 DX-7400 2 1. DX-7000 Series Features The DX-7000 series digital radio is equipped with a large, cool 2.0-inch TFT color LCD and a full keypad to provide a variety of services, including control of various industrial facilities. ⚫ Dual-mode(Analog & DMR) Operation ⚫ 1024 Channel Capacity, 64 Zones (1zone = Max 1024 Channels) ⚫ 5/1 Watt RF Power Setting ⚫ Text Messaging with inbox and outbox, Up to 10 Predefined messages. ⚫ Voice Recording and playback ⚫ Remote Stun / Revive / Monitor function. ⚫ Alpha-Numeric Full Keypad ⚫ TDMA Direct Mode ⚫ Voice Encryption Mode (AES256, DMRA256) ⚫ DTMF Encode & Decode ⚫ 2-Tone Encode & Decode ⚫ Lone Worker Mode ⚫ Multiple Scan Modes ⚫ VOX (Voice Operated Transmit) ⚫ Busy Channel Lock (BCL) / Busy Channel Lock Override (BCLO) / Time-Out Timer (TOT) ⚫ Emergency / Siren ⚫ Transmit Interrupt (Option) ⚫ Man down function(Option) ⚫ SFR(Single Frequency Repeater) (Option) ⚫ Etiquette (Vibration) Function (Option) ⚫ Built in GPS(Option) ⚫ 1Watt Audio output ⚫ Built in Flash Lamp ⚫ 2.0 inch TFT LCD(176 x 220) Display ⚫ Waterproof IP67 ⚫ MIL STD 810F/G ⚫ DC+7.4V Li-ion / 2,600mAH 3 2. Specification DX-7000 Series General Frequency Range Frequency Stability Programmable Channels Channel Spacing Digital Vocoder Dimensions Weight Power Source Current Drain (maximum) DX-7100 VHF : 136~174 MHz DX-7400 UHF : 400 ~470 MHz ±1.5ppm (-30 to +60°C) 64 Zones / 1,024 Channels 12.5KHz(DMR), 12.5KHz/25KHz(Analog) AMBE++ Voice Compression Algorithm 103mm(H) x 52mm(W) x 32mm(D) 275g DC +7.4V Li-ion 2,600mAH Battery Receive mode, rated audio out – 420 (Audio Max) Transmit mode – 1,200mA Standby mode – 100mA Receiver Sensitivity Squelch Sensitivity Selectivity Spurious and Harmonic Rejection FM Hum and Noise Audio Output Power Audio Distortion Audio Response Input Impedance 0.22uV 12 dB SINAD 0.20uV 10dB SINAD 60dB @12.5KHz -57 dBm (< 1GHz) -47 dBm (> 1GHz) 40dB (12.5KHz) 1 Watt across an 16-ohm load Less than 3% at rated output +1, -3 dB from 6dB per octave de-emphasis Characteristic from 300 ~ 3000Hz 50 ohms Transmitter RF Power Output Adjacent Channel Power Spurious and Harmonic FM Hum and Noise Audio Distortion Audio Frequency Response Output Impedance 5/1Watt 60 dB @12.5 kHz -36 dBm (< 1GHz) -30 dBm (> 1GHz) 40dB (12.5KHz) 3% maximum with 1KHz modulation +1, -3dB from 6dB per octave pre-emphasis Characteristic from 300 ~ 3000Hz 50ohms 4 3. In-Box Contents Radio Unit Battery 2 Slot Charger Adapter Antenna Belt Clip User Manual Figure 3-1) DX-7000 Series Main Package Contents XB-2600 : 2,600mAH Li-ion Battery Pack XC-100D : One Slot Charger XC-200D : Dual Slot Charger XC-1000D : 10 Slot Gang Charger 423D-WS : 400~450MHz SMA Whip Antenna 460D-WS : 440~470MHz SMA Whip Antenna 5 4. Buttons & LCD Icons Figure 4-1) DX-7000 Series buttons and knobs 6 Figure 4-2) DX-7000 LCD Icons Button & Jack Operation Description Power ON/OFF Volume Switch There will be a sound with a logo on LCD when turning ON the radio. When turning the knob to counter-clockwise, the radio will be turned OFF. You can also control the Volume level with the knob. It volumes up when you turn it clockwise and volumes down when you turn it counter-clockwise. SOS Button When the SOS button is pressed in an emergency situation, a warning alarm alerts the current emergency situation. PTT Button The radio transmits messages when pressing PTT button. It receives messages when releasing the PTT button. In order to have clear sound when transmitting, it is recommended to speak around 5~10cm away from the MIC. Zone UP/Down Button When pressing Zone button, the Zone registered in the program will be selected in order. You can choose the channel by using UP/Down button in the selected zone. 7 Menu / select Button Press the Menu/select button to make a selection on the menu or enter its menu options. Contact Button Press the button to enter the contact list programmed into the radio such as Private, Group and All Call. Menu-Back Button Menu-back button is used to cancel out of a menu or return to the previous menu screen. Home Button Home button is used to return to the initial screen. 5. Installation and Removal 5.1 Antenna Installation and Removal To install the antenna, insert the antenna into antenna connector and screw the antenna clockwise. To remove the antenna, screw the antenna counter clockwise. Figure 5-1) Antenna Installation and Removal 8 1. Do not over tighten the antenna as it may cause damage to the radio 2. NEVER HOLD by the antenna when carrying the transceiver. 3. Transmitting without an antenna may damage the transceiver. 5.2 Battery Installation and Removal As shown the figure 5-2) below, to remove the battery, press the locking latch in the direction of arrow 1 and pull up the battery latch in the direction of arrow 2 to pull it away from the radio. To attach the battery, align the battery pack with the groove of the body (arrow 3) and push the locking latch down to the direction of arrow 4. The battery latch will click shut when locked. Figure 5-2) Battery Removal and Installation 5.3 Belt Clip Installation and Removal As shown the figure 5-3) below, Belt clip attaches to the back of the radio above the battery. To attach the belt clip, align the belt clip to the grooves on the back of the radio and push it down to the direction of arrow 1. Clip will click when locked. To remove the belt clip, push the belt clip locking tab in the direction of arrow 2 and pull the belt clip up to the direction of arrow 3 at the same time. 9 Figure 5-3) Belt Clip Installation and Removal 5.4 External Accessory Connector Jack To connect the external accessory as shown in Figure 5-4, unscrew the accessory jack cover to the direction of arrow 1, align the accessory with the radio, and then put the accessory on the accessory connector position to screw up. To remove the external accessory, unscrew the accessory to direction of arrow 3 and then pull it away to the d…
