VSOXR-150FM TRANSCEIVER

XR-150/XR-450 Portable Radio Manual * This Service manual is subject to change according to improvement of XR-150/XR-450 Portable Radio without notice. * Version #2 (2009-06-09) 2 Table of Contents 1. Features ------------------------------------------ 6 2. Components of XR-150/XR-450 Series Radio ---------------------- 7 3. Appearance of XR-150/XR-450 Series Radio -------------------- 8 4. Basic Operation of XR-150/XR-450 Series Radio -------------------- 9 4.1 Installation and Removing the Antenna ---------------------- 9 4.2 Installation and Removing the Battery ---------------------- 10 4.3 Installation and Removing the Belt Clip --------------------- 10 4.4 Accessory Connector ------------------------------- 11 4.5 Operating XR-150/XR-450 Radio -------------------------------- 11 5. Charging the Battery ------------------------------- 12 6. Operating Instructions of XR-150/XR-450 Series Radio ----------- 14 7. Precautions ------------------------------- 27 8. Safety Notes -------------------------------- 28 9. Specification -------------------------------- 29 9.1 XR-150 --------------------------------- 29 9.3 XR-450 --------------------------------- 30 Thank you for your purchase of the XR-150/XR-450 Series Radio. 1. Before using the Radio, please read the enclosed user guide in details. 2. The functions and specifications are subject to be changed without notice for improvement of the Radio performance. 3 RADIO FREQUENCY ENERGY SAFETY INFORMATION Your Xradio radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your XRADIO radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: ■ FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ■ American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. ■ American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. ■ The following accessories are authorized for use with this product. Use of accessories other than those (listed in the instruction) specified may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure. To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: ■ DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. ■ DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. ■ ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when 4 transmitting and only use the Xradio belt-clip which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your XRADIO radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Occupational/Controlled Use The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. OPERATING NOTES ■ When transmitting with a portable radio, hold the radio in a vertical position with its microphone 5 to 10 cm (2 to 4 inches) away from your mouth. Keep the antenna at least 2.5 cm (1 inch) from your head and body. ■ If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters (1 inch) from your body when transmitting. PRECAUTIONS WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the transceiver is vertical. WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. CAUTION! NEVER short the terminals of the battery pack. NEVER connect the transceiver to a power source other than the Battery listed below Such a connection will ruin the transceiver. DO NOT push the PTT when not actually desiring to transmit. 5 AV O I …

Text truncated - open the document above for the full version.

August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: VSOXR-150 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Yeonhwa M Tech Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd.

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Yeonhwa M Tech Co., Ltd. FCC ID : VSOXR-150 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Yeonhwa M Tech Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Yeonhwa M Tech Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX VSOXR-150 SCH DIA.pdf Parts list CONF APPENDIX VSOXR-150 PL.pdf Block diagram CONF APPENDIX VSOXR-150 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX VSOXR-150 OpDes.pdf External Photos SHORT-TERM CONF VSOXR-150 EXT Photo.pdf Internal Photos SHORT-TERM CONF VSOXR-150 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF VSOXR-150 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF VSOXR-150 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd.

August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter FCC ID : VSOXR-150 Gentlemen: 1. Yeonhwa M Tech requires the Part 90 FCC grant list frequencies outside of Part 90 assignments because state and local government users specify operation outside of Part 90 so that they can interoperate with Federal agencies. The issue being that user’s that are not under NTIA frequency coordination must use radios that have FCC approval. 2. This handheld transceiver that operated using frequency modulation(FM) incorporating traditional simplex transmission protocol (50%) duty and may be marketed to and used by employees for occupational operations, such as Federal and Public Safety agencies, e.g. police, fire and emergency medical, etc. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd. 3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803

August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Yeonhwa M Tech Co., Ltd. FCC ID : VSOXR-150 90.203(e) and (g) statement request Gentlemen: This equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd.

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 September 10, 2010 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: FCC ID justification letter for expanded frequency range 136- 174 MHz Gentlemen; The XR-150 Portable radio was designed to operate in the frequency bands 136-174 MHz To aid equipment authorization in other countries that accept the United States FCC Grant for Certification, Yeonhwa M Tech is requesting that the FCC list the frequencies 136-174 MHz under FCC Rule Parts 90 on the FCC Grant. For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Frequencu Range (MHz) Part 90 Feds Grant Notes 136-150.8 X EF, BE 163.5-173.4 X X EF, BE 173.4-174 X EF, BE Equipment programming is the responsibility of Authorized Service Personnel. In addition, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Truly yours, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd.

FCC ID: VSOXR-150 Copyright ○ c 2009, LTA Co., Ltd. Page 1 of 4 FCC ID: VSOXR-150 Copyright ○ c 2009, LTA Co., Ltd. Page 2 of 4 FCC ID: VSOXR-150 Copyright ○ c 2009, LTA Co., Ltd. Page 3 of 4 FCC ID: VSOXR-150 Copyright ○ c 2009, LTA Co., Ltd. Page 4 of 4

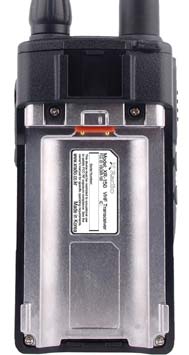

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Yeonhwa M Tech Co., Ltd. FCC ID : VSOXR-150 Label Information Gentlemen: Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.  The available label area on the device is limited because it is relatively small and has many contoured surfaces, keypads, LCD displays, charge contacts and other connectors.  The batteries are designed for easy removal and the label will be visible whenever the batteries are removed for charging or replacement.  The label will be readily visible at the time of purchase because the device will be marketed without the battery installed. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd. SAMPLE LABEL & LOCATION Note: 1. The label generally is located underneath a back door of the EUT. 2. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 August 13, 2009 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Yeonhwa M Tech Co., Ltd. FCC ID : VSOXR-150 Label Information Gentlemen: Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.  The available label area on the device is limited because it is relatively small and has many contoured surfaces, keypads, LCD displays, charge contacts and other connectors.  The batteries are designed for easy removal and the label will be visible whenever the batteries are removed for charging or replacement.  The label will be readily visible at the time of purchase because the device will be marketed without the battery installed. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co.,Ltd. SAMPLE LABEL & LOCATION Note: 1. The label generally is located underneath a back door of the EUT. 2. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCC ID: VSOXR-150 Copyright c 2009, LTA Co., Ltd. Page 1 of 1

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 TUNE-UP PROCEDURE Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation.

3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea 153-803 §1.1307 and §2.1093-RF EXPOSURE EVULATION 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. According to FCC Exclusion list, In the following table, fGHz is mid-band frequency in GHz, and d is the distance to a person’s body, excluding hands, wrists, feet, and ankles. 1.2 Measurement Result: This is an Occupational device and the max effective radiated power is The average powers, 2.5W (use the 50% duty factor) are less than the limit, <<Low Threshold - Occupational>> (900/fGHz) = (900/0.136) = 6618mW, d≥2.5cm The SAR measurement is no need.

Ref. No.: LR500190908D Copyright ○ c 2009, LTA Co., Ltd. Page 1 of 33 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Device Category : VHF FM Handheld Transceiver Manufacturing Description : FM TRANSCEIVER Manufacturer : Yeonhwa M Tech Co., Ltd. Trade mark : XRadio Model name : XR-150 Varient model name : XR-150T, XR-150M, XR-150R, XR-150G Serial number : Identical prototype FCC Rule Part(s) : §2, §22, §74, §90 Frequency Range : 136 ~ 174MHz RF Output Power : 2W/5W Channel Separation : 12.5kHz / 25.0kHz Emission Designators: : 10K2F3E, 14K0F3E Data of issue : August 14, 2009 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: August 3 ~ 14, 2009 Test Report S/N: LR500190908D Test Site : LTA CO., LTD. VSOXR-150 Yeonhwa M Tech Co., Ltd. Ref. No.: LR500190908D Copyright ○ c 2009, LTA Co., Ltd. Page 2 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------- 3.2 REQUIREMENTS ------------------------------------------------------------------------------------- 3.2.1 CARRIER OUTPUT POWER (CONDUCTED) -------------------------------------------- 3.2.2 UNWANTED EMISSIONS (TRANSMITTER CONDUCTED) (CONDUCTED) ---- 3.2.3 FIELD STRENGTH OF SPURIOUS RADIATION ---------------------------------------- 3.2.4 EMISSION MASKS (OCCUPIED BANDWIDTH) ---------------------------------------- 3.2.5 TRANSIENT FREQUENCY BEHAVIOR --------------------------------------------------- 3.2.6 AUDIO FREQUENCY RESPONSE ----------------------------------------------------------- 3.2.7 MODULATION LIMITING --------------------------------------------------------------------- 3.2.8 FREQUENCY STABILITY (TEMPERATURE VARIATION) ----------------------------- 3.2.9 FREQUENCY STABILITY (VOLTAGE VARIATION) ------------------------------------- 3.2.10 NECESSARY BANDWIDTH AND EMISSION BANDWIDTH ------------------------ APPENDIX APPENDIX I TEST EQUIPMENT USED FOR TESTS --------------------------------------------- APPENDIX II TEST PLOTS ----------------------------------------------------------------------------- 3 4 5 5 6 6 7 10 12 13 14 15 16 17 18 19 21 Ref. No.: LR500190908D Copyright ○ c 2009, LTA Co., Ltd. Page 3 of 33 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile : +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2010-05-03 IC filing Ref. No.: LR500190908D Copyright ○ c 2009, LTA Co., Ltd. Page 4 of 33 2. Information’s about test item 2-1 Client & Manufacturer Company name : Yeonhwa M Tech Co., Ltd. Address : 3F, Yukyong B/D, 544-6, Gasan-dong, Geumcheon-gu, Seoul, Korea TEL / FAX : +82-70-7434-7274 / +82-2-3281-7271 2-2 Equipment Under Test (EUT) Trade name : FM Handheld Transceiver FCC ID : VSOXR-150 Model name : XR-150 Varient model name : XR-150T, XR-150M, XR-150R, XR-150G Serial number : Identical prototype Date of receipt : August 03, 2009 EUT condition : Pre-production, not damaged Antenna type : λ/4 Helical Antenna Frequency Range : 136 ~ 174 MHz RF output power : 2W/5W Channel Separation : 12.5kHz / 25.0kHz Duty cycle TX power : 5(Tx) : 5(Rx) : 90(Stand-by) Speaker Impedance : 16 ohm Audio Output Power : 1.0Watt across an 16-ohm load Power Source : 7.5V DC rechargeable Li-NH battery 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 136.025 155.025 173.975 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - 2-5 Model Description Model No. Difference XR-150T Same RF Circuit, Graphic LCD, Multy Connector Type audio jack XR-150M Same RF Circuit, Graphic LCD, Multy Connector Type audio jack XR-150R Same RF Circuit, No LCD, Rotary switch, two pin connector Type audio jack XR-150G Same RF Circuit, No LCD, Rotary switch, Multy Connector Type audio jack Ref. No.: LR500190908D Copyright ○ c 2009, LTA Co., Ltd. Page 5 of 33 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Status (note 1) 2.1046 (a) Carrier Output Power (Conducted) C 2.1051 Unwanted Emissions (Transmitter Conducted) C 2.1053 (a) Field Strength of Spurious Radiation C 2.1049 (c) (1) Emission Masks (Occupied Bandwidth) C 90.214 Transient Frequency Behavior C 2.1047 (a) Audio Low Pass Filter (Voice Input) C 2.1047 (a) Audio Frequency Response C 2.1047 (b) Modulation Limiting C 2.1055 (a) (1) Frequency Stability (Temperature Variation) C 2.1055 (b) (1) Frequency Stability (Voltage Variation) C 2.202 (g) Necessary Bandwidth and Emission Bandwidth C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Rules and R…

Text truncated - open the document above for the full version.

FCC ID: VSOXR-150 Copyright 2009, LTA Co., Ltd. Page 1 of 2 Radiated Emission FCC ID: VSOXR-150 Copyright 2009, LTA Co., Ltd. Page 2 of 2 Conducted Emission
