VSOXU-100AFM TRANSCEIVER

SERVICE MANUAL VHF Transceiver XV-100A UHF Transceiver XU-100A * This Service manual is subject to change according to improvement of XV-100A / XU-100A Portable Radio without notice. * Version #2 (2012-11-16) 2 ==== CONTENTS ==== 1. XV-100A / XU-100A Features ----------------------------- 3 2. Components of XV-100A / XU-100A Radio ---------------------------------- 5 3. Appearance of XV-100A / XU-100A Radio ----------------------------------- 6 4. Basic Operation of XV-100A / XU-100A --------------------------------------- 7 5. Operating XV-100A / XU-100A RADIO --------------------------------------- 9 6. Operating Instructions of XV-100A / XU-100A ------------------------------ 12 7. Precautions -------------------------------------------- 18 8. Safety Notes --------------------------------------------- 20 9. Specification --------------------------------------------- 23 3 1. XV-100A / XU-100A Features The features of XV-100A / XU-100A are various as below. XV-100A / XU-100A can used under tough industrial environments as well as public places. XV-100A / XU-100A series have following functions:  128 channels and 16 groups are selectable  Call guard squelch of standardized CTCSS(52) / DCS(104), Invert DCS(104)  Dual Tone Modulation Frequency (DTMF)  Normal scanning / Priority scanning  VOX(Voice Operated Transmit)  BCL(Busy Channel Lock)/BCLO(Busy Channel Lock Out)  Time-Out Timer (TOT)  Built-in Weather Channel  Channel Spacing Only 12.5KHz  Selectable Squelch Level(0~4)  Monitor  Signal Strength Meter(RSSI)  Battery Status Indicator  High-Quality Audio Output  PLL synthesizer method  DC+3.7V 1,800mAH rechargeable Li-ion employment quantity battery use  Advanced Speaker Protection technology  Various Parameters and PC downloading methods  PC Tuning  Flash Memory Advantage 4 2. Components of XV-100A / XU-100A Radio * Components could be changed by buyer request. Figure 2-1) standard components of XV-100A / XU-100A Radio Replacement Parts TJA-1800LI Battery - 1800 mAH Lithium ion TJA-341 Antenna - VHF TJA-342 Antenna - UHF TJA-300L Charger - Rapid Rate TJA-30BC Belt Clip Optional Accessories ACC-600TJ3 Vehicular Charger - Single Unit ACC-6110TJ3 Charger - 6 Unit Gang Charger TA-836X Speaker Microphone - Standard TA-850X Speaker Microphone - Heavy Duty TA-818X Ear Speaker (Discreet Audio Cord) w/Lapel Mic/PTT TA-819X Ear Speaker (“D” Hook) w/Lapel Mic/PTT 5 TJA-30NC Case - Nylon w/Belt Loop/Swivel 3. Appearance of XV-100A / XU-100A Radio Figure 3-1) Appearance of XV-100A / XU-100A Radio 6 Figure 3-2) XV-100A / XU-100A LCD Indication 4. Basic Operation of XV-100A / XU-100A Pease read this manual carefully before using XV-100A / XU-100A series Radio. This manual contains important information about using Radio. 4.1 Installation and Removing the Antenna To install the antenna, insert the antenna into antenna connector and screw the antenna clockwise. To remove the antenna, screw the antenna counter clockwise. Figure 4-1) Installation and Removing the Antenna When installation of the antenna, giving a strong pressure to the Radio or pulling the antenna with a strong power from the Radio can make a damage on the antenna connector, which may cause the Radio to have a critical problem. 4.2 Installation and Removing the Battery 4.2.1 Installation of the battery To install battery, slide up the battery towards the top of the radio until battery latch is locked. 4.2.2 Removing the Battery - Slide the battery latch located on the bottom of radio to the open position as shown in Figure 4-2. - The battery is removed by pressing it against and sliding it towards the bottom of the radio 7 Figure 4-2) Installation and Removing the Battery 4.3 Installation and Removing the Belt Clip - To attach belt clip to radio, align belt clip rails with the grooves in radio and slide the belt clip onto the mounting rails until it latches into place. - To remove belt clip from radio, push up on tab of belt clip with flat bladed screwdriver and at the same time, slide the belt clip towards the top of Radio (Figure4-3). Figure 4-3) Installation and Removing the Belt Clip 4.4 Accessory connector Accessory connector is used to connect external speaker/Mic, and headset, etc. Please close the cover when nothing is connected. Figure 4-4) Accessory connector 8 5. Charging the Battery 5.1 Safety Notes 1) The radio of XV-100A / XU-100A series receives power from high-performance Li-ion battery (TJA-1800LI). TJA-1800LI Battery is safe of high performance and highly reliable, and could be charged very fast. TJA-1800LI Battery has been designed suitably only for the charger of TecNet. The charging of the enclosed Radio on the other maker’s charger will cause a damage on the battery and also, will cause a trouble on the Radio. 2) Please charge the battery before using the radio for best performance and safety. 3) When you charge the battery that is installed in the Radio, please turn off the radio first to charge the battery. The continuous rapid discharge (for example, when making a short circuit on the ‘+’ terminal of battery by a metal substance) may make a fatal defect and the battery can be exploded. Also, it can cause a fire. 4) Using the correct battery will improve the efficiency and safety. 5.2 The Time of Charging Low battery voltage will make the radio less coverage and also make the performance worse. Please charge the battery in case of following: ① When you think performance of the radio becomes lower ② When the red lamp on RX/TX Led blinks (every 0.5 second) during transmission or reception ③ When the battery icon blinks ④ When “beep” sound is generated while the radio is in use. 5.3 How to Charge 1) Plug the TJA-300L charger into the electricity power outlet. 2) When charging the Radio with the battery installed, please turn off the power of the Radio and place the Radio on the charger (The charger has a slide slot.). 3) After completion of the charging, the green LED on the charger will light. How…

Text truncated - open the document above for the full version.

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea November 16, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: VSOXU-100A including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from YEONWHA M TECH CO.,LTD LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyu-Hyun Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd.

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea November 16, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : YEONWHA M TECH CO.,LTD FCC ID : VSOXU-100A Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, YEONWHA M TECH CO.,LTD hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give YEONWHA M TECH CO.,LTD temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX VSOXU-100A SCH DIA.pdf Parts list CONF APPENDIX VSOXU-100A PL.pdf Block diagram CONF APPENDIX VSOXU-100A BLK DIA.pdf Operational description CONF APPENDIX VSOXU-100A OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF VSOXU-100A EXT Photo.pdf Internal Photos SHORT-TERM CONF VSOXU-100A INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF VSOXU-100A Test Photo.pdf User’s Manual SHORT-TERM CONF VSOXU-100A Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd.

November 16, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter FCC ID : VSOXU-100A Gentlemen: 1. YEONWHA M TECH CO.,LTD requires the Part 90 FCC grant list frequencies outside of Part 90 assignments because state and local government users specify operation outside of Part 90 so that they can interoperate with Federal agencies. The issue being that user’s that are not under NTIA frequency coordination must use radios that have FCC approval. 2. This FM transceiver that operated using frequency modulation(FM) incorporating traditional simplex transmission protocol (50%) duty and may be marketed to and used by employees for occupational operations, such as Federal and Public Safety agencies, e.g. police, fire and emergency medical, etc. 3. Maximum conducted power output according to 90.205(s) is 1.995 Watts. All qualified end-users of this device must have the knowledge to control their exposure conditions, and the exposure conditions of their passengers and bystanders, to comply with the General Population/Uncontrolled MPE limit and requirements. Users must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd. YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea November 16, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : YEONWHA M TECH CO.,LTD FCC ID : VSOXU-100A 90.203(e) and (g) statement request Gentlemen: This equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd.

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea November 16, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC ID: VSOXU-100A justification letter for expanded frequency range 440 - 470 MHz Gentlemen; You have asked YEONWHA M TECH CO.,LTD for justification to have the 440-470 MHz freq range appear on the face of the FCC Grant of Certification for a Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) YEONWHA M TECH CO.,LTD Marketing Department plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands 440-470 MHz, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in 440-470 MHz frequency range. Sincerely, Hwan-Dae Kim / Chief Engineer Yeonhwa M Tech Co., Ltd.

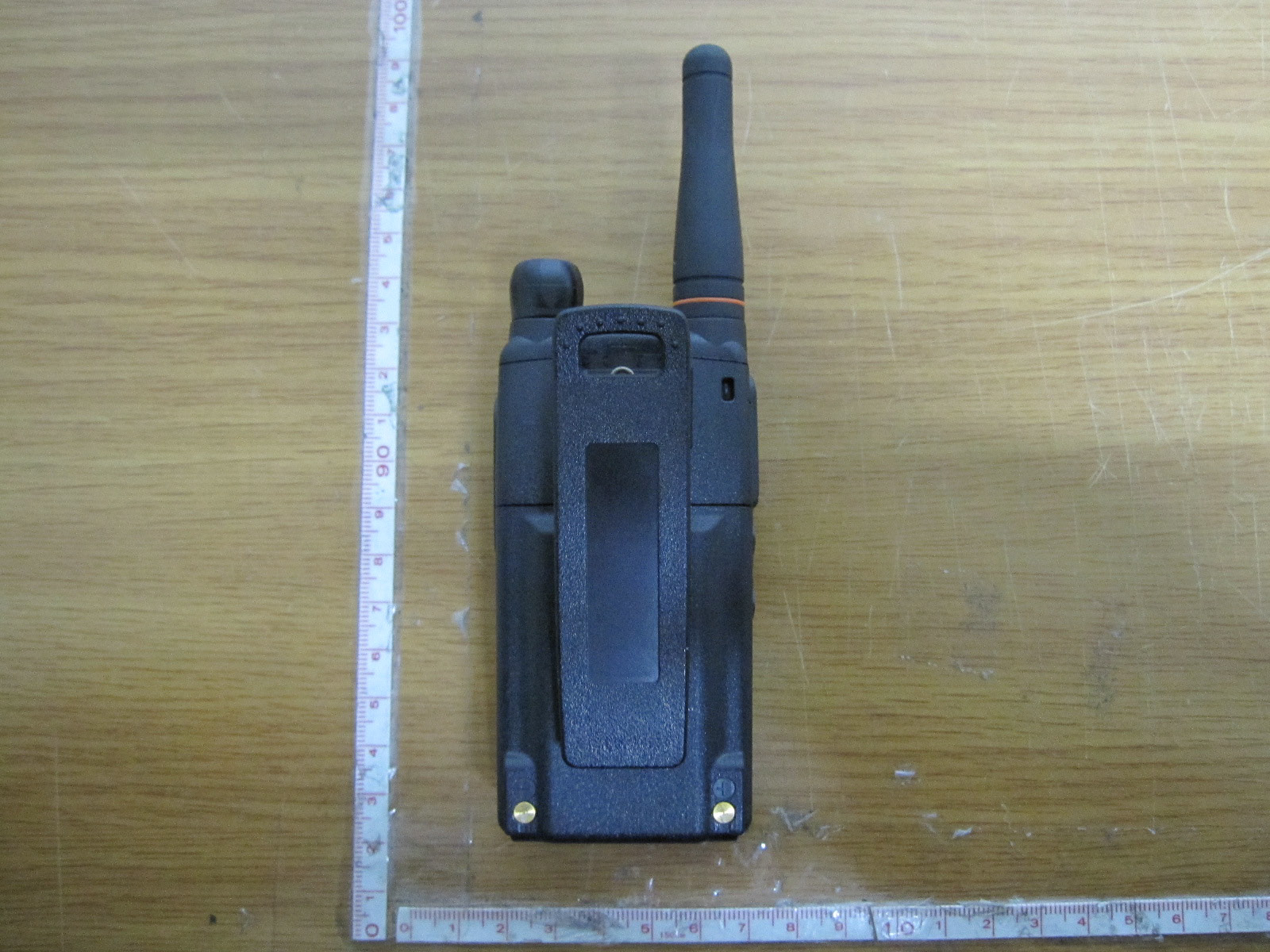

FCC ID: VSOXU-100A Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 3 FCC ID: VSOXU-100A Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 3 FCC ID: VSOXU-100A Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 3

FCC ID: VSOXU-100A Copyright Ⓒ 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: VSOXU-100A Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 2 FCC ID: VSOXU-100A Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 2

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea TUNE-UP PROCEDURE Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation.

YEONWHA M TECH CO.,LTD #141, 201 Haan-3dong, Gwangmyeong-si, Gyeonggi-do, Korea §1.1307 and §2.1093-RF EXPOSURE EVULATION 1.1 Limit § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30 - 300 61.4 0.163 1.0 6 300 - 1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30 - 300 27.5 0.073 0.2 30 300 - 1500 -- -- f/1500 30 Note: f is frequency in MHz 1.2 Method of Measurements Calculation Method of RF Safety Distance: Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device . 1.3 Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P [dBm] = 33.00 Maximum Antenna Gain, G[dBi] = 0 Maximum EIRP, P [dBm] = 33.00 User-based time-average for PTT = 50% Peak EIRP = 33.00 dBm + 0 dBi = 33.00 dBm = 1,995 mWatts (worst case) Average EIRP = 50% * EIRP = 997.5 mWatts MPE Limit for Occupational/Controlled Exposure, S [mW/cm2] = 1.0 MPE Limit for General Population/Uncontrolled Exposure, S [mW/cm2] = 0.2 Calculation of Minimum RF Safety Distance Limits: Calculated RF Safety Distance for Occupational/Controlled Exposure, r [cm] = 3.55 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r[cm] = 17.77 Results: Manufacturer declares RF Safety Distance of 4 cm for Occupational/Controlled Exposure and 18 cm for General Population/Uncontrolled Exposure which met the FCC Limits. Please refer to Users Manual for details of RF Exposure Information.
