VUI-IPV5K6KUSWIFISet-Top Box

Cisco IPV50xy/IPV60xy High-Defi nition IP Set-Tops Installation Guide 2 3 Contents Notice for Installers ............................................................................................................... 4 IMPORTANT SAFETY INSTRUCTIONS ................................................................................. 4 Change the Way You Watch TV ........................................................................................... 6 Identify Your Set-Top ............................................................................................................ 6 Safety First ............................................................................................................................ 7 Serial Number ....................................................................................................................... 7 In This Guide ......................................................................................................................... 7 Open Source License Statement ......................................................................................... 7 IPV5000, IPV5001, IPV6003, IPV6005, and IPV6006 Front Panel ...................................... 8 IPV5000, IPV5001, IPV6003, IPV6005, and IPV6006 Back Panel....................................... 9 IPV5010, IPV5050, IPV6013, IPV6015 and IPV6016 Front Panel .....................................10 IPV5010, IPV5050, IPV6013, IPV6015 and IPV6016 Back Panel .....................................11 Connecting the Set-Top .....................................................................................................12 Connecting to the In-Home Network .................................................................................13 Connections for a High-Defi nition TV (HDTV) ....................................................................14 Connections for a Standard-Defi nition TV (SDTV) .............................................................15 Connections for an Over-the-Air Converter Box ...............................................................16 Connection for IPV5050 Wireless Set-Top ........................................................................16 Connecting to an HDTV with an HDMI Connector ..............................................................17 Connecting to an HDTV with a DVI Connector ...................................................................18 Connecting to an HDTV with Component (YPbPr) Connectors .........................................19 Connecting to an SDTV with Component (YPbPr) Connectors .........................................20 Connecting to an SDTV with an RCA-Type Connector ......................................................21 Connecting to an SDTV with a SCART Connector .............................................................22 Troubleshooting ..................................................................................................................23 Avoid Screen Burn-In .........................................................................................................23 Frequently Asked Questions ...............................................................................................24 Picture Formats ..................................................................................................................25 Compliance Information ......................................................................................................26 4 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS Notice for Installers The servicing instructions in this notice are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualifi ed to do so. Note to System Installer For this apparatus, the cable shield/screen shall be grounded (earthed) as close as practical to the point of entry of the cable into the building. For products sold in the US and Canada, this reminder is provided to call the system installer's attention to ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable (or Canadian Electrical Code Part 1). This symbol is intended to alert y…

Text truncated - open the document above for the full version.

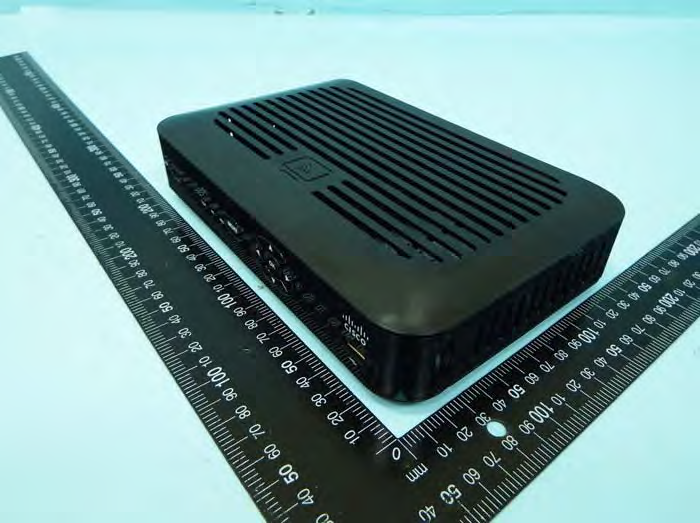

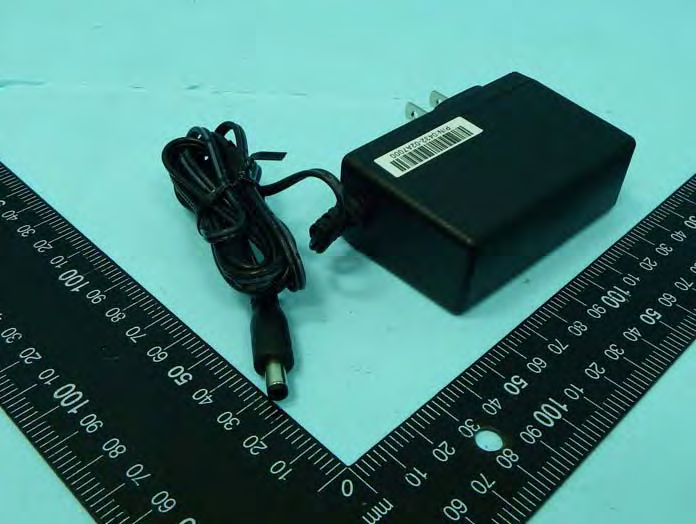

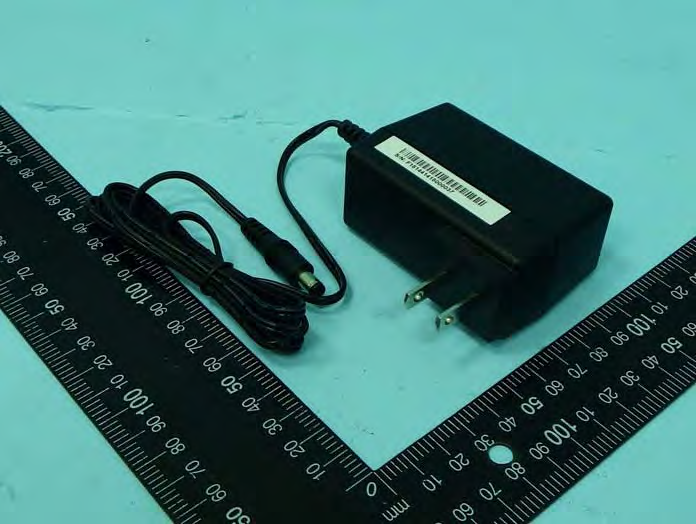

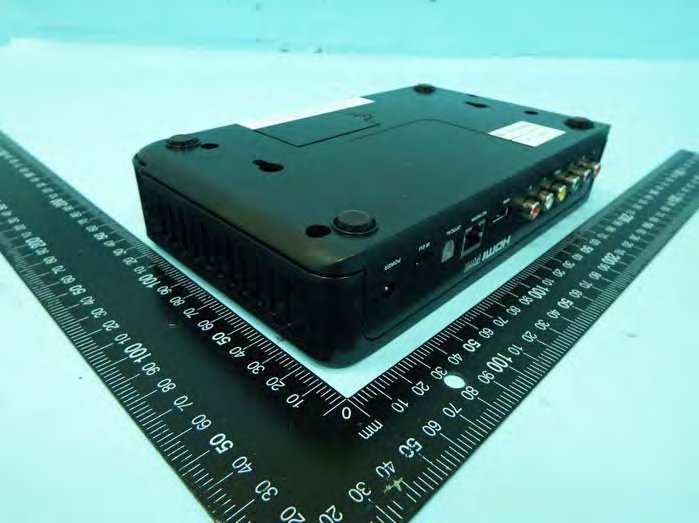

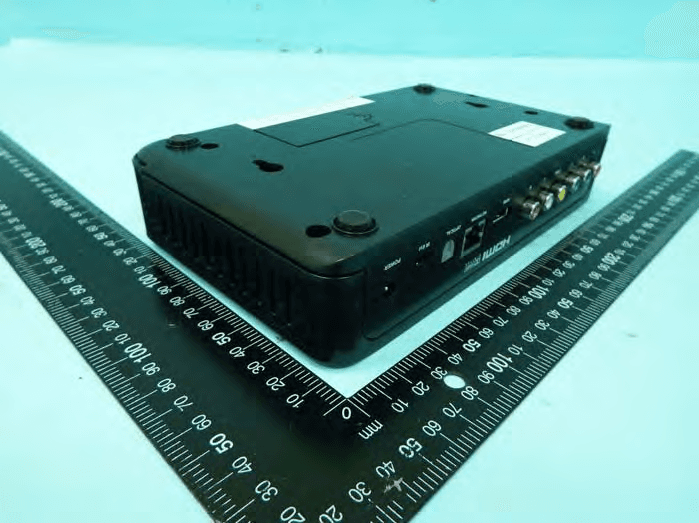

FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B1 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B2 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B3 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B13 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B14 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B15 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B3 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B4 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Chip Bluetooth Chip RX RX Port 2 TX/RX Port 1 TX/RX FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B5 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B6 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Chip FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B7 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Antennas FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B8 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Antennas FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B9 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Antennas FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B10 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 WiFi Antennas FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B11 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 Bluetooth Chip FCC Test Report Report No. : EP430452-02 SPORTON International Inc. PAGE NUMBER : B12 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Dec. 4, 2014 FAX : 886-3-327-0973 Bluetooth Antenna

RF Exposure Report Report No. : FA430452-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA430452-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1,500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1,500-15,000 137 0.364 50 6 15,000-150,000 137 0.364 50 616000/ƒ 1.2 150,000-300,000 0.354 ƒ 0.5 9.4 x 10 -4 ƒ 0.5 3.33 x 10 -4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1,500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1,500-15,000 61.4 0.163 10 6 15,000-150,000 61.4 0.163 10 616000/ƒ 1.2 150,000-300,000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 RF Exposure Report Report No. : FA430452-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5.0 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 30 3-30 1,842 / f 4.89 / f (180/f 2 )* 30 30-300 27.5 0.073 1.0 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see NCC LP0002 Section 5.20.2 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA430452-02 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 2 22.13 Yes 5250-5350 5260-5320 52-64 [4] 2 21.52 Yes 5470-5725 5500-5700 100-140 [8] 2 21.19 Yes 5725-5850 5745-5825 149-165 [5] 2 24.23 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 22.11 Yes 5250-5350 5260-5320 52-64 [4] 2 21.76 Yes 5470-5725 5500-5700 100-140 [8] 2 21.38 Yes 5725-5850 5745-5825 149-165 [5] 2 24.15 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 23.75 Yes 5250-5350 5270-5310 54-62 [2] 2 22.57 Yes 5470-5725 5510-5670 102-134 [3] 2 22.49 Yes 5725-5850 5755-5795 151-159 [2] 2 23.75 Yes Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Frequency Range (MHz) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 5150-5250 802.11n (HT40) 2 20.54 20.93 23.75 1.64 25.39 0.06882 5250-5350 802.11n (HT40) 2 19.54 19.57 22.57 1.64 24.21 0.05247 5470-5725 802.11n (HT40) 2 19.66 19.30 22.49 1.64 24.13 0.05152 5725-5850 802.11a 2 20.88 21.54 24.23 1.64 25.87 0.07692 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains RF Exposure Report Report No. : FA430452-02 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 BR / EDR2402-2480 0-78 [79] 1 7.14 Yes 2400-2483.5 v4.0 LE 2402-2480 0-39 [40] 1 6.72 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-tr…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR430452-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR430452-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions from 30 MHz to 1000 MHz. Test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions from above 1 GHz. Test distance is 3m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR430452-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions (below 1GHz) Magnetic field tests shall be performed in the frequency range of 9 kHz t…

Text truncated - open the document above for the full version.

FCC DFS Test Report Report No. : FZ430452-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 21 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC DFS Test Report Equipment : Set-Top Box Brand Name : CISCO Model No. : IPV50xy, IPV60xy (X=5, Y can be 0, 3, 5, 6) FCC ID : VUI-IPV5K6KUSWIFI Standard : 47 CFR FCC Part 15.407 Applicant : PEGATRON CORPORATION 5F No. 76, Ligong St.,Beitou District, Taipei City 112 Taiwan Manufacturer : Maintek Computer (Suzhou) Co., Ltd 233 Jin Feng Rd New District Suzhou JiangsuI 215011 China Operate Mode : Client without radar detection The product sample received on Mar. 05, 2014 and completely tested on Apr. 26, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in FCC 06-96 Appendix and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC DFS Test Report Report No. : FZ430452-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 21 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 6 1.3 Testing Applied Standards ..................................................................................................................... 6 1.4 Testing Location Information .................................................................................................................. 6 1.5 Measurement Uncertainty ...................................................................................................................... 6 2 TEST CONFIGURATION OF EUT ........................................................................................................ 7 2.1 DFS and TPC Information ...................................................................................................................... 7 2.2 The Highest Power Level and Possible Lowest Power Level ................................................................ 7 2.3 The Worst Case Measurement Configuration ........................................................................................ 7 3 DYNAMIC FREQUENCY SELECTION (DFS) TEST RESULT ............................................................. 8 3.1 General DFS Information ....................................................................................................................... 8 3.2 Radar Test Waveform Calibration ........................................................................................................ 10 3.3 In-service Monitoring ............................................................................................................................ 17 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 21 APPENDIX A. TEST PHOTOS FCC DFS Test Report Report No. : FZ430452-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 21 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications (FCC 06-96 Appendix) Report Clause Ref. Std. Clause Description Measured Limit Result - 7.8.1 DFS: UNII Detection Bandwidth Measurement N/A (Client w/o test) 80% of the 99% BW N/A - 7.8.2.1 DFS: Initial Channel Availability Check Time N/A (Client w/o test) CAC ≥ 60 sec N/A - 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A - 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A 3.3 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) CMT < 10sec CMT ≤ 10sec Complied 3.3 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) CCTT < 60 ms CCTT ≤ 60 ms starting at CMT 200ms Complied 3.3 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) NOP > 30 min NOP ≥ 30 min Complied - 7.8.4 DFS: Statistical Performance Check N/A (Client w/o test) Table 5 - 7 (KDB 905462) N/A - 5.8.1 DFS: Uniform Spreading N/A (Client w/o this function) Uniform Spreading for DFS Band N/A 3.1.4 8.1 User Access Restrictions Manufacturer attestation NOT accessible to user DFS controls Complied FCC DFS Test Report Report No. : FZ430452-02 SPORTON INTERNATIONAL INC. Page No. : 4 of 21 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FZ430452-02 Rev. 02 Initial issue of report Jan. 14, 2015 FCC DFS Test Report Report No. : FZ430452-02 SPORTON INTERNATIONAL INC. Page No. : 5 of 21 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information IEEE Std. 802.11 Channel Bandwidth (MHz) a / n (HT20) 20 n (HT40) 40 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Information Antenna Category Integral antenna (dedicated antennas) Single power level with corresponding antenna(s). Multiple power level and corresponding antenna(s). RF connector provided Unique antenna connector. (e.g., MMCX, U.FL, IPX, and RP-SMA, RP-N type...) Standard antenna connector. (e.g., SMA, N, BNC, and TNC type...) Antenna General Information Ant. Cat. Ant. Type Ant. Port Gain (dBi) Remark Integral PCB 1 1.62 TX/RX 2 1.66 TX/RX 3 1.66 RX 4 1.69 RX For radiated tests, the DFS test should be perfor…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR430452-02AN SPORTON INTERNATIONAL INC. Page No. : 1 of 118 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Set-Top Box Brand Name : CISCO Model No. : IPV50xy, IPV60xy (X=5, Y can be 0, 3, 5, 6) FCC ID : VUI-IPV5K6KUSWIFI Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz 5250 MHz – 5350 MHz 5470 MHz – 5725 MHz 5725 MHz – 5850 MHz FCC Classification : UNII Applicant : PEGATRON CORPORATION 5F No. 76, Ligong St.,Beitou District, Taipei City 112 Taiwan Manufacturer : Maintek Computer (Suzhou) Co., Ltd 233 Jin Feng Rd New District Suzhou JiangsuI 215011 China Function : Outdoor AP; Indoor AP; Fixed P2P AP Portable Client The product sample received on Mar. 05, 2014 and completely tested on Aug. 24, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR430452-02AN SPORTON INTERNATIONAL INC. Page No. : 2 of 118 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 12 2.4 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 16 3.1 AC Power-line Conducted Emissions ..............................................................…

Text truncated - open the document above for the full version.
