VUI-OUYA1PGame Console

Setup Instruc,ons 1. Remove OUYA Console, Controller, and accessories from packaging 2. Connect HDMI cable from Console to HDMI-­‐compaCble TV 3. Connect power adaptor from Console to AC power outlet 4. Press power buKon on Console 5. Insert baKeries in Controller 6. Follow on-­‐screen instrucCons to complete setup OUYA Game Console Specifica,ons CPU: Memory: Dimensions: Weight: Storage: USB: ConnecCvity: Output: nVIDIA Tegra 3 QuadC Core 1GB RAM 75mm x 75mm x 82mm 2.9in x 2.9in x 3.2in 300g (10.5 oz) 8/16GB Internal Flash Storage (expandable via USB Port) One USB 2.0 port, One Micro USB port WiFi (802.11 a/b/g/n) Ethernet Bluetooth HDMI (up to 1080p HD) OUYA Game Controller Specifica,ons Product name OUYA game controller Model no. OGC1 Power supply 3VDC (baKery) ModulaCon type GFSK ModulaCon technology fFHSS Transfer rate 1Mbps OperaCng frequency 2402 ~ 2480Mhz Number of channel 79 Max. Output power 0.927mW Antenna type PCB antenna with -­‐3.11dbi gain Power OUYA Console I/O Port loca,ons Micro USB Ethernet HDMI USB Wet Loca,on Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Outdoor Use "WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture" Disconnect Device -­‐ The Mains Plug or An Appliance Coupler The mains plug or an appliance coupler is used as the disconnect device for disconnect from the mains, the disconnect device shall remain readily operable

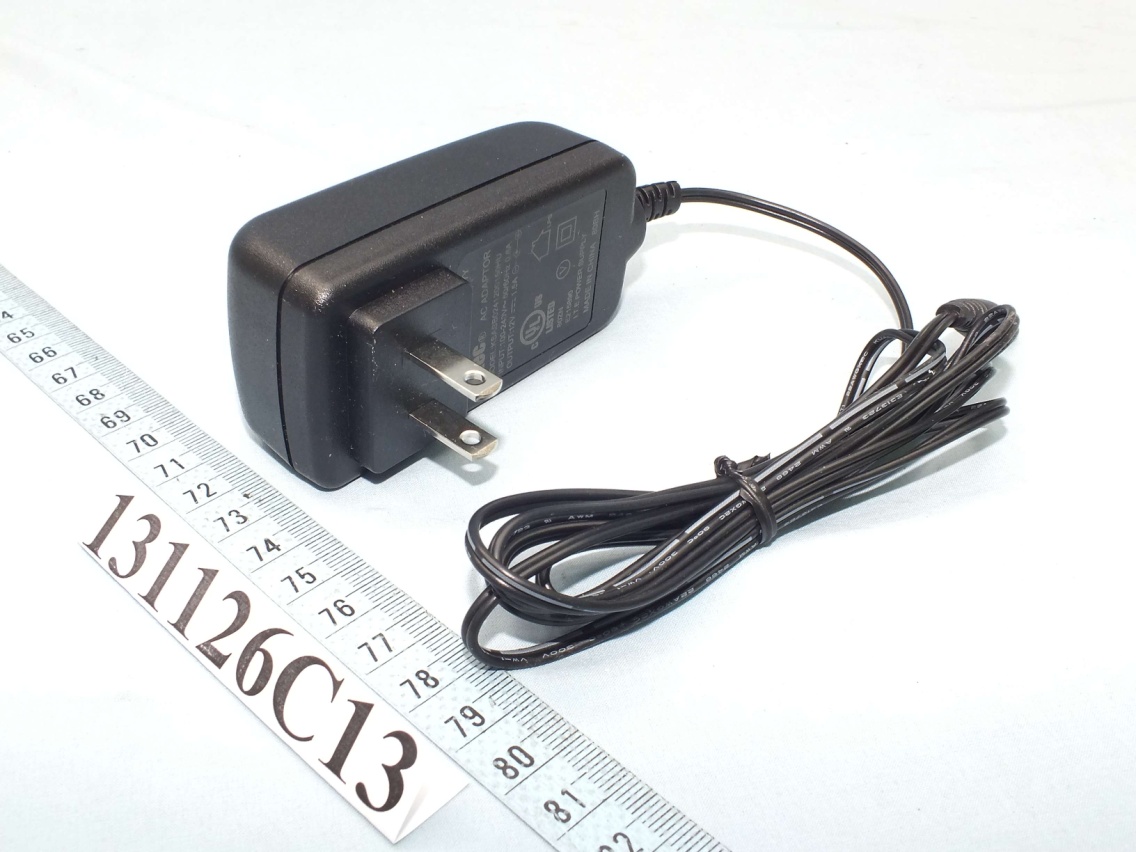

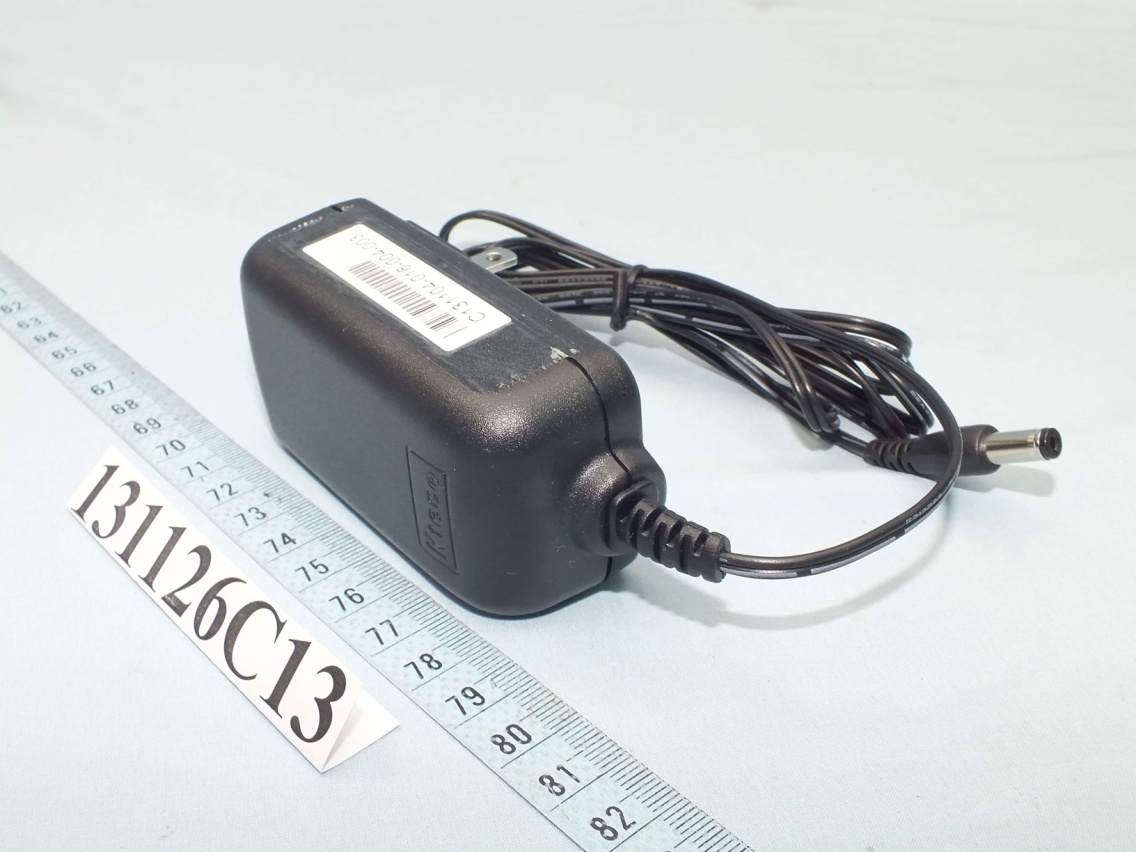

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: VUI-OUYA1P Report No.: RF131126C13 Operational Description This device is a Game Console, which operates in 2.4GHz and 5GHz bands for WLAN and Bluetooth; the maximum data rate could be up to 135Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 135Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from AC adapter. The antenna is PCB antenna without antenna connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA131126C13 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131126C13 MODEL NO.: OUYA1P FCC ID: VUI-OUYA1P RECEIVED: Nov. 26, 2013 TESTED: Dec. 10 ~ Dec. 20, 2013 ISSUED: Dec. 20, 2013 APPLICANT: PEGATRON CORPORATION ADDRESS: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, TAIWAN (R.O.C.) MANUFACTURER: PEGATRON CORPORATION ADDRESS: No. 76, Ligong St., Bettou, Taipei 11261, Taiwan ROC ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA131126C13 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1. CERTIFICATION ........................................................................................................... 4 2. RF EXPOSURE ............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................. 5 2.3 CLASSIFICATION ......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................ 6 Report No.: SA131126C13 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131126C13 Original release Dec. 20, 2013 Report No.: SA131126C13 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Game Console MODEL: OUYA1P BRAND: OUYA APPLICANT: PEGATRON CORPORATION TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: OUYA1P) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Dec. 20, 2013 Celine Chou / Specialist APPROVED BY : , DATE :Dec. 20, 2013 Ken Liu / Senior Manager Report No.: SA131126C13 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131126C13 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 22.33 2.87 20 0.066 1 5180-5240 13.32 4.49 20 0.012 1 5260-5320 13.26 4.49 20 0.012 1 5500-5700 13.20 4.49 20 0.012 1 5745-5825 20.59 4.49 20 0.064 1 2402-2480 8.64 2.87 20 0.003 1 CONCULSION: Both of the WLAN 2.4G & WLAN 5G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 2.4GHz + 5GHz = 0.066 + 0.064 = 0.130 Therefore, the maximum calculation of this situation is 0.130, which is less than the “1” limit.

Report No.: RF131126C13-3 1 of 38 Report Format Version 5.0.0 FCC TEST REPORT (CO-LOCATED) REPORT NO.: RF131126C13-3 MODEL NO.: OUYA1P FCC ID: VUI-OUYA1P RECEIVED: Nov. 26, 2013 TESTED: Dec. 20 ~ Dec. 22, 2013 ISSUED: Dec. 24, 2013 APPLICANT: PEGATRON CORPORATION ADDRESS: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, TAIWAN (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF131126C13-3 2 of 38 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 5 3. GENERAL INFORMATION .......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 6 3.2 DESCRIPTION OF TEST MODES .............................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 13 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 13 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 13 4. TEST TYPES AND RESULTS ................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............. 14 4.1.3 TEST INSTRUMENTS ............................................................................................... 15 4.1.4 TEST PROCEDURES ............................................................................................... 16 4.1.5 DEVIATION FROM TEST STANDARD...................................................................... 16 4.1.6 TEST SETUP ............................................................................................................. 17 4.1.7 EUT OPERATING CONDITIONS .............................................................................. 17 4.1.8 TEST RESULTS ........................................................................................................ 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 27 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 27 4.2.2 TEST INSTRUMENTS ............................................................................................... 27 4.2.3 TEST PROCEDURES ............................................................................................... 28 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 28 4.2.5 TEST SETUP ............................................................................................................. 29 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 29 4.2.7 TEST RESULTS ........................................................................................................ 30 5. PHOTOGRAPHS OF THE TEST CONFIGURATION ................................................ 36 6. INFORMATION ON THE TESTING LABORATORIES .............................................. 37 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ........................................................................................ 38 Report No.: RF131126C13-3 3 of 38 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF131126C13-3 Original release Dec. 24, 2013 Report No.: RF131126C13-3 4 of 38 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Game Console MODEL NO.: OUYA1P BRAND: OUYA APPLICANT: PEGATRON CORPORATION TESTED:…
