VUI-THOR8723Notebook Computer

User's Manual Satellite S50-C/S50t-C/P50-C/ P50t-C Satellite L50W-C/P50W-C Series Table of Contents Chapter 1 TOSHIBA Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks .............................................. 1-1 Regulatory Information ......................................................................... 1-2 Video Standard Notice .......................................................................... 1-8 OpenSSL Toolkit License Issues ......................................................... 1-8 FreeType License Issues .................................................................... 1-10 ENERGY STAR® Program .................................................................. 1-14 Disposing of the computer and the computer's batteries ............... 1-14 General Precautions ........................................................................... 1-14 Safety Icons ......................................................................................... 1-17 Chapter 2 Getting Started Equipment checklist ............................................................................. 2-1 Conventions ........................................................................................... 2-1 Short Name ............................................................................................ 2-2 Using your computer for the first time ................................................ 2-3 Getting to know Windows ................................................................... 2-10 Turning off the power .......................................................................... 2-11 Chapter 3 The Grand Tour The Grand Tour for S50-C ..................................................................... 3-1 The Grand Tour for L50W-C ................................................................. 3-8 Magnets location (L50W-C) ................................................................ 3-14 Internal Hardware Components ......................................................... 3-15 Power Condition Descriptions ........................................................... 3-18 Chapter 4 Operating Basics Operating in Tablet Mode (L50W-C) ..................................................... 4-1 Using the Touch Screen ....................................................................... 4-2 Using the Touch Pad ............................................................................. 4-3 The Keyboard ......................................................................................... 4-4 Battery .................................................................................................... 4-7 Memory media ..................................................................................... 4-11 External Display .................................................................................. 4-14 Security lock ........................................................................................ 4-17 Optional TOSHIBA Accessories ........................................................ 4-17 Sound System and Video mode ......................................................... 4-18 User's Manualii Chapter 5 Utilities and Advanced Usage Utilities and Applications ...................................................................... 5-1 Special features ..................................................................................... 5-4 TOSHIBA Password Utility ................................................................... 5-6 TOSHIBA System Settings ................................................................... 5-9 TOSHIBA Media Player by sMedio TrueLink+ .................................. 5-10 TOSHIBA PC Health Monitor .............................................................. 5-11 TOSHIBA Setup Utility ........................................................................ 5-12 System Recovery ................................................................................ 5-14 Chapter 6 Troubleshooting Problem-solving process ..................................................................... 6-1 Hardware and system checklist ........................................................... 6-4 TOSHIBA support ................................................................................ 6-13 Chapter 7 Appendix Specifications ........................................................................................ 7-1 AC Power Cord and Connectors .......................................................... 7-2 Information for Wireless Devices ........................................................ 7-3 Information about Intel AMT ............................................................... 7-13 Legal Footnotes ................................................................................... 7-15 Glossary ............................................................................................... 7-18 Index User's Manual iii User's Manualiv Chapter 1 TOSHIBA Legal, Regulatory, and Safety This chapter states the Legal, regulatory, and safety information applicable to TOSHIBA computers. Copyright, Disclaimer and Trademarks Copyright © 2015 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein. First edition March 2015 Copyright authority for music, movies, computer programs, databases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern, We, PEGATRON CORPORATION hereby declare the devices label with this FCC ID TX2-RTL8723BE and operate on 2412MHz-2462MHz for WLAN. This device never operates on channel 12-13. Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Sincerely yours,

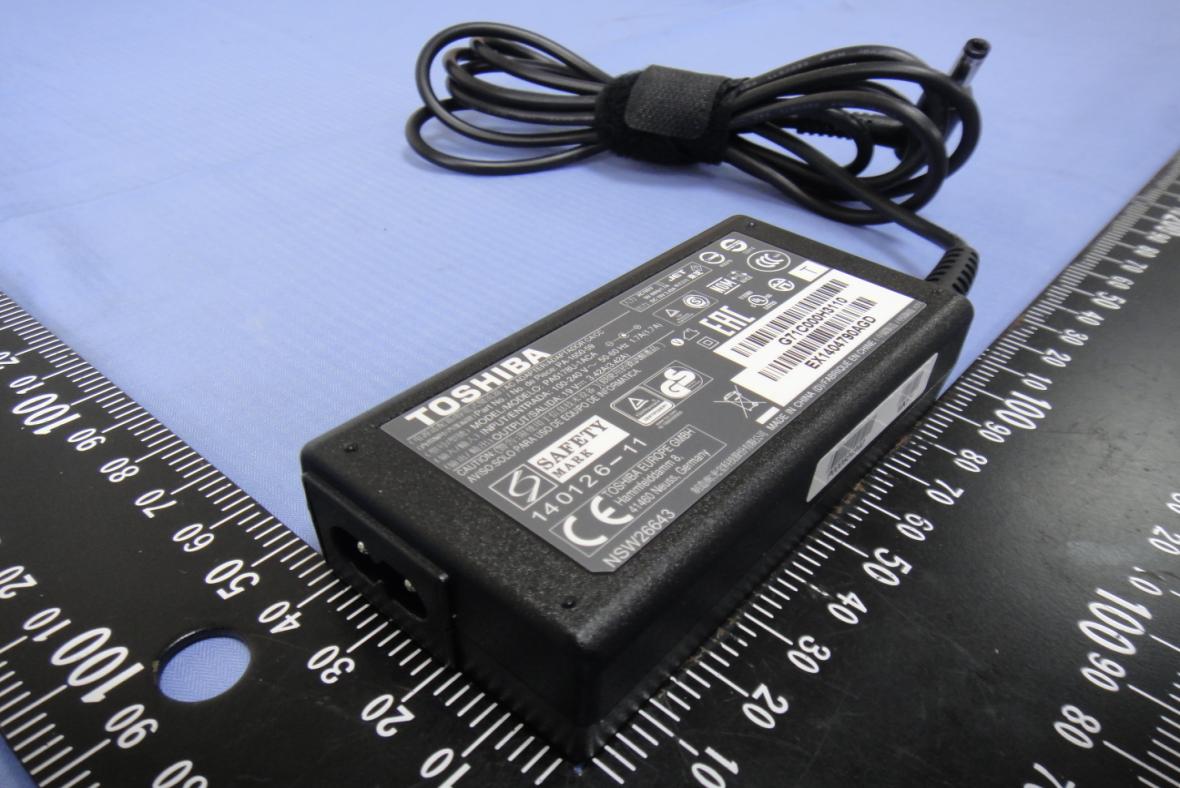

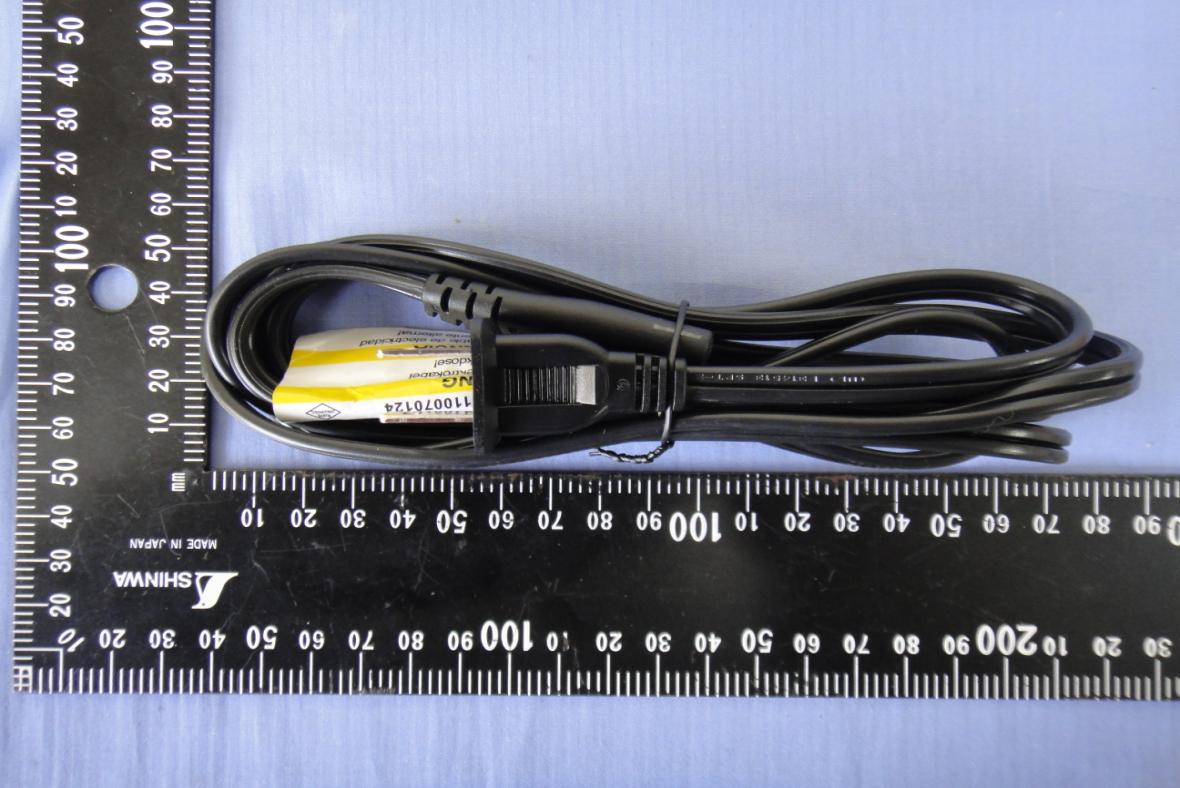

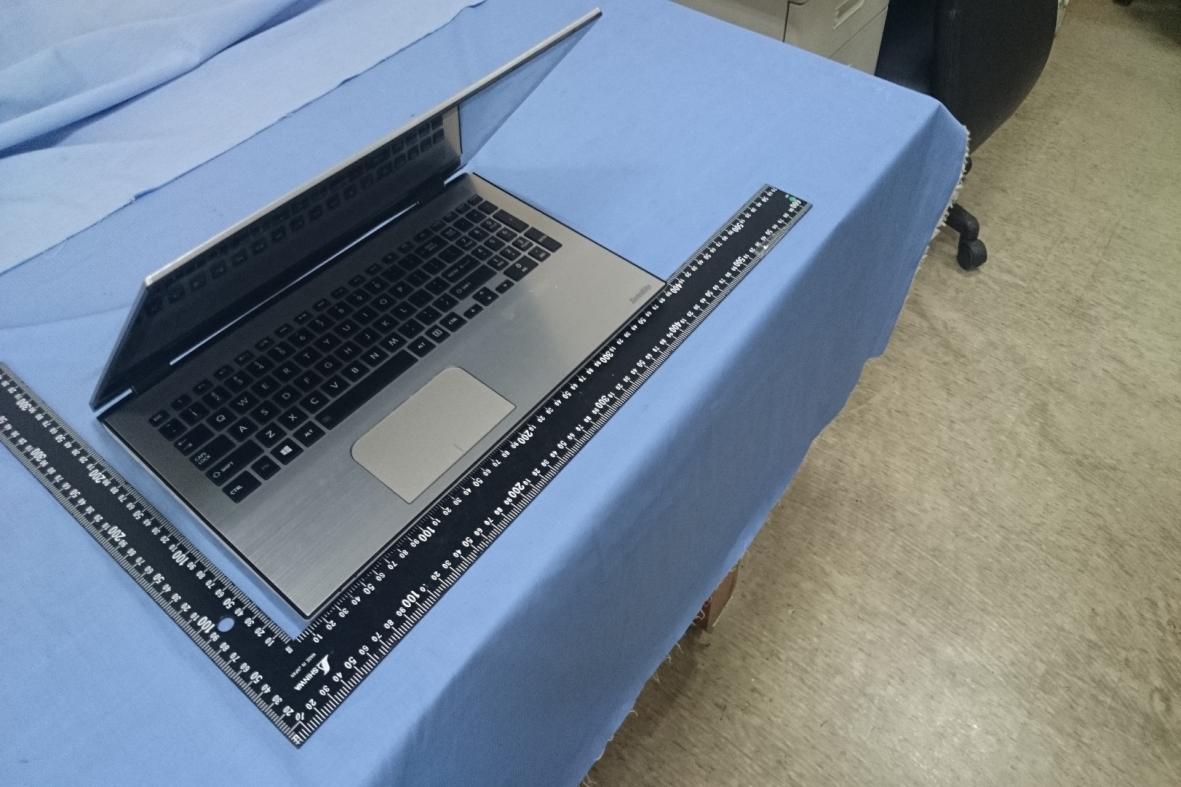

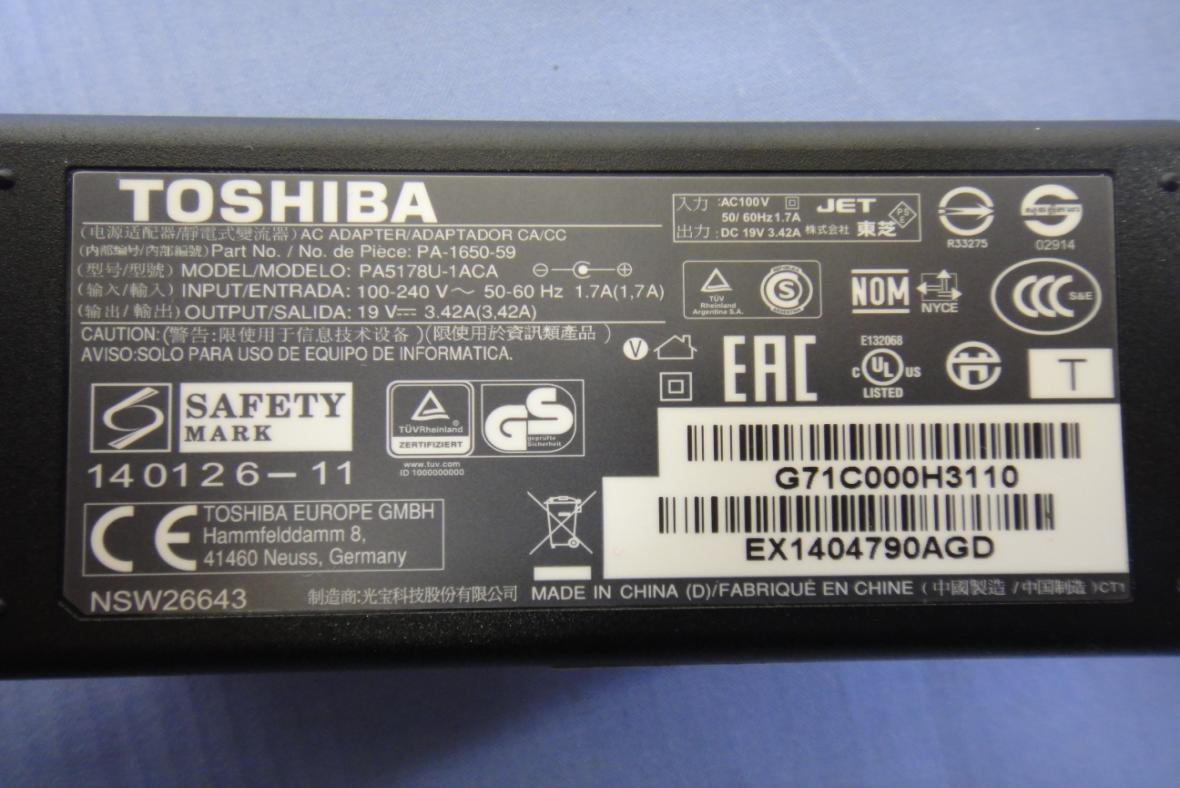

Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 1 / 26 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 2 / 26 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 3 / 26 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 4 / 26 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 5 / 26 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 6 Rev. 00 Adapter Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 7 Rev. 00

Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 14 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 17 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 19 Rev. 00 Antenna For Yageo (Metal) Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 21 Rev. 00 Antenna For Yageo (IMR) Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 22 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 23 Rev. 00 Antenna For ACON (Metal) Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 24 Rev. 00 Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 25 Rev. 00 Antenna For ACON (IMR) Compliance Certification Services Inc. Report No.: T150123W04 Date of Issue: January 25, 2015 A1 - 26 Rev. 00

Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150123W04-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 40 Rev. 03 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For Notebook Computer Trade Name: TOSHIBA Model: Satellite S5*********-C******; Satellite E5*********-C******; Satellite L5*********-C******; Satellite P5*********-C******; Satellite Radius L5*********-C******; Satellite Radius P5*********-C******;Satellite Fusion L5*********-C****** (* means 0-9; a-z; A-Z; / ; - ; no symbol, or blank for marketing purpose) Issued to Pegatron Corporation 5F, NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, TAIWAN (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2015/02/11 Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150123W04-SF Page 2 Rev. 03 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/02/11 Initial Issue ALL Tony Liao 01 2015/03/24 1. Add note for simultaneous transmission. 2. Add Summary of SAR Test Exclusion Configurations for notebook mode. 3. Revise Bluetooth power. 4. Add SAR Measurements Results. 18, 20, 21, 22, 31, 32 Tony Liao 02 2015/03/27 1. Add Aux power. 2. Add note for SAR testing. 3. Add Simultaneous Transmission SAR Analysis for notebook mode. 30, 32, 36, 37 Tony Liao 03 2015/04/01 1. Remove simultaneous transmission note 1. 2. Revise SAR exclusion calculations for NB mode position title and assess the Aux antenna. 3. Revise SAR for simultaneous transmission analysis of Wi-Fi Main value for NB mode. 18, 20, 21, 22, 37 Tony Liao Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150123W04-SF Page 3 Rev. 03 Table of Contents 1 Certificate of Compliance (SAR Evaluation) .................................................................. 5 2 Description of Equipment Under Test .......................................................................... 6 3 Requirements for Compliance Testing Defined ............................................................ 7 3.1 Requirements for Compliance Testing Defined by the FCC ................................................................. 7 4 Dosimetric Assessment System ................................................................................... 8 4.1 Measurement System Diagram ........................................................................................................... 9 4.2 System Components .......................................................................................................................... 10 5 Evaluation Procedures .............................................................................................. 13 6 SAR Measurement Procedures .................................................................................. 15 6.1 Normal SAR Test Procedure ............................................................................................................... 15 7 Device Under Test ..................................................................................................... 17 7.1 Band Interface ................................................................................................................................... 17 7.2 Simultaneous Transmission ............................................................................................................... 18 8 Summary of SAR Test Exclusion Configurations ......................................................... 19 8.1 Standalone SAR Test Exclusion Calculations ...................................................................................... 19 8.1.1 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ............................................. 20 8.1.2 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the Users ............................................ 21 8.1.3 For Wi-Fi ............................................................................................................................................ 22 9 Measurement uncertainty........................................................................................ 23 10 Exposure Limit .......................................................................................................... 24 11 Tissue Dielectric Properties ....................................................................................... 25 11.1 Test Liquid Confirmation ................................................................................................................... 25 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms ....................................................... 26 11.3 Simulating Liquids Parameter Check Results ..................................................................................... 27 12 System Performance Check ....................................................................................... 28 12.1 System Performance Check Results ................................................................................................... 29 13 RF Output Power Measurement ................................................................................ 30 13.1 Wi-Fi (2.4 GHz Band) .......................................................................................................................... 30 13.2 Bluetooth ........................................................................................................................................... 31 14 SAR Measurements Results ...............................................…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 20150205_System check_Diple2450v2 SN728 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2450 MHz; σ = 1.971 S/m; ε r = 53.896; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 7.84 W/kg Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.59 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 10.4 W/kg SAR(1 g) = 4.98 W/kg; SAR(10 g) = 2.32 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 8.32 W/kg 0 dB = 8.32 W/kg = 9.20 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 20150205_System check_Diple2450v2 SN728 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x11): Measurement grid: dx=20mm, dy=20mm, dz=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.52 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/03/20 20150320_System check_Diple2450v2 SN728 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2450 MHz; σ = 1.923 S/m; ε r = 52.02; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1305; Calibrated: 2014/12/11 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 7.79 W/kg Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.34 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 10.6 W/kg SAR(1 g) = 4.87 W/kg; SAR(10 g) = 2.24 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 8.23 W/kg 0 dB = 8.23 W/kg = 9.15 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/03/20 20150320_System check_Diple2450v2 SN728 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x11): Measurement grid: dx=20mm, dy=20mm, dz=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 4.65 W/kg

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/03/20 Wi-Fi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.906 S/m; ε r = 52.069; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1305; Calibrated: 2014/12/11 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Bottom/Main Ant/802.11b/Ch6/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.155 W/kg Bottom/Main Ant/802.11b/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.849 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.270 W/kg SAR(1 g) = 0.139 W/kg; SAR(10 g) = 0.074 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.257 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 Wi-Fi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 S/m; ε r = 53.931; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Rear/Main Ant/802.11b/Ch6/Area Scan (6x7x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.370 W/kg Rear/Main Ant/802.11b/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.78 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.419 W/kg SAR(1 g) = 0.196 W/kg; SAR(10 g) = 0.095 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.316 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 Wi-Fi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 S/m; ε r = 53.931; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Edge3/Main Ant/802.11b/Ch6/Area Scan (6x7x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.928 W/kg Edge3/Main Ant/802.11b/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.53 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.658 W/kg; SAR(10 g) = 0.313 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.10 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 Wi-Fi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1 Edge3/Main Ant/802.11b/Ch6/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.01 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2015/02/05 Wi-Fi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 S/m; ε r = 53.931; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(7.22, 7.22, 7.22); Calibrated: 2014/05/22; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Edge3/Main Ant/802.11b/Ch6_Spot/Area Scan (6x7x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.693 W/kg Edge3/Main Ant/802.11b/Ch6_Spot/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.89 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.970 W/kg SAR(1 g) = 0.454 W/kg; SAR(10 g) = 0.209 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.738 W/kg

Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150202W03-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 40 Rev. 03 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For Notebook Computer Trade Name: TOSHIBA Model: Satellite S5*********-C******; Satellite E5*********-C******; Satellite L5*********-C******; Satellite P5*********-C******; Satellite Radius L5*********-C******; Satellite Radius P5*********-C******;Satellite Fusion L5*********-C****** (* means 0-9; a-z; A-Z; / ; - ; no symbol, or blank for marketing purpose) Issued to Pegatron Corporation 5F, NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, TAIWAN (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2015/02/11 Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150202W03-SF Page 2 Rev. 03 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/02/11 Initial Issue ALL Tony Liao 01 2015/03/24 1. Add note for simultaneous transmission. 2. Add Summary of SAR Test Exclusion Configurations for notebook mode. 3. Revise Bluetooth power. 4. Add SAR Measurements Results. 18, 20, 21, 22, 31, 32 Tony Liao 02 2015/03/27 1. Add Aux power. 2. Add note for SAR testing. 3. Add Simultaneous Transmission SAR Analysis for notebook mode. 30, 32, 36, 37 Tony Liao 03 2015/04/01 1. Remove Simultaneous Transmission note 1. 2. Revise SAR exclusion calculations for NB mode position title and assess the Aux antenna. 18, 20, 21, 22 Tony Liao Compliance Certification Services Inc. FCC ID: VUI-THOR8723 Report No: T150202W03-SF Page 3 Rev. 03 Table of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 7.2 Simultaneous Transmission ............................................................................................................................ 18 8 Summary of SAR Test Exclusion Configurations ....................................................... 19 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 19 8.1.1 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ................................................... 20 8.1.2 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the User ................................................... 21 8.1.3 For Wi-Fi ............................................................................................................................................................ 22 9 Measurement uncertainty ................................................................................ 23 10 Exposure Limit ...................................................................................................... 24 11 Tissue Dielectric Properties .................................................................................... 25 11.1 Test Liquid Confirmation ................................................................................................................................. 25 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 26 11.3 Simulating Liquids Parameter Check Results ............................................................................................... 27 12 System Performance Check .................................................................................... 28 12.1 System Performance Check Results .............................................................................................................. 29 13 RF Output Power Measurement ............................................................................. 30 13.1 Wi-Fi (2.4 GHz Band) ........................................................................................................................................ 30 13.2 Bluetooth ........................................................................................................................................................... 31 14 SAR Measurements Resul…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certifi…
