VUI-UPWL6013WIFI MODULE

Manual Unihan UPWL6013 „ System requirements Before installing the PEGATRON WIFI module, make sure that your system meets the following requirements: z Intel® Pentium® 4 or AMD K7/K8 system z Minimum 64MB system memory z Windows® XP/VISTA operating system z An available USB port (USB 2.0 recommended because USB 1.1 cannot achieve maximum wireless performance) „ Installing the device drivers To install the device driver in your computer: Insert the support CD to the optical drive and follow the following procedure. Step 1 Step 2 Step 3 Step 4 Step 5 APPENDIX 1 FCC & Canadian Department of Communications This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The module is approved using the FCC’ unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antennas. As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.) IMPORTAMT NOTE: in the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product, in these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End product labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: VUI-UPWL6013”. The grantees’s FCC ID can be use only when all FCC compliance requirements are met. APPENDIX 2 Manual information that must be included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The end user manual shall include all required regulatory information/warring as show this manual. The users manual for OEM integrators must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20sm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. APPENDIX 3 FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: －Reorient or relocate the receiving antenna. －Increase the separation between the equipment and receiver. －Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. －Consult the dealer or an experienced radio/TV technician for help . Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Prohibition of Co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter Safety Information To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: December 14, 2011 SUBJECT: FCC Application for VUI-UPWL6013 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, By Lawrence Yu, Senior Manager Signature Printed / Title Applicant: PEGATRON CORPORATION (Must agree with section I on FCC Form 731 – Applicant’s Full Business Name)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Federal Communication Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: VUI-UPWL6013 AUTHORIZATION AGREEMENT To whom it may concern I, an officer of PEGATRON CORPORATION appoint Training Research Co., Ltd. to act as the authorized representative in the preparation of applications for registration of equipment under Part 15 of Rules and Regulations of the Federal Communications Commission. I certify that the information provided to Training Research Co., Ltd. properly describes the device or system for which equipment authorization is requested. APPLICANT ANTI-DRUG ABUSE CERTIFICATION The applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association) no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes see 47 CFR 1.2002(b). This Authorization dated the December 14, 2011 Expires until to grant an application. By Lawrence Yu, Senior Manager Signature Printed / Title Applicant: PEGATRON CORPORATION (Must agree with section I on FCC Form 731 – Applicant’s Full Business Name)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: VUI-UPWL6013 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Schematics – UPWL6013 Schem.pdf  Part List - UPWL6013 ParLst.pdf  Block diagram - UPWL6013 BlkDia.pdf  Operational description - UPWL6013 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below:  External Photos - UPWL6013 ExtPho.pdf  Internal Photos - UPWL6013 IntPho.pdf  Test Setup Photos - UPWL6013 TSup.pdf  User’s Manual - UPWL6013 UserMan.pdf Sincerely, Lawrence Yu / Senior Manager, PEGATRON CORPORATION

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 November 09, 2009 Attn: Reviewing Engineer Federal Communications Commission / 7435 Oakland Mills Road Columbia, MD 21046 Subject: Single Modular Approval for FCC ID: VUI-UPWL6013 , As Per FCC Public Notice DA 00-1407 To whom it may concern, PEGATRON CORPORATION . Bluetooth Module, FCC ID: VUI-UPWL6013, would like to have your authorization as a modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. The modular transmitter must have its own RF shielding The radio portion of this module has been shielded, please see exhibition (Photographs of EUT). 2. The modular transmitter must have buffered modulation/data inputs The EUT has buffered data inputs, it is integrated in chip BCM4313 . 3. The modular transmitter must have its own power supply regulation The chips if converter and RF/IF converter which will influence the frequency radiation, have to be 3.3 & 1.2 VDC power. The PCI Express interface provides 3.3 & 1.2 VDC, so there are regulators in front of these chips, the part number of this regulator is BCM4313KML1G . 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c) The EUT meets the FCC antenna requirements, the spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration via a PCI Express extend card. Please see exhibition (Test Set–up Photos), the EUT was plugged in this extender. 6. The modular transmitter must be labeled with its own FCC ID number Please see exhibition (Label Sample), and also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the Users Manual 8. The modular transmitter must comply with any applicable RF exposure requirements The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the MPE exhibition. Sincerely, Lawrence Yu / Senior Manager, PEGATRON CORPORATION

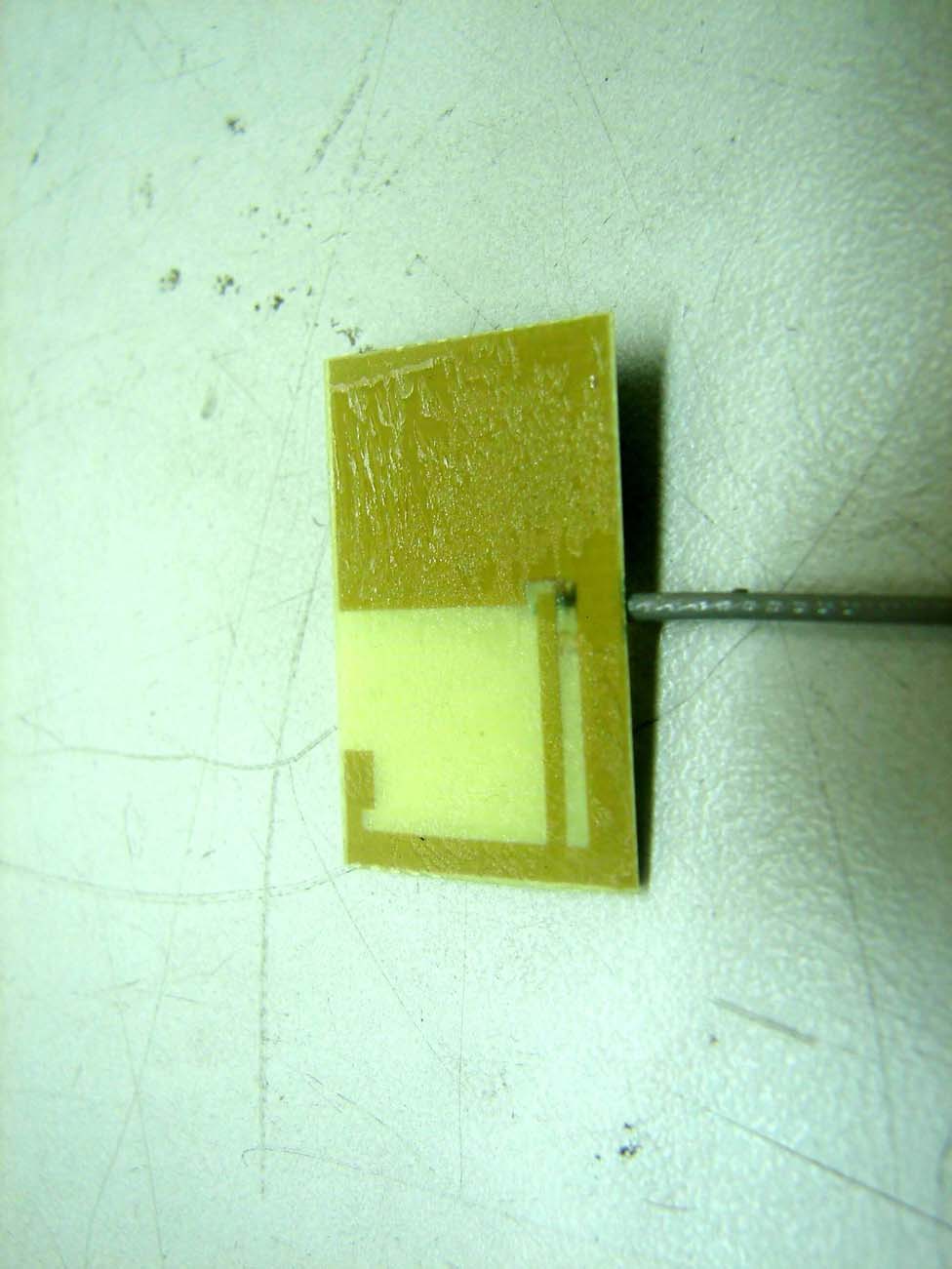

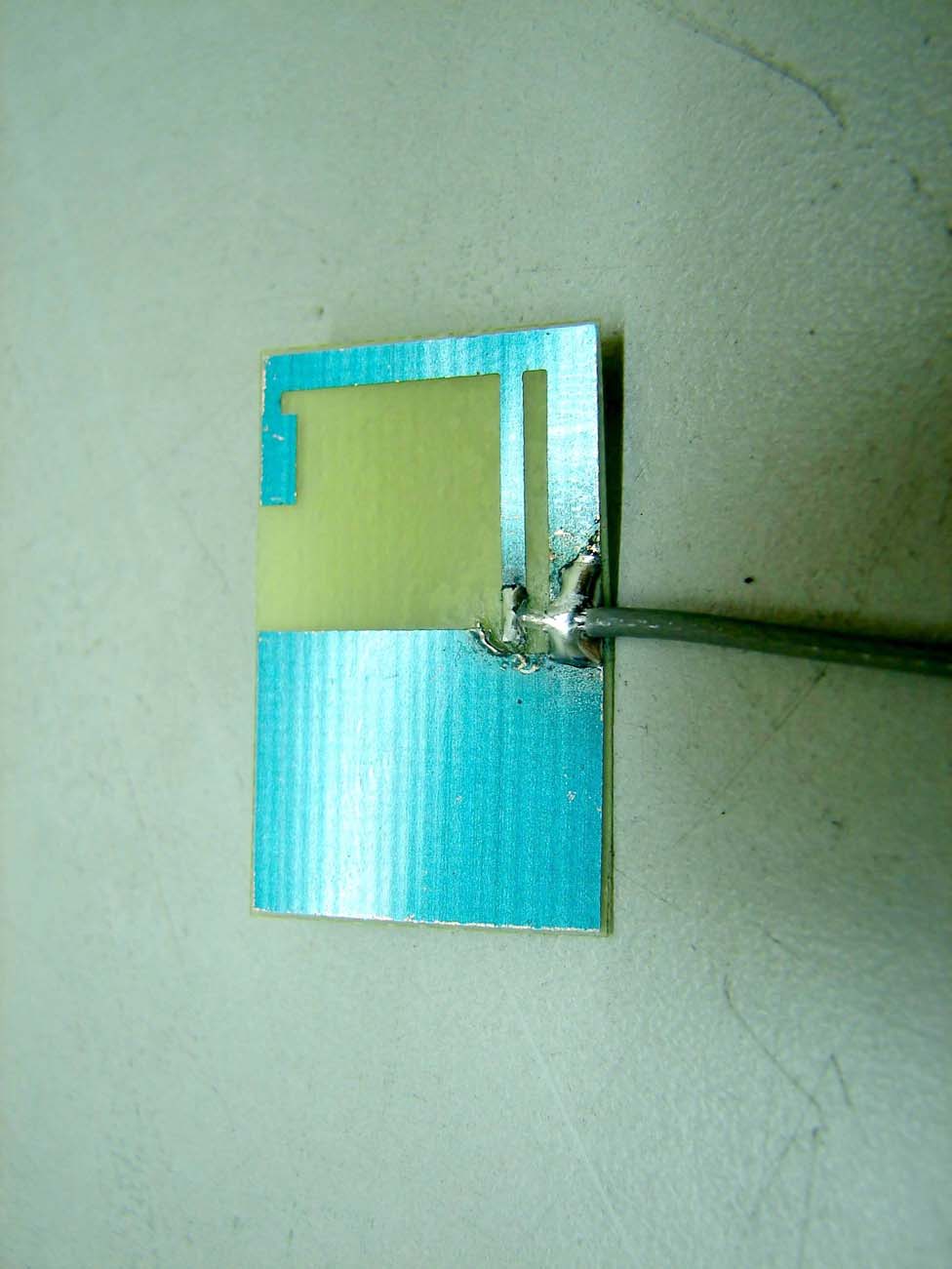

External Photos of EUT --------------------------------------------------------------- 1/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 2/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 3/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 External Photos of EUT --------------------------------------------------------------- 4/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 External Photos of EUT --------------------------------------------------------------- 5/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 External Photos of EUT --------------------------------------------------------------- 6/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 External Photos of EUT --------------------------------------------------------------- 7/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna #1 External Photos of EUT --------------------------------------------------------------- 8/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna #1 External Photos of EUT --------------------------------------------------------------- 9/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2 External Photos of EUT --------------------------------------------------------------- 10/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2 External Photos of EUT --------------------------------------------------------------- 11/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2 External Photos of EUT --------------------------------------------------------------- 12/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2 External Photos of EUT --------------------------------------------------------------- 13/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2 External Photos of EUT --------------------------------------------------------------- 14/14 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 15.0 x 15.0 mm LABEL The device complies with Part 15 of the FCC Rules. See instruction manual. FCC ID: VUI-UPWL6013 Model No.: UPWL6013

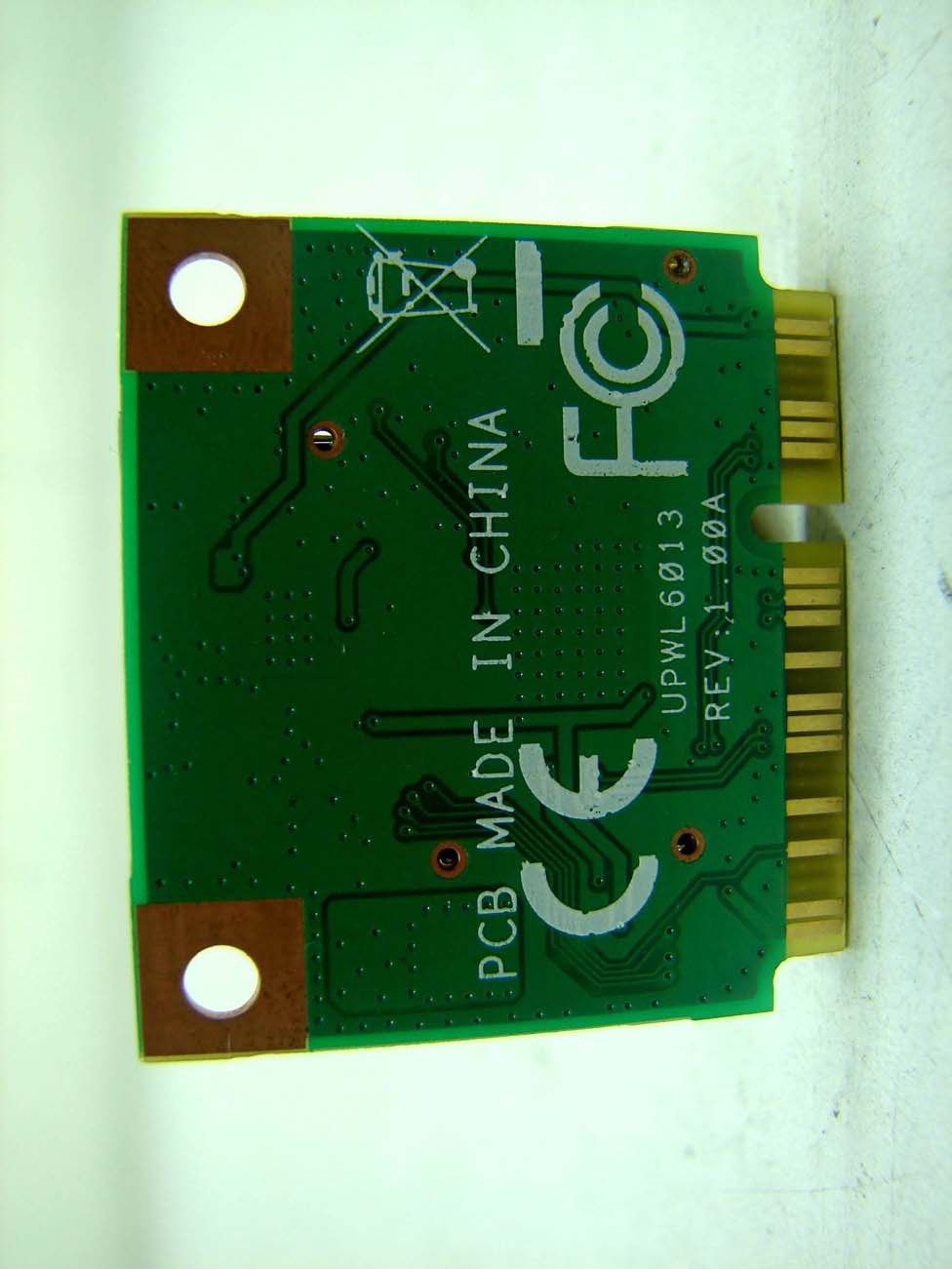

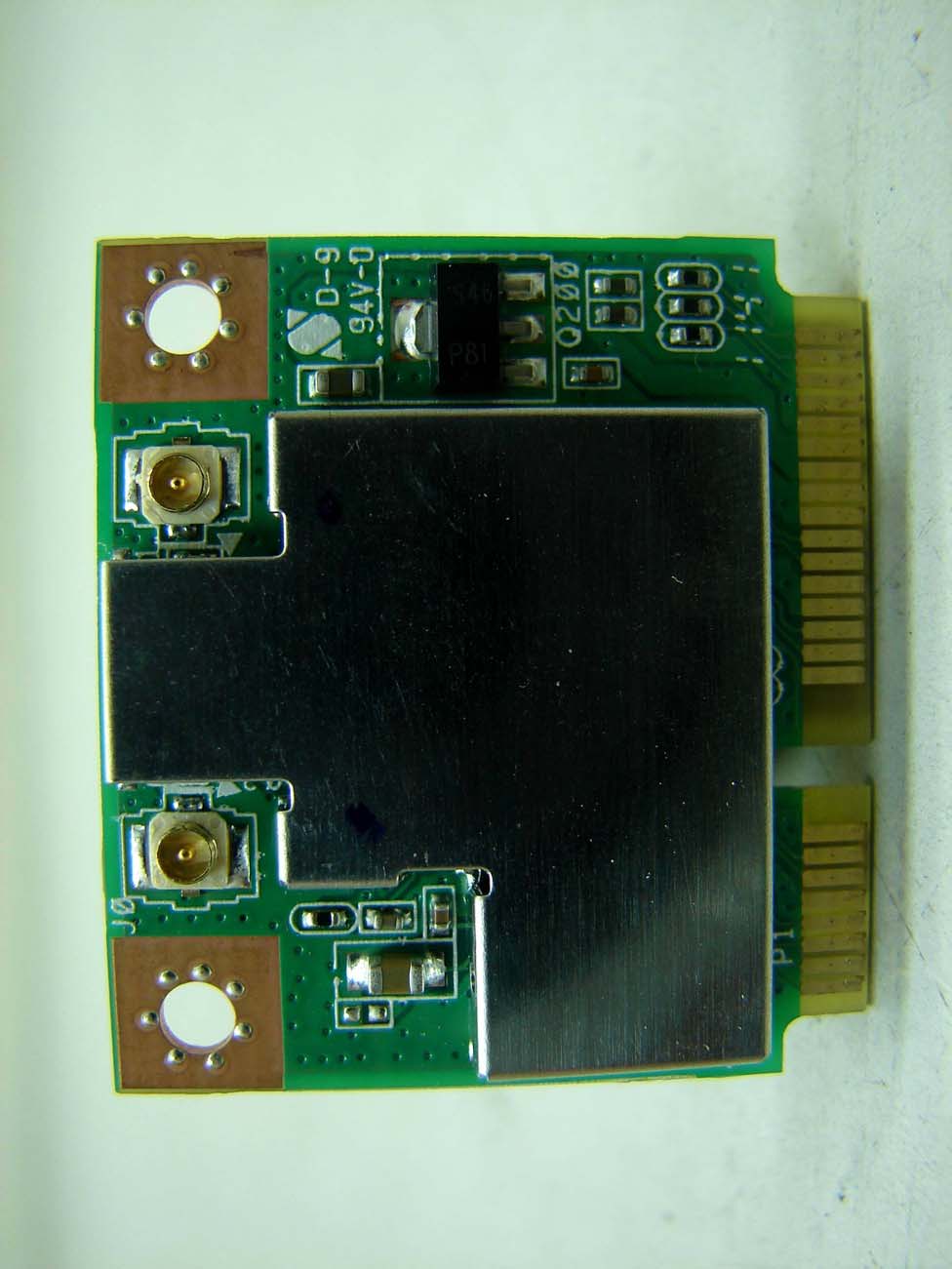

Internal Photos of EUT ---------------------------------------------------------------- 1/2 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT ---------------------------------------------------------------- 2/2 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/4 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : VUI-UPWL6013 Product Name : WIFI Module Model Name : UPWL6013 Frequency Range : IEEE 802.11b/g/n Draft 1.0 20M: 2.412GHz ~ 2.462GHz Channel Spacing : 5MHz Support Channel : IEEE 802.11b/g/n Draft 1.0 20M: 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI Express interface of client’s device Measurement of Maximum Permissible Exposure ---------------------------------------- 2/4 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /168.0 )20(4 74.342.225 4 cmmW R PG S    Estimated safe separation: cm PG R191.8 4 74.342.225 4     Note: "The safe estimated separation that the user must maintain from the antenna is at least 6.5cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (5.73 / 10) = 3.74 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/4 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification (Antenna #1 C1335-520153-A & C1335-520154A) Test Environment Equipment Description Network Analyze 3D Chamber Network Analyze 3D Chamber AUT X Y Z XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left θ φ To t a l a n g l e 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Front Down Right (+X) Back(+Y) Up(+Z) Left Antenna picture RF Antenna Assembly Antenna 1 P/NO : C1335-520153-A SPEC : 2.4~2.5 GHz With housing Antenna 2 Antenna 1 Antenna 2 P/NO : C1335-520154-A SPEC : 2.4~2.5 GHz With housing Isolation Test Results SPEC : 2.4~2.5 GHz With housing Antenna1 (C1335‐520153‐A) Antenna1 Passive Efficiency in Free Space Model name CISCO DPC2325 Band 802.11 b/g/n Date 2011/11/24 Frequency(MHz) 2400 2450 2500 Specification(%) 40 40 40 Antenna type PIFA type Avg Gain(dBi) ‐2.61 ‐2.23 ‐2.52 Peak Gain(dBi) 5.18 5.73 5.14 Efficiency(%) 55 60 56 Antenna Antenna 1 (C1335‐520153‐A) Average Efficiency(%)57 Peak Gain of Operation band(dBi) 5.73 Antenna2 (C1335‐520154‐A) Antenna2 Passive Efficiency in Free Space Model name CISCO DPC2325 Band 802.11 b/g/n Date 2011/11/24 Frequency(MHz) 2400 2450 2500 Specification(%) 40 40 40 Antenna type PIFA type Avg Gain(dBi) ‐2.58 ‐2.51 ‐2.70 Peak Gain(dBi) 4.55 4.84 3.92 Efficiency(%) 55 56 54 Antenna Antenna 2 (C1335‐520154‐A) Average Efficiency(%)55 Peak Gain of Operation band(dBi) 4.84 Antenna 1- 802.11 b/g/n band 2D polar plots (C1335‐520153‐A) Elevation, Phi=0 Elevation, Phi=90 Azimuth Antenna 2- 802.11 b/g/n band 2D polar plots (C1335‐520154‐A) Elevation, Phi=0 Elevation, Phi=90 Azimuth Measurement of Maximum Permissible Exposure ---------------------------------------- 4/4 Applicant: PEGATRON CORPORATION FCC ID: VUI-UPWL6013 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification (Antenna #2 260-23197 & 260-23198) 1 客户名称： (CUSTOMER) Unihan 产品名称 APPELLATION： PCB天線 产品型号 MODEL ： DPC2420 、EPC2325、 DPC2320 客戶料号 No. ： 泓淋料号 No. ： 260-23197 工艺审核 TECHNICAL 品质审核 QUALITY 项目审核 PROJECT 开发审核 DEVELOPING 生 产 方 设计工程师 Engineer 主管审批 Approval 研发体系 R & D System 客 户 方 2 承認書目錄(簡易版) 一. 天線規格表 二. 測試報告 三. 成品圖 3 一. 天线规格表 Specification 1. Electrical Properties 1.1 Frequency Range--------------------- 2.4GHz~2.5GHz 1.2 Impedance----------------------------- 50Ω 1.3 VSWR--------------------------------- 1.92:1 1.4 Return Loss--------------------------- -10dB or Less 1.5 Peak Gain------------------------------ 2.34dBi 1.6 Admitted Power---------------------- 1W 1.7 Cable----------------------------------- Ø1.13 (Gray) 1.8 Connector----------------------------- 特諾 1.9 Antenna Type------------------------- PIFA type 2. Physical Properties 2.1 Antenna Body-----------------------FR4 2.2 Operating Temp-------------------- -10°C~+60°C 2.3 Storage Temp----------------------- -10°C~+70°C 4 二. 測試報告 Return loss and VSWR 5 Radiation Pattern (X-Z Plane) (Y-Z…
