VUI-WAP571EWireless-AC/N Premium Dual Radio Outdoor Access Point

Quick Start Guide Cisco WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point 1Cisco WAP571E Wireless Access Point Welcome Thank you for choosing the Cisco WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point. The Cisco WAP571E is an outdoor dual radio 802.11ac + 802.11n access point. This guide is designed to familiarize you with the general layout of the access point, describe how to deploy the device in your network, and describe how to configure the device. Your access point has more features and functionality than what is described in this guide. For additional information, see the Administration Guide. A link to the Administration Guide is found in Where to Go From Here. Package Contents •Wireless Access Point •Mounting kit •This Quick Start Guide •Ethernet cable •Pointer Card with China RoHS •Technical Support Contacts •EU Directives 1999/5/EC Compliance Information (for EU SKU only) Before You Begin Before you begin the installation, make sure that you have the following equipment and services: •A computer with browser support for: –Internet Explorer v7.0 or later –Chrome v5.0 or later –Firefox v3.0 or later –Safari v3.0 or later •Tools for installing the hardware •One or more Ethernet network switches with PoE 1 Cisco WAP571E Wireless Access Point2 Cisco WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point Features Front Panel The front panel of the device consists of a single system LED. For a full description of the colors of the light and its indications, see Verifying the Hardware Installation. A Kensington lock slot is found under the lights. Back Panel The back panel of the device has a water proof RJ-45 Ethernet port and reset bottom. Facing the side of the device, the right port (labeled "ETH0/PD") is an 802.3at and 802.3af Power over Ethernet (PoE) port which is used to power your device. The left port (labeled "ETH1") is a general Gigabit Ethernet LAN interface. Both are auto-sensing, Gigabit Ethernet (802.3) ports used to connect your WAP devices to network devices, such as computers, routers, or switches. We strongly recommend that you use a Category 5e or better cable for Gigabit connectivity. Side Panel The side panel of the device has a Reset button at right. See Rebooting the Devices or Returning them to their Factory Default Settings for information on the Reset button. Default Setting If you are using a Cisco RV Series router, the default range for the DHCP assigned address is from 192.168.1.100 to 192.168.1.254. Any device connecting to the same LAN will be assigned an IP address in this range. If your network does not have an existing DHCP server, the WAP571E will start a DHCP server for WLAN stations and stop the DHCP client when WAP571E is in factory default. The DHCP server will assign the IP address from 192.168.1.20 to 192.168.1.100. ParameterDefault Value Usernamecisco Passwordcisco LAN IP AddressDHCP address assigned by server Fallback LAN IP192.168.1.245 Subnetwork Mask255.255.255.0 2 3Cisco WAP571E Wireless Access Point Mounting the Cisco WAP571E Wireless- AC/N Premium Dual Radio Outdoor Access Point You can place your access point at an outdoor location and mount it on a wall or pole. Placement Tips • Ambient Temperature—To prevent the access point from overheating, do not operate it in an area that exceeds an ambient temperature of 122°F (55°C). • Mechanical Loading—The device should be level, stable, and secure to prevent it from sliding or shifting out of position. Wall and Pole Mounting The Cisco WAP571E device can be wall or pole-mounted. A mounting kit is packaged with your device. The kit is designed to install your device to the wall or a pole. The outdoor model includes an adjustable bracket to mount on a flat vertical surface. Adjustments can be made in up/down, left/right direction for signal optimization. Pole-mount allows for mounting to small pole (3" diameter max) and is also adjustable. 3 Cisco WAP571E Wireless Access Point4 WARNINGInsecure mounting might damage the device or cause injury. Cisco is not responsible for damages incurred by insecure wall or pole mounting. Pole-mounting: To mount the Cisco WAP 571E device on a pole: STEP1Fix Holder_1 and GND wire on WAP571E by 4 M6*10 screws and screw washers. GND wire can provide better ESD protection. STEP2Fix Holder_2 and Holder_3 on Pole by 4 M6*130 screws and screw washers. STEP3Fix WAP571E and Holder_1 to Holder_2 by 4 M6*10 Screws and screw washers. 5Cisco WAP571E Wireless Access Point Wall-mounting: To mount the Cisco WAP 571E device on a wall: STEP1Fix Holder_1 and GND wire on WAP571E by 4 M6*10 screws and screw washers. GND wire can provide better ESD protection. STEP2Fix HOLDER_3 on wall by 4 anchors. Cisco WAP571E Wireless Access Point6 S TEP3Fix Holder_2 and Holder_3 by 4 M6*10 screws and screw washers. STEP4Fix WAP571E and Holder_1 to Holder_2 by 4 M6*10 Screws and screw washers. 7Cisco WAP571E Wireless Access Point Cisco WAP571E Wireless Access Point8 Connecting the Cisco WAP571E Wireless- AC/N Premium Dual Radio Outdoor Access Point You can perform the initial configuration using either a wired or wireless connection. The default configuration of the WAP 571 has the Wi-Fi radio turned on. To connect the WAP 571E to the wired network: STEP1Connect the Ethernet cable to the Ethernet port of a PoE switch. STEP2Connect the other end of the network Ethernet cable to the Ethernet port (PoE) of the wireless access point. NOTEWAP571E bundles the two Ethernet ports to be link aggregation mode. If the two Ethernet ports have been connected at the same time, the link partner must also support link aggregation. This wireless default configuration will not allow traffic between WiFi and Ethernet; users will need to go through the setup wizard to resume the traffic between WiFi and Ethernet. To connect the WAP 571E to the network wirelessly: STEP1Use wireless clients to locate the WAP571E’s SSID (CiscoSB- Setup). STEP2Use the ‘cisco123’ passkey to access the a…

Text truncated - open the document above for the full version.

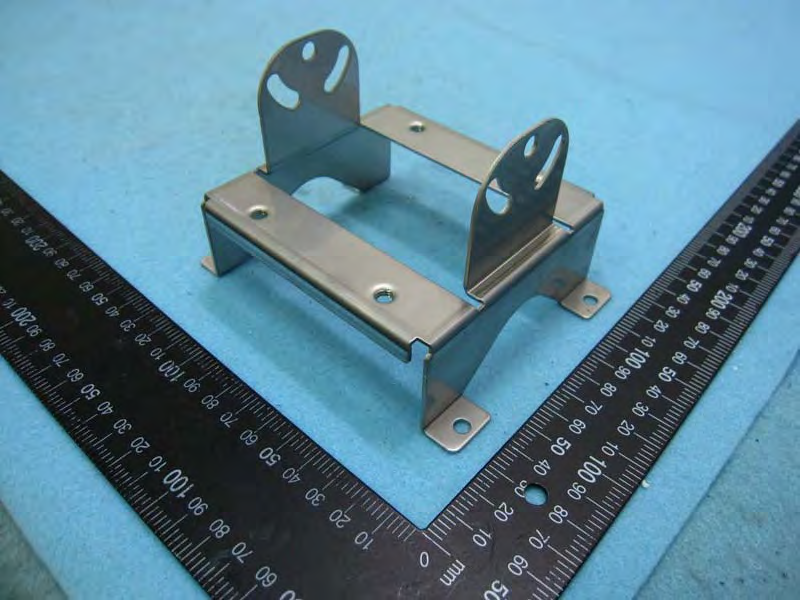

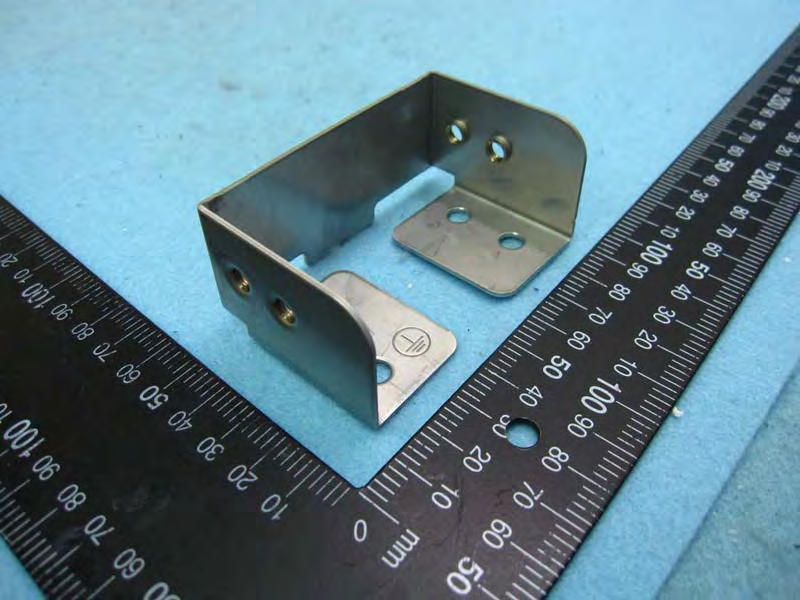

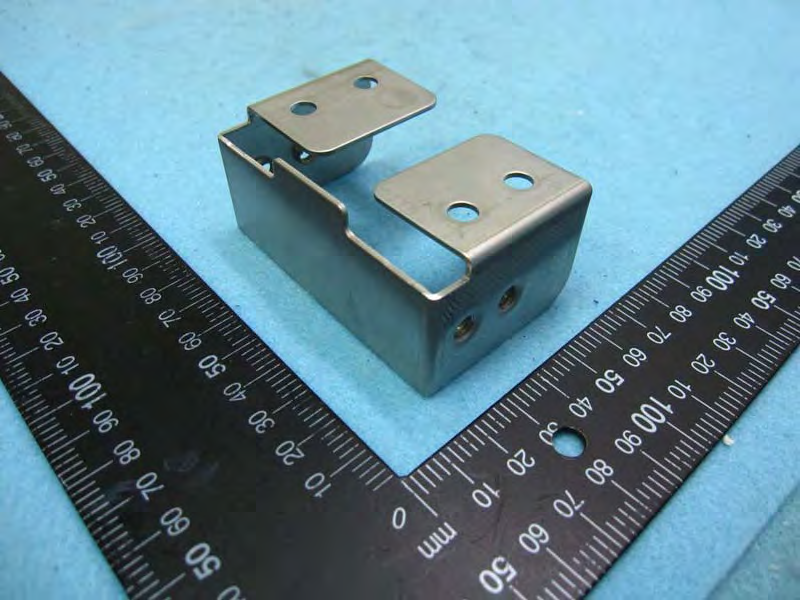

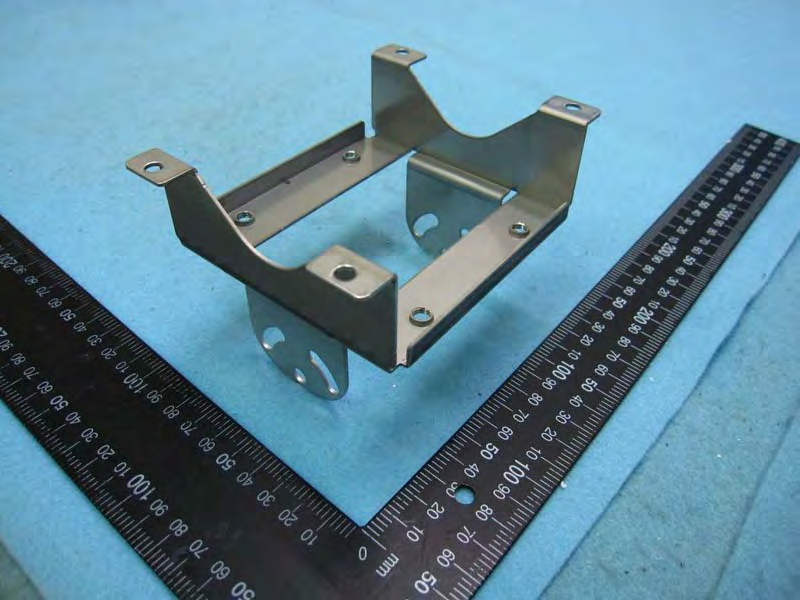

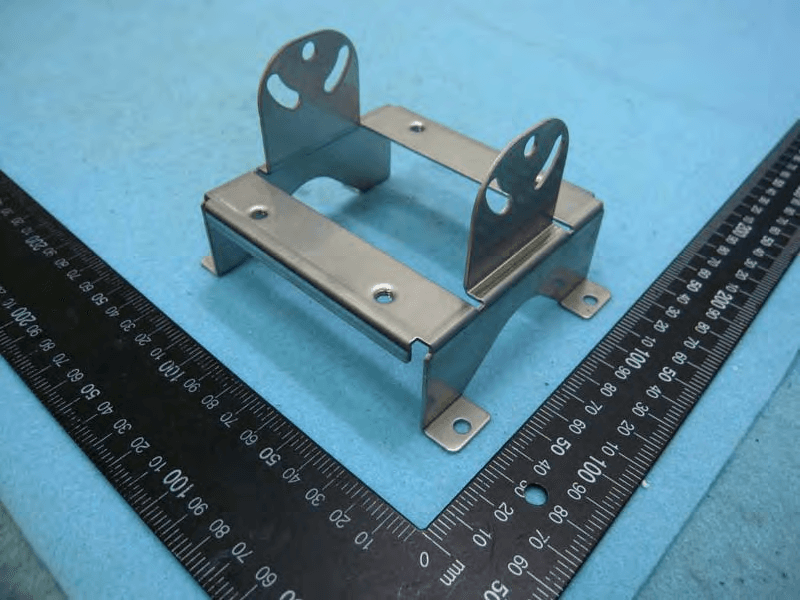

Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 1 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 2 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 3 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Wall-mounted rack Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 4 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 5 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 6 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 7 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 8 of 8 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 RJ-45 cable

A4 1. SYMBOL MEANS IMPORTANT SIZE. 2. SYMBOL MEANS IMPORTANT ITEM. 3. SYMBOL MEANS ILLUSTRATE. 4. THIS PART SHOULD NOT CONTAIN AND SUBSTANCES WHICH ARE SPECIFIED IN SPT-00001; SPT-00002 (WHEN SPECIFIED FOR HALOGEN FREE/ LOW HALOGEN) ISSUED BY PEGATRON. 5. CUT LINE. Release paper 3mm 2mm2mm Kenni Carrie Huang Shawn Roll Up paper Material Made 50番白麥拉(需過UL認證) BACK LABEL_WAP571E 1510-1RUA000 CISCO WAP571 R1mm NOTES: 1. Material:50番白麥拉(需過UL認證) 2.Adhesive: 壓克力膠 3.DIM:78*58mm (+/-0.25mm); t=0.05 ; R1mm*3,C5mm*1 4.Print Color: Black 5.Back Groud Color: Pantone Black C Pantone Black C Pantone Cool Gray 10C Printing Content for supplier 供應商印刷內容 PID-A-B-N SKU (English+French) Model no. / Numèro de modèle: WAP571E Wireless-AC/N Premium Dual Radio Outdoor Access Point Point d'accès extérieur bibande sans fil AC/N Premium CAN ICES-3(B)/NMB-3(B) FCC ID:VUI-WAP571E IC:7582A-WAP571E POE(802.3at/af): 55VDC 0.6A Manufacturer / Fabricant: Cisco Systems, Inc. EXXXXXX XXXX-XX-XXXX XXXXXXXXXXXXXXXX E134 R-NZ CNC ID: XXX-9999 “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.” IFETEL:XXXXXXXYY-OOOO 78 mm 58 mm Label Here

Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 1 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 2 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 3 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 4 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 5 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 6 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 7 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 8 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 9 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 10 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 11 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 12 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 13 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 14 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 15 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 16 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 17 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 18 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 19 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 20 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 21 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 22 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 23 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 24 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 25 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 26 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 27 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 28 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 29 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 30 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 31 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 EUT 2 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 32 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 33 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 34 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 35 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 36 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 37 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 38 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 39 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973 Report No.: 580303 SPORTON International Inc. PAGE NUMBER : 40 of 40 TEL : 886-3-327-3456 ISSUED DATE : Oct. 05, 2015 FAX : 886-3-327-0973

Report No.: FA580303AA Report Format Version: 01 Page No. : i of ii FCC ID : VUI-WAP571E Issued Date : Oct. 05, 2015 Table of Contents 1. GENERAL DESCRIPTION.................................................................................................................................... 1 1.1. EUT General Information .....................................................................................................................................................................1 1.2. Table for Multiple List...........................................................................................................................................................................1 1.3. Testing Location..................................................................................................................................................................................1 2. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 2 2.1. Limit of Maximum Permissible Exposure ..............................................................................................................................................2 2.2. MPE Calculation Method ....................................................................................................................................................................2 2.3. Calculated Result and Limit................................................................................................................................................................3 Report No.: FA580303AA Report Format Version: 01 Page No. : ii of ii FCC ID : VUI-WAP571E Issued Date : Oct. 05, 2015 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA580303AA Rev. 01 Initial issue of report Oct. 05, 2015 Report No.: FA580303AA Report Format Version: 01 Page No. : 1 of 3 FCC ID : VUI-WAP571E Issued Date : Oct. 05, 2015 1. GENERAL DESCRIPTION 1.1. EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5700 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 1.2. Table for Multiple List The EUTs are identical to each other in all aspects except for the following table: EUT Description EUT 1 EUT 2 The brand holder antenna gain and the 2.4GHz antenna location of the antennas are different between these two EUTs. Note: EUT 1 and EUT 2 are the same type antennas, EUT 1’ s gain is higher than that of EUT 2, so only EUT 1 was tested and recorded in this report. 1.3. Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Report No.: FA580303AA Report Format Version: 01 Page No. : 2 of 3 FCC ID : VUI-WAP571E Issued Date : Oct. 05, 2015 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2. MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   Report No.: FA580303AA Report Format Version: 01 Page No. : 3 of 3 FCC ID : VUI-WAP571E Issued Date : Oct. 05, 2015 2.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : Metal Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 (VHT20): 27.18dBm The maximum combined Average Output Power Distance (cm) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 5785 3.55 2.2646 27.1822 522.6631 0.235598 1 Complies For 2.4GHz Band: Antenna Type : Metal Antenna Conducted Power for IEEE 802.11b: 29.58 dBm The maximum combined Average Output Power Distance (cm) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 2437 2.98 1.9861 29.5821 908.2524 0.359052 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.359052 / 1 + 0.235598 / 1 = 0.594650, which is less than “1”. This confirmed that the device complies.

Report No.: FR580303 FCC ID: VUI-WAP571E Page No. : B1 of B3 Appendix B. Radiated Emission Co-location Report Report No.: FR580303 FCC ID: VUI-WAP571E Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 55% Test Engineer Owen Hsu Configurations 2.4G + 5G Horizontal Report No.: FR580303 FCC ID: VUI-WAP571E Page No. : B3 of B3 Vertical

5150 5350 5470 5725 5850 0 -1.55 -0.67 0.4 0.84 0.13 1 -1.45 -0.56 0.53 0.89 0.21 2 -1.36 -0.44 0.64 1.17 0.44 3 -1.28 -0.33 0.73 1.62 0.89 4 -1.21 -0.23 0.8 1.84 1.34 5 -1.14 -0.13 1.19 2.1 1.81 6 -1.07 -0.04 1.74 2.5 2.18 7 -1.02 0.04 2.36 2.21 2.61 8 -0.99 0.1 1.88 1.86 2.37 9 -0.96 0.15 1.25 1.34 2.19 10 -0.96 0.18 0.86 1.16 1.82 11 -0.97 0.21 0.8 0.79 1.54 12 -1 0.21 0.72 0.72 1.16 13 -1.04 0.21 0.62 0.64 0.54 14 -1.1 0.18 0.51 0.55 0.12 15 -1.18 0.14 0.39 0.45 -0.01 16 -1.28 0.07 0.24 0.33 -0.14 17 -1.39 -0.01 0.07 0.2 -0.29 18 -1.51 -0.12 -0.11 0.06 -0.45 19 -1.64 -0.25 -0.3 -0.09 -0.62 20 -1.79 -0.39 -0.51 -0.25 -0.79 21 -1.94 -0.56 -0.73 -0.41 -0.98 22 -2.09 -0.74 -0.97 -0.59 -1.15 23 -2.24 -0.94 -1.22 -0.77 -1.33 24 -2.4 -1.16 -1.47 -0.95 -1.49 25 -2.55 -1.4 -1.74 -1.13 -1.64 26 -2.69 -1.64 -2.01 -1.31 -1.78 27 -2.83 -1.89 -2.29 -1.49 -1.89 28 -2.95 -2.15 -2.57 -1.66 -1.99 29 -3.07 -2.43 -2.85 -1.84 -2.06 30 -3.19 -2.7 -3.13 -2 -2.11 31 -3.29 -2.98 -3.4 -2.15 -2.14 32 -3.4 -3.25 -3.67 -2.28 -2.15 33 -3.5 -3.52 -3.92 -2.42 -2.14 34 -3.6 -3.78 -4.16 -2.54 -2.11 35 -3.71 -4.04 -4.37 -2.65 -2.08 36 -3.82 -4.28 -4.57 -2.74 -2.04 37 -3.93 -4.51 -4.75 -2.81 -2 38 -4.06 -4.73 -4.9 -2.88 -1.96 39 -4.2 -4.93 -5.02 -2.94 -1.93 40 -4.36 -5.12 -5.12 -2.98 -1.91 41 -4.52 -5.29 -5.19 -3 -1.89 42 -4.68 -5.44 -5.25 -3.02 -1.88 43 -4.87 -5.58 -5.29 -3.02 -1.89 44 -5.06 -5.71 -5.32 -3.02 -1.92 45 -5.25 -5.81 -5.33 -3.02 -1.96 46 -5.45 -5.91 -5.33 -3.01 -2.02 47 -5.64 -6 -5.33 -3 -2.09 48 -5.83 -6.07 -5.32 -2.99 -2.17 49 -6.02 -6.13 -5.32 -2.98 -2.27 50 -6.19 -6.18 -5.31 -2.97 -2.37 51 -6.35 -6.23 -5.32 -2.97 -2.48 52 -6.49 -6.27 -5.33 -2.98 -2.59 53 -6.6 -6.3 -5.34 -3 -2.71 54 -6.69 -6.32 -5.36 -3.04 -2.84 55 -6.76 -6.33 -5.4 -3.08 -2.96 56 -6.8 -6.34 -5.44 -3.13 -3.08 57 -6.82 -6.33 -5.48 -3.19 -3.2 58 -6.81 -6.31 -5.53 -3.27 -3.32 59 -6.78 -6.28 -5.58 -3.36 -3.43 60 -6.73 -6.24 -5.63 -3.46 -3.55 61 -6.67 -6.19 -5.67 -3.57 -3.67 62 -6.59 -6.12 -5.71 -3.69 -3.78 63 -6.5 -6.05 -5.74 -3.83 -3.9 64 -6.41 -5.97 -5.76 -3.96 -4.03 65 -6.31 -5.89 -5.78 -4.1 -4.15 66 -6.22 -5.8 -5.78 -4.25 -4.28 67 -6.12 -5.71 -5.77 -4.4 -4.41 68 -6.03 -5.63 -5.76 -4.56 -4.55 69 -5.95 -5.56 -5.74 -4.71 -4.69 70 -5.88 -5.5 -5.72 -4.87 -4.83 71 -5.82 -5.44 -5.7 -5.03 -4.97 72 -5.77 -5.41 -5.69 -5.19 -5.11 73 -5.74 -5.39 -5.69 -5.34 -5.26 74 -5.72 -5.4 -5.69 -5.5 -5.4 75 -5.71 -5.41 -5.71 -5.66 -5.54 76 -5.71 -5.44 -5.73 -5.82 -5.69 77 -5.73 -5.5 -5.77 -5.98 -5.83 78 -5.76 -5.56 -5.83 -6.15 -5.98 79 -5.79 -5.64 -5.9 -6.32 -6.13 80 -5.84 -5.73 -5.98 -6.49 -6.29 81 -5.89 -5.83 -6.08 -6.67 -6.47 82 -5.95 -5.94 -6.19 -6.86 -6.65 83 -6.01 -6.05 -6.3 -7.06 -6.84 84 -6.07 -6.16 -6.42 -7.27 -7.05 ‐60 ‐55 ‐50 ‐45 ‐40 ‐35 ‐30 ‐25 ‐20 ‐15 ‐10 ‐5 0 5 0 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 68 72 76 80 84 88 92 96 100 104 108 112 116 120 124 128 132 136 140 144 148 152 156 160 164 168 172 176 180 184 188 192 196 200 204 208 212 216 220 224 228 232 236 240 244 248 252 256 260 264 268 272 276 280 284 288 292 296 300 304 308 312 316 320 324 328 332 336 340 344 348 352 356 360 5150 5150 85 -6.15 -6.27 -6.55 -7.48 -7.27 86 -6.22 -6.38 -6.68 -7.7 -7.52 87 -6.3 -6.47 -6.81 -7.92 -7.79 88 -6.39 -6.57 -6.93 -8.16 -8.08 89 -6.47 -6.65 -7.04 -8.39 -8.39 90 -6.57 -6.73 -7.15 -8.63 -8.72 91 -6.67 -6.79 -7.26 -8.88 -9.07 92 -6.78 -6.85 -7.36 -9.12 -9.44 93 -6.89 -6.91 -7.45 -9.37 -9.82 94 -7.01 -6.97 -7.54 -9.61 -10.2 95 -7.14 -7.02 -7.62 -9.85 -10.58 96 -7.27 -7.08 -7.7 -10.09 -10.94 97 -7.42 -7.15 -7.78 -10.32 -11.27 98 -7.58 -7.22 -7.87 -10.54 -11.55 99 -7.74 -7.3 -7.96 -10.75 -11.77 100 -7.91 -7.38 -8.06 -10.95 -11.93 101 -8.08 -7.48 -8.16 -11.13 -12 102 -8.26 -7.59 -8.28 -11.3 -12.01 103 -8.44 -7.71 -8.41 -11.44 -11.96 104 -8.62 -7.84 -8.55 -11.57 -11.86 105 -8.8 -7.99 -8.71 -11.68 -11.74 106 -8.98 -8.14 -8.88 -11.76 -11.6 107 -9.15 -8.31 -9.06 -11.82 -11.46 108 -9.32 -8.49 -9.25 -11.86 -11.34 109 -9.48 -8.68 -9.46 -11.88 -11.24 110 -9.63 -8.88 -9.68 -11.88 -11.16 111 -9.78 -9.08 -9.91 -11.86 -11.11 112 -9.92 -9.28 -10.15 -11.84 -11.08 113 -10.05 -9.48 -10.39 -11.81 -11.08 114 -10.17 -9.69 -10.63 -11.77 -11.08 115 -10.27 -9.89 -10.88 -11.72 -11.08 116 -10.35 -10.08 -11.12 -11.67 -11.08 117 -10.42 -10.26 -11.35 -11.62 -11.05 118 -10.47 -10.43 -11.58 -11.55 -10.98 119 -10.48 -10.59 -11.79 -11.47 -10.87 120 -10.46 -10.73 -11.98 -11.38 -10.7 121 -10.4 -10.85 -12.15 -11.26 -10.49 122 -10.3 -10.94 -12.29 -11.13 -10.23 123 -10.14 -11 -12.4 -10.97 -9.94 124 -9.92 -11.02 -12.46 -10.79 -9.62 125 -9.65 -10.99 -12.49 -10.59 -9.29 126 -9.34 -10.91 -12.47 -10.37 -8.96 127 -8.98 -10.78 -12.4 -10.13 -8.64 128 -8.59 -10.59 -12.28 -9.88 -8.33 129 -8.17 -10.34 -12.1 -9.63 -8.03 130 -7.73 -10.03 -11.88 -9.38 -7.76 131 -7.27 -9.68 -11.6 -9.13 -7.51 132 -6.81 -9.28 -11.27 -8.88 -7.28 133 -6.35 -8.85 -10.91 -8.64 -7.07 134 -5.9 -8.39 -10.52 -8.42 -6.89 135 -5.45 -7.93 -10.09 -8.2 -6.73 136 -5.01 -7.46 -9.65 -7.99 -6.59 137 -4.59 -6.98 -9.2 -7.79 -6.46 138 -4.19 -6.51 -8.74 -7.6 -6.34 139 -3.81 -6.05 -8.27 -7.41 -6.22 140 -3.44 -5.61 -7.8 -7.23 -6.11 141 -3.08 -5.19 -7.35 -7.04 -6.01 142 -2.75 -4.77 -6.9 -6.85 -5.91 143 -2.43 -4.38 -6.46 -6.65 -5.8 144 -2.12 -4.01 -6.03 -6.44 -5.68 145 -1.84 -3.65 -5.61 -6.23 -5.54 146 -1.56 -3.31 -5.2 -6 -5.4 147 -1.29 -2.98 -4.81 -5.76 -5.24 148 -1.03 -2.67 -4.43 -5.5 -5.06 149 -0.78 -2.38 -4.06 -5.23 -4.87 150 -0.54 -2.1 -3.69 -4.96 -4.65 151 -0.31 -1.83 -3.34 -4.66 -4.42 152 -0.08 -1.58 -3.01 -4.36 -4.18 153 0.14 -1.33 -2.69 -4.05 -3.91 154 0.36 -1.1 -2.39 -3.74 -3.64 155 0.58 -0.88 -2.08 -3.42 -3.36 156 0.78 -0.68 -1.8 -3.11 -3.08 157 0.98 -0.48 -1.53 -2.79 -2.8 158 1.18 -0.3 -1.27 -2.47 -2.53 159 1.38 -0.13 -1.03 -2.16 -2.26 160 1.58 0.03 -0.8 -1.86 -2.01 161 1.77 0.17 -0.58 -1.57 -1.77 162 1.94 0.31 -0.38 -1.29 -1.55 163 2.11 0.43 -0.21 -1.02 -1.36 164 2.26 0.54 -0.05 -0.77 -1.18 165 2.41 0.89 0.1 -0.54 -1.03 166 2.43 1.18 0.23 -0.33 -0.89 167 2.49 1.42 0.34 -0.15 -0.79 168 2.54 1.89 0.43 0.01 -0.7 169 2.58 2.3 0.5 0.15 …

Text truncated - open the document above for the full version.

Report No.: FR580303AB FCC ID: VUI-WAP571E Page No. : C1 of C2 Appendix C. Maximum e.i.r.p. at any elevation angle above 30 degrees Report No.: FR580303AB FCC ID: VUI-WAP571E Page No. : C2 of C2 1. Maximum e.i.r.p. at any elevation angle above 30 degrees Frequency Modulation Channel Data Rate Conducted Pass Setting Ant. 1 (dBm) Ant. 2 (dBm) Ant. 3 (dBm) Total (dBm) Elevation angle above 30∘ Max gain (dBi) Elevation angle above 30∘ Max EIRP (dBm) EIRP Power Limit (dBm) Test Result 5180MHz OFDM Ch36 6Mbps 58 14.46 15.53 15.16 19.84 1.100 20.94 21 Complies 5200MHz OFDM Ch40 6Mbps 57 14.53 15.05 15.2 19.71 1.100 20.81 21 Complies 5240MHz OFDM Ch48 6Mbps 56 14.28 15.24 15.15 19.68 1.100 20.78 21 Complies 5180MHz VHT20 Ch36 MCS0-Nss1 58 14.13 15.67 15.34 19.87 1.100 20.97 21 Complies 5200MHz VHT20 Ch40 MCS0-Nss1 57 14.63 15.33 15.1 19.80 1.100 20.90 21 Complies 5240MHz VHT20 Ch48 MCS0-Nss1 56 14.66 15.12 14.91 19.67 1.100 20.77 21 Complies 5190MHz VHT40 Ch38 MCS0-Nss1 58 14.55 15.35 15.23 19.83 1.100 20.93 21 Complies 5230MHz VHT40 Ch46 MCS0-Nss1 57 14.86 15.25 15.08 19.84 1.100 20.94 21 Complies 5210MHz VHT80 Ch42 MCS0-Nss1 58 14.98 15.09 15.06 19.81 1.100 20.91 21 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 11259, Taiwan FCC ID VUI-WAP571E Manufacturer’s company MAINTEK Computer (Suzhou) Co., Ltd. Manufacturer Address 233 Jin Feng Rd, Suzhou District Jiangsu China Product Name Wireless-AC/N Premium Dual Radio Outdoor Access Point Brand Name CISCO Model No. WAP571E Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz / 5725 ~ 5850 MHz Received Date Aug. 04, 2015 Final Test Date Sep. 02, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR580303AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: VUI-WAP571E Issued Date : Oct. 05, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna..................................................................................................................................…
