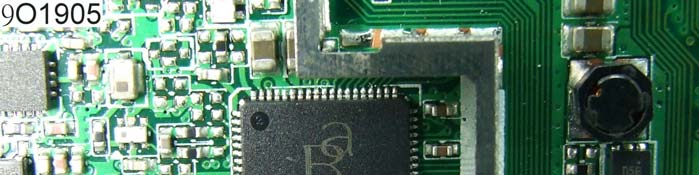

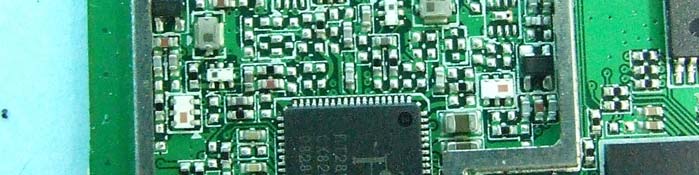

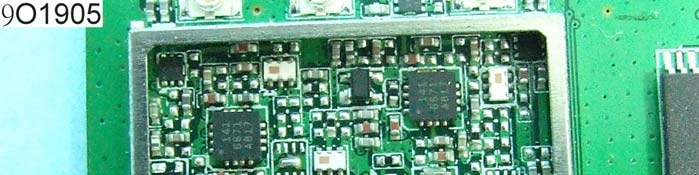

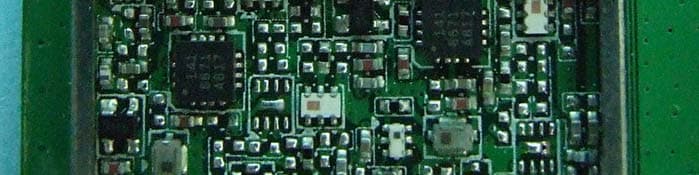

VUI-WL-227N-ABANDWireless MPCI Card

WL-227N_ABAND Mini PCI WiFi (802.11 a/n) Card Hardware and Driver Reference WL-227N_ABAND Hardware & Driver Reference  CONTENTS CONTENTS..................................................................................2 INTRODUCTION..........................................................................3 SCOPE .............................................................................................3 ACRONYMS AND DEFINITIONS .....................................................3 GENERAL FEATURES .....................................................................3 DRIvER.INSTallaTION.............................................................4 SaFETY.INFORMaTION.............................................................6 NOTE:.Information.in.this.document.is.subject.to.change.after.this.document.is. made.available. WL-227N_ABAND Hardware & Driver Reference  INTRODUCTION SCOPE The purpose of this specification is to document the requirements for 802.11 a/n, it is an iNIC card that not only can act as a tradition- al AP/Router but also provide WLAN dual band access capabilities. ACRONYMS AND DEFINITIONS Acronym Description BBP Base Band Processor BER Bit Error Rate BPSK Binary Phase Shift Keying CCK Complementary code keying EVM Error Vector Magnitude MAC Media Access Controller OFDM Orthogonal Frequency Division Multiplexing QAM Quadrature Amplitude Modulation QPSK Quadrature Phase Shift Keying GENERAL FEATURES Network Standard Comply with IEEE 802.11n draft 2.0 & IEEE 802.11a standards Chipset Highly Integrated MIMO 2T3R MAC/BBP chip (RT2880) with PCI Interface and Single-chip Transceiver (RT2850) with 2.4 GHz(low-band) and 5~6GHz(high-band) ISM bands Host interface Type III A, 124 Pin Data Rate 300Mbps Receive PHY Rate, 300Mbps Transmit PHY Rate and just support 2 streams Modulation Modulation Technology support Orthogonal Frequency Division Multiplexing (OFDM) Operating Frequency 4.9~5.9GHz Operating Channel CH36~CH48,CH52~CH64,CH149~CH161 Transmitter/Receiver Two Tx transmits from transceiver through an external PA to the Mechanism antenna. Three Rx act as MIMO coming from the antennas. Antenna Connectors Hirose U.FL-R-SMT-1(10) compatible Driver Support OS Linux Application This module will be used in a 12 inch or greater laptop. WL-227N_ABAND Hardware & Driver Reference  DRIvER INSTALLATION Driver installation for Linux 1. Insert USB flash disk & WL-227N_ABAND NIC before booting 2. Boot Linux system and login 3. Create path [Wireless]: mkdir /etc/Wireless 4. Mount USB Hard Disk: mount /dev/sda1 /mnt 5. Copy tar file to Linux from USB Hard Disk: cp /mnt/2008_0812_RT2880_iNIC_v1.1.8.0.tar.bz2 /etc/Wireless/ 6. Decompress tar file to /etc/Wireless/, and it will generate a directory [2008_0812_RT2880_iNIC_v1.1.8.0]: tar -jxvf /etc/Wireless/2008_0812_RT2880_iNIC_v1.1.8.0.tar.bz2 7. Rename directory [2008_0812_RT2880_iNIC_v1.1.8.0] to [RT2880], in other words, the driver’s path was /etc/Wireless/RT2880 (default path in Ralink manual): mv 2008_0812_RT2880_iNIC_v1.1.8.0 RT2880 8. Now, we can complier driver (basic function): a. Enter [RT2880] directory: cd RT2880 b. Rename [module-1.1.8.0] to [module]: mv module-1.1.8.0 module c. Enter [/etc/Wireless/RT2880/module] directory: cd module d. Complier driver: make After make, it will generate five files: Module.sysmvers rt2880_iNIC.ko rt2880_iNIC.mod.c rt2880_iNIC.mod.o rt2880_iNIC.o e. Copy iNIC_sta.bin and iNIC_sta_dat to [/etc/Wireless/RT2880/] from [/etc/Wireless/RT2880/firmware/]: • Enter [/etc/Wireless/RT2880/firmware/]: cd firmware • Copy iNIC_sta.bin and iNIC_sta_dat to [/etc/Wireless/RT2880/] from [/etc/Wireless/RT2880/firmware/]: cp iNIC_sta.* ../../ WL-227N_ABAND Hardware & Driver Reference  DRIvER INSTALLATION 9. Setup and bootstrap WL-227N_ABAND NIC: a. Setup WL-227N_ABAND NIC: insmod /etc/Wireless/RT2880/module/rt2880_iNIC.ko mode=sta • If it shows “ra0:Ralink iNIC at 0xe0cc0000(hardware address), 00:43:0c:00:00:00 (MAC address), IRQ169 (IRQ address)”, the NIC is boot strap successfully. b. Bootstrap NIC parameters: • IP address: ifconfig ra0 inet 192.168.0.11 up • If it shows the message as below, it is bootstrap successfully: Send STARTUP to RT2880 close Firmware file RACFG_CMD_BOOT_STARTUP Update MAC(0)=00:11:22:33:44:55 Or, type [ifconfig ra0] configuration. If it shows the message as below, it is bootstrap successfully, too: ra0 Link encap:Ethernet HWaddr 00:11:22:33:44:55 inet addr:192.168.0.122 Bcast:192.168.0.255 Mask:255.255.255.0 inet6 addr: fe80::211:22ff:fe33:4455/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:2445 errors:0 dropped:0 overruns:0 frame:0 TX packets:2188 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:2235102 (2.1 MiB) TX bytes:2236428 (2.1 MiB) Interrupt:169 c. Setup NIC connect function: Setup NIC frequency band: iwpriv ra0 set WirelessMode=9 Setup NIC connect target of AP: iwpriv ra0 set SSID=dlink type [iwconfig ra0] configuration. If it shows the message as below, it is connect successfully: ra0 RT2880 iNIC STA ESSID:”dlink” Mode:Managed Frequency:2.412 GHz Access Point: 00:1F:C6:69:BE:95 Bit Rate:54 Mb/s RTS thr:off Fragment thr:off Encryption key:off Link Quality=91/100 Signal level:-72 dBm Noise level:-71 dBm Rx invalid nwid:0 Rx invalid crypt:0 Rx invalid frag:0 Tx excessive retries:0 Invalid misc:0 Missed beacon:0 WL-227N_ABAND Hardware & Driver Reference  SAFETY INFORMATION Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will…
