VUICLG8202SEC-NAWireless Home Automation and Security

Print Vendor Remove Before Printing Printing Specifications Digital Life Controller – International (DLCi) Safety Sheet - English 78-100374-01A0 INLET Page Size: 180mm x 160mm (7.06 x 6.31 inches) Color process: Black (1/1) double sided Paper weight: 60# Paper type: Opaque Varnish: N/A Number of Pages: 12 COVER N/A BINDING Saddle stitch IMPORTANT SAFETY INSTRUCTIONS Notice to Installers The servicing instructions in this notice are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualifi ed to do so. This symbol is intended to alert you that uninsulated voltage within this product may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this product. This symbol is intended to alert you of the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. T16484 Notice à l’attention des installateurs de réseaux câblés Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent exclusivement au personnel technique qualifi é. Pour réduire les risques de chocs électriques, n’effectuer aucune intervention autre que celles décrites dans le mode d’emploi et les instructions relatives au fonctionnement, à moins que vous ne soyez qualifi é pour ce faire. Ce symbole a pour but de vous prévenir que des tensions électriques non isolées existent à l'intérieur de ce produit, pouvant être d'une intensité suffisante pour causer des chocs électriques. Il est donc dangereux d'établir un contact quelconque avec l’une des pièces comprises à l’intérieur de ce produit. Ce symbole a pour but de vous prévenir de la présence d’instructions importantes relatives au fonctionnement ou à l’entretien (et aux réparations) dans la documen- tation accompagnant ce produit. ATTENTION : Pour réduire les risques de chocs électriques, ne pas enlever le couvercle (ou le panneau arrière). Ne contient aucune pièce réparable par l’utilisateur. Confier les interventions aux techniciens d’entretien qualifiés. AVERTISSEMENT POUR ÉVITER LES INCENDIES OU LES CHOCS ÉLECTRIQUES, NE PAS EXPOSER L’APPAREIL À LA PLUIE OU À L’HUMIDITÉ. ATTENTION DANGER ÉLECTRIQUE NE PAS OUVRIR T16485 Mitteilung für CATV-Techniker Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifi ziertes Fachpersonal bestimmt. Um die Gefahr eines elektrischen Schlags zu reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten qualifi ziert. Dieses Symbol weist den Benutzer auf das Vorhandensein von nicht isolierten gefährlichen Spannungen im Gerät hin, die Stromschläge verursachen können. Ein Kontakt mit den internen Teilen dieses Produktes ist mit Gefahren verbunden. Dieses Symbol weist den Benutzer darauf hin, dass die mit diesem Produkt gelieferte Dokumentation wichtige Betriebs- und Wartungsanweisungen für das Gerät enthält. ACHTUNG: Zur Vermeidung eines Stromschlags darf die Abdeckung (bzw. die Geräterückwand) nicht entfernt werden. Das Gerät enthält keine vom Benutzer wartbaren Teile. Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal durchgeführt werden. WARNUNG DAS GERÄT NICHT REGEN ODER FEUCHTIGKEIT AUSSETZEN, UM STROMSCHLAG ODER DURCH EINEN KURZSCHLUSS VERURSACHTEN BRAND ZU VERMEIDEN. ACHTUNG STROMSCHLAGGEFAHR, NICHT ÖFFNEN T16486 Aviso a los instaladores de sistemas CATV Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por parte de personal de mantenimiento cualifi cado. Con el fi n de reducir el riesgo de descarga eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas en las instrucciones de funcionamiento, a menos que posea la cualifi cación necesaria para hacerlo. Este símbolo tiene como fin advertirle de que una tensión sin aislamiento en el interior de este producto podría ser de una magnitud suficiente como para provocar una descarga eléctrica. Por consiguiente, resulta peligroso realizar cualquier tipo de contacto con alguno de los componentes internos de este producto. Este símbolo tiene como fin alertarle de la presencia de importantes instrucciones de operación y mantenimiento (revisión) contenidas en la literatura que acompaña al producto. ATENCIÓN: con el fin de reducir el riesgo de descarga eléctrica, no retire la tapa (ni la parte posterior). No existen en el interior componentes que puedan ser reparados por el usuario. Encargue su revisión a personal de mantenimiento cualificado. ADVERTENCIA PARA EVITAR EL RIESGO DE INCENDIO O DESCARGA ELÉCTRICA, NO EXPONGA LA UNIDAD A LA LLUVIA O LA HUMEDAD. ATENCIÓN RIESGO DE DESCARGA ELÉCTRICA NO ABRIR T16261 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord fr…

Text truncated - open the document above for the full version.

Print Vendor Remove Before Printing Printing Specifications Cisco DLCi Model CLG-8202-SEC Installation Guide 78-100394-01A0 INLET Page Size: 8.5 x 11 Color process: Black (1/1) double sided Paper weight: 60 # Paper type: Opaque Varnish: N/A Number of Pages: 1 COVER N/A BINDING N/A Cisco DLCi Model CLG-8202-SEC Installation Guide Welcome The Cisco Digital Life Controller – International (DLCi) Model CLG-8202-SEC is a key component of the Digital Life platform. This service delivery platform communicates with other network devices to provide home security and life monitoring to assist with home healthcare needs. Contact your service provider for more information about Digital Life services. LEDs 1 Power Green indicates that 15V power is available to the controller Off indicates that there is no power to the controller 2 DLA Cloud Green indicates connectivity to the Digital Life application (DLA) backend through the wired or wireless network Off indicates no connectivity to the DLA backend through the wired or wireless network 3 Controller Status Green indicates that the DLA controller is active and in Normal mode Yellow indicates that the Linux OS has booted Red indicates that uBoot is complete Blinking green indicates that the DLA controller is in Test mode Flashing yellow/green indicates jamming: • Yellow once/green once, repeating indicates one-way jamming at the controller • Yellow once/green twice, repeating indicates two-way jamming at the controller • Yellow once/green three times, repeating indicates one-way jamming at the repeater • Yellow once/green four times, repeating indicates two-way jamming at the repeater Off during initial power up or when rebooting 4 AFM Radio Green indicates that the AFM radio is active Blinking green indicates that the AFM radio is in Discovery mode Off indicates that the AFM radio is inactive 5 Z-Wave Radio Green indicates that the Z-Wave radio is active Blinking green indicates that the Z-Wave radio is in Discovery mode Off indicates that the Z-Wave radio is inactive Bottom Panel 1 Power Connects to a power adapter 2 Power Switch Switches power on and off 3 Ethernet Ports Connects to an RJ-45 Ethernet port on a PC or router 4 USB 2.0 Ports Connects to client devices that use a USB 2.0 connector 15V DC 1.5A 22.5W POWER MAC: F45FD7B6D90 SKU: CL-73224500AT-K9 Factory ID: F2 Model No: CLG-8202-SEC EU Date of mfg: 14/06 INTERNET 3G S/N: 123092022 12 T16480 34 AFM STATUS 1 2 3 4 5 T16479 Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affi liates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) © 2014 Cisco and/or its affi liates. All rights reserved Last Updated: June 2014 Part Number: 78-100394-01A0 Printed in China What’s in the carton? Verify that the following items are in the shipping carton. If any items are missing, contact your service provider: • DLCi controller • DLCi cradle • Protective cover for the USB connector • AC power adapter • Right-angle USB connector • Two Phillips screws Installation instructions The DLCi can be installed in one of two ways: desktop- or wall- mounted. Items needed In addition to the items provided in the DLCi shipping carton, the following additional materials are needed: • One Phillips screwdriver • One 3G USB dongle • One Ethernet cable long enough to reach from the DLCi to a PC or router When mounting to a wall, the following additional materials are needed: • One pencil to trace the mounting holes to the wall • Two #6 (M3.5) pan head screws • One screwdriver • One drill and drill bit Wall mounting Allow approximately 2 minutes to install the DLCi to a wall. T16480 Mounting holes 1. Turn the cradle so the mounting holes are opposite from you, and place the cradle against the wall where you intend to mount it. 2. While holding the cradle in place, use a pencil to trace the mounting holes onto the wall. 3. Drill two holes into the wall where the pencil traces indicate. 4. Install the mounting screws into the wall, leaving a gap of about ½-inch between the screw head and the wall. 5. Place the cradle into position by slipping the large end of both mounting slots over the screw heads and sliding the cradle down until the narrow end of the mounting slots contacts the screw shafts. 6. Continue installing the DLCi by following the instructions for Desktop mounting. Desktop mounting Allow approximately 3-5 minutes to install the DLCi to stand on a desktop. Controller Cradle 3G Dongle Phillips Screws Right-angle USB Connector Protective Cover T16482 1. Insert the controller into the cradle until you feel it lock into place. 2. Using a screwdriver, secure the controller to the cradle by inserting the two screws and tightening. 3. Insert the right-angle USB connector into the yellow 3G port on the bottom of the controller. 4. Insert a 3G dongle into the other end of the right-angle USB connector. 5. Insert the protective cover over the 3G USB dongle until you feel it lock into place. 6. Insert one end of an Ethernet cable into the yellow Internet port and the other end of the cable into an Ethernet port on a router. Note: The controller will be connected to a router except during initial set up when it is connected to a PC for confi guration of network parameters. 7. Insert one end of the AC power adapter cable into the Power port and the other end of the cable into a power outlet. 8. Turn the Power switch to the on position (|). All LEDs will fl ash for one second; during this time, the STATUS LED will fl ash red, yellow, and green. Battery replacement The DLCi battery is designed to last up to nine years under normal operating conditions. Should the battery fail before that time, contact your service provider for assistance. Do not a…

Text truncated - open the document above for the full version.

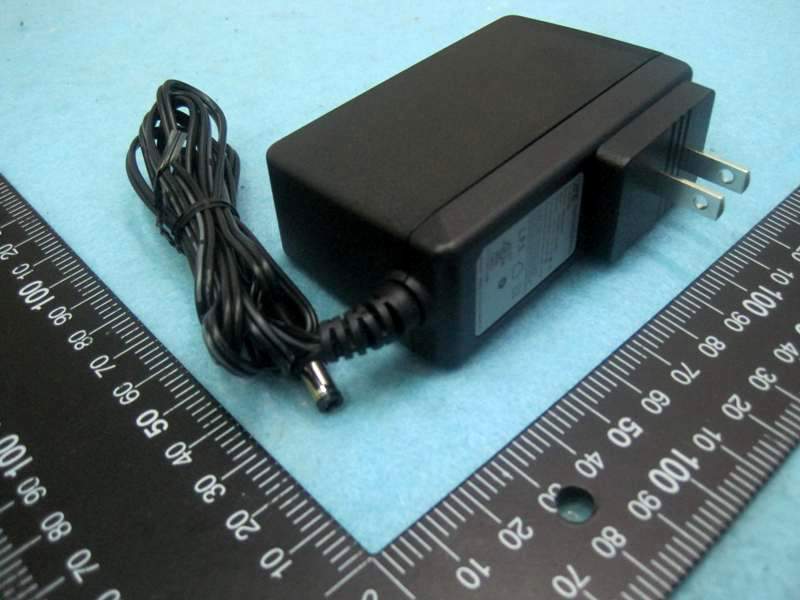

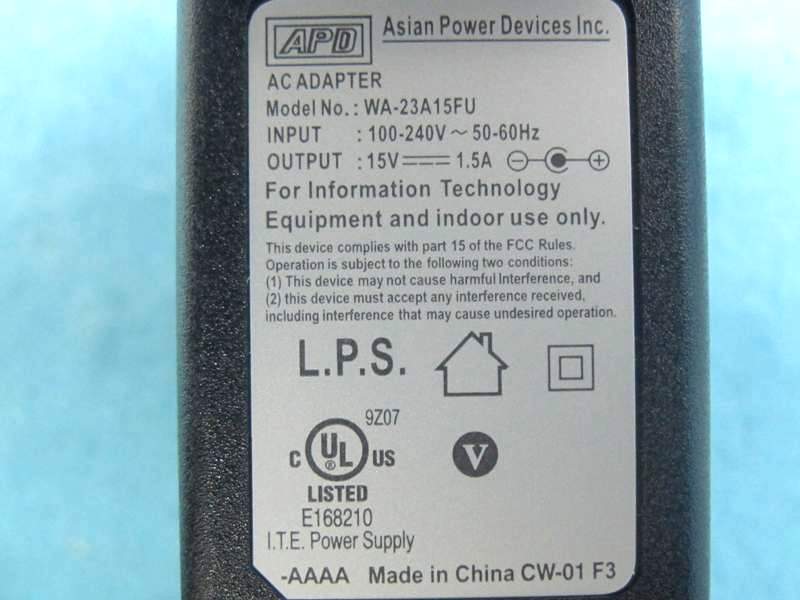

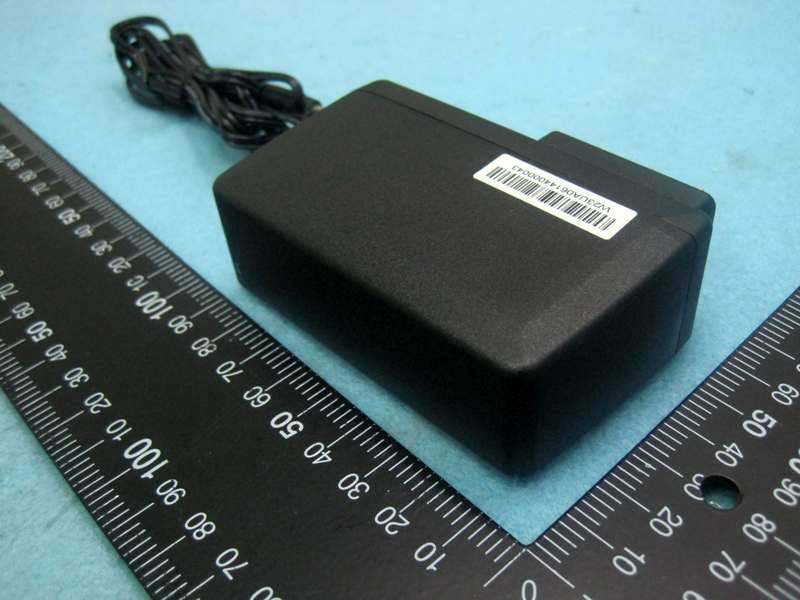

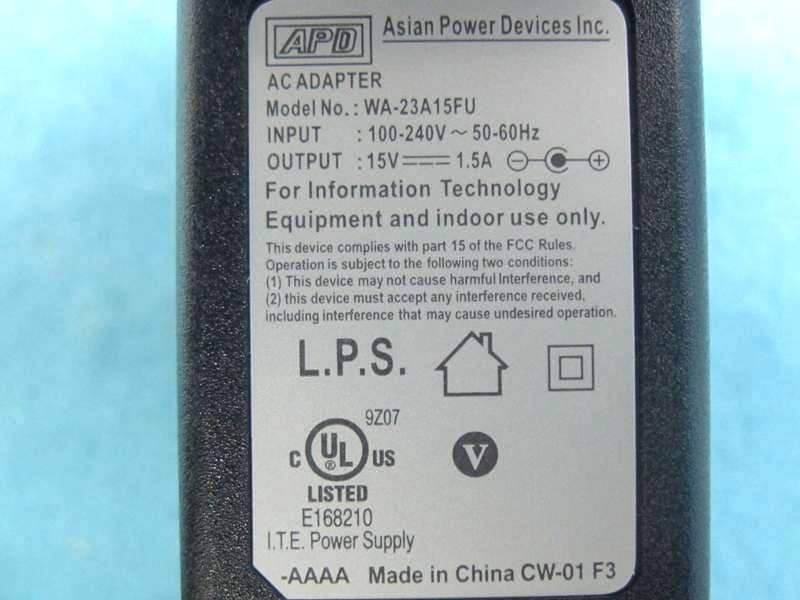

Report No.:450502 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:450502 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Adapter Report No.:450502 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Pedestal Report No.:450502 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973

[ DLCi---EU ] [ Original ] SKU: 68130 S/N: 123092022 MAC: F45FD7B6D90 INTERNET 3G 15V DC 1.5A 22.5W POWER Factory ID: F28 Date of mfg: 14/06 There are 2 separate Bottom labels 1 main label and a S/N label S/N: 123092022 3G 15V DC 1.5A 22.5W POWER [ DLCi---US ] S/N: 123092022 3G 15V DC 1.5A 22.5W POWER 3G 15V DC 1.5A 22.5W POWER INTERNET MAC: F45FD7B6D90 SKU: CL-73224500AT-K9 3G 15V DC 1.5A 22.5W POWER INTERNET 4.5 mm 4.5 mm [ Rating label ] SIZE146*44.3 mm Material TBD [ Rating label ] SIZE146*44.3 mm MaterialTBD [ SN label ] SIZE52*5 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm [ SN label ] SIZE52*5 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm MAC: F45FD7B6D90 SKU: CL-73222300AT-K9 Factory ID: F2 Model No: CLG-8202-SEC EU Date of mfg: 14/06 Factory ID: F2 Model No: CLG-8202-SEC NA Date of mfg: 14/06 [ Factory label ] SIZE22*23 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm [ MAC SKU label ] SIZE64*12 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm [ Factory label ] SIZE22*23 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm [ MAC SKU label ] SIZE64*12 mm Material50u Top-coated Polyester Film,Thickness:0.052 mm INTERNET INTERNET 48mm 12mm R=1mm [ FCC WARNING LABEL ]

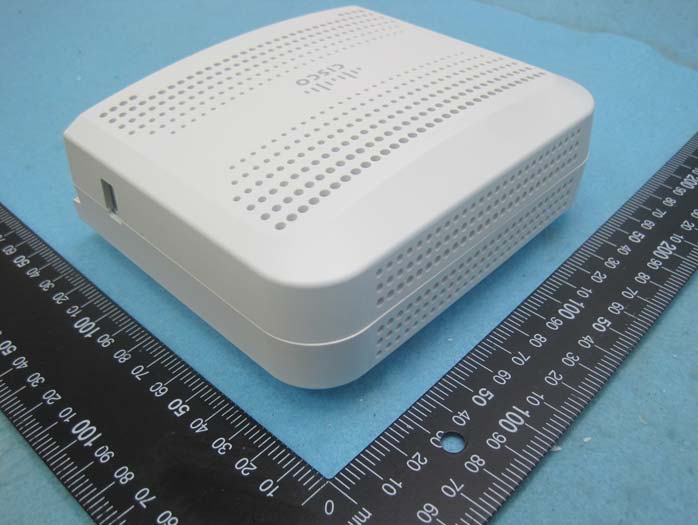

Report No.:450502 SPORTON International Inc. PAGE NUMBER : 1 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:450502 SPORTON International Inc. PAGE NUMBER : 2 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 3 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 4 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 5 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 6 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 7 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 8 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 9 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 10 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 11 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 12 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973 Report No.:450502 SPORTON International Inc. PAGE NUMBER : 13 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Jul. 01, 2014 FAX : 886-3-327-0973

Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : B1 of B3 Appendix B. Radiated Emission Co-location Report Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 62% Test Engineer YC Chen Configurations Wifi function + Z-wave function + AFM function Horizontal Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : B3 of B3 Vertial

Report No.: FA450502 Report Format Version: 01 Page No. : i of ii FCC ID : VUICLG8202SEC-NA Issued Date : Jun. 30, 2014 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA450502 Report Format Version: 01 Page No. : ii of ii FCC ID : VUICLG8202SEC-NA Issued Date : Jun. 30, 2014 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA450502 Rev. 01 Initial issue of report Jun. 30, 2014 Report No.: FA450502 Report Format Version: 01 Page No. : 1 of 2 FCC ID : VUICLG8202SEC-NA Issued Date : Jun. 30, 2014 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA450502 Report Format Version: 01 Page No. : 2 of 2 FCC ID : VUICLG8202SEC-NA Issued Date : Jun. 30, 2014 1.3. Calculated Result and Limit For 2.4GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11n HT20: 20.27 dBm The maximum combined Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.53 2.2542 20.2653 106.2993 0.047696 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan FCC ID VUICLG8202SEC-NA Manufacturer’s company MAINTEK COMPUTER Manufacturer Address 233 Jinfeng Rd., Suzhou, Jiangsu, PRC Product Name Wireless Home Automation and Security Brand Name CISCO Model No. CLG-8202-SEC NA Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date May 05, 2014 Final Test Date Jun. 03, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR450502AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: VUICLG8202SEC-NA Issued Date : Jun. 30, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................29 4.5. Radiated Emissions Measurement ....................................................................................................................................................34 4.6. Emissions Measurement ....................................................................................................................................................................53 4.7. Antenna Requirements .....................................................................................................................................................................71 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 72 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 74 APPENDIX A. TEST PHOTOS ............................................…

Text truncated - open the document above for the full version.

Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR450502 FCC ID: VUICLG8202SEC-NA Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
