VUIDPC3829MWireless cable modem

OL- 30545-01 Cisco Model DPC3829 and DPC3829M DOCSIS 3.0 8x4 W ireless Residential Gateway User Guide Please Read Important Please read this entire guide. If this guide provides installation or operation instructions, give particular attention to all safety statements included in this guide. Notices Trademark Acknowledgments Cisco a nd the Cisco logo a re tra dema rks or registered tra dema rks of Cisco a nd/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. DOCSIS is a registered trademark of Cable Television Laboratories, Inc., and PacketCable is a trademark of Cable Television Laboratories, Inc. The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a tra dema rk of the Wi-Fi Alliance. Other third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) Publication Disclaimer Cisco Systems, Inc. assumes no responsibility for errors or omissions that may a ppea r in t his publica t ion. We reserve t he right t o cha nge t his publica t ion a t a ny t ime wit hout not ice. This document is not t o be const rued a s conferring by implication, estoppel, or ot herwise a ny license or right under a ny copyright or pa t ent , whet her or not t he use of a ny informa t ion in t his document employs a n invention claimed in any existing or later issued patent. Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network ca pa cit y, da t a t hroughput ra t e, ra nge a nd covera ge. Performa nce depends on ma ny factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions. Software and Firmware Use The software described in this document is protected by copyright law and furnished t o you under a license agreement. You may only use or copy this software in accordance with the terms of your license agreement. The firmware in this equipment is protected by copyright law. You may only use the firmware in the equipment in which it is provided. Any reproduction or distribution of this firmware, or any portion of it, without our express written consent is prohibited. Copyright © 2013 Cisco Systems, Inc. All rights reserved. Printed in the United States of America . Information in this publication is subject to cha nge wit hout not ice. No pa rt of t his publication may be reproduced or transmitted in any form, by photocopy, microfilm, xerography, or any other means, or incorporated into any information retrieval system, electronic or mechanical, for any purpose, without the express permission of Cisco Systems, Inc. OL-30545-01 iii Contents IM PORTANT SAFETY INSTRUCTIONS vii Un ited States F CC Co mplian ce xi Chapter 1 Introducing the DOCSIS Wireless Residential Gateway 1 Introduction ......................................................................................................................... 2 Wha t 's In t h e Ca rt o n?.......................................................................................................... 3 Fro nt Pane l Descr iption ...................................................................................................... 4 Back Panel Desc riptio n ....................................................................................................... 6 Ch apter 2 Installing the DOCSIS Wireless Residential Gateway 9 Installation P reparatio ns................................................................................................... 10 Install the Wir el ess Res ide ntial Gate way ........................................................................ 15 Chapter 3 Operation of Front Panel Indicators 17 Initial Po we r Up, Calibratio n, and Re gistratio n (AC Powe r Appli ed).......................... 18 Norma l Op era tio ns (AC Pow er Appli ed) ....................................................................... 20 Special Co nditio ns............................................................................................................. 21 Chapter 4 Troubleshooting the DOCSIS Wireless Residential Gateway 23 Fre que nt ly A sk ed Quest io ns ............................................................................................ 24 Commo n Troub les hooting Issues .................................................................................... 29 Tips for Improv ed Pe rforma nce ....................................................................................... 30 Chapter 5 Customer Information 31 Index 33 Notice to Installers The servicing instructions in this notice are for use by qualified service personnel only. T o r ed uce the r isk of electr ic shock, d o not per for m a ny ser vicing other tha n tha t conta ined in the oper a ting instructions, unless you are qualified to do so. Notice à l’attention des installateurs de réseaux câblés Les instructions relatives aux inter venti ons d ’ entr eti en, four ni es d a ns l a pr ésente noti ce, s’ a d r essent excl usi vement a u per sonnel techni que qua l i fi é. Pour r éd ui r e l es r i sques d e chocs él ectr i ques, n’ effectuer a ucune i nter venti on a utr e que cel l es d écr i tes d a ns l e mod e d 'empl oi et l es i nstr uctions relatives au foncti onnement, à moi ns que vous ne soyez qua l i fi é pour ce fa i r e. Mitteilung für CATV-Techniker Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifiziertes Fa chper sona l besti mmt. Um d i e Gefa hr ei nes el ektr i schen Schl a gs z u r ed uz i er en, sol l ten Si e kei ne Wa r tungsa r beiten d ur chführ en, d ie nicht a usd r ücklich in d er B ed ienungsa nleitung…

Text truncated - open the document above for the full version.

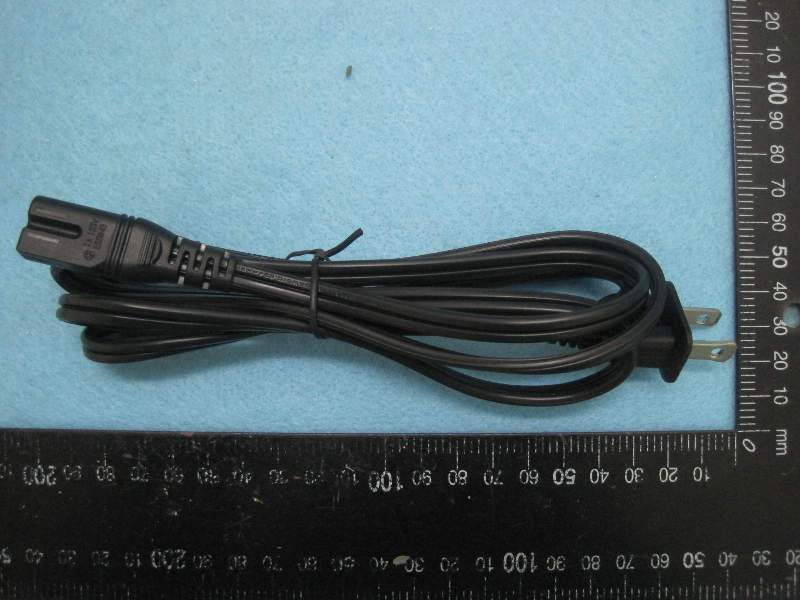

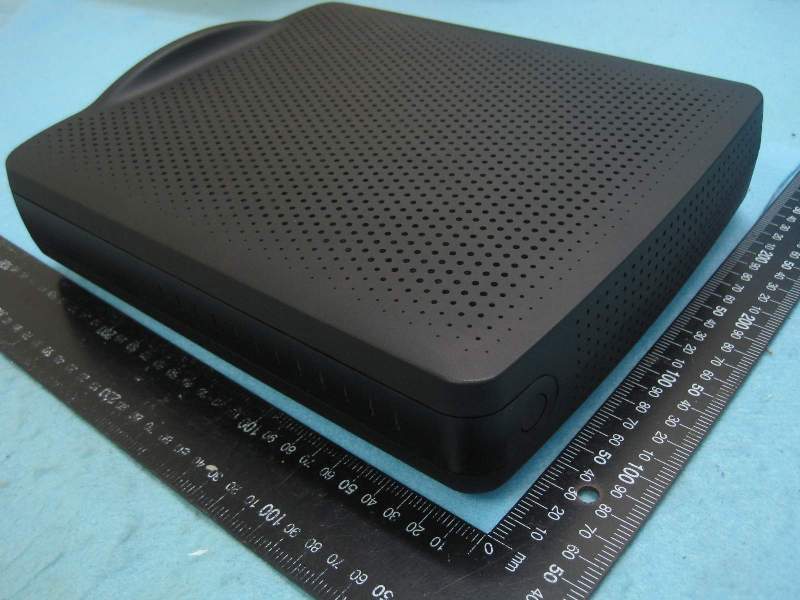

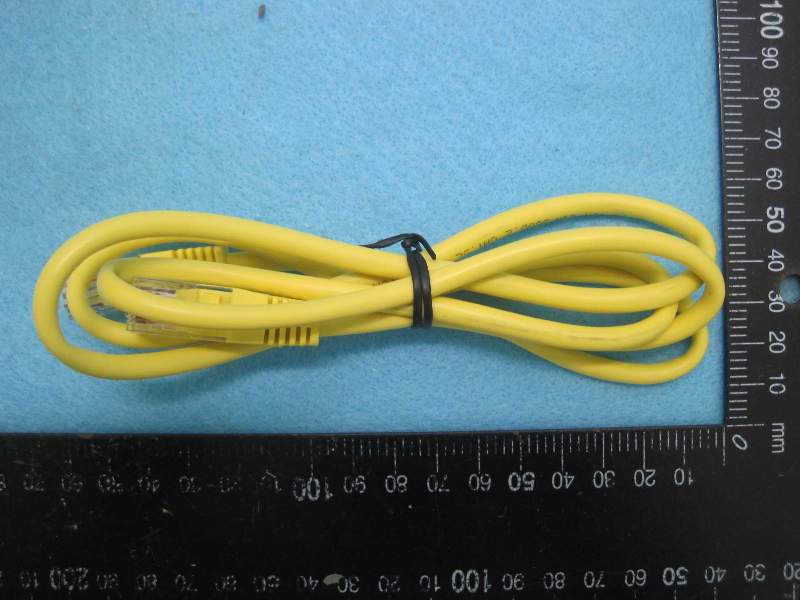

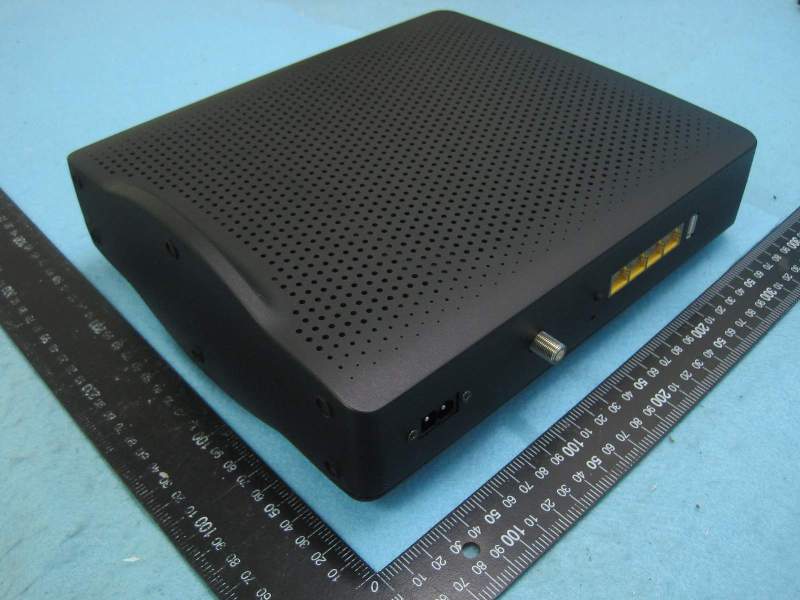

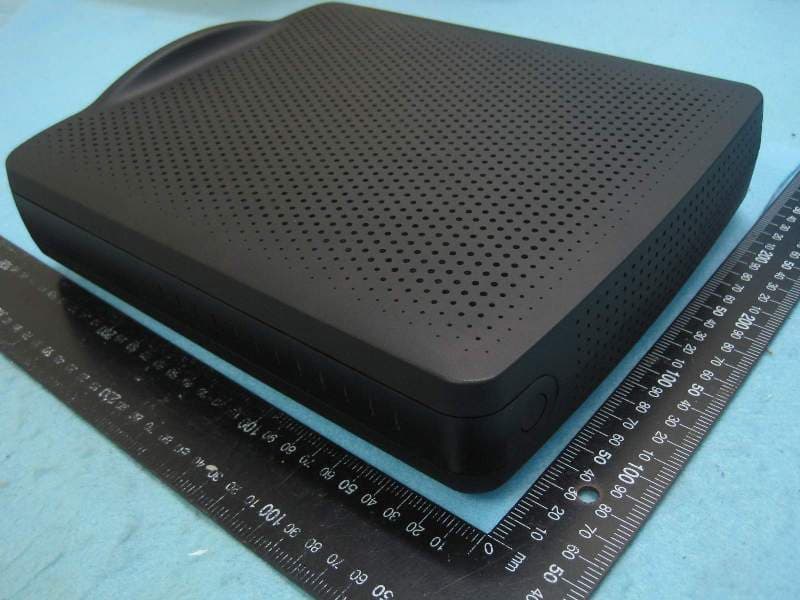

Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Power Cable Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 RJ-45 Cable

Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 1 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 2 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 3 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 4 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 5 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 6 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 7 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 8 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 9 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 10 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 11 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 12 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 13 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 14 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973 Report No.: 3O2828 SPORTON International Inc. PAGE NUMBER : 15 OF 15 TEL : 886-3-327-3456 ISSUED DATE : Jan. 02, 2014 FAX : 886-3-327-0973

Report No.: FA3O2828 Report Format Version: 01 Page No. : i of ii FCC ID : VUIDPC3829M Issued Date : Dec. 30, 2013 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA3O2828 Report Format Version: 01 Page No. : ii of ii FCC ID : VUIDPC3829M Issued Date : Dec. 30, 2013 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA3O2828 Rev. 01 Initial issue of report Dec. 30, 2013 Report No.: FA3O2828 Report Format Version: 01 Page No. : 1 of 2 FCC ID : VUIDPC3829M Issued Date : Dec. 30, 2013 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA3O2828 Report Format Version: 01 Page No. : 2 of 2 FCC ID : VUIDPC3829M Issued Date : Dec. 30, 2013 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac VHT 40MHz : 16.88 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.98 1.9861 16.8820 48.7750 0.019282 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac VHT 40MHz : 28.94 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.98 1.9861 28.9384 783.1333 0.309589 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n 20MHz : 29.93 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.90 2.4547 29.9319 984.4507 0.480999 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.480999 / 1 + 0.309589 / 1 = 0.790588, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan FCC ID VUIDPC3829M Manufacturer’s company MAINTEK COMPUTER Manufacturer Address 233 Jinfeng Rd., Suzhou, Jiangsu, PRC Product Name Wireless cable modem Brand Name Cisco Model No. DPC3829MXXXX (X = 0~9 and A~Z or blank) Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Oct. 18, 2013 Final Test Date Dec. 17, 2013 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03, KDB 662911 D01 v02 The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR3O2828AB Report Format Version: 01 Page No. : i of ii FCC ID: VUIDPC3829M Issued Date : Dec. 30, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Product Information .............................................................................................................................................................8 3.6. Table for Test Modes ...........................................................................................................................................................................9 3.7. Table for Testing Locations................................................................................................................................................................11 3.8. Table for Supporting Units .................................................................................................................................................................11 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.10. EUT Operation during Test .................................................................................................................................................................12 3.11. Duty Cycle ........................................................................................................................................................................................13 3.12. Test Configurations ...........................................................................................................................................................................15 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................21 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................29 4.4. Power Spectral Density Measurement ..............................................................................................................................................32 4.5. Peak Excursion Measurement ...........................................................................................................................................................38 4.6. Radiated Emissions Measurement ....................................................................................................................................................43 4.7. Band Edge Emissions Measurement .................................................................................................................................................59 4.8. Frequency Stability Measurement ....................................................................................................................................................64 4.9. Antenna Requirements ........…

Text truncated - open the document above for the full version.

Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : B1 of B3 Appendix B. Co-location Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 62% Test Engineer Magic Lai Configurations Normal Link Horizontal Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : B3 of B3 Vertial

Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR3O2828 FCC ID: VUIDPC3829M Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW
