VUIDPC3848VWireless Residential Gateway

PEGATRON CORPORATION
Wireless Residential Gateway - FCC ID VUIDPC3848V - PEGATRON CORPORATION
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jul 10, 2014
Application Purpose
Original Equipment
Date of Application
Jul 10, 2014
Equipment Note
Wireless Residential Gateway
Frequency Range
5210.00000000 - 5210.00000000
Company
PEGATRON CORPORATION
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

OL-30544-01 Cisco Model DPC3848V DOCSIS/EuroDOCSIS 3.0 24x8 Wireless Residential Gateway User Guide Please Read Important Please read this entire guide. If this guide provides installation or operation instructions, give particular attention to all safety statements included in this guide. Notices Trademark Acknowledgments Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. DOCSIS is a registered trademark of Cable Television Laboratories, Inc. EuroDOCSIS, EuroPacketCable, and PacketCable are trademarks of Cable Television Laboratories, Inc. The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a trademark of the Wi-Fi Alliance. Other third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) Publication Disclaimer Cisco Systems, Inc. assumes no responsibility for errors or omissions that may appear in this publication. We reserve the right to change this publication at any time without notice. This document is not to be construed as conferring by implication, estoppel, or otherwise any license or right under any copyright or patent, whether or not the use of any information in this document employs an invention claimed in any existing or later issued patent. Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions. Software and Firmware Use The software described in this document is protected by copyright law and furnished to you under a license agreement. You may only use or copy this software in accordance with the terms of your license agreement. The firmware in this equipment is protected by copyright law. You may only use the firmware in the equipment in which it is provided. Any reproduction or distribution of this firmware, or any portion of it, without our express written consent is prohibited. Copyright © 2013 Cisco Systems, Inc. All rights reserved. Information in this publication is subject to change without notice. No part of this publication may be reproduced or transmitted in any form, by photocopy, microfilm, xerography, or any other means, or incorporated into any information retrieval system, electronic or mechanical, for any purpose, without the express permission of Cisco Systems, Inc. Notice to Installers The servicing instructions in this notice are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so. Notice à l’attention des installateurs de réseaux câblés Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent exclusivement au personnel technique qualifié. Pour réduire les risques de chocs électriques, n’effectuer aucune intervention autre que celles décrites dans le mode d'emploi et les instructions relatives au fonctionnement, à moins que vous ne soyez qualifié pour ce faire. Mitteilung für CATV-Techniker Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifiziertes Fachpersonal bestimmt. Um die Gefahr eines elektrischen Schlags zu reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten qualifiziert. Aviso a los instaladores de sistemas CATV Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por parte de personal de mantenimiento cualificado. Con el fin de reducir el riesgo de descarga eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas en las instrucciones de funcionamiento, a menos que posea la cualificación necesaria para hacerlo. 20080814_Installer820_Intl United States FCC Compliance OL-30544-01 vii IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or…

Text truncated - open the document above for the full version.

External Photos

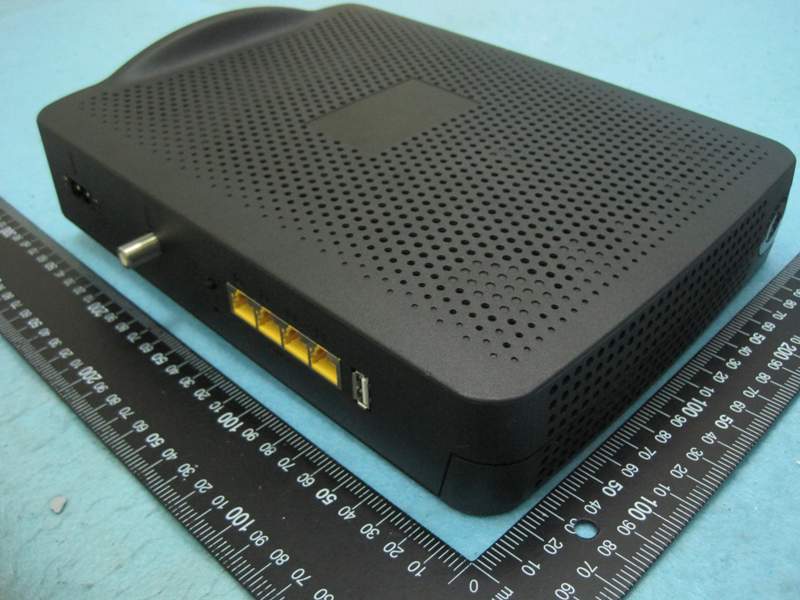

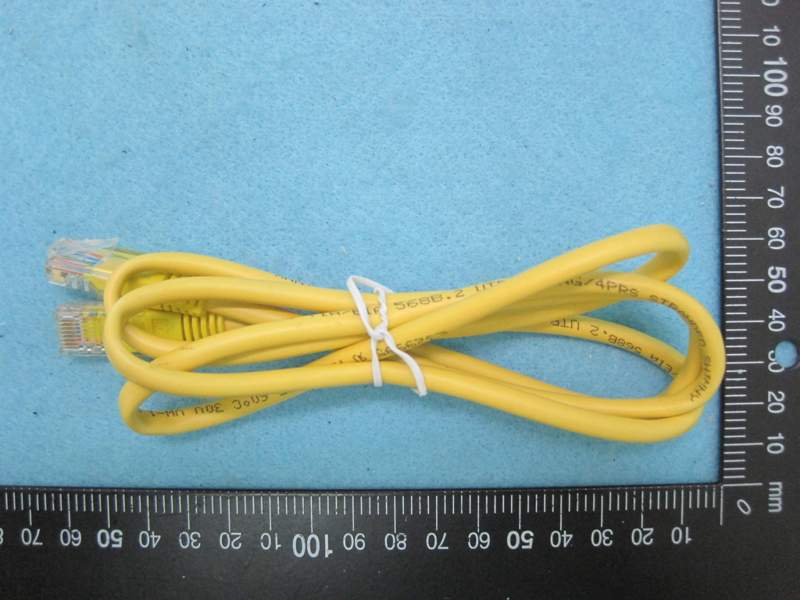

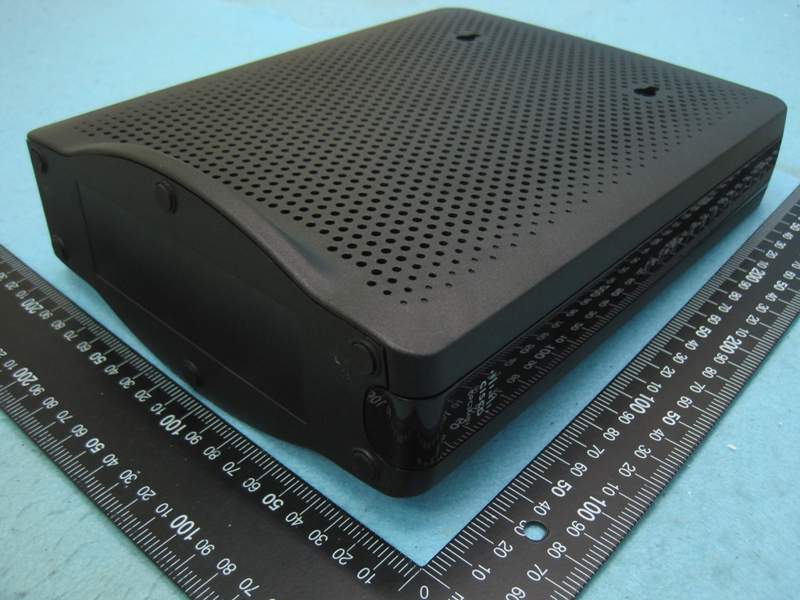

Report No.:462770 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:462770 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Power cable Report No.:462770 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 RJ-45 cable

Internal Photos

Report No.:462770 SPORTON International Inc. PAGE NUMBER : 1 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 2 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 3 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 4 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 5 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 6 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 7 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 8 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 9 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 10 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 11 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 12 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 13 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 Report No.:462770 SPORTON International Inc. PAGE NUMBER : 14 OF 14 TEL : 886-3-327-3456 ISSUED DATE : Jul. 07, 2014 FAX : 886-3-327-0973 EUT 2

RF Exposure Info

Report No.: FA462770 Report Format Version: 01 Page No. : i of ii FCC ID : VUIDPC3848V Issued Date : Jul. 07, 2014 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA462770 Report Format Version: 01 Page No. : ii of ii FCC ID : VUIDPC3848V Issued Date : Jul. 07, 2014 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA462770 Rev. 01 Initial issue of report Jul. 07, 2014 Report No.: FA462770 Report Format Version: 01 Page No. : 1 of 2 FCC ID : VUIDPC3848V Issued Date : Jul. 07, 2014 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA462770 Report Format Version: 01 Page No. : 2 of 2 FCC ID : VUIDPC3848V Issued Date : Jul. 07, 2014 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac VHT40: 16.98dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.73 2.3605 16.9815 49.9062 0.023448 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11a: 28.43dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.73 2.3605 28.4273 696.1857 0.327096 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11b: 28.45 dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.95 1.9724 28.4456 699.1408 0.274483 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.274483 / 1 + 0.327096 / 1 = 0.601579, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan FCC ID VUIDPC3848V Manufacturer’s company MAINTEK COMPUTER Manufacturer Address 233 Jinfeng Rd., Suzhou, Jiangsu, PRC Product Name Wireless Residential Gateway Brand Name Cisco Model No. DPC3848V / DPC3848VM Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Mar. 06, 2014 Final Test Date Jun. 30, 2014 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB789033 D01 v01r04, KDB662911 D01 v02r01, KDB644545 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR462770AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: VUIDPC3848V Issued Date : Jul. 07, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Multiple Listing......................................................................................................................................................................8 3.8. Table for Supporting Units ...................................................................................................................................................................8 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.10. EUT Operation during Test ...................................................................................................................................................................9 3.11. Duty Cycle ........................................................................................................................................................................................10 3.12. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................26 4.4. Power Spectral Density Measurement ..............................................................................................................................................29 4.5. Peak Excursion Measurement ...........................................................................................................................................................35 4.6. Radiated Emissions Measurement ....................................................................................................................................................40 4.7. Band Edge Emissions Measurement .................................................................................................................................................56 4.8. Frequency Stability Measurement ....................................................................................................................................................61 4.9. Antenna Requir…

Text truncated - open the document above for the full version.

Test Report

Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : B1 of B3 Appendix B. Radiated Emission Co-location Report Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 60% Test Engineer Magic Lai Configurations 2.4G + 5G Horizontal Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : B3 of B3 Vertial

Test Setup Photos

Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR462770 FCC ID: VUIDPC3848V Page No. : A5 of A5 Test Configuration: Above 1GHz / Mode 1 FRONT VIEW REAR VIEW

Contact Information

Applicant

Nancy Yu(Senior Manager)
[email protected]886-2-81439001Fax: 886-2-28960017

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
315E5.21 GHz - 5.21 GHz49.90 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power. The device can be self-colocated with the composite DTS portion. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only. This device has 20, 40 MHz, and 80MHz BW modes.
