VUIDPC3941WIRELESS RESIDENTIAL VOICE GATEWAY

OL-29163-01 Rev A Cisco Model DPC3941 DOCSIS 3.0 16x4 Wireless Residential Voice Gateway User Guide Please Read Important Please read this entire guide. If this guide provides installation or operation instructions, give particular attention to all safety statements included in this guide. Notices Trademark Acknowledgments Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. DOCSIS is a registered trademark of Cable Television Laboratories, Inc. EuroDOCSIS, EuroPacketCable, and PacketCable are trademarks of Cable Television Laboratories, Inc. The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a trademark of the Wi-Fi Alliance. Other third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) Publication Disclaimer Cisco Systems, Inc. assumes no responsibility for errors or omissions that may appear in this publication. We reserve the right to change this publication at any time without notice. This document is not to be construed as conferring by implication, estoppel, or otherwise any license or right under any copyright or patent, whether or not the use of any information in this document employs an invention claimed in any existing or later issued patent. Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions. Software and Firmware Use The software described in this document is protected by copyright law and furnished to you under a license agreement. You may only use or copy this software in accordance with the terms of your license agreement. The firmware in this equipment is protected by copyright law. You may only use the firmware in the equipment in which it is provided. Any reproduction or distribution of this firmware, or any portion of it, without our express written consent is prohibited. Copyright © 2013 Cisco Systems, Inc. All rights reserved. Printed in the United States of America. Information in this publication is subject to change without notice. No part of this publication may be reproduced or transmitted in any form, by photocopy, microfilm, xerography, or any other means, or incorporated into any information retrieval system, electronic or mechanical, for any purpose, without the express permission of Cisco Systems, Inc. Notice to Installers The servicing instructions in this notice are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so. Notice à l’attention des installateurs de réseaux câblés Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent exclusivement au personnel technique qualifié. Pour réduire les risques de chocs électriques, n’effectuer aucune intervention autre que celles décrites dans le mode d'emploi et les instructions relatives au fonctionnement, à moins que vous ne soyez qualifié pour ce faire. Mitteilung für CATV-Techniker Die in dieser Mitteilung aufgeführten Wartungsanweisungen sind ausschließlich für qualifiziertes Fachpersonal bestimmt. Um die Gefahr eines elektrischen Schlags zu reduzieren, sollten Sie keine Wartungsarbeiten durchführen, die nicht ausdrücklich in der Bedienungsanleitung aufgeführt sind, außer Sie sind zur Durchführung solcher Arbeiten qualifiziert. Aviso a los instaladores de sistemas CATV Las instrucciones de reparación contenidas en el presente aviso son para uso exclusivo por parte de personal de mantenimiento cualificado. Con el fin de reducir el riesgo de descarga eléctrica, no realice ninguna otra operación de reparación distinta a las contenidas en las instrucciones de funcionamiento, a menos que posea la cualificación necesaria para hacerlo. 20080814_Installer820_Intl OL-29163-01 Rev A iii Contents IMPORTANT SAFETY INSTRUCTIONS v United States FCC Compliance x About This Guide xii Chapter 1 Introducing the DOCSIS Wireless Residential Voice Gateway 1 Introduction .............................................................................................................................. 2 What's In the Carton? .............................................................................................................. 4 Front Panel Description .......................................................................................................... 5 Top Panel Description ............................................................................................................. 7 Bottom Panel Description ....................................................................................................... 8 Back Panel Description ............................................................................................................ 9 Chapter 2 Installing the DOCSIS Wireless Residential Voice Gateway 11 Installation Preparations ....................................................................................................... 12 Install the Wireless Residential Voice Gateway ................................................................ 19 Configure Wireless Settings ................................................................................................. 22 MoCA Installation Guidelines .......................................................................…

Text truncated - open the document above for the full version.

PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Tel: 886-2-81439001 Ext : 33147 / Fax: 886-2-28987364 Confidential Letter Date: 2014/3/6 Federal Communications Commission Authorization and Evaluation Division FCC ID：VUIDPC3941 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : PEGATRON CORPORATION Applicant’s company address : 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Signature : Name and Job Title : Lawrence Yu / Senior Manager E-Mail : [email protected] Tel. : 886-2-81439001 Ext : 33147

PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Tel: 886-2-81439001 Ext : 33147 / Fax: 886-2-28987364 DoC Attestation Letter Date: 2014/3/6 We PEGATRON CORPORATION, as the grantee of this project (FCC ID: VUIDPC3941 / Brand Name: Cisco / Model No.: DPC3941), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD3D1632, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : PEGATRON CORPORATION Applicant’s company address : 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Signature : Name and Job Title : Lawrence Yu / Senior Manager E-Mail : [email protected] Tel. : 886-2-81439001 Ext : 33147

PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Tel: 886-2-81439001 Ext : 33147 / Fax: 886-2-28987364 Power of Attorney Date: 2014/3/6 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Cisco / DPC3941 FCC ID: VUIDPC3941 Product name: Wireless Residential Voice Gateway FCC Grantee contact person information. Applicant’s company name : PEGATRON CORPORATION Applicant’s company address : 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Signature : Name and Job Title : Lawrence Yu / Senior Manager E-Mail : [email protected] Tel. : 886-2-81439001 Ext : 33147

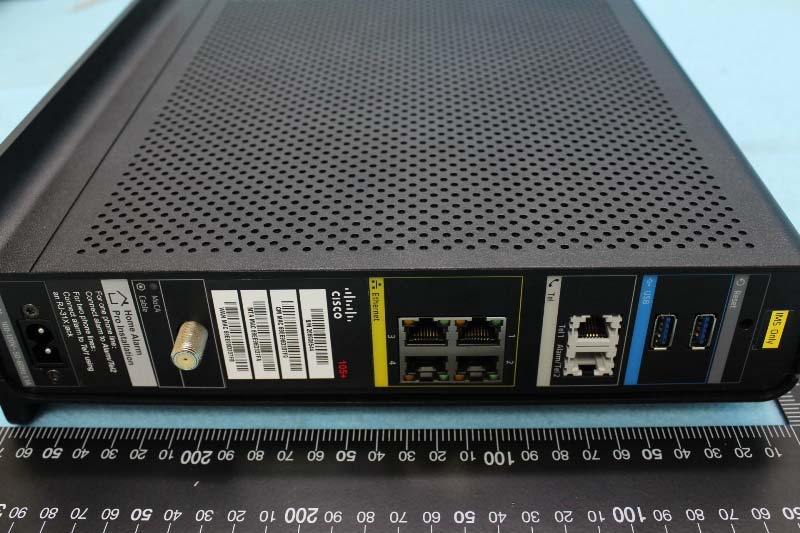

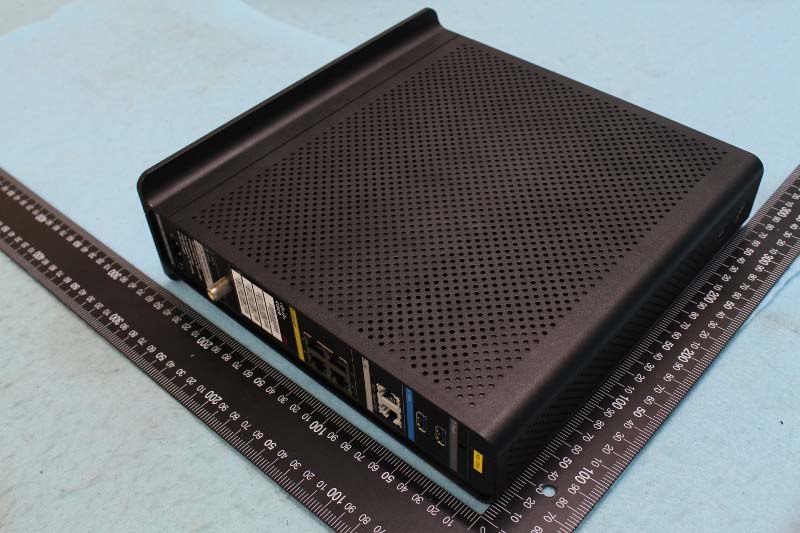

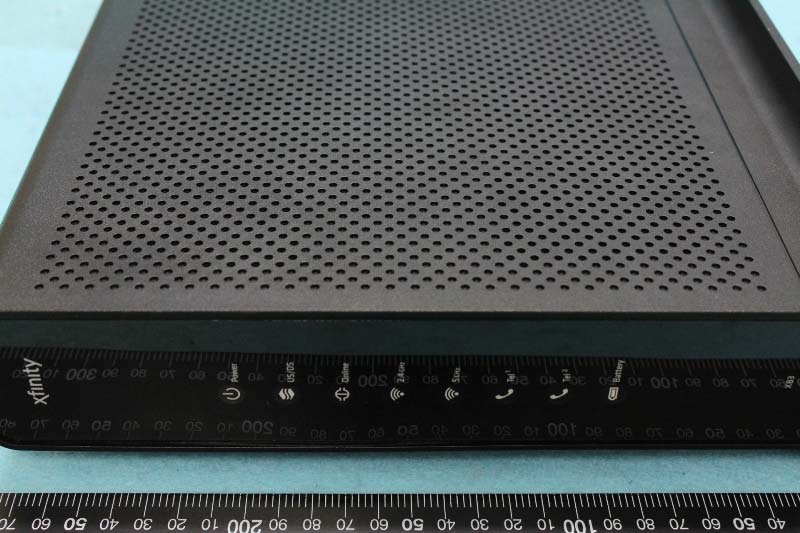

Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Power Line

Label location: Material Made paper Roll Up Example Of Factory Printing Location: 1.Material:50u Top-coated Polyester Film,Thickness:0.052 0.002mm Glue Type:Embossed white glassine liner,Thickness:0.033 0.003mm 材質：表面處理50番白色特多龍商標紙+格子膠 2.Dimension:64.4*74.4mm 3.Graphic color Pantone Black C 文字印刷黑色 4.The materials are compliant with the limits of ROHS Directive 2002/95/EC and its subsequent amendments 5.In duplicate,Roll up 一式一份，整捲進料 6.Font：min 5.5pt Arial font 7.Barcode:must not be smaller than 1/8inch high + + SCALE 1:1 虛線部分為廠內列印區域 Sujing Tsai DATE v 1/1 1:1 A4 DPC3941 DEVICE LABEL DPC3941 1510-1GS2000 2014/02/26 Sujing Tsai ~50 50~100 100~150 150~ 0.05 0.10 0.20 0.20 0.10 0.20 0.20 0.30 0.30 0.40 0.40 0.50 Belinda 0.20 廠內列印示意圖 虛線部分為廠內列印區域 1 74.4 mm 64.4 mm 2.82mm 2.82mm Network Name (SSID 1): Network Name (SSID 2): Encryption: WPAWPA2-PSK(TKIP/AES) Network Key(Password): WPS Pin: 00702157 RFPI:026BEABF58 URL: http://10.0.0.1 SW Ver .:dpc3941-P20-18-v303r204216-140109a-CMCST HW Ver .:1.0 Date of Mfg:01/14 Factory ID:F2 Made in China P/N DPC3941-AMC14-K9 S/N 267763034 CM MAC 68EE96D70046 27 mm 9.8 mm Device Type:XB3V2 Model:DPC3941 DOCSIS 3.0 VOICE GATEWAY Rating:100-120 Vac, 50-60 Hz, 1.1A 4 mm HOME-0046-2.4 HOME-0046-5 CCHWD7AATTAHH94R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Device Type:XB3V2 DOCSIS 3.0 VOICE GATEWAY Rating:100-120 Vac, 50-60 Hz, 1.1A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: VUIDPC3941 TAN: 74-101094-01 Model:DPC3941 TAN: 74-101094-01

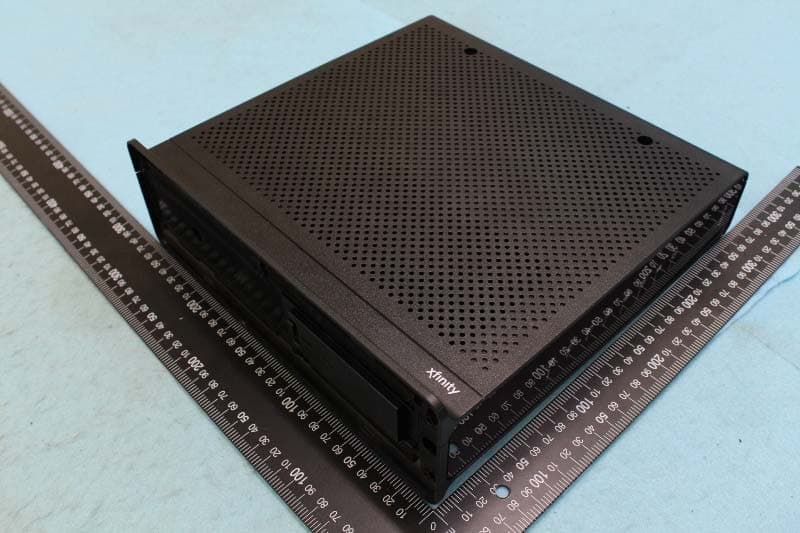

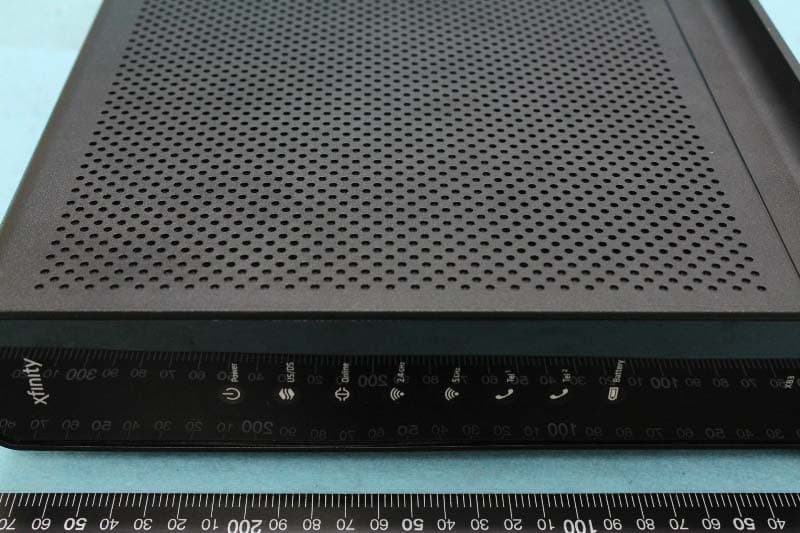

Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 1 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 2 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 3 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 4 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 5 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 6 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 7 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 8 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 9 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 10 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 11 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 12 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 13 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 14 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 15 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 16 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 17 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973 Report No.:3D1632 SPORTON International Inc. PAGE NUMBER : 18 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 07, 2014 FAX : 886-3-327-0973

FCC ID: VUIDPC3941 RF Exposure Evaluation of E.U.T. : Wireless Residential Voice Gateway FCC ID. : VUIDPC3941 MODEL : DPC3941 for APPLICANT : PEGATRON CORPORATION ADDRESS : 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 13-11-RBF-018-MPE FCC ID: VUIDPC3941 Product Information: Type of EUT: Wireless Residential Voice Gateway FCC ID: VUIDPC3941 Manufacturer: MAINTEK COMPUTER Model: DPC3941 Description: DECT 6.0 Wireless Residential Voice Gateway Maximum conducted output power (measured): 19.09 dBm or 81.096mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric 1415-02T2000 Dipole 4.7 2.95 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: VUIDPC3941 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: VUIDPC3941 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 81.096mW G = 2.95 R = 20 cm S = (81.096 * 2.95) / (4*π*20 2 ) = 0.0476 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

FCC ID: VUIDPC3941 ETC Report No.: 13-12-MAS-208 Sheet 1 of 45 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D (15.323c) Report No.: 13-12-MAS-208 Client: PEGATRON CORPORATION Product: Wireless Residential Voice Gateway Model: DPC3941 FCC ID: VUIDPC3941 Manufacturer/supplier: MAINTEK COMPUTER Date test item received: 2013/12/05 Date test campaign completed: 2013/12/31 Date of issue: 2014/03/07 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 45 pages Test Engineer Checked By Approved By John Li Perry Lin James Cheng FCC ID: VUIDPC3941 ETC Report No.: 13-12-MAS-208 Sheet 2 of 45 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.........................................................................................................3 1.1 Testing Laboratory..................................................................................................................... 3 1.2 Client Information....................................................................................................................... 3 1.3 Manufacturer.............................................................................................................................. 3 2 TEST INFORMATION..................................................................................................................4 2.1 Description of Tested Device(s).............................................................................................. 4 2.2 Test Environment....................................................................................................................... 4 3 TEST REPORT SUMMARY........................................................................................................5 3.1 Test Summary............................................................................................................................ 5 3.2 Other Comments........................................................................................................................ 6 4 TEST SETUP.................................................................................................................................7 4.1 Monitoring Tests......................................................................................................................... 7 5 TEST EQUIPMENT LIST.............................................................................................................8 6 TEST RESULT...............................................................................................................................9 6.1 Monitoring time........................................................................................................................... 9 6.2 Monitoring threshold................................................................................................................ 10 6.3 Maximum transmit period....................................................................................................... 11 6.4 System Acknowledgement..................................................................................................... 13 6.5 Least Interfered Channel, LIC................................................................................................ 21 6.6 Random waiting....................................................................................................................... 32 6.7 Monitoring bandwidth and reaction time.............................................................................. 33 6.8 Monitoring antenna.................................................................................................................. 40 6.9 Monitoring threshold relaxation............................................................................................. 41 6.10 Duplex system LBT............................................................................................................... 42 6.11 Co-located device LBT......................................................................................................... 43 6.12 Fair Access............................................................................................................................. 44 A PPENDIX1 MANUFACTURER DECLARATION...................................................................................45 FCC ID: VUIDPC3941 ETC Report No.: 13-12-MAS-208 Sheet 3 of 45 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 1 GENERAL INFORMATION 1.1 Testing Laboratory Name: Electronic Testing Center, Taiwan Address: No. 8, Lane 29, Wenming Rd., Leshan Tsuen, Guishan Shiang, Taoyuan Country, 33383, Taiwan, R.O.C. Telephone: 886-3-3280026 Fax: 886-3-3276188 NVLAP lab registration #: 200133-0 IC OATS registration #: IC 2949-1 E-Mail: [email protected] 1.2 Client Information Name: PEGATRON CORPORATION Address: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Telephone: 886 2 81439001 Ext 33147 Contact person: Lawrence Yu 1.3 Manufacturer Name: MAINTEK COMPUTER Address: 233 Jinfeng Rd., Suzhou, Jiangsu, PRC FCC ID: VUIDPC3941 ETC Report No.: 13-12-MAS-208 Sheet 4 of 45 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 2 TEST INFORMATION 2.1 Description of Tested Device(s) The tested equipment is a DECT base station, which complies with ETSI EN 300175. The frequencies have been reprogrammed to comply with the FCC requi…

Text truncated - open the document above for the full version.

FCC Part 15 Subpart D Test Report of E.U.T. : Wireless Residential Voice Gateway MODEL : DPC3941 FCC ID. : VUIDPC3941 for APPLICANT : PEGATRON CORPORATION ADDRESS : 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http ： // www.etc.org.tw; e-mail ： [email protected] Report Number : 13-11-RBF-018 ETC Report No. : 13-11-RBF-018 FCC ID. : VUIDPC3941 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Manufacturer : MAINTEK COMPUTER 233 Jinfeng Rd., Suzhou, Jiangsu, PRC Description of EUT a) Type of EUT : Wireless Residential Voice Gateway b) Trade Name : --- c) Model No. : DPC3941 d) Power Supply : 100-120Vac, 50-60Hz, 1.1A e) Frequency Range : 1921.536-1928.448MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart D I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.17-2006/ ANSI C63.4-2003, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 13-11-RBF-018 FCC ID. : VUIDPC3941 Rev. No 1.0 Date Test Item Received : Nov. 16, 2013 Date Test Campaign Completed : Dec. 23, 2013 Date of Issue : Dec. 30, 2013 Test Engineer : (Jiapeng Chen, En gineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 13-11-RBF-018 FCC ID. : VUIDPC3941 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ......................................................................................................1 1.1 Testing Laboratory ...................................................................................................................1 1.2 Client Information ....................................................................................................................1 1.3 Manufacturer ............................................................................................................................1 2 TEST INFORMATION................................................................................................................2 2.1 Descriptino of Tested Device(s) ..............................................................................................2 2.2 Test Environment .....................................................................................................................2 3 TEST REPORT SUMMARY.......................................................................................................3 3.1 Test Summary ..........................................................................................................................3 3.2 Devices for Tested System.......................................................................................................3 4 TEST SETUP.................................................................................................................................4 4.1 Frequency and Timing Measurements .....................................................................................4 4.2 Conducted Emission Tests .......................................................................................................4 4.3 Radiated Emission Tests ..........................................................................................................5 4.4 Power Line Conducted Tests ...................................................................................................5 5 TEST EQUIPMENT LIST ...........................................................................................................6 6 TEST RESULT..............................................................................................................................7 6.1 Corrdination with fixed microwave .........................................................................................7 6.2 Cross Reference .......................................................................................................................8 6.3 Labeling Requirements ............................................................................................................9 6.4 Power Line Conducted Emissions .........................................................................................10 6.5 Antenna Requirement.............................................................................................................14 6.6 digital Modulation Techniques ..............................................................................................14 6.7 Peak Power Output...........................................................................................…
