VUIPDAPDAAT10-ATABLET

User's Manual TOSHIBA AT10-A REGZA Tablet AT502 series User's Manual ii Table of Contents Chapter 1 Legal & Regulatory Copyright ................................................................................................ 1-1 Disclaimer .............................................................................................. 1-1 Trademarks ............................................................................................ 1-2 H.264/AVC, VC-1 and MPEG-4 License Notice ................................... 1-2 FCC information .................................................................................... 1-3 CE compliance ....................................................................................... 1-4 Working environment ............................................................................ 1-4 Additional environments not related to EMC ...................................... 1-5 REACH - Compliance Statement .......................................................... 1-5 Following information is only valid for EU-member States: ............. 1-6 Following information is only for India ............................................... 1-7 Canadian regulatory information (Canada only) ................................ 1-7 Canada - Industry Canada (IC) ............................................................. 1-7 Following information is only for Turkey: ........................................... 1-7 Chapter 2 Introduction About the guide ..................................................................................... 2-1 Instruction Manual for Safety and Comfort ......................................... 2-1 Safety icons ........................................................................................... 2-1 Chapter 3 Getting Started Check the components ......................................................................... 3-1 Grand tour .............................................................................................. 3-1 Hardware ................................................................................................ 3-4 Using the tablet for the first time ......................................................... 3-6 Care and use of the battery ................................................................ 3-10 Charging the battery ........................................................................... 3-11 Chapter 4 Basics Using the touch screen ......................................................................... 4-1 Using the Tablet Pen ............................................................................. 4-1 Getting to know the Home screen ....................................................... 4-4 Opening and switching applications ................................................... 4-5 Monitoring your tablet’s status ............................................................ 4-6 Quick Settings ....................................................................................... 4-6 Managing Notifications ......................................................................... 4-7 Locking your screen ............................................................................. 4-8 User's Manual 3 Capturing your screen .......................................................................... 4-8 Customizing the Home screen ............................................................. 4-8 Changing the Screen Orientation ...................................................... 4-10 Managing Tasks and Applications ..................................................... 4-10 Connecting to a computer .................................................................. 4-10 Factory Reset ....................................................................................... 4-11 Chapter 5 Applications Analog clock .......................................................................................... 5-1 Browser .................................................................................................. 5-1 Calculator ............................................................................................... 5-3 Calendar ................................................................................................. 5-3 Camera ................................................................................................... 5-4 Clock ....................................................................................................... 5-5 Downloads ............................................................................................. 5-7 Email ....................................................................................................... 5-7 Gallery .................................................................................................... 5-8 Play Music .............................................................................................. 5-9 People ................................................................................................... 5-10 Service Station .................................................................................... 5-11 TOSHIBA Media Player ....................................................................... 5-13 TOSHIBA File Manager ....................................................................... 5-14 Online Manual ...................................................................................... 5-17 Chapter 6 Settings Wireless & networks ............................................................................. 6-1 Device ..................................................................................................... 6-7 Personal ............................................................................................... 6-13 Accounts .............................................................................................. 6-16 System ...................................................…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 1. External Photograph of EUT Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A List of Accessory: Specification of Accessory AC Adapter Brand Name TOSHIBA Model Name PA3996U-1ACA Battery Brand Name TOSHIBA Model Name PA5053U-1BRS USB Cable Brand Name COPARTNER Model Name CABLEX/S00-485 LCD Panel Brand Name AUO Model Name B101EVN07.0 Camera (Front) Brand Name Liteon Model Name 12P2SF187 Camera (Rear) Brand Name Liteon Model Name 12P2BA303 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A AC Adapter Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A Battery Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510

Label Loc a B a (T a a tion a ck of EUT a blet)

TOSHIBA AT15-A DC 5V 2A FCC ID:VUIPDAPDAAT10-A S/N:XXXXXXXXX F5 MADE IN CHINA 2013/03/06 TAIS (WIFI) 5.2mm 5mm 5.1mm

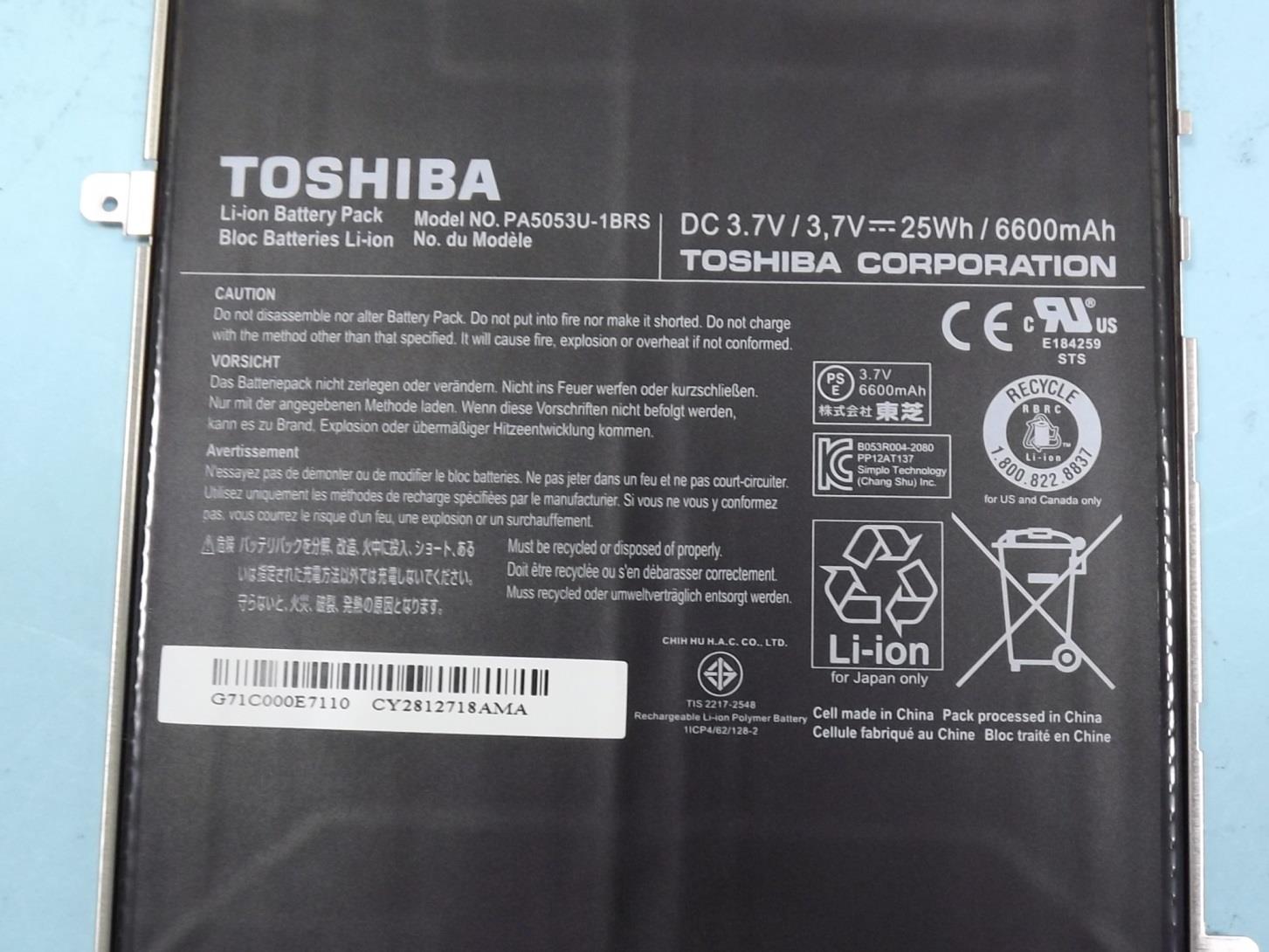

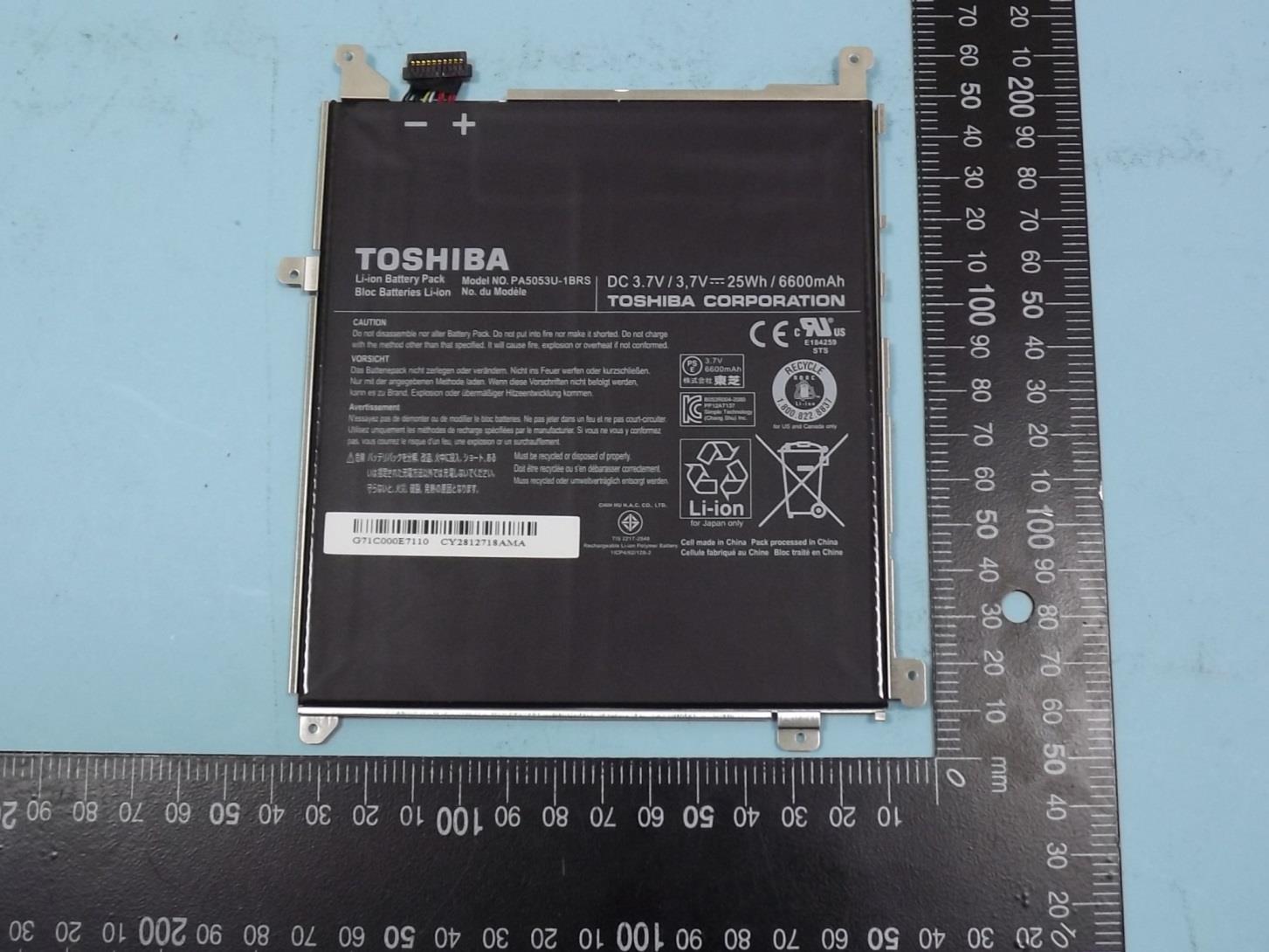

Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A Bluetooth & WLAN Antenna GPS Antenna 720510 Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510 NFC Antenna Photographs of EUT Report No.: EP322823 Brand Name: TOSHIBA / Model Name: TOSHIBA AT10-A、TOSHIBA AT15-A SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 37 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A FCC SAR Test Report Report No. : FA322823 FCC SAR Test Report APPLICANT : PEGATRON CORPORATION EQUIPMENT : Tablet BRAND NAME : TOSHIBA MODEL NAME : TOSHIBA AT10-A、TOSHIBA AT15-A FCC ID : VUIPDAPDAAT10-A STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Apr. 03, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Eric Huang / Vice Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 37 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A FCC SAR Test Report Report No. : FA322823 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 6 3.3 Applied Standard .................................................................................................................................................... 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ......................................................................................................................................................... 9 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR System Verification .............................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup .................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A1 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A FCC SAR Test Report Report No. : FA322823 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/26 System Check_Body_2450MHz_130326 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130326 Medium parameters used: f = 2450 MHz; σ = 2.015 mho/m; ε r = 53.858; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 21.4 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 97.921 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 28.055 mW/g SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.89 mW/g Maximum value of SAR (measured) = 19.7 mW/g 0 dB = 19.7 mW/g = 25.89 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/3 System Check_Body_2450MHz_130403 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130403 Medium parameters used: f = 2450 MHz; σ = 1.965 mho/m; ε r = 51.537; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 19.1 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 93.954 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 28.509 mW/g SAR(1 g) = 13.5 mW/g; SAR(10 g) = 6.35 mW/g Maximum value of SAR (measured) = 17.8 mW/g 0 dB = 17.8 mW/g = 25.01 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/25 System Check_Body_5200MHz_130325 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130325 Medium parameters used: f = 5200 MHz; σ = 5.284 mho/m; ε r = 47.499; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(4.2, 4.2, 4.2); Calibrated: 2012/6/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.1 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 45.483 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 25.937 mW/g SAR(1 g) = 6.94 mW/g; SAR(10 g) = 1.95 mW/g Maximum value of SAR (measured) = 16.5 mW/g 0 dB = 16.5 mW/g = 24.35 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/25 System Check_Body_5300MHz_130325 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130325 Medium parameters used: f = 5300 MHz; σ = 5.422 mho/m; ε r = 47.242; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(4.01, 4.01, 4.01); Calibrated: 2012/6/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.0 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 45.611 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 26.226 mW/g SAR(1 g) = 6.96 mW/g; SAR(10 g) = 1.95 mW/g Maximum value of SAR (measured) = 16.3 mW/g 0 dB = 16.3 mW/g = 24.24 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/25 System Check_Body_5600MHz_130325 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130325 Medium parameters used: f = 5600 MHz; σ = 5.821 mho/m; ε r = 46.733; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(3.72, 3.72, 3.72); Calibrated: 2012/6/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 18.3 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 44.708 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 31.701 mW/g SAR(1 g) = 7.45 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 18.6 mW/g 0 dB = 18.6 mW/g = 25.39 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/25 System Check_Body_5800MHz_130325 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130325 Medium parameters used: f = 5800 MHz; σ = 6.179 mho/m; ε r = 46.434; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(3.89, 3.89, 3.89); Ca…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VUIPDAPDAAT10-A FCC SAR Test Report Report No. : FA322823 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/26 #20_WLAN2.4G_802.11b_Bottom Face_0cm_Ch1 DUT: 322823 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130326 Medium parameters used: f = 2412 MHz; σ = 1.959 mho/m; ε r = 53.951; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch1/Area Scan (81x121x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.78 mW/g Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 30.099 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 2.893 mW/g SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.380 mW/g Maximum value of SAR (measured) = 1.77 mW/g 0 dB = 1.77 mW/g = 4.96 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/26 #24_WLAN2.4G_802.11b_Bottom Face_0cm_Ch1;Repeat DUT: 322823 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130326 Medium parameters used: f = 2412 MHz; σ = 1.959 mho/m; ε r = 53.951; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch1/Area Scan (81x121x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.53 mW/g Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 29.868 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 2.622 mW/g SAR(1 g) = 0.961 mW/g; SAR(10 g) = 0.352 mW/g Maximum value of SAR (measured) = 1.68 mW/g 0 dB = 1.68 mW/g = 4.51 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/26 #21_WLAN2.4G_802.11b_Bottom Face_0cm_Ch6 DUT: 322823 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130326 Medium parameters used: f = 2437 MHz; σ = 1.996 mho/m; ε r = 53.88; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch6/Area Scan (81x121x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.53 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 28.375 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 2.465 mW/g SAR(1 g) = 0.901 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 1.58 mW/g 0 dB = 1.58 mW/g = 3.97 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC…

Text truncated - open the document above for the full version.
