VUIPDWWT10PE-ATablet Computer

User's Manual WT10PE-A WT8PE-B User's Manual ii Table of Contents Chapter 1 TOSHIBA Legal, Regulatory and Safety Copyright, Disclaimer and Trademarks .............................................. 1-1 Regulatory Information ......................................................................... 1-2 Video Standard Notice .......................................................................... 1-8 OpenSSL Toolkit License Issues ......................................................... 1-8 FreeType License Issues .................................................................... 1-10 ENERGY STAR® Program .................................................................. 1-14 Disposing of the computer and the computer's batteries ............... 1-14 General Precautions ........................................................................... 1-14 Safety Icons ......................................................................................... 1-17 Chapter 2 Getting Started Equipment checklist ............................................................................. 2-1 Conventions ........................................................................................... 2-1 Using your tablet for the first time ....................................................... 2-2 Getting to know Windows ..................................................................... 2-6 Turning off the power ............................................................................ 2-8 Chapter 3 The Grand Tour The Grand Tour for TOSHIBA WT10-A ................................................ 3-1 The Grand Tour for TOSHIBA WT8-A .................................................. 3-5 Internal Hardware Components ........................................................... 3-8 Chapter 4 Operating Basics Using the Touch Screen ....................................................................... 4-1 Using the Stylus Pen ............................................................................. 4-2 3D Playback on an External 3D Device ............................................... 4-7 Battery .................................................................................................... 4-8 GPS Function ....................................................................................... 4-11 Memory media ..................................................................................... 4-12 USB Device .......................................................................................... 4-15 External Display .................................................................................. 4-16 TOSHIBA Bluetooth Keyboard for Encore 2 ..................................... 4-19 Optional TOSHIBA Accessories ........................................................ 4-26 Sound System and Video mode ......................................................... 4-26 Chapter 5 Utilities and Advanced Usage Utilities and Applications ...................................................................... 5-1 User's Manual iii Special features ..................................................................................... 5-3 TruCapture ............................................................................................. 5-3 TruNote ................................................................................................... 5-4 TruRecorder ........................................................................................... 5-4 TOSHIBA Setup Utility .......................................................................... 5-4 System Recovery .................................................................................. 5-5 Chapter 6 Troubleshooting Problem solving process ...................................................................... 6-1 Hardware and system checklist ........................................................... 6-4 TOSHIBA support ................................................................................ 6-10 Chapter 7 Appendix Specifications ........................................................................................ 7-1 AC Power Cord and Connectors .......................................................... 7-3 Information for Wireless Devices ........................................................ 7-4 Legal Footnotes ................................................................................... 7-12 Glossary ............................................................................................... 7-14 Index User's Manual 1-1 Chapter 1 TOSHIBA Legal, Regulatory and Safety This chapter states the Legal, regulatory and safety information applicable to TOSHIBA computers. Copyright, Disclaimer and Trademarks Copyright © 2014 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein. First edition September 2014 Copyright authority for music, movies, computer programs, databases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual. Disclaimer This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for your computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no …

Text truncated - open the document above for the full version.

User's Manual 4-11 Battery exhausted time for TOSHIBA WT10-A Battery type Sleep Mode Shut Down Mode Battery pack (22.5 Wh, 2 cell) about 10 days about 6 weeks Battery exhausted time for TOSHIBA WT8-B Battery type Sleep Mode Shut Down Mode Battery pack (15 Wh, 1 cell) about 6 days about 6 weeks Extending battery life To maximize the life of your battery pack: At least once a month, disconnect the tablet from a power source and operate it on battery power until the battery pack fully discharges. Before doing so, follow the steps as detailed below. 1. Turn off the tablet's power. 2. Disconnect the AC adaptor and turn on the tablet's power - if it does not turn on then go to Step 4. 3. Operate the tablet on battery power for five minutes. If you find that the battery pack has at least five minutes of operating time, continue operating until the battery pack is fully discharged, however, if there is warning to indicate a low battery condition, go to Step 4. 4. Connect the AC adaptor to the Micro-USB port of the tablet, and to a wall outlet that is supplying power. 5. Charge the battery pack until the battery reaches its full capacity. The tablet can not be powered on by pressing the power button if the battery power is completely exhausted. It is recommended to charge the battery pack by connecting the AC adaptor for 30 minutes before turning onthe power. GPS Function Your tablet may include a built-in GPS (Global Positioning System). The performance of GPS will vary depending on the environment. It might happen that a location cannot be determined. Your current location may not be shown depending on the status of GPS or the location. If you are obtaining your current location information from the tablet, your current location may not be detected due to the information accuracy. Specifically, your current location may not be detected in the following places or situations: User's Manual 4-12 Inside or directly under a building Inside a bag or box Among dense trees When there is an obstacle (person or object) in the front of the antenna Underground tunnel, underground, or underwater Buildings streets or residential areas Near to the high voltage cables Bad weather such as heavy rain or snow Memory media The tablet is equipped with a memory media slot that can accommodate some kinds of memory media with various memory capacities so that you can easily transfer data from devices, such as digital cameras and Personal Digital Assistants. Keep foreign objects out of the memory media slot. Never allow metal objects, such as screws, staples and paper clips, to enter the tablet. Foreign metal objects can create a short circuit, which can cause tablet damage and fire, possibly resulting in serious injury. This Memory media slot supports the following memory media: microSD/SDHC/SDXC Card. Please note that not all memory media have been tested and verified to work correctly. Therefore, it is not possible to guarantee that all memory media will operate properly. Figure 4-7 Examples of memory media (microSD card) Points to note about the memory media card microSD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or playback protected material on another tablet or other device, and you may not reproduce any copyrighted material except for your personal enjoyment. The supported maximum capacity of memory card is 128GB. Memory media format New media cards are formatted according to specific standards. If you wish to reformat a media card, be sure to do so with a device that uses media cards. User's Manual 4-13 Formatting a memory media card Memory media cards are sold already formatted in conformity to specific standards. If you reformat a memory card, be sure to reformat it with a device such as digital camera or digital audio player that uses the memory cards, not with the format command provided within Windows. Should you need to format all areas of the memory card, including the protected area, you will need to obtain an appropriate application that applies the copy protection system. Media care Observe the following precautions when handling the card. Do not twist or bend cards. Do not expose cards to liquids or store in humid areas or lay media close to containers of liquid. Do not touch the metal part of a card or expose it to liquids or let it get dirty. After using card, return it to its case. The card is designed so that it can be inserted only one way. Do not try to force the card into the slot. Do not leave a card partially inserted in the slot. Press the card until you hear it click into place. Memory cards have a limited lifespan, so it is important to backup important data. Do not write to a card if the battery power is low. Low power could affect writing accuracy. Do not remove a card while read/write is in progress. For more details on using memory cards, see manuals accompanying the cards. Inserting memory media The following instructions apply to all types of supported media devices. To insert memory media, follow the steps as detailed below: 1. Turn the memory media so that the contacts (metal areas) face down. 2. Insert the memory media into the memory media slot on the tablet. User's Manual 4-14 3. Press the memory media gently until it clicks into place. Figure 4-8 Inserting memory media (TOSHIBA WT10-A) 2 1 Figure 4-9 Inserting memory media (TOSHIBA WT8-B) 1 2 1. Memory media slot 2. Memory media Product appearance depends on the model you purchased. Make sure the memory media is oriented properly before you insert it. If you insert the media in wrong direction, you may not be able to remove it. When inserting the memory media, do not touch the metal contacts. You could expose the storage area to static electricity, which can destroy data. Do not turn the tablet off or switch to Sleep Mode or Hibernation Mode while files are being copied - doing …

Text truncated - open the document above for the full version.

Date: September 16,2014 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: , would like to declare that the Part 15B composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature____________________ Name/Title: Lawrence Yu / Manager Company Name: PEGATRON CORPORATION Address: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan TEL: +886-2-8143-9001 EXT:33147 FAX: +886-2-8143-7934 Email: [email protected]

Example of Agents letter (for TCB – TCB approval): Date: 9/16/2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, , hereby authorize Compliance Certification Services Inc / David.Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 3/16/2015 Sincerely, Signature Name/Title: Lawrence Yu / Manager Company Name: PEGATRON CORPORATION Address: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan TEL: +886-2- FAX: +886-2- Email: [email protected]

Date : 9/16/2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: VUIPDWWT10PE-A Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, PEGATRON CORPORATION, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Theory of Operation PEGATRON CORPORATION also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days : Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Signature Name/Title: Lawrence Yu / Manager Company Name: PEGATRON CORPORATION Address: 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan TEL: +886-2-8143-9001 EXT:33147 FAX: +886-2-8143-7934 Email: [email protected]

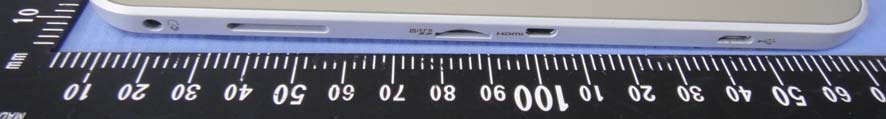

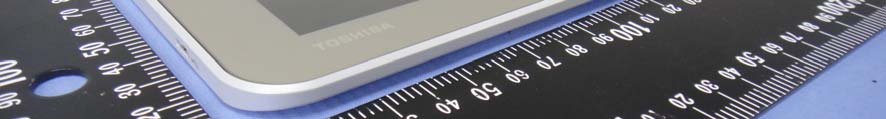

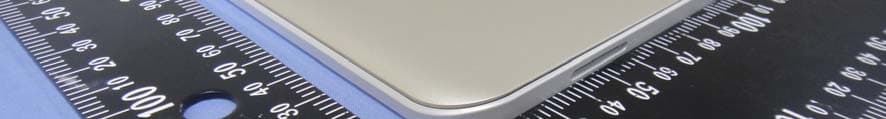

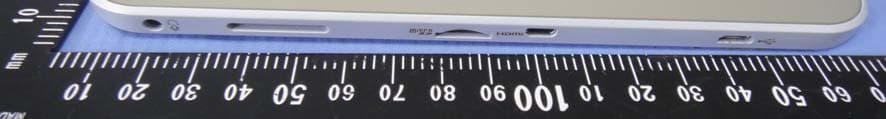

Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 1 / 12 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 5 Rev. 00

Label&Labellocation

Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 9 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 11 Rev. 00 Antenna WIFI & Bluetooth GPS Compliance Certification Services Inc. Report No.: T140814W02 Date of Issue: September 15, 2014 A1 - 12 Rev. 00 Module WIFI & Bluetooth GPS

Compliance Certification Services Inc. FCC ID: VUIPDWWT10PE-A Report No: T140814W02-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 42 Rev. 01 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For Tablet Computer Trade Name: TOSHIBA Model: WT10PE-A Issued to Pegatron Corporation 5F, NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, TAIWAN (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2014/08/28 Compliance Certification Services Inc. FCC ID: VUIPDWWT10PE-A Report No: T140814W02-SF Page 2 Rev. 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/08/28 Initial Issue ALL Peter Chen 01 2014/09/26 1. Change page 6 of battery information 2. Change page 37 of Edge1 CH1 power 3. Change page 38 of Edge1CH153 power 6.37.38 Peter Chen Compliance Certification Services Inc. FCC ID: VUIPDWWT10PE-A Report No: T140814W02-SF Page 3 Rev. 01 Table of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 7.2 Simultaneous Transmission ............................................................................................................................ 18 8 Summary of SAR Test Exclusion Configurations ....................................................... 19 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 19 8.1.1 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ................................................... 20 8.1.2 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the User ................................................... 21 8.2 Required Test Configuration .......................................................................................................................... 22 8.2.1 For Wi-Fi and Bluetooth .................................................................................................................................. 23 9 Measurement Uncertainty ..................................................................................... 24 10 Exposure Limit ...................................................................................................... 25 11 Tissue Dielectric Properties .................................................................................... 26 11.1 Test Liquid Confirmation ................................................................................................................................. 26 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 27 11.3 Simulating Liquids Parameter Check Results ............................................................................................... 28 12 System Performance Check .................................................................................... 29 12.1 System Performance Check Results .............................................................................................................. 30 13 RF Output Power Measurement ............................................................................. 31 13.1 Wi-Fi (2.4 GHz Band) ........................................................................................................................................ 31 13.2 Wi-Fi (5 GHz Band) ........................................................................................................................................... 32 13.3 Bluetooth ........................................................................................................................................................... 36 14 SAR Measurements Results ................................................................................... 37 14.1 Summary of Highest SAR Values .................................................................................................................... 39 15 Equipment List & Calibration Status ....................................................................... 40 16 Facilities .....…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2412.7 MHz; σ = 1.99 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11b/Ch1/Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.11 mW/g Rear/Main Ant/802.11b/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.000 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 0.795 mW/g; SAR(10 g) = 0.308 mW/g Maximum value of SAR (measured) = 1.29 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2412 MHz; Duty Cycle: 1:1 Rear/Main Ant/802.11b/Ch1 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.004 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2437 MHz; σ = 2.02 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11b/Ch6/Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.946 mW/g Rear/Main Ant/802.11b/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.72 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 1.78 W/kg SAR(1 g) = 0.733 mW/g; SAR(10 g) = 0.289 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.23 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2462.2 MHz; σ = 2.05 mho/m; ε r = 52; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11b/Ch11/Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.794 mW/g Rear/Main Ant/802.11b/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.000 V/m; Power Drift = 0.126 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 0.727 mW/g; SAR(10 g) = 0.267 mW/g Maximum value of SAR (measured) = 1.32 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2412.7 MHz; σ = 1.99 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Edge1/Main Ant/802.11b/Ch1/Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.469 mW/g Edge1/Main Ant/802.11b/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.69 V/m; Power Drift = 0.116 dB Peak SAR (extrapolated) = 0.799 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.145 mW/g Maximum value of SAR (measured) = 0.584 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 2.4GHz Band Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2412.7 MHz; σ = 1.99 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11n HT20/Ch1/Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.575 mW/g Rear/Main Ant/802.11n HT20/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.248 V/m; Power Drift = 0.184 dB Peak SAR (extrapolated) = 0.947 W/kg SAR(1 g) = 0.406 mW/g; SAR(10 g) = 0.163 mW/g Maximum value of SAR (measured) = 0.634 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 4:55:18 PM 2.4GHz Band Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2412.7 MHz; σ = 1.99 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 ; DASY4 Configuration:…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 5GHz Band Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5200 MHz; σ = 5.16 mho/m; ε r = 48.5; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(4.02, 4.02, 4.02); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11a/Ch40/Area Scan (8x10x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.587 mW/g Rear/Main Ant/802.11a/Ch40/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 2.77 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 1.78 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.103 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.745 mW/g Test Laboratory: Compliance Certification Service Inc. SAR Lab 02 Date/Time: 8/25/2014 5GHz Band Frequency: 5320 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 25.0C; Liquid Temperature: 24.0C Medium parameters used: f = 5320 MHz; σ = 5.3 mho/m; ε r = 48.3; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn558; Calibrated: 7/22/2014 - Probe: EX3DV4 - SN3554; ConvF(3.82, 3.82, 3.82); Calibrated: 9/26/2013 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN: 1052 Rear/Main Ant/802.11a/Ch64/Area Scan (8x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.701 mW/g…
