VUIUPWL6017Wireless module

Manual UNIHAN UPWL6017 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: i. Reorient or relocate the receiving antenna. ii. Increase the separation between the equipment and receiver. iii. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. iv. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: i. This device may not cause harmful interference, and ii. this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Safety statements Regulatory Information/Disclaimers Installation and use of this Bluetooth device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. CAUTION! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The final end product must be labeled in a visible area with the following " Contains TX FCC ID: VUIUPWL6017 ". IC This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC RSS‐102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains transmitter module IC: 7582A‐UPWL6017”. This device and its antenna(s) must not be co‐located or operating in conjunction with any other antenna or transmitter. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.  Syste Before inst following r  I  M  W  A m  Insta To install t Insert the s em requir talling the P requiremen Intel® Penti Minimum 6 Windows® X An available maximum w alling the d he device d support CD ements PEGATRON nts: ium® 4 or A 64MB system XP/VISTA o e USB port ( wireless per device dri driver in you to the opti WIFI modu AMD K7/K8 s m memory perating sy (USB 2.0 rec rformance) ivers ur compute cal drive a n le, make su system ystem commende r: nd follow th re that you ed because he following r system m USB 1.1 can g procedure eets the nnot achiev e. Step1. Clic the “Next button. e ck t” S “ t Step2. Brow the file pa and click t “Next” butt Step3. Clic the “Contin Anyway” button. wse th he ton. ck nue ” Step4. Installing Step5. Clic the “Finish button. g. ck h” w Step6. When yo successful finish the installatio the compu manageme will detect t device. u lly e n, ter ent the

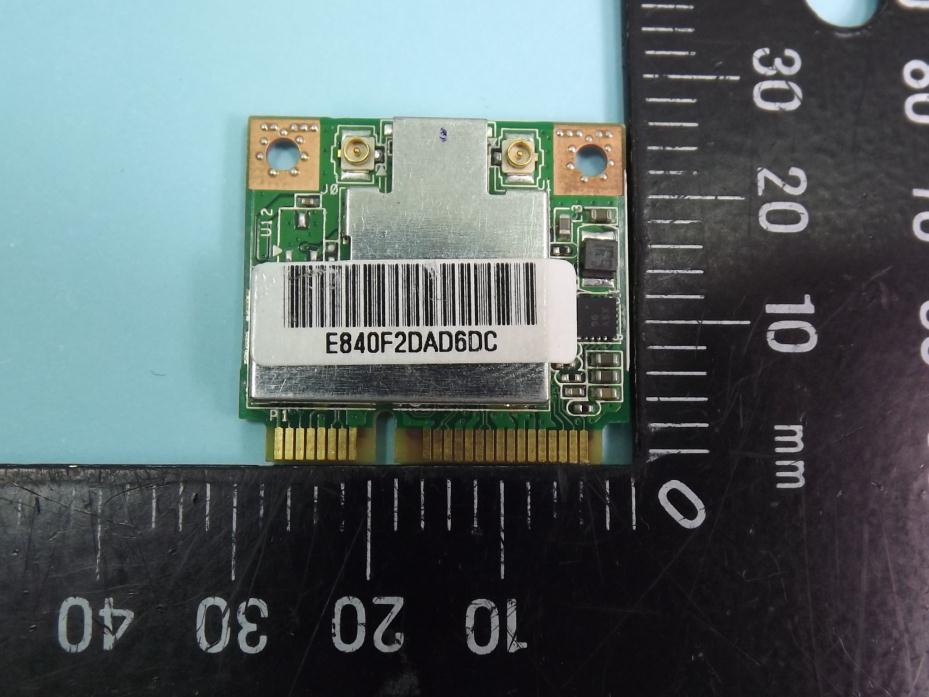

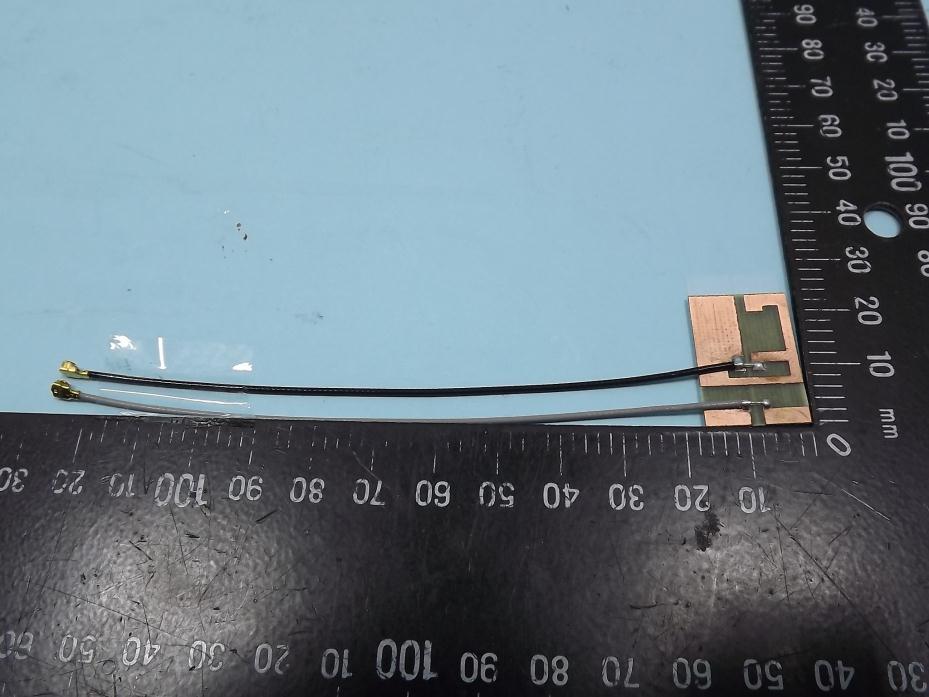

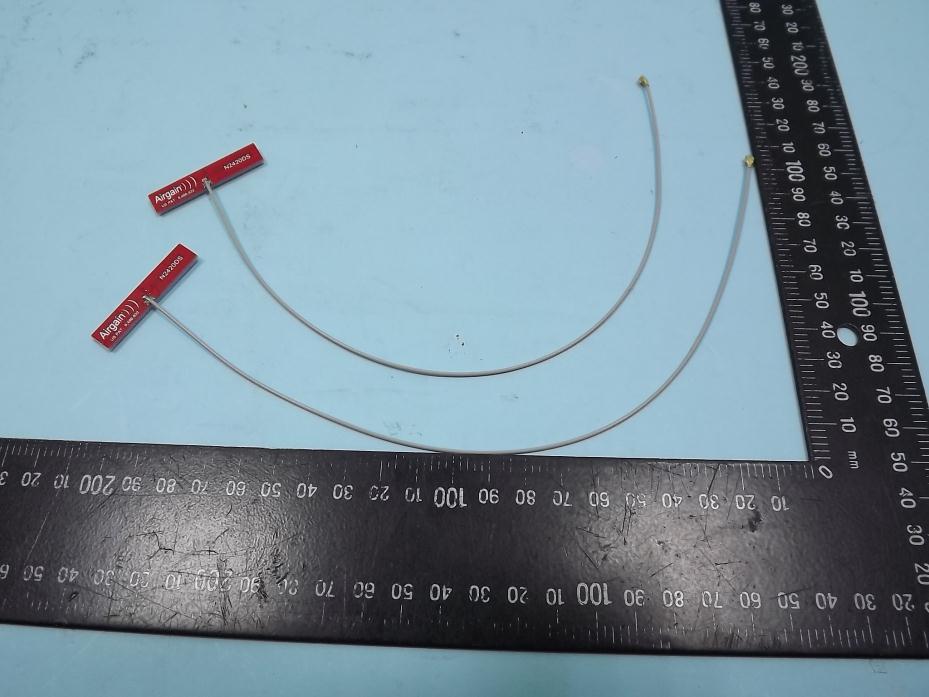

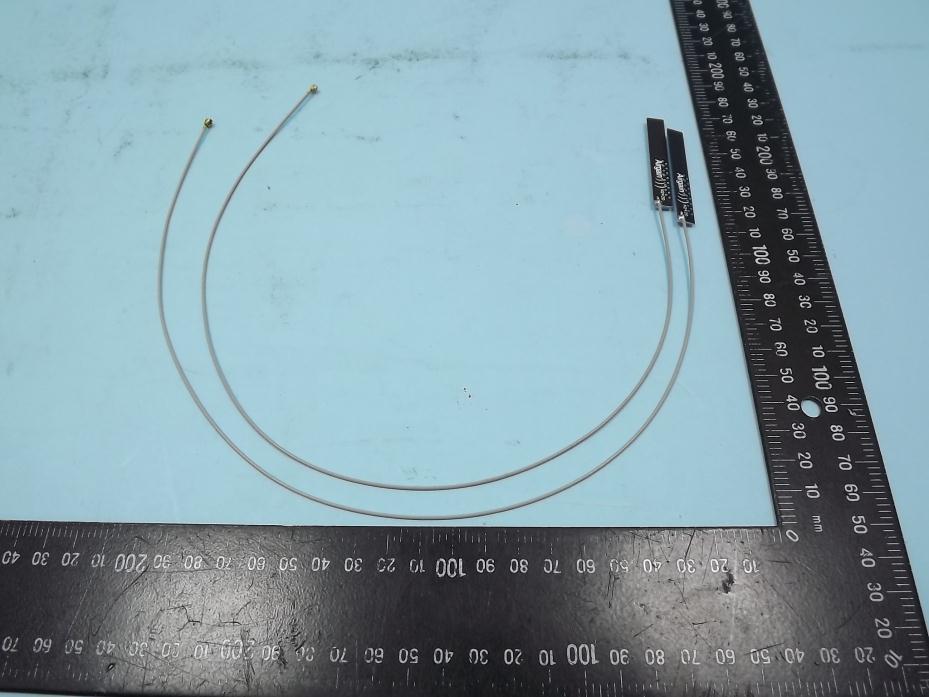

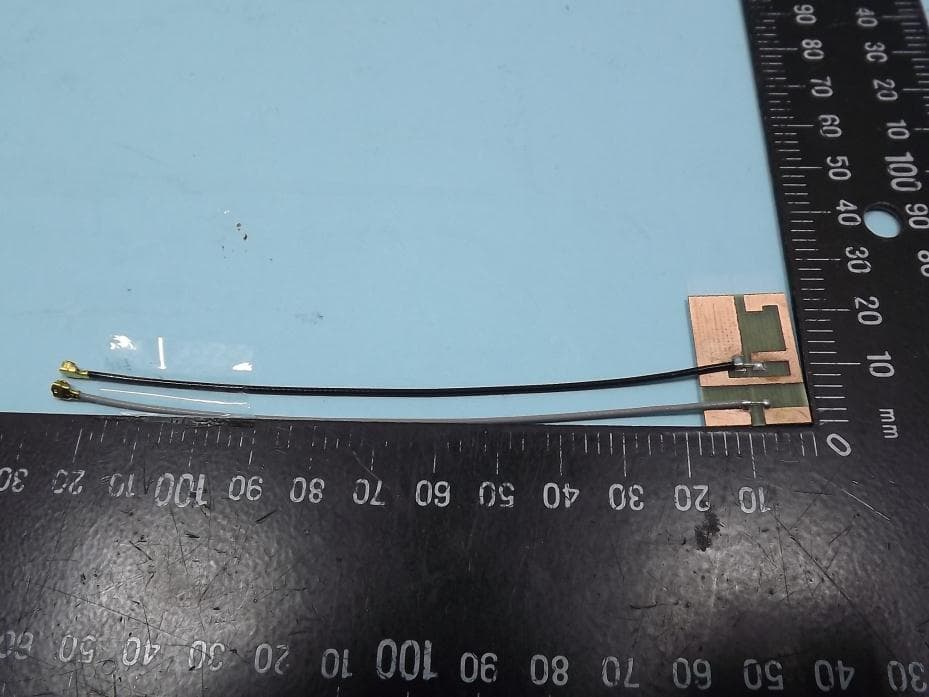

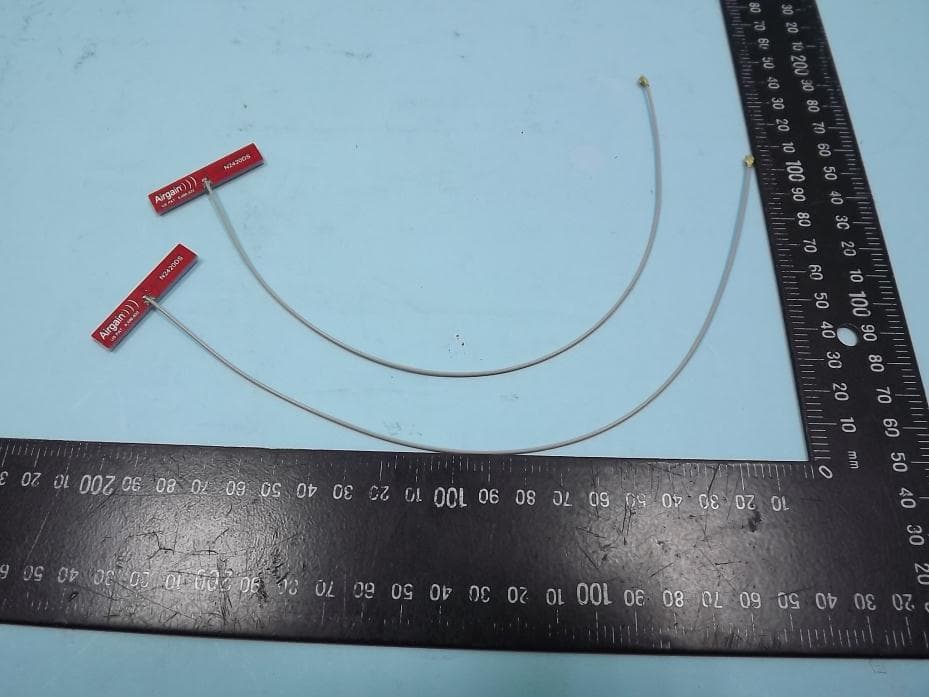

FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0063 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0064 Brand: Wanshih Part No.: UC3WFI0072 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0073 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0080 Brand: Wanshih Part No.: UC3WFI0081 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23396 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23402 Brand: Hong-lin Part No.: 260-23397 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23403 Brand: Hong-lin Part No.: 260-23432 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23434 Brand: Airgain Part No.: N2420DS (10cm) FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N2420DS (27cm) Brand: Airgain Part No.: N2420 (10cm) FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N2420 (40cm)

Label Location

FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B1 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR281437 SPORTON International Inc. PAGE NUMBER : B2 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973

FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 N/A 17.90 N/A g 1 1 N/A 16.02 N/A n (HT20) 1 1 Uncorrelated 15.97 N/A n (HT40) 1 1 Uncorrelated 14.71 N/A n (HT20) 2 2 Uncorrelated 18.83 N/A n (HT40) 2 2 Uncorrelated 17.78 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 17.80 - - - 17.90 5.72 23.62 0.0458 11G-20M 1 15.90 - - - 16.02 5.72 21.74 0.0297 11N2.4G-20M 1 15.87 - - - 15.97 5.72 21.69 0.0293 11N2.4G-40M 1 14.52 - - - 14.71 5.72 20.43 0.0220 11N2.4G-20M 2 16.10 15.51 - - 18.83 5.72 24.55 0.0567 11N2.4G-40M 2 14.82 14.71 - - 17.78 5.72 23.50 0.0445 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 1 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless module Brand Name : PEGATRON Model No. : UPWL6017 FCC ID : VUIUPWL6017 Standard : 47 CFR FCC Part 15.247 Frequency Range : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant Manufacturer : PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan The product sample received on Aug. 27, 2012 and completely tested on Oct. 06, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 2 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Power Setting Parameter .......................................................................................... 11 2.4 The Worst Case Measurement Configuration ...................................................................................... 12 2.5 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 6dB Bandwidth ..................................................................................................................................... 19 3.3 RF Output Power .................................................................................................................................. 23 3.4 Power Spectral Density ........................................................................................................................ 30 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 34 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 42 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 83 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 85 APPENDIX A. TEST PHOTOS ....................................................................................................................... A7 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................... B13 FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 3 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 16.75MHz 37.40 (Margin 12.60dB) - AV 43.15 (Margin 16.85dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 11B-20M: 8.21 11G-20M: 15.44 11N2.4G-20M: 16.95 11N2.4G-40M: 35.56 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] 11B-20M: 20.45 11G-20M: 23.47 11N2.4G-20M: 26.69 11N2.4G-40M: 26.03 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz] 11B-20M: -7.85 11G-20M: -13.35 11N2.4G-20M: -10.91 11N2.4G-40M: -15.26 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.00MHz: 29.06dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 69.49 (Margin 4.51dB) - PK 53.00 (Margin 1.00dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4874MHz 50.99 (Margin 3.01dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 4 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 F…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 53 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 3.6.7 Transmitter Radiated Unwanted Emissions (Above 1GHz) for 11G-20M-N Tx 1 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F1 Operating Function Transmit Polarization V Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1,3 and 4) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 54 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F1 Operating Function Transmit Polarization H Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1,3 and 4) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 55 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F2 Operating Function Transmit Polarization V Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1 and 5) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 56 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F2 Operating Function Transmit Polarization H Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1 and 4) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 57 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F3 Operating Function Transmit Polarization V Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1 and 4) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 58 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11G-20M Test Freq. (FX) F3 Operating Function Transmit Polarization H Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. Note 5: For un-restricted bands, unwanted emissions (item 1 and 4) shall be attenuated by at least 20 dB relative to the maximum measured in-band level. FCC RADIO TEST REPORT Report No. : FR281437 SPORTON INTERNATIONAL INC. Page No. : 59 of 85 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 3.6.8 Transmitter Radiated Unwanted Emissions (Above 1GHz) for 11N2.4G-20M-N TX 1 Transmitter Radiated Unwan…
