VUIUPWL6017SH2Wireless Module

Manual Unihan UPWL6017SH2 1.General Description The UPWL6017SH2 wireless module is a fully assembled and tested general-purpose module using the BCM43217KMLG wireless System-on-Chip(SoC). The module contains BCM43217KMLG chip and all other necessary components to operate the UPWL6017SH2. For detailed information on the UPWL6017SH2 component itself, refer to the UPWL6017SH2 datasheet. 2. Features Features Description Network Standard IEEE 802.11 b/g/n (final n) Chipset BCM43217KMLG Input Voltage 3.3V,5V Data Rate 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n-20 MHz: MCS0~MCS15 802.11n-40 MHz: MCS0~MCS15(300Mbps) Modulation 802.11b:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5Mbps,11Mbps) 802.11g:BPSK(6Mbps,9Mbps),QPSK(12Mbps,18Mbps), 16QAM(24Mbps,36Mbps),64QAM(48Mbps,54Mbps) 802.11n:BPSK(MCS0,MCS8), QPSK(MCS1,MCS2,MCS9,MCS10), 16QAM(MCS3,MCS4,MCS11,MCS12), 64QAM(MCS5,MCS6,MCS7,MCS13,MCS14,MCS15) Operating Frequency 802.11b/g/n (2412 ~ 2462 MHz) Operating Channel 1~11 for North America, Transceiver/Receiver Mode 2T2R Mode 3. Benefits
Small, self-contained SMT module.
2X2 MIMO function support
High power solution support high speed transmittance For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. 4. FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: VUIUPWL6031SH2 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 5. IC Statement CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be…

Text truncated - open the document above for the full version.

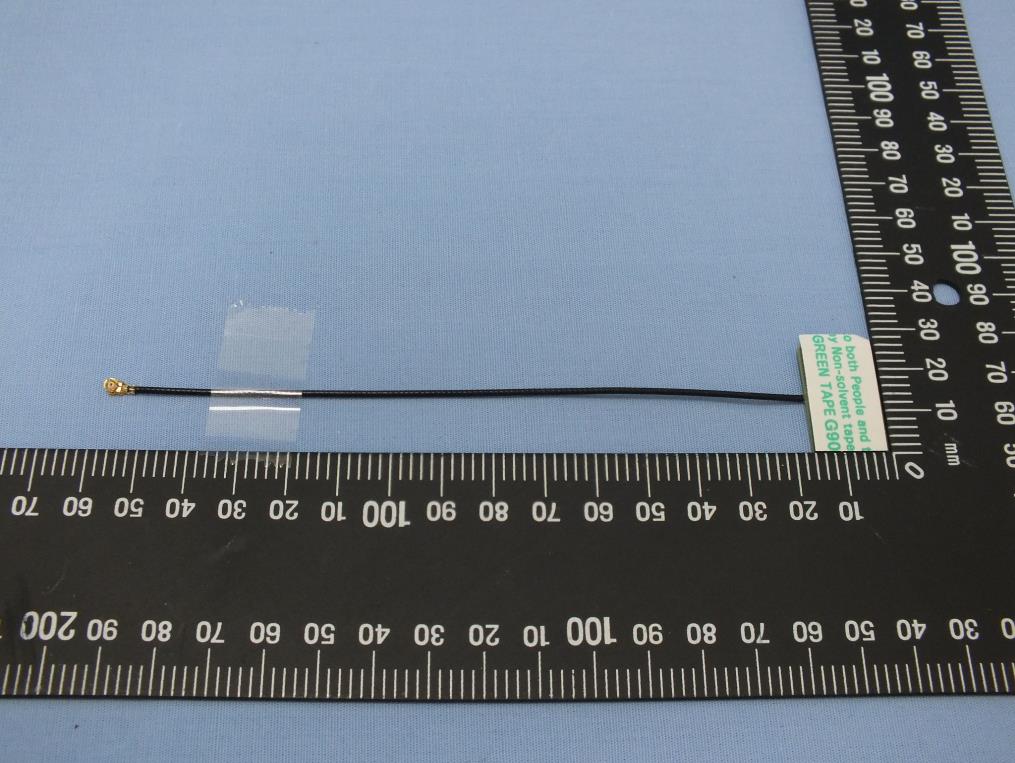

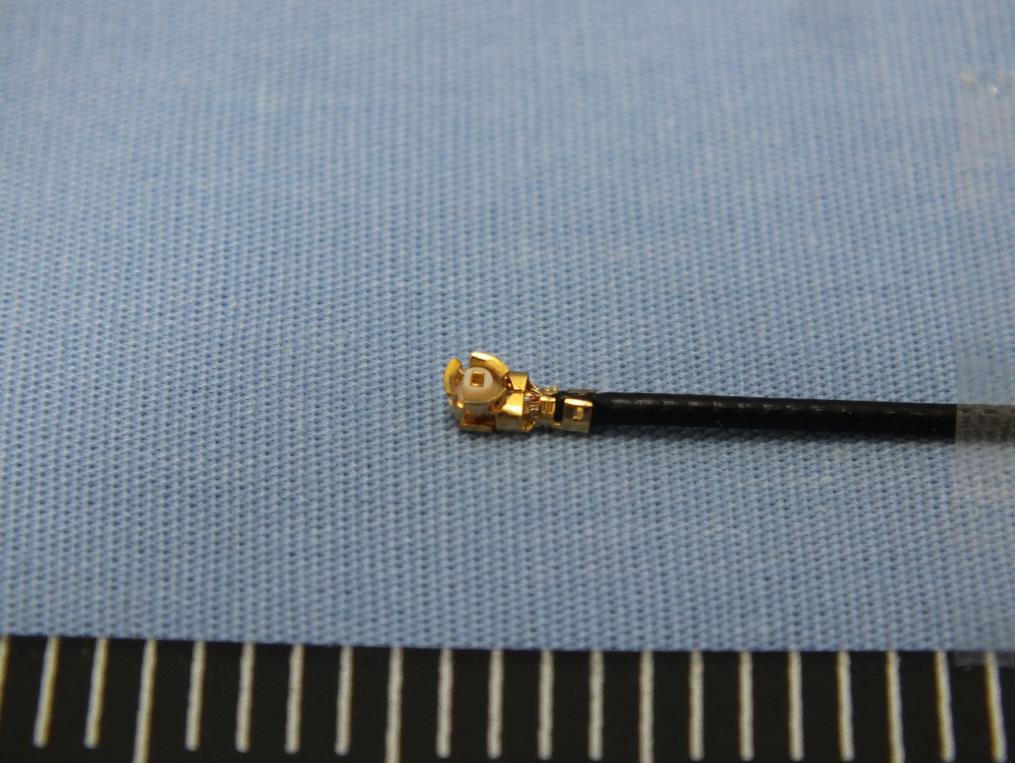

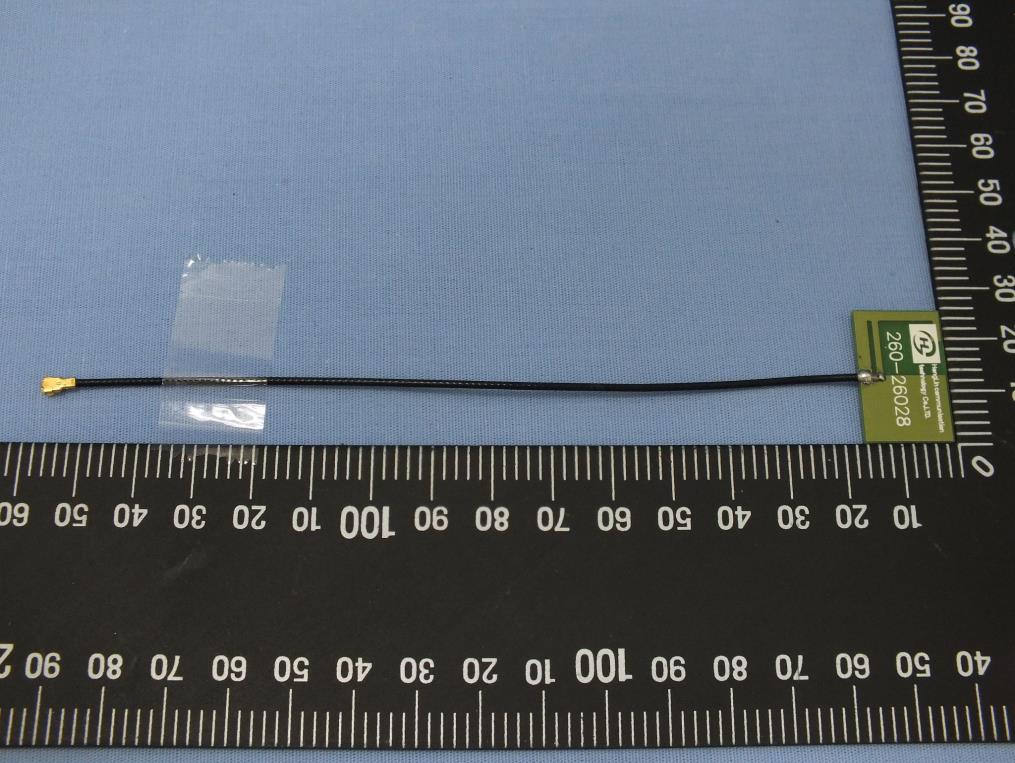

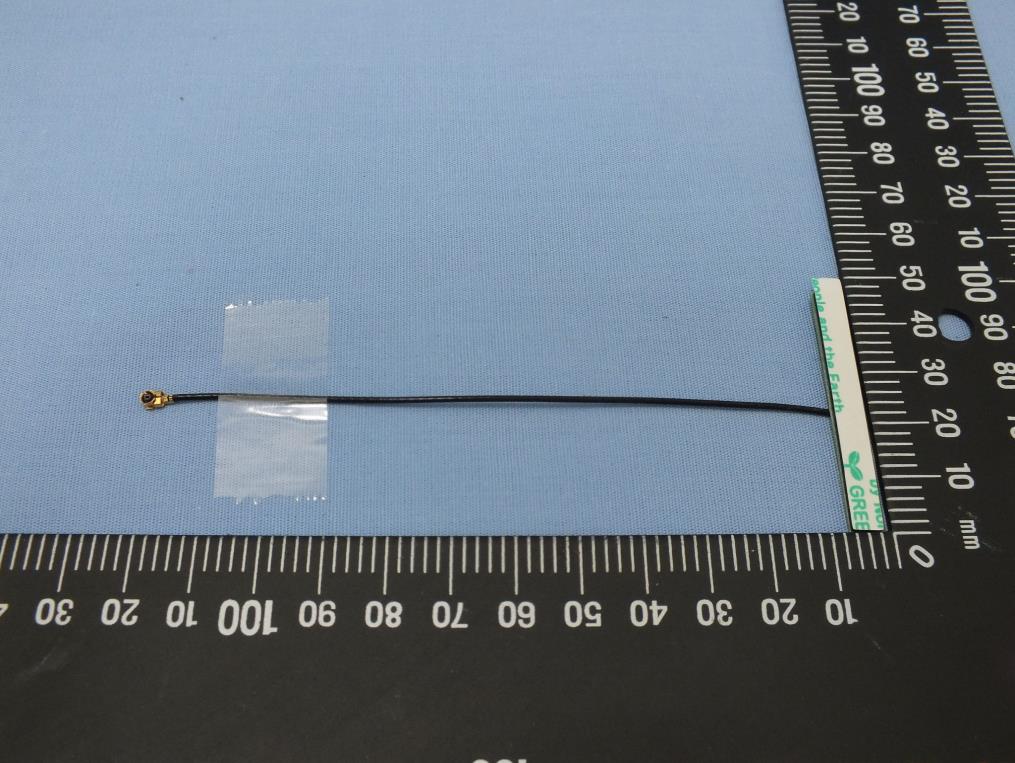

RF_734_00, Issue 1 Modular Approval Request FCC (p er DA 00-1407) FCC ID: VUIUPWL6017SH2 Items to be covered Answer from applicant 1. T he modular transmitter must have its own RF shielding. T he modular has a shielding Case. Please refer to EUT Photo. 2. T he modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. T he component number is BCM43217KMLG 3. T he modular transmitter must have its own power supply regulation. This item is not compliance 4. T he modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). T he antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Antenna connector is UFL. And no external amplifier will be used with this modular. 5. T he modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. T his is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to T est setup photo. 6. T he modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. T he Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. T he modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. T he modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. T he modular complies with this requirement. Please refer to user manual. 8. T he modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If comp liance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). N ame and surname o f applicant (or authorized representative): __________________ D a te: ___25 July 2013____ Si gnature: ___________________________

Report No. : EP350924 SPORTON International Inc. Page No. : 1 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP350924 SPORTON International Inc. Page No. : 2 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP350924 SPORTON International Inc. Page No. : 3 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP350924 SPORTON International Inc. Page No. : 4 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP350924 SPORTON International Inc. Page No. : 5 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Report No. : EP350924 SPORTON International Inc. Page No. : 6 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP350924 SPORTON International Inc. Page No. : 7 of 7 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA350924 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA350924 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 Uncorrelated 23.08 N/A g 2 2 Uncorrelated 26.17 N/A n (HT20) 2 2 Uncorrelated 26.39 N/A n (HT40) 2 2 Uncorrelated 22.86 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 23.08 - - - 23.08 2.7 25.78 0.075 11G-20M 2 23.26 23.05 - - 26.17 2.7 28.87 0.153 11N2.4G-20M 2 23.34 23.41 - - 26.39 2.7 29.09 0.161 11N2.4G-40M 2 19.67 20.03 - - 22.86 2.7 25.56 0.072 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : 2 of 63 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 6dB Bandwidth ..................................................................................................................................... 15 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 24 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 33 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 62 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A4 FCC Test Report Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : 3 of 63 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.152MHz 49.05 (Margin 16.82dB) - QP 36.50 (Margin 19.37dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.62 / 40M: 35.59 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm]: 26.39 Power [dBm]: 30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/30kHz]: 1.92 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 30dB below the highest power Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 2390.00MHz 73.50 (Margin 0.50dB) – PK 53.28 (Margin 0.72dB) - AV Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : 4 of 63 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR350924 Rev. 01 Initial issue of report Jun. 19, 2013 2500-2690 FCC Test Report Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : 5 of 63 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 23.08 N/A 2400-2483.5 g 2412-2462 1-11 [11] 2 26.17 N/A 2400-2483.5 n (HT-20) 2412-2462 1-11 [11] 2 26.39 N/A 2400-2483.5 n (HT-40) 2422-2452 3-9 [7] 2 22.86 N/A Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of cond…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emission FRONT VIEW REAR VIEW Test Photos Report No. : FR350924 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW
