VUIUPWL6024WIFI MODULE

PEGATRON CORPORATION
WIFI MODULE - FCC ID VUIUPWL6024 - PEGATRON CORPORATION
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Feb 15, 2010
Application Purpose
Original Equipment
Date of Application
Feb 10, 2010
Equipment Note
WIFI MODULE
Frequency Range
5755.00000000 - 5795.00000000
Company
PEGATRON CORPORATION
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Manual Unihan UPWL6024 „ Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following i. This device may not cause harmful interference, and ii. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: i. Reorient or relocate the receiving antenna. ii. Increase the separation between the equipment and receiver. iii. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. iv. Consult the dealer or an experienced radio/TV technician for help. CAUTION! You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. „ Safety statements Regulatory Information/Disclaimers Installation and use of this Bluetooth device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION! To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance [20cm] between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. „ Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance [20cm] between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. CAUTION! Any changes or modifications not expressly approved in this manual could void your authorization to use this device. „ MPE Statement Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. „ FCC Radio Frequency Exposure This Bluetooth device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Bluetooth device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation – as a mobile or portable device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than [20cm]. „ RF Exposure The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. „ About this guide This user guide contains the information your PEGATRON WIFI Module. „ System requirements Before installing the PEGATRON WIFI module, make sure that your system meets the following requirements: z Intel® Pentium® 4 or AMD K7/K8 system z Minimum 64MB system memory z Windows® XP/VISTA operating system z An available USB port (USB 2.0 recommended because USB 1.1 cannot achieve maximum wireless performance) „ Installing the device drivers To install the device driver in your computer: Insert the support CD to the optical drive and follow the following procedure. Step 1 Step 2 Step 3 Step 4 Step 5 Canadian Department of Communications This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The module is approved using the FCC’ unlic…

Text truncated - open the document above for the full version.

Cover Letter(s)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: January 04, 2009 SUBJECT: FCC Application for VUIUPWL6024 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, By Lawrence Yu, Senior Manager Signature Printed / Title Applicant: PEGATRON CORPORATION (Must agree with section I on FCC Form 731 – Applicant’s Full Business Name)

Cover Letter(s)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Federal Communication Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: VUIUPWL6024 AUTHORIZATION AGREEMENT To whom it may concern I, an officer of PEGATRON CORPORATION appoint Training Research Co., Ltd. to act as the authorized representative in the preparation of applications for registration of equipment under Part 15 of Rules and Regulations of the Federal Communications Commission. I certify that the information provided to Training Research Co., Ltd. properly describes the device or system for which equipment authorization is requested. APPLICANT ANTI-DRUG ABUSE CERTIFICATION The applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association) no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes see 47 CFR 1.2002(b). This Authorization dated the January 04, 2009 Expires until to grant an application. By Lawrence Yu, Senior Manager Signature Printed / Title Applicant: PEGATRON CORPORATION (Must agree with section I on FCC Form 731 – Applicant’s Full Business Name)

Cover Letter(s)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: VUIUPWL6024 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics – UPWL6024 Schem.pdf z Part List - UPWL6024 ParLst.pdf z Block diagram - UPWL6024 BlkDia.pdf z Operational description - UPWL6024 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: z External Photos - UPWL6024 ExtPho.pdf z Internal Photos - UPWL6024 IntPho.pdf z Test Setup Photos - UPWL6024 TSup.pdf z User’s Manual - UPWL6024 UserMan.pdf Sincerely, Lawrence Yu / Senior Manager, PEGATRON CORPORATION

Cover Letter(s)

PEGATRON CORPORATION Tel: +886-2-81439001 Fax: +886-2-28987364 November 09, 2009 Attn: Reviewing Engineer Federal Communications Commission / 7435 Oakland Mills Road Columbia, MD 21046 Subject: Single Modular Approval for FCC ID: VUIUPWL6024 , As Per FCC Public Notice DA 00-1407 To whom it may concern, PEGATRON CORPORATION . Bluetooth Module, FCC ID: VUIUPWL6024, would like to have your authorization as a modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. The modular transmitter must have its own RF shielding The radio portion of this module has been shielded, please see exhibition (Photographs of EUT). 2. The modular transmitter must have buffered modulation/data inputs The EUT has buffered data inputs, it is integrated in chip BCM43224KMLG . 3. The modular transmitter must have its own power supply regulation The chips if converter and RF/IF converter which will influence the frequency radiation, have to be 3.3 & 1.2 VDC power. The mini-PCI interface provides 3.3 & 1.2 VDC, so there are regulators in front of these chips, the part number of this regulator is AAT3218IJS . 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c) The EUT meets the FCC antenna requirements, the spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration via a PCI Express extend card. Please see exhibition (Test Set–up Photos), the EUT was plugged in this extender. 6. The modular transmitter must be labeled with its own FCC ID number Please see exhibition (Label Sample), and also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the Users Manual 8. The modular transmitter must comply with any applicable RF exposure requirements The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the MPE exhibition. Sincerely, Lawrence Yu / Senior Manager, PEGATRON CORPORATION

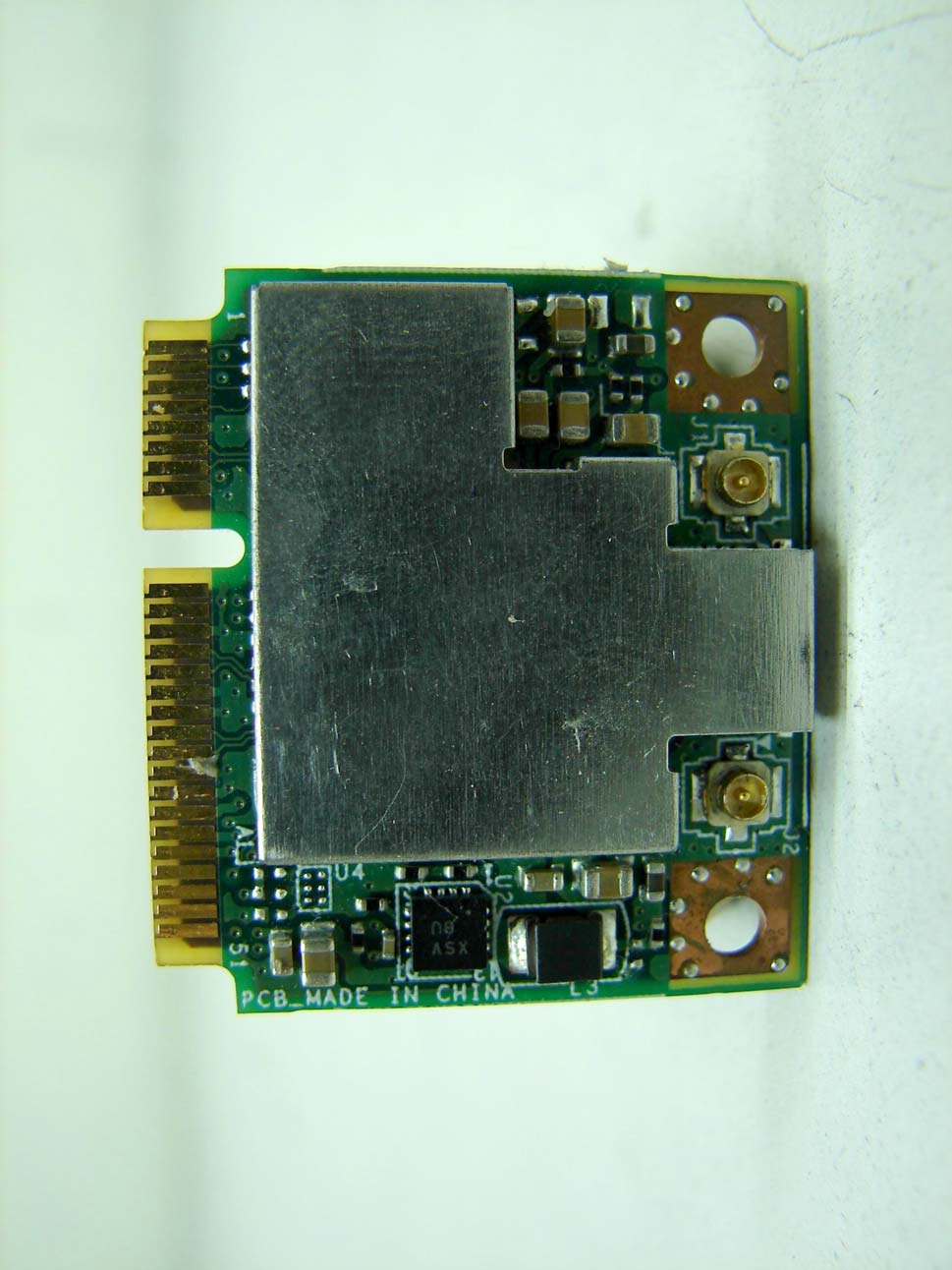

External Photos

External Photos of EUT --------------------------------------------------------------- 1/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 2/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 3/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 4/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 5/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 & Antenna#2 External Photos of EUT --------------------------------------------------------------- 6/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 & Antenna#2 External Photos of EUT --------------------------------------------------------------- 7/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: UCW2583 External Photos of EUT --------------------------------------------------------------- 8/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: UCW2583 External Photos of EUT --------------------------------------------------------------- 9/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2: UCW2620 External Photos of EUT --------------------------------------------------------------- 10/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2: UCW2620

ID Label/Location Info

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 15.0 x 15.0 mm LABEL The device complies with Part 15 of the FCC Rules. See instruction manual. FCC ID: VUIUPWL6024 Model No.: UPWL6024

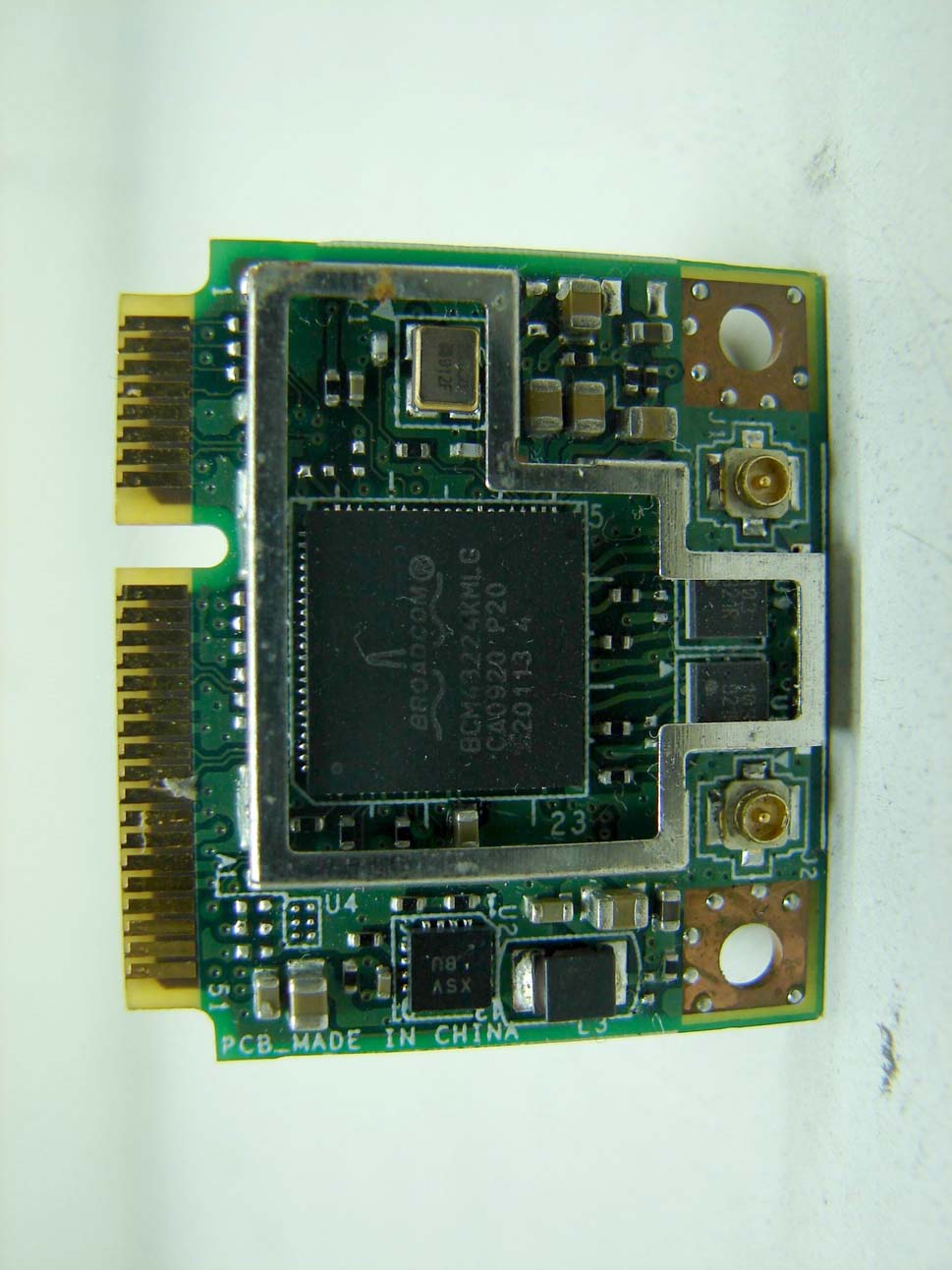

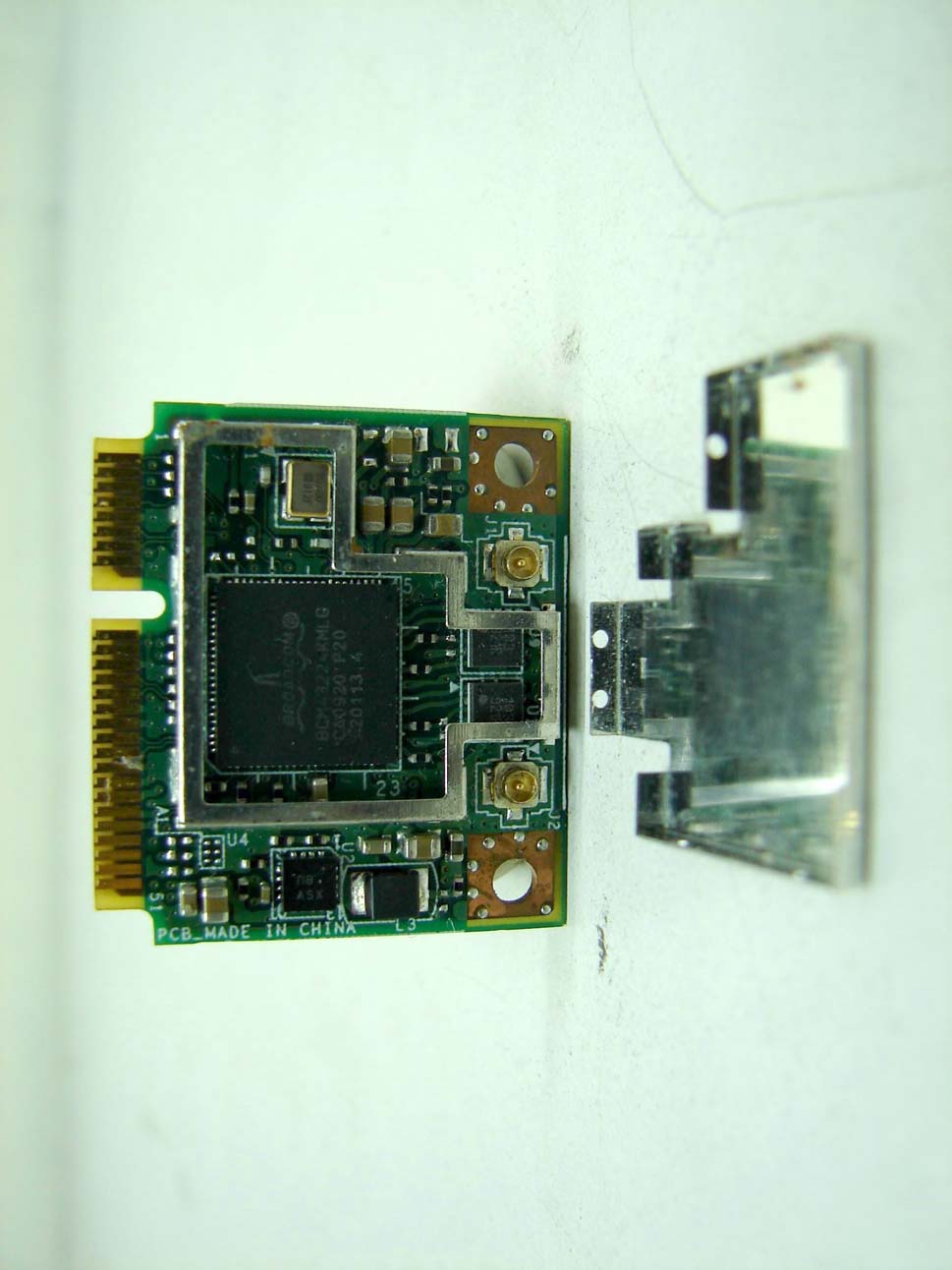

Internal Photos

External Photos of EUT --------------------------------------------------------------- 1/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 2/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 3/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 4/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT --------------------------------------------------------------- 5/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 & Antenna#2 External Photos of EUT --------------------------------------------------------------- 6/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1 & Antenna#2 External Photos of EUT --------------------------------------------------------------- 7/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: UCW2583 External Photos of EUT --------------------------------------------------------------- 8/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#1: UCW2583 External Photos of EUT --------------------------------------------------------------- 9/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2: UCW2620 External Photos of EUT --------------------------------------------------------------- 10/10 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Antenna#2: UCW2620

RF Exposure Info

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/4 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : VUIUPWL6024 Product name : WIFI module Model : UPWL6024 Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Operating Frequency : IEEE 802.11b/g/n Draft 1.0 20M: 5.180GHz ~ 5.240GHz, 5.745GHz ~ 5.805GHz IEEE 802.11n Draft 1.0 40M: 5.190GHz ~ 5.230GHz, 5.755GHz ~ 5.795GHz Channel Spacing : IEEE 802.11b/g/n Draft 1.0 20M: 20MHz; IEEE 802.11n Draft 1.0 40M: 40MHz Supported Channel : IEEE 802.11b/g/n Draft 1.0 20M: 4Channels; IEEE 802.11n Draft 1.0 40M: 2Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI Express interface of client’s device Measurement of Maximum Permissible Exposure ---------------------------------------- 2/4 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /043.0 )20(4 14.660.35 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R17.4 4 14.635.60 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 4.73cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (7.88 / 10) = 6.14 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/4 Applicant: PEGATRON CORPORATION FCC ID: VUIUPWL6024, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification (Antenna#1 UCW2583) SPECIFICATION Description..........................: WPB107 Mini1.13(Black) Antenna with MHF L74mm λ 2.Customer.........................................: PEGATRONCORP 3.Part No...........................................: 1415-00XR000 4.Coaxial Lenght..................................:74mm(see Drawing) 5.Electrical Characteristics Operating Frequency...........................: 2~6GHz Impedance.......................................: 50 Ohm nominal 2.4 Operating Temp,Ex........................:-20°C ~ +65°C 2.5 Storage Temp,Ex...........................:-30 ~ +75°C°C 6.Mechanical Chararteristics Connector.......................................:MHF 7.Raw Material Coaxial Cable..................................: Mini 1.13 Core.............................................: ND Wanshih Electronic Co., LTD Research & Development Department Antenna Measurement CUSTOMER:UNIHAN ANT BANDWIDTH :2.4-2.5,5.15-5.35,5.725-5.875GHz TEST INSTRUMENT:1. AGILENT E5071B NETWORK ANALYZER 2.Sporton ETS OTA Chamber ENGINEER:Puma Lu DATE:2009/06/19 HOUSING LOCATION OF ANTS ANT 1 ANT 2 ANT 1 RETURN LOSS: SWR: ANT 2 RETURN LOSS: SWR: Antenna 1 Pattern Antenna 2 Pattern Model Test / Position Frequency240024502500495051505250535057255850 Ant. Port Input Pwr. (dBm)000000000 Tot. Rad. Pwr. (dBm) 000000000 Peak EIRP (dBm)3.16324.361125.340664.46515.242865.313244.97493.926274.06678 Directivity (dBi)7.145737.097987.037936.355487.050546.941016.556535.661475.92974 Efficiency (dB)-3.98254-2.73686-1.69727-1.89038-1.80768-1.62778-1.58163-1.7352-1.86296 Efficiency (%)39.971153.2493 67.6509 64.708565.952768.74269.476467.062565.1184 Gain (dBi)3.16324.361125.340664.46515.242865.313244.97493.926274.06678 NHPRP ±Pi/4 (dBm)-5.55515-4.32298-3.38968-4.40643-4.29672-4.1251-4.04478-4.13462-4.19475 LHPRP / TRP Ratio (dB)-3.5328-3.80454-4.01577-4.69195-4.83218-4.83934-4.80762-4.87711-4.72813 LHPRP / TRP Ratio (%)44.332341.643439.666433.947232.868732.814533.055132.530433.6657 Front/Back Ratio (dB)11.68310.482813.8592.966043.303892.831841.939793.189478.71662 Phi BW (°)515254181718226589 #NAME?2421359910114457 #NAME?273119988112132 Theta BW (°)5261575440373810164 #NAME?293727161515175236 #NAME?232430382522214928 Boresight Phi (°)1051059090909090285315 Boresight Th. (°)7575751501501501501515 Maximum Power (dBm)3.16324.361125.340664.46515…

Text truncated - open the document above for the full version.

Test Report

Test Report ---------------------------------------------------------------------------------- 1/258 Report No.: P5515090223, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of WIFI module Applicant : PEGATRON CORPORATION EUT : WIFI module Model No. : UPWL6024 FCC ID : VUIUPWL6024 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/258 Report No.: P5515090223, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart E Section 15.407. Applicant : PEGATRON CORPORATION Applicant Address : 5F, NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY, Taiwan FCC ID : VUIUPWL6024 Report No. : P5515090223 Test Date : October 26, 2009 ~ December 12, 2009 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/258 Report No.: P5515090223, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 5 1.1 Introduction ......................................................................................................... 5 1.2 Description of EUT ............................................................................................. 5 1.3 Test method ......................................................................................................... 6 1.4 Description of Support Equipment ...................................................................... 6 1.5 Configuration of System Under Test ................................................................... 7 1.6 Verify the Frequency and Channel ...................................................................... 8 1.7 Test Procedure .................................................................................................... 10 1.8 Location of the Test Site .................................................................................... 10 1.9 General Test Condition ...................................................................................... 10 II. Section 15.203 : Antenna Requirement..................................................................... 11 III. Section 15.407(b)(6): Power Line Conducted Emissions for AC Powered Units . 12 3.1 Test Condition & Setup ...................................................................................... 12 3.2 List of Test Instruments ...................................................................................... 13 3.3 Test Result of Conducted Emissions .................................................................. 14 IV. Section 15.407(a): Bandwidth for Unlicensed National Information Infrastructure. 23 4.1 Test Condition & Setup ...................................................................................... 23 4.2 Test Instruments Configuration .......................................................................... 23 4.3 List of Test Instruments ...................................................................................... 23 4.4 Test Result of Bandwidth ................................................................................... 24 V. Section 15.407(a)(1) : Power Output ........................................................................ 58 5.1 Test Condition & Setup ...................................................................................... 58 5.2 Test Instruments Configuration .......................................................................... 58 5.3 List of Test Instruments ...................................................................................... 58 5.4 Test Result .......................................................................................................... 58 Test Report ---------------------------------------------------------------------------------- 4/258 Report No.: P5515090223, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI. Section 15.407 (b)(6), (b)(7): Spurious Emissions (Radiated) ................................ 84 6.1 Test Condition & Setup ...................................................................................... 84 6.2 List of Test Instruments ...................................................................................... 86 6.3 Test Result of Spurious Radiated Emissions ...................................................... 87 VII. Section 15.247(d) : Power Spectral Density ............................................................ 119 7.1 Test Condition & Setup ...........................................................…

Text truncated - open the document above for the full version.

Test Report

Test Report --------------------------------------------------------------------------------- 58/258 Report No.: P5515090223, FCC Part 15 Subpart E for UNII Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 V. Section 15.407(a)(1): Maximum Conducted Output Power 5.1 Test Condition & Setup The test is performed accordance with FCC Public Notice: APPENDIX A Guidelines for Assessing Unlicensed National Information Infrastructure (U-NII) Devices – Part 15, Subpart E, August 2002.(FCC Public Notice DA02-2138A1) The transmitter output operates continuously therefore Method # 3 is used. 5.2 Test Instruments Configuration PC to control the EUT at maximal power output and channel number and set antenna kit 1. The output of the transmitter is connected to the Spectrum Analyzer. 2. The calibration is performed before every test. The values of the output power of the EUT will shown in the dBm directly are the transmitter output m aximum power. Recording as follows. 5.3 List of Test Instruments Instrument N…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Nancy Yu(Senior Manager)
[email protected]886-2-81439001Fax: 886-2-28960017

Test Firm

Training Research Co., Ltd.Jack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.79 GHz23.00 mW
Confidentiality
Long Term
Grant Notes
Modular approval. Power listed is maximum conducted output power in 802.11a mode. Device is a WLAN operating in either 2x2 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations and single-stream legacy modes as described in this filing. Approval is limited to OEM installation only. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end-user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Operations in the band 5.15-5.25GHz are restricted to indoor use only.
