VUIUPWL6028FWireless Module

Manual UNIHAN UPWL6028F Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: i. Reorient or relocate the receiving antenna. ii. Increase the separation between the equipment and receiver. iii. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. iv. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: i. This device may not cause harmful interference, and ii. this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. Safety statements Regulatory Information/Disclaimers Installation and use of this Bluetooth device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. CAUTION! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The final end product must be labeled in a visible area with the following " Contains TX FCC ID: UPWL6028F ". IC This device complies with Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC RSS‐102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains transmitter module IC: 7582A‐UPWL6028F”. This device and its antenna(s) must not be co‐located or operating in conjunction with any other antenna or transmitter. The device for the band 5150‐5250 MHz is only for indoor usage to reduce potential for harmful interference to co‐channel mobile satellite systems. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.  Syste Before inst following r  I  M  W  A m  Insta To install t Insert the s em requir talling the P requiremen Intel® Penti Minimum 6 Windows® X An available maximum w alling the d he device d support CD ements PEGATRON nts: ium® 4 or A 64MB system XP/VISTA o e USB port ( wireless per device dri driver in you to the opti WIFI modu AMD K7/K8 s m memory perating sy (USB 2.0 rec rformance) ivers ur compute cal drive a n le, make su system ystem commende r: nd follow th re that you ed because he following r system m USB 1.1 can g procedure eets the nnot achiev e. Step1. Clic the “Next button. e ck t” S “ t Step2. Brow the file pa and click t “Next” butt Step3. Clic the “Contin Anyway” button. wse th he ton. ck nue ” Step4. Installing Step5. Clic the “Finish button. g. ck h” w Step6. When yo successful finish the installatio the compu manageme will detect t device. u lly e n, ter ent the

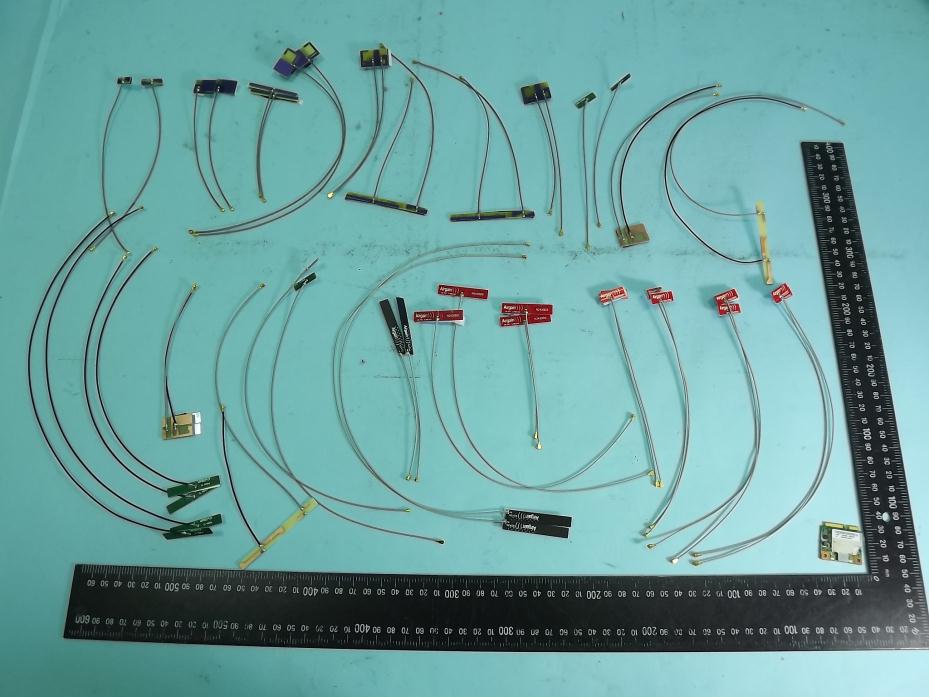

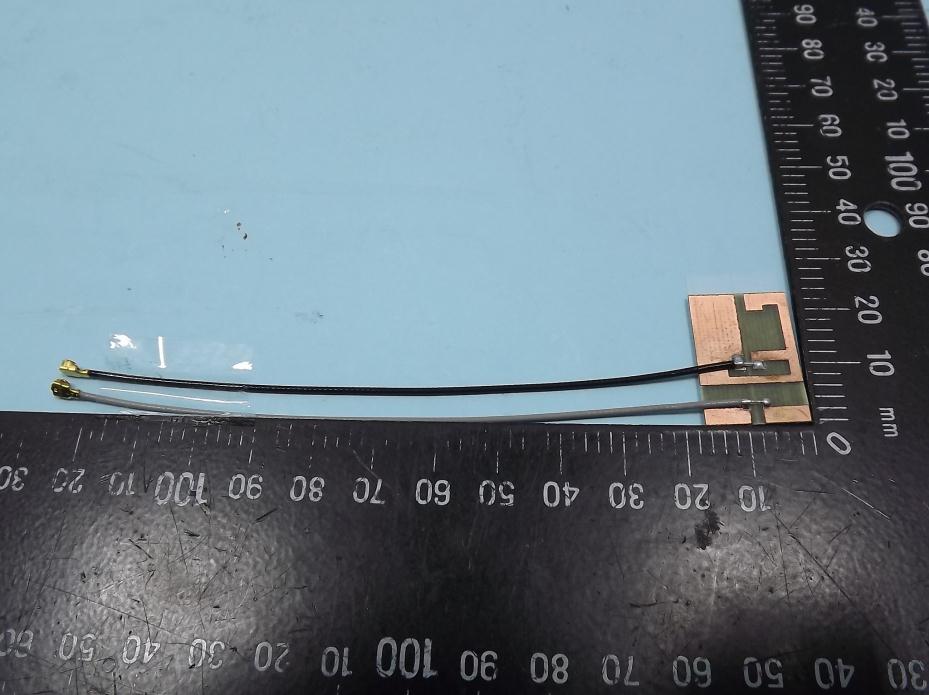

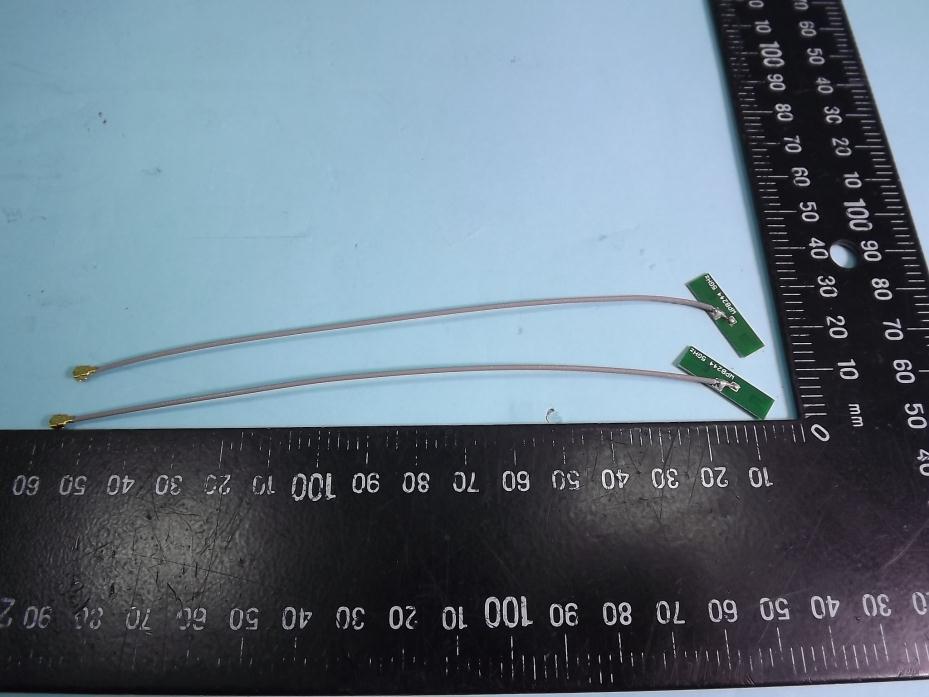

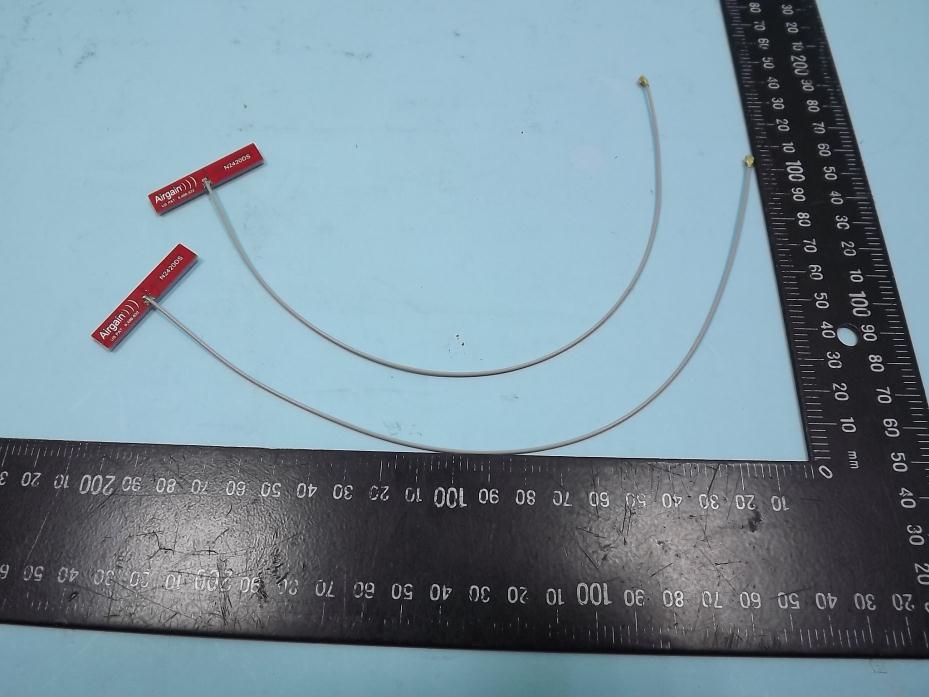

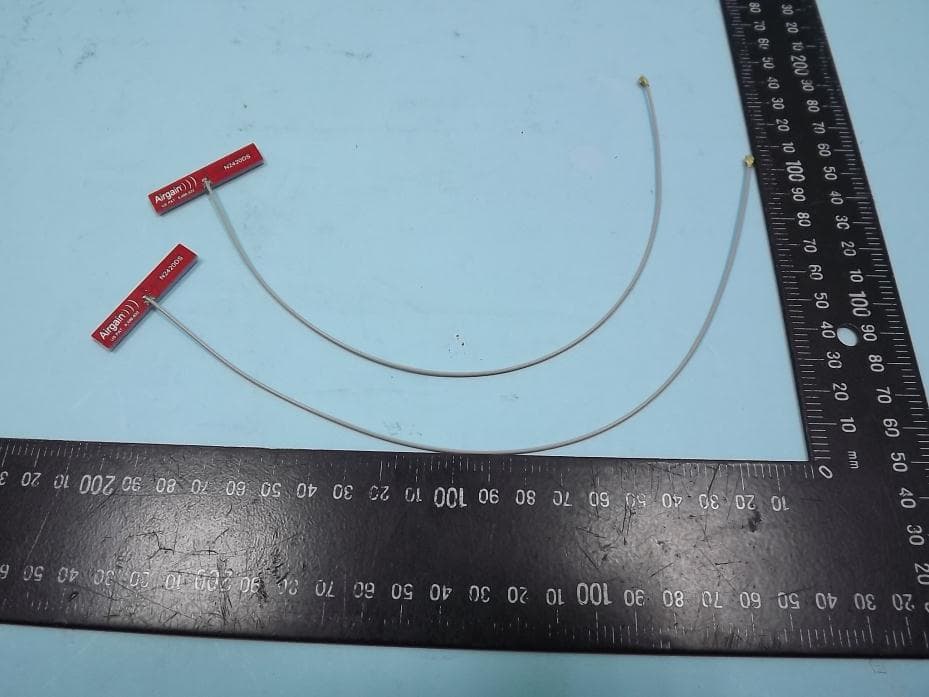

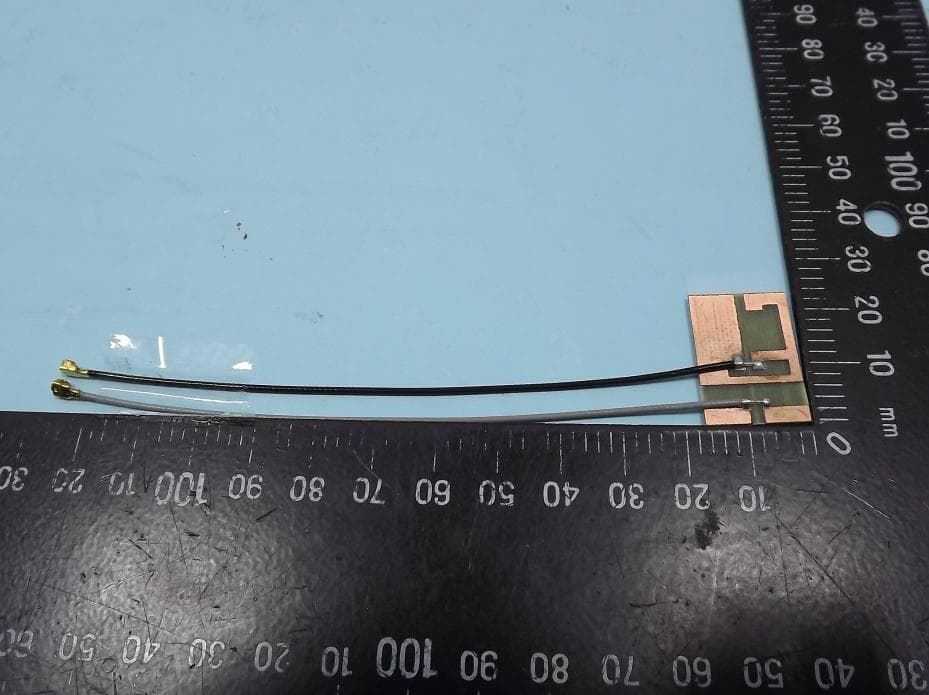

FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B1 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B2 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0063 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B3 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0072 Brand: Wanshih Part No.: UC3WFI0064 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B4 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0073 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B5 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0080 Brand: Wanshih Part No.: UC3WFI0081 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B6 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0082 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B7 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0083 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B8 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23396 Brand: Hong-lin Part No.: 260-23397 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B9 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23402 Brand: Hong-lin Part No.: 260-23403 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B10 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23432 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B11 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23434 Brand: Hong-lin Part No.: 260-23433 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B12 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Hong-lin Part No.: 260-23435 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B13 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N2420DS (10cm) Brand: Airgain Part No.: N2420DS (27cm) FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B14 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N2420 (10cm) Brand: Hong-lin Part No.: N2420 (40cm) FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B15 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5x20SC (15cm) Brand: Airgain Part No.: N5x20SC (19cm) FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B16 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5x20SC (23cm) Brand: Airgain Part No.: N5x20SC (27cm) FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B17 OF B17 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973

Label Location

FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B1 OF B2 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR281440 SPORTON International Inc. PAGE NUMBER : B2 OF B2 TEL : 886-3-327-3456 ISSUED DATE : Nov. 20, 2012 FAX : 886-3-327-0973

FCC RADIO TEST REPORT Report No. : FR281440 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC RADIO TEST REPORT Report No. : FR281440 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC RADIO TEST REPORT Report No. : FR281440 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 N/A 17.97 N/A g 1 1 N/A 17.18 N/A n (HT20) 1 1 Uncorrelated 17.63 N/A n (HT40) 1 1 Uncorrelated 18.80 N/A n (HT20) 2 2 Uncorrelated 22.90 N/A n (HT40) 2 2 Uncorrelated 23.51 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 17.68 - - - 17.97 5.72 23.69 0.0465 11G-20M 1 15.51 - - - 17.18 5.72 22.90 0.0388 11N2.4G-20M 1 15.90 - - - 17.63 5.72 23.35 0.0430 11N2.4G-40M 1 15.79 - - - 18.80 5.72 24.52 0.0563 11N2.4G-20M 2 18.62 17.65 - - 22.90 5.72 28.62 0.1448 11N2.4G-40M 2 18.88 18.42 - - 23.51 5.72 29.23 0.1665 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC RADIO TEST REPORT Report No. : FR281440 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 14.97 N/A n (HT20) 1 1 Uncorrelated 15.66 N/A n (HT40) 1 1 Uncorrelated 15.07 N/A n (HT20) 2 2 Uncorrelated 18.44 N/A n (HT40) 2 2 Uncorrelated 17.64 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 - - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 14.97 - - - 14.97 6.36 21.33 0.0270 11N5.8G-20M 1 15.57 - - - 15.66 6.36 22.02 0.0317 11N5.8G-40M 1 14.89 - - - 15.07 6.36 21.43 0.0277 11N5.8G-20M 2 15.69 15.15 - - 18.44 6.36 24.80 0.0601 11N5.8G-40M 2 14.56 14.33 - - 17.64 6.36 24.00 0.0500 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC RADIO TEST REPORT Report No. : FR281440 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure-(5.2G~5.6G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 1 13.49 N/A 5250-5350 5260-5320 52-64 [4] …

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : 1 of 159 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless module Brand Name : PEGATRON Model No. : UPWL6028F FCC ID : VUIUPWL6028F Standard : 47 CFR FCC Part 15.407 Frequency Range : 5150 MHz – 5250 MHz 5250 MHz – 5350 MHz 5470 MHz – 5725 MHz Equipment Class : NII Applicant Manufacturer : PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Operate Mode : Client without radar detection The product sample received on Aug. 28, 2012 and completely tested on Oct. 05, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : 2 of 159 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 9 1.3 Testing Applied Standards ................................................................................................................ 9 1.4 Testing Location Information ............................................................................................................. 9 1.5 Measurement Uncertainty ............................................................................................................... 10 2 TEST CONFIGURATION OF EUT .................................................................................................. 11 2.1 The Worst Case Modulation Configuration ...................................................................................... 11 2.2 Test Channel Frequencies Configuration ......................................................................................... 11 2.3 The Worst Case Power Setting Parameter ...................................................................................... 12 2.4 The Worst Case Measurement Configuration .................................................................................. 14 2.5 Test Setup Diagram ........................................................................................................................ 15 3 TRANSMITTER TEST RESULT ..................................................................................................... 17 3.1 AC Power-line Conducted Emissions .............................................................................................. 17 3.2 Emission Bandwidth ........................................................................................................................ 20 3.3 RF Output Power ............................................................................................................................ 31 3.4 Peak Power Spectral Density .......................................................................................................... 41 3.5 Peak Excursion ............................................................................................................................... 51 3.6 Transmitter Radiated Bandedge Emissions ..................................................................................... 54 3.7 Transmitter Radiated Unwanted Emissions ..................................................................................... 68 3.8 Frequency Stability........................................................................................................................ 155 4 TEST EQUIPMENT AND CALIBRATION DATA ........................................................................... 157 5 CERTIFICATION OF TAF ACCREDITATION ............................................................................... 159 APPENDIX A. TEST PHOTOS .................................................................................................................. A7 APPENDIX B. PHOTOGRAPHS OF EUT ................................................................................................ B18 FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : 3 of 159 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.203963MHz 29.75 (Margin 23.70dB) - AV 40.76 (Margin 22.69dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:23.73/ 40M:72.64 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz:16.52 5250-5350MHz:18.70 5470-5725MHz:17.73 Power [dBm] 5150-5250MHz:17 5250-5350MHz:24 5470-5725MHz:24 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz:3.50 5250-5350MHz:8.35 5470-5725MHz:4.97 PPSD [dBm/MHz] 5150-5250MHz:4 5250-5350MHz:11 5470-5725MHz:11 Complied 3.5 15.407(a) Peak Excursion 10.29 dB 13 dB Complied 3.6 15.407(b) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 5727.38MHz: 76.80dBm Restricted Bands [dBuV/m at 1m]: 5350.00MHz 81.95 (Margin 1.05dB) - PK 62.58 (Margin 0.96dB) - AV Non-Restricted Bands: ” -27dBm (68.3dBuV…

Text truncated - open the document above for the full version.

FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : 1 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC DFS Test Report Equipment : Wireless module Brand Name : PEGATRON Model No. : UPWL6028F FCC ID : VUIUPWL6028F Standard : 47 CFR FCC Part 15.407 Applicant Manufacturer : PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan DFS Operate Mode : Client without radar detection The product sample received on Aug. 28, 2012 and completely tested on Sep. 17, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in FCC 06-96 Appendix and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : 2 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT ........................................................................................................ 8 2.1 DFS and TPC Information ...................................................................................................................... 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 8 3 DYNAMIC FREQUENCY SELECTION (DFS) TEST RESULT ............................................................. 9 3.1 General DFS Information ....................................................................................................................... 9 3.2 Radar Test Waveform Calibration ........................................................................................................ 11 3.3 In-service Monitoring ............................................................................................................................ 16 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 19 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 20 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : 3 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications (FCC 06-96 Appendix) Report Clause Ref. Std. Clause Description Measured Limit Result - 7.8.1 DFS: UNII Detection Bandwidth Measurement N/A (Client w/o test) 80% of the 99% BW N/A - 7.8.2.1 DFS: Initial Channel Availability Check Time N/A (Client w/o test) CAC ≥ 60 sec N/A - 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A - 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A 3.3 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) CMT < 10sec CMT ≤ 10sec Complied 3.3 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) CCTT < 60 ms CCTT ≤ 60 ms starting at CMT 200ms Complied 3.3 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) NOP > 30 min NOP ≥ 30 min Complied - 7.8.4 DFS: Statistical Performance Check N/A (Client w/o test) Table 5 - 7 (KDB 905462) N/A - 5.8.1 DFS: Uniform Spreading N/A (Client w/o this function) Uniform Spreading for DFS Band N/A 3.1.4 8.1 User Access Restrictions Manufacturer attestation NOT accessible to user DFS controls Complied FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : 4 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FZ281440 Rev. 01 Initial issue of report Nov. 20, 2012 FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : 5 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number 5150-5250 5180-5240 36-48 [4] 5250-5350 a 5260-5320 52-64 [4] 5470-5725 5500-5700 100-140 [7] 5150-5250 n (HT20) 5180-5240 36-48 [4] 5250-5350 5260-5320 52-64 [4] 5470-5725 5500-5700 100-140 [7] 5150-5250 n (HT40) 5190-5230 38-46 [2] 5250-5350 5270-5310 54-62 [2] 5470-5725 5510-5670 102-134 [3] Note 1: IEEE Std. 802.11-2007 modulation consists of IEEE Std. 802.11a-1999. Note 2: IEEE Std. 802.11n-2009 modulation consists of HT20 and HT40 (HT: High Throughput). Then EUT support HT20 and HT40. Note 3: 20dB bandwidth not falls completely or partly within the 5600 MHz to 56…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR281440AN SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Test Fixture FRONT VIEW REAR VIEW

FCC DFS Test Report Report No. : FZ281440 SPORTON INTERNATIONAL INC. Page No. : A1 of A1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos DFS Test
