VUIUPWL6031CWireless module

Manual UNIHAN UPWL6031C FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: VUIUPWL6031C ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Le dispositif pourrait automatiquement cesser d'émettre en cas d'absence d'informations à transmettre, ou une défaillance opérationnelle. Notez que ce n'est pas l'intention d'interdire la transmission des informations de contrôle ou de signalisation…

Text truncated - open the document above for the full version.

Page No. : 22 Module Approval Request Letter Subject: Module Approval Date: 2013/4/16 FCC ID: VUIUPWL6031C Dear Reviewer, We, Sporton International Inc., are authorized by PEGATRON CORPORATION to have their state-of-the-art Wireless module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM4331A0KML1G. 3. The requirement of power supply regulation: The part number of the power regulator is MP2143DJ. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

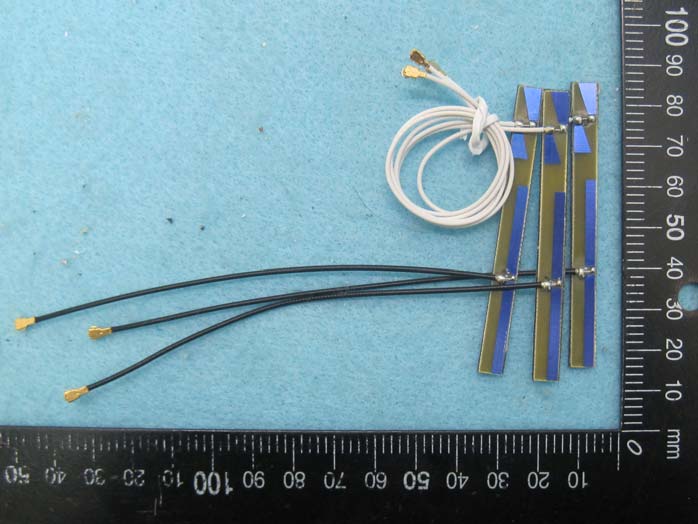

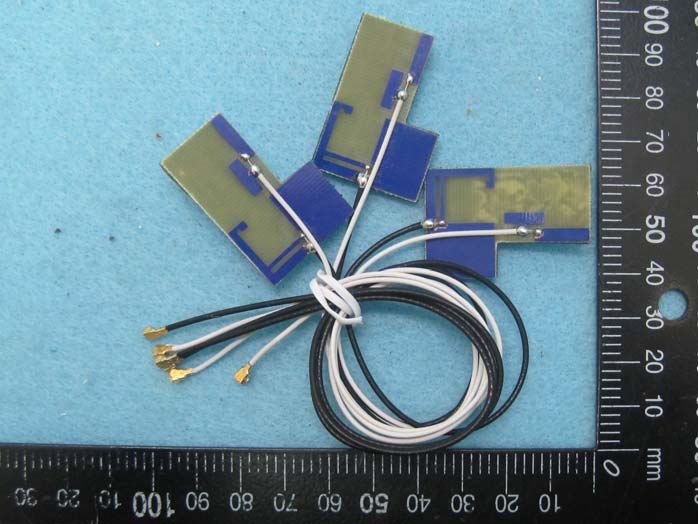

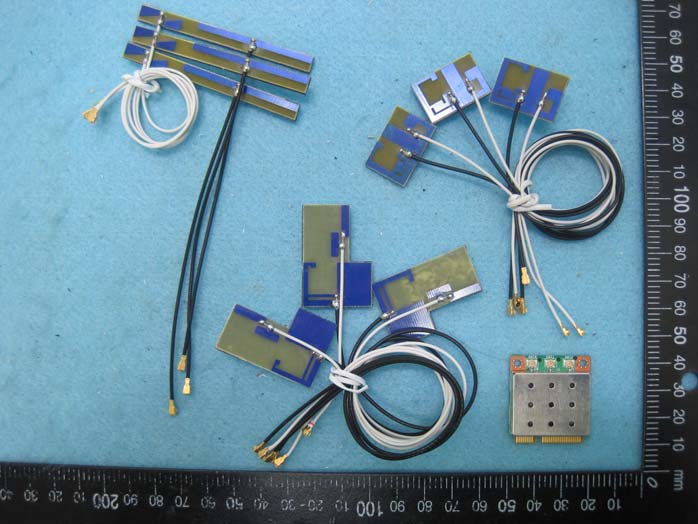

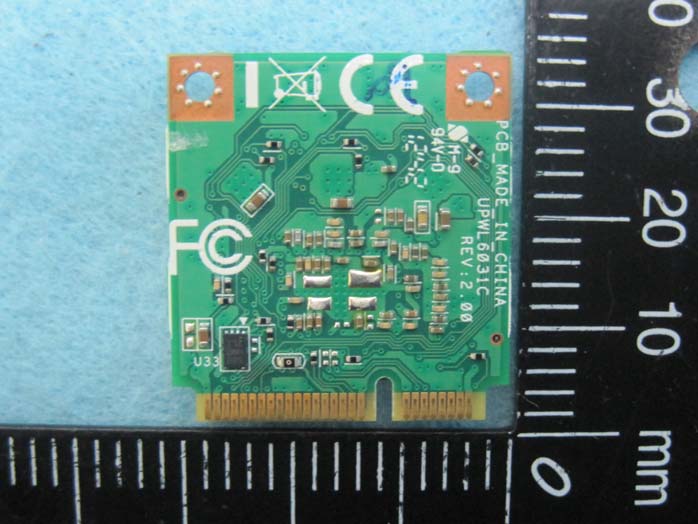

Report No.:320831 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:320831 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Antenna 3 Brand Holder: HL Technology Mode Name:260-26023 Report No.:320831 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Report No.:320831 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Antenna 8 Brand Holder: HL Technology Mode Name:260-26031 Report No.:320831 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Antenna 14 Brand Holder: HL Technology Mode Name:260-26039 Report No.:320831 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255

Report No.:320831 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:320831 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 16, 2013 FAX : 886-2-2696-2255

Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11an 40MHz : 23.72dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.77 1.8923 23.7247 235.7621 0.088802 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 21.46dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.77 1.8923 21.4600 139.9587 0.052717 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 24.58 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.64 2.9107 24.5813 287.1648 0.166373 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan FCC ID VUIUPWL6031C Manufacturer’s company PEGATRON CORPORATION Manufacturer Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan Product Name Wireless module Brand Name PEGATRON Model Name UPWL6031C Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Feb. 08, 2013 Final Test Date Apr. 09, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR320831AA Report Format Version: 01 Page No. : i of ii FCC ID: VUIUPWL6031C Issued Date : Apr. 15, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................19 4.3. Power Spectral Density Measurement ..............................................................................................................................................22 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................37 4.6. Emissions Measurement ....................................................................................................................................................................63 4.7. Antenna Requirements .....................................................................................................................................................................90 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 91 6. TEST LOCATION.............................................................................................................................................. 93 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 Report No.: FR320831AA Report Format Version: 01 Page No. : ii of ii FCC ID: VUIUPWL6031C Issued Date : Apr. 15, 2013 History of This Test Report REPORT NO. …

Text truncated - open the document above for the full version.

Report No.: FZ320831 FCC ID: VUIUPWL6031C Page No. : A1 of A2 Appendix A. Test Photos Report No.: FZ320831 FCC ID: VUIUPWL6031C Page No. : A2 of A2 1. Photographs of Dynamic Frequency Selection Test Configuration FRONT VIEW REAR VIEW

Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode : Mode 2 FRONT VIEW REAR VIEW Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode : Mode 1 FRONT VIEW REAR VIEW Report No.: FR320831 FCC ID: VUIUPWL6031C Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode : Mode 1 FRONT VIEW REAR VIEW
