VUIUPWL6060Wireless module

Page No. : 25 Module Approval Request Letter Subject: Module Approval Date: 2015/4/15 FCC ID: VUIUPWL6060 Dear Reviewer, We, Sporton International Inc., are authorized by PEGATRON CORPORATION to have their state-of-the-art Wireless module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AT93C66B-MAHM-T. 3. The requirement of power supply regulation: The part number of the power regulator is MP2130DG-LF-Z. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

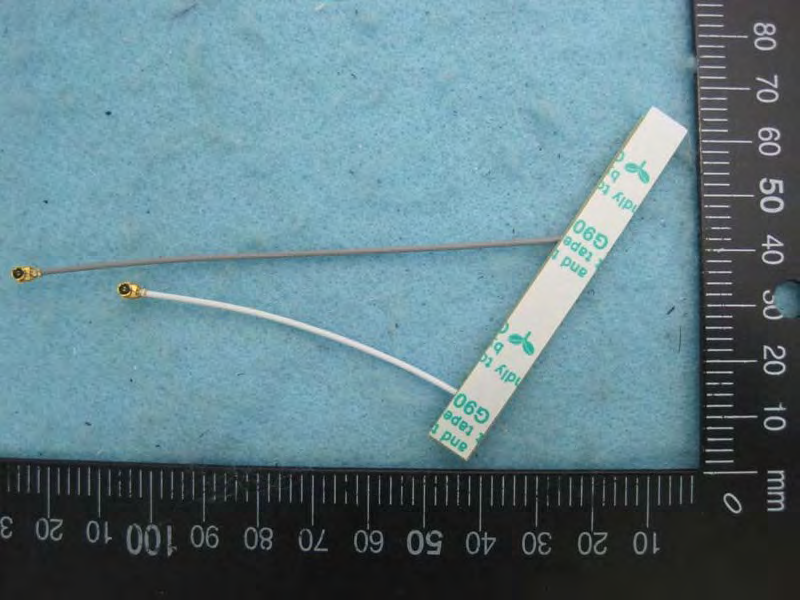

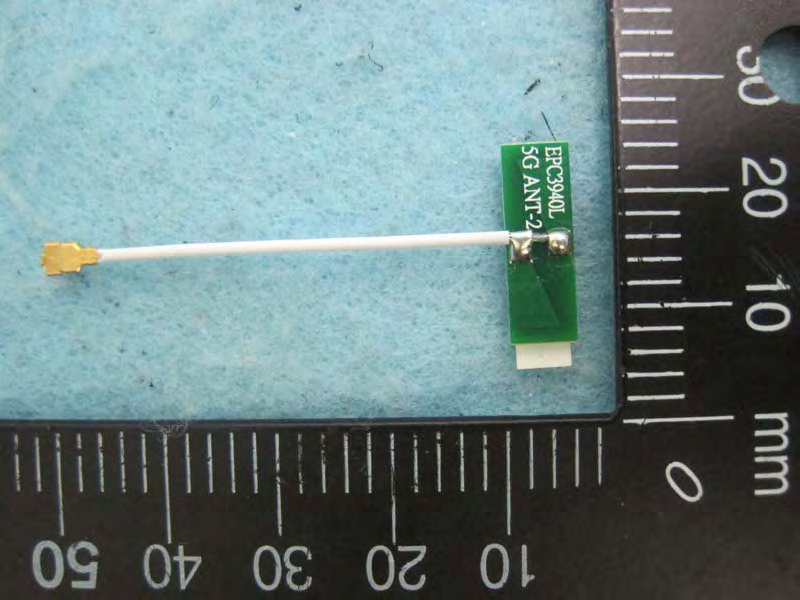

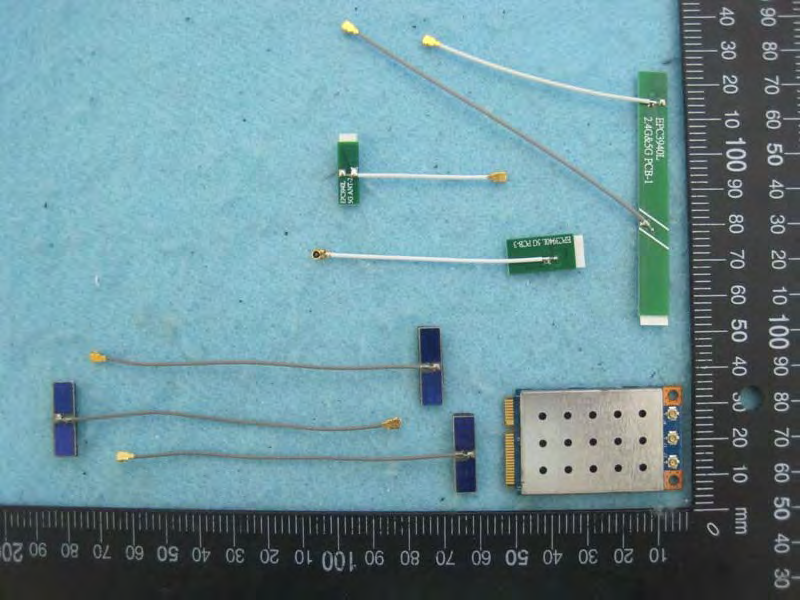

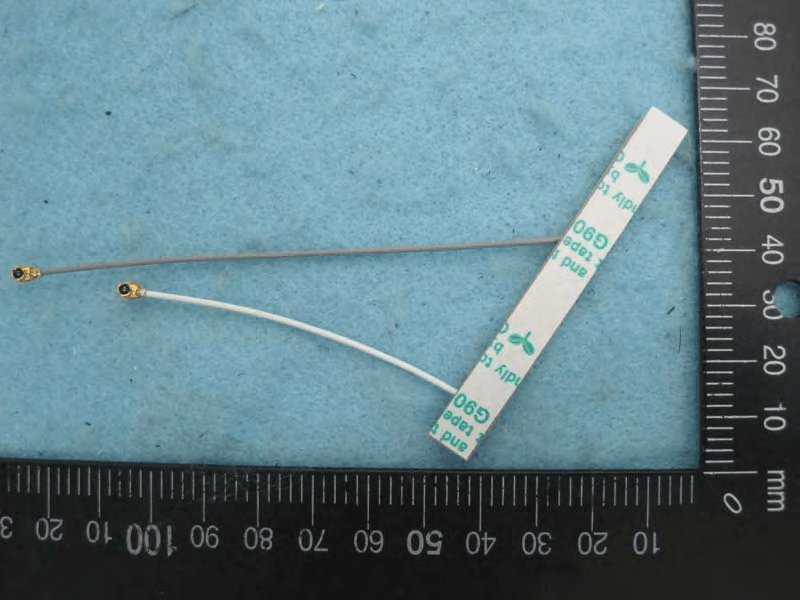

Report No.:532620 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:532620 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Antenna Set 1 Ant.1 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Antenna Set 2 Ant.2 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Antenna Set 2 Ant.3 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Antenna Set 2 Ant.4 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973

Report No.:532620 SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:532620 SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973 Report No.:532620 SPORTON International Inc. PAGE NUMBER : 3 OF 3 TEL : 886-3-327-3456 ISSUED DATE : Apr. 15, 2015 FAX : 886-3-327-0973

Report No.: FA532620AA Report Format Version: 01 Page No. : i of ii FCC ID : VUIUPWL6060 Issued Date : Apr. 15, 2015 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA532620AA Report Format Version: 01 Page No. : ii of ii FCC ID : VUIUPWL6060 Issued Date : Apr. 15, 2015 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA532620AA Rev. 01 Initial issue of report Apr. 15, 2015 Report No.: FA532620AA Report Format Version: 01 Page No. : 1 of 2 FCC ID : VUIUPWL6060 Issued Date : Apr. 15, 2015 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA532620AA Report Format Version: 01 Page No. : 2 of 2 FCC ID : VUIUPWL6060 Issued Date : Apr. 15, 2015 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : PCB Antenna Conducted Power for IEEE 802.11a : 26.26dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5240 2.92 1.9588 26.2579 422.4691 0.164720 1 Complies For 5GHz Band (NII): Antenna Type : PCB Antenna Conducted Power for IEEE 802.11a: 26.01dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5785 2.92 1.9588 26.0141 399.4042 0.155727 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company PEGATRON CORPORATION Applicant Address 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112, Taiwan FCC ID VUIUPWL6060 Manufacturer’s company Maintek Computer (Suzhou) Co., Ltd Manufacturer Address Bldg. 6 NB, 233 Jin Feng Rd, Suzhou District Jiangsu China Product Name Wireless module Brand Name PEGATRON Model No. UPWL6060 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Received Date Jun. 20, 2014 Final Test Date Apr. 01, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR532620AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: VUIUPWL6060 Issued Date : Apr. 15, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. EUT Operation during Test ...................................................................................................................................................................9 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................16 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................27 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................32 4.5. Power Spectral Density Measurement ..............................................................................................................................................35 4.6. Radiated Emissions Measurement ....................................................................................................................................................44 4.7. Band Edge Emissions Measurement .................................................................................................................................................68 4.8. Frequency Stability Measurement ....................................................................................................................................................77 4.9. Antenna Requirements .....................................................................................................................................................................81 5. …

Text truncated - open the document above for the full version.

Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A1 of A9 Appendix A. Test Photos Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A2 of A9 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A3 of A9 CLOSE-UP VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A4 of A9 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A5 of A9 CLOSE-UP VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A6 of A9 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A7 of A9 CLOSE-UP VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A8 of A9 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR532620 FCC ID: VUIUPWL6060 Page No. : A9 of A9 CLOSE-UP VIEW
