VUIUPWL6580Wireless Module

Manual Unihan UPWL6580  Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following i. This device may not cause harmful interference, and ii. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: i. Reorient or relocate the receiving antenna. ii. Increase the separation between the equipment and receiver. iii. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. iv. Consult the dealer or an experienced radio/TV technician for help. CAUTION! You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. No. Ant. Cat. Ant. Type Brand Part No. G ANT (dBi) 1 Integral PCB Wanshih UC3WFI0057 1.99 2 Integral PCB Wanshih UC3WFI0058 2.08 3 Integral PCB Wanshih UC3WFI0090 2.03 4 Integral PCB Airgain N5X20B (6.5cm) 1.70 5 Integral PCB Airgain N5X20B (10cm) 1.70 6 Integral PCB Airgain N5X20SC 1.90  Safety statements Regulatory Information/Disclaimers Installation and use of this device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CAUTION! To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance [20cm] between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.  Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance [20cm] between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. CAUTION! Any changes or modifications not expressly approved in this manual could void your authorization to use this device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  MPE Statement Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal.  FCC Radio Frequency Exposure This device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation – as a mobile or portable device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. In order to comply with the RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than [20cm].  RF Exposure The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated wit…

Text truncated - open the document above for the full version.

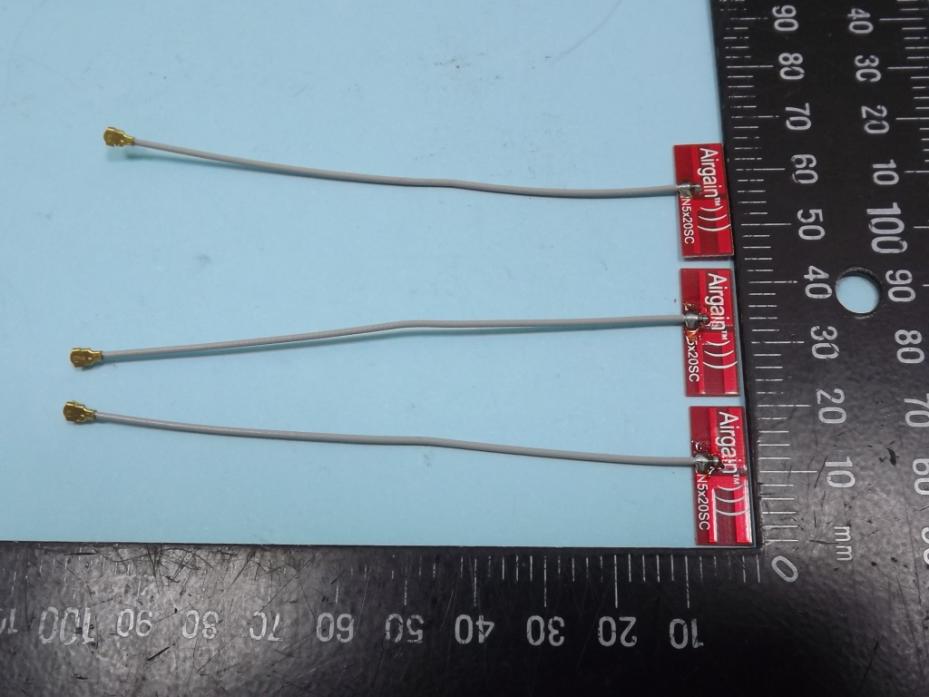

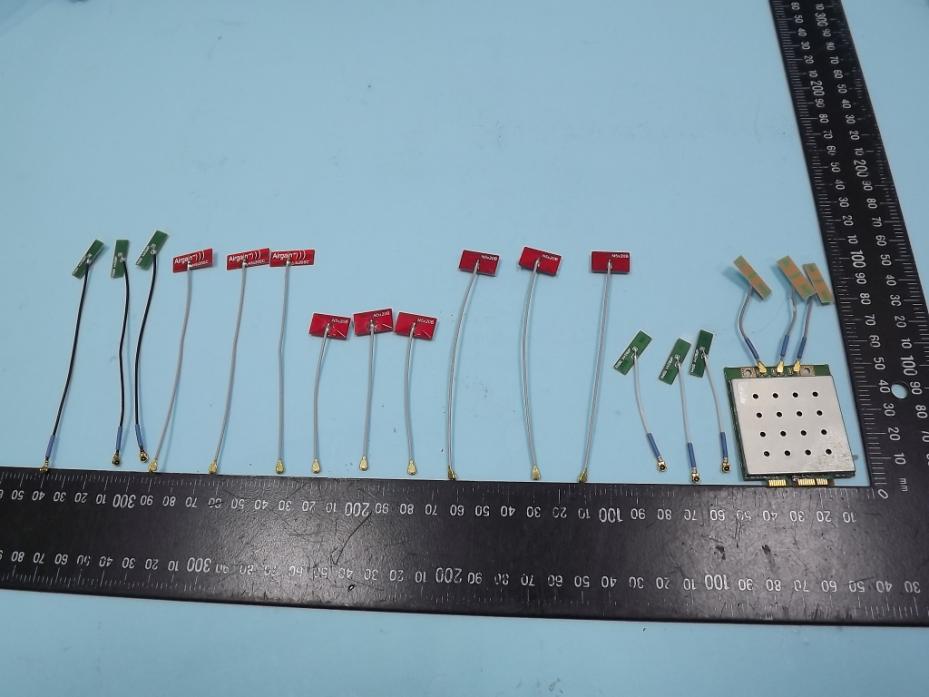

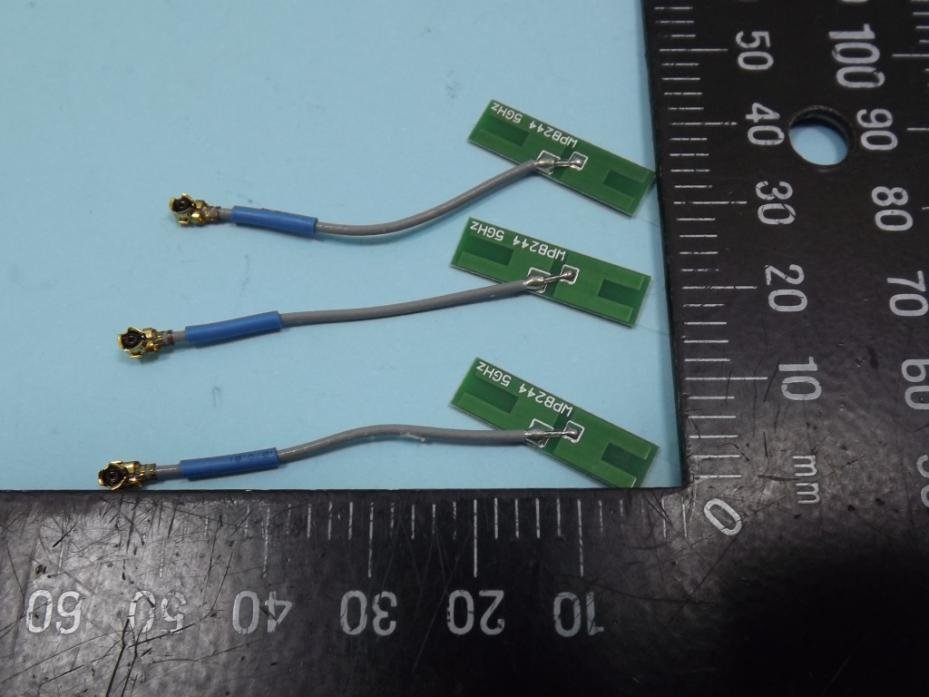

FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0057 Brand: Wanshih Part No.: UC3WFI0058 FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0090 Brand: Airgain Part No.: N5X20B (6.5cm) FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5X20B (10cm) FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5X20SC FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973

label location

Material Made paper Roll Up Example 1.Material:50u Top-coated Polyester Film,Thickness:0.052 0.002mm Glue Type:Embossed white glassine liner,Thickness:0.033 0.003mm 材質：表面處理50番白色特多龍商標紙+格子膠 2.Dimension:15*15mm,R0.5mm 3.Graphic color Pantone Black C 文字印刷黑色 4.The materials are compliant with the limits of ROHS Directive 2002/95/EC and its subsequent amendments 5.In duplicate,Roll up 一式一份，整捲進料 + + SCALE 1:1 Randy Liu DATE v 1/1 1:1 A4 UPWL6580 FCC LABEL UPWL6580 1510-15YC000 2011/10/19 Annie Zhao ~50 50~100 100~150 150~ 0.05 0.10 0.20 0.20 0.10 0.20 0.20 0.30 0.30 0.40 0.40 0.50 Carrie Huang 0.20 FCC ID: VUIUPWL6580 Pegatron Model:UPWL6580 IC : 7582A-UPWL6580 R0.5mm*4 15 mm 15 mm FCC ID: VUIUPWL6580 Pegatron UPWL6580 IC : 7582A-UPWL6580

FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0057 FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Wanshih Part No.: UC3WFI0058 Brand: Wanshih Part No.: UC3WFI0090 FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5X20B (6.5cm) FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5X20B (10cm) FCC RADIO TEST REPORT Report No. : FR272809 SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Oct. 23, 2012 FAX : 886-3-327-0973 Brand: Airgain Part No.: N5X20SC

FCC EMF Test Report Report No. : FR272809 SPORTON INTERNATIONAL INC. Page No. : 1 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FR272809 SPORTON INTERNATIONAL INC. Page No. : 2 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FR272809 SPORTON INTERNATIONAL INC. Page No. : 3 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 23.43 N/A n (HT20) 3 3 Uncorrelated 27.99 N/A n (HT40) 3 3 Uncorrelated 28.10 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 23.43 - - - 23.43 2.08 25.51 0.0708 11N5.8G-20M 3 23.24 23.37 23.05 - 27.99 2.08 30.07 0.2023 11N5.8G-40M 3 23.32 23.62 23.01 - 28.10 2.08 30.18 0.2071 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FR272809 SPORTON INTERNATIONAL INC. Page No. : 4 of 4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.2G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 14.92 N/A n (HT20) 3 3 Uncorrelated 15.34 N/A n (HT40) 3 3 Uncorrelated 16.94 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum Permissible Exposure Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 - Sum Chain Gain (dBi) EIRP Power PD (S) (W/m²) 11A5.2G-20M 1 14.92 - - - 14.92 2.08 17.00 0.0100 11N5.2G-20M 3 10.15 11.26 10.21 - 15.34 2.08 17.42 0.0110 11N5.2G-40M 3 12.30 12.61 11.52 - 16.94 2.08 19.02 0.0159 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : 1 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless module Brand Name : PEGATRON Model No. : UPWL6580 FCC ID : VUIUPWL6580 Standard : 47 CFR FCC Part 15.247 Frequency Range : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant Manufacturer : PEGATRON CORPORATION 5F., NO. 76, LIGONG ST., BEITOU DISTRICT, TAIPEI CITY 112 Taiwan The product sample received on Jul. 30, 2012 and completely tested on Oct. 10, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : 2 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 17 3.3 RF Output Power .................................................................................................................................. 22 3.4 Power Spectral Density ........................................................................................................................ 28 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 31 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 37 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 58 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 60 APPENDIX A. TEST PHOTOS ....................................................................................................................... A7 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B7 FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : 3 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:17.29MHz 36.19 (Margin 13.81dB) - AV 42.23 (Margin 17.77dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 5745-5825MHz(20M): 17.81 5755-5795MHz(40M): 36.96 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5745-5825MHz: 27.99 5755-5795MHz: 28.10 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz] 5745-5825MHz: -1.16 5755-5795MHz: -5.30 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 5717.10MHz: 22.37dB Bandedge emissions not fall in restricted bands. Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 1m]:11570MHz 75.00 (Margin 8.54dB) - PK 62.37 (Margin 1.17dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : 4 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR272809AI Rev. 01…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW EUT FCC RADIO TEST REPORT Report No. : FR272809AI SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up FRONT VIEW REAR VIEW
