VUP-G08001GPS PORTABLE NAVIGATION DEVICE-FM PORTION

YF INTERNATIONAL LIMITED
GPS PORTABLE NAVIGATION DEVICE-FM PORTION - FCC ID VUP-G08001 - YF INTERNATIONAL LIMITED
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jan 28, 2010
Application Purpose
Original Equipment
Date of Application
Jan 28, 2010
Equipment Note
GPS PORTABLE NAVIGATION DEVICE-FM PORTION
Frequency Range
88.10000000 - 107.90000000
Company
YF INTERNATIONAL LIMITED
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

Operational Description

↗

Schematics

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Statement User Manual GPS 84A-53 Thanks for using YF GPS 84A-53! z YF reserves the rights of final interpretation of the manual. z The manual content is subject to change without notice. Please accept our apology for your inconvenience. z Please back up your data of the GPS navigator. YF assumes no responsibility for any loss caused by data loss. z The manual might contain a few mistakes though it has been checked. If mistakes are found, you are welcome to contact the YF customer service center. Operation Instruction Read Me First z Please read the instructions in this manual and use only accessories of YF to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which YF assumes no responsibility. z Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation. Operating the GPS navigator device while driving might cause serious accidents. YF assumes no responsibility for accidents and loss due to improper use. z For information of software update and upgrade, please go to our website www.yfgps.com . z The pictures in the manual are subject to the material object. Contents Welcome.... ......................................................................................................................................1 Chapter I Beginning Use ................................................................................................................2 1.1 Appearance..........................................................................................................................2 1.2 Power Supply & Charging ..................................................................................................3 1.3 Basic Use ............................................................................................................................4 1.4 System Main Interface and Major Functions ......................................................................5 Chapter II GPS................................................................................................................................7 2.1 Map .....................................................................................................................................7 2.2 Navigation ...........................................................................................................................7 2.3 Reception ............................................................................................................................7 Chapter III Media ...........................................................................................................................8 3.1 Music Player .......................................................................................................................8 3.2 Video Player ......................................................................................................................10 3.3 Photo Browser................................................................................................................... 11 3.4 E-book Reader...................................................................................................................13 Chapter IV Bluetooth ...................................................................................................................17 4.1 Pair ....................................................................................................................................17 4.2 Outgoing call.....................................................................................................................18 4.3 Incoming Call....................................................................................................................19 4.4 Dial Record .......................................................................................................................20 4.5 Redial ................................................................................................................................20 4.6 Setting ...............................................................................................................................21 4.7 Paired Device List .............................................................................................................21 4.8 Dailup Networking Service...............................................................................................22 4.9 Search................................................................................................................................23 4.10 Phonebook.......................................................................................................................24 Chapter V Games ..........................................................................................................................26 5.1 Othello...............................................................................................................................26 Chapter VI Tools ...........................................................................................................................27 6.1 Calculator ..........................................................................................................................27 6.2 Unit ...................................................................................................................................27 Chapter VII Setting.......................................................................................................................29 Contents 7.1 Summary ...........................................................................................................................29 7.2 Volume ..........................................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Reply Letter 1. How does this device operate? Answer: Power is provided by DC 3.7V by Battery, Input DC 5V supply by Adaptor, Car Adaptor or USB cable. Frequencies are selected by a left/right using the touch screen on the EUT. 2. Provide information on the device and its antenna. Answer: The antenna is a built-in trace on the circuit board. (Please see the user’s manual and circuit). Please check it. 3. How is it installed? Answer: Plug-in connecter is inserted into the DC 3.7V by Battery, Input DC 5V supply by Adaptor, Car Adaptor or USB cable power source. No other installation is required. 4. What test procedure was used? Answer: ANSI C63.4-2003. 5. If tested in a car, how was it configured/tested? Answer: It is not tested in an automobile. It was tested in a 3-meter test site as shown in the Test Setup Photo. 6. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Answer: Only the frequency bands (88.1-107.9 MHz, channel spacing: 200 KHz) are available. Please check Page 4 of 20 the test report. 7. Was the bandwidth properly tested with maximum audio input? Answer: We play the inside MP3 files of the product with the maximum audio input. 8. Provide the test report. Answer: Please check the supplied test report document. Thank you!

Cover Letter(s)

YF International Limited FCC ID: VUP-G08001 POWER OF ATTORNEY January 19, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, YF International Limited, hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on January 31, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, YF International Limited are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. YF International Limited Chaoxing He Manager

External Photos

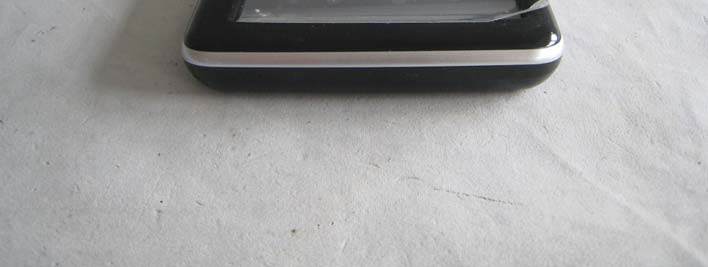

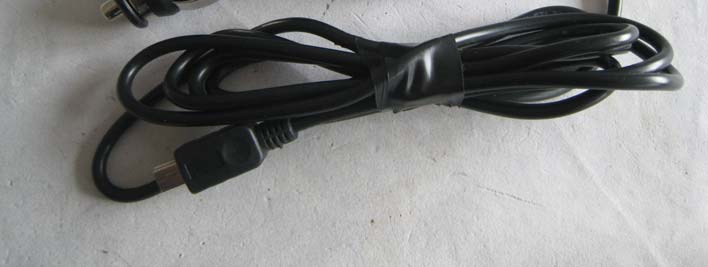

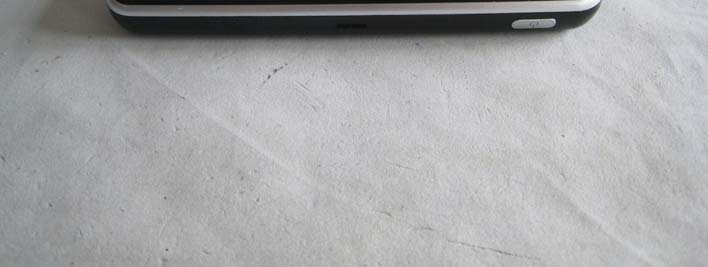

FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 Page 23 of 29 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 PHOTO OF POWER SUPPLY PHOTO OF USB LINE FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 PHOTO OF CAR ADAPTOR PHOTO OF THE ENTIRE SAMPLE

Internal Photos

FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 INTERNAL PHOTO OF POWER SUPPLY-1 INTERNAL PHOTO OF POWER SUPPLY-2

Operational Description

Operation Principle GPS Portable Navigation Device-PA08 1. FM a. Frequency Range:88MHz ~ 108MHz b. MCU control IIC to set FM frequency c. 12MHz crystal d. Power supply:3.3V e. FM antenna is outer power supply cable 2. BT function a. BC04 ROM b. MCU configure BC04 by UART c. Frequency: 2.4GHz d. 26MHz crystal e. Power supply:3.3V f. Built-in antenna 3. GPS a. Frequency:1575.42MHz b. MCU control SPI to configure GPS analog receive IC c. 16.367667MHz crystal d. Power supply:3.3V e. Built-in active ceramic antenna 4. Rear-View a. AV I N b. CVBS display mode c. Power supply:3.3V and 1.8V

Schematics

55 44 33 22 11 D D C C B B A A XOUT XOUTWXINW XIN GND 2,3,4,5,7,8,9,10,11,12,13,14,15,16,17 TitleSize Document Number Rev Date: Sheet of CPU(1) V01 YF Atlas-IV 标准平台(PA08) A 117 Friday, December 04, 2009 TitleSize Document Number Rev Date: Sheet of CPU(1) V01 YF Atlas-IV 标准平台(PA08) A 117 Friday, December 04, 2009 TitleSize Document Number Rev Date: Sheet of CPU(1) V01 YF Atlas-IV 标准平台(PA08) A 117 Friday, December 04, 2009 深圳市远峰计算机技术有限公司 C4 22pF_C0G_5%C4 22pF_C0G_5% R51MR51M C3 15pF_C0G_5%C3 15pF_C0G_5%AT8401 U1A AT8401 U1A X_GPIO0_0 J3 X_GPIO0_1 H4 X_GPIO0_2/SCL_1 H3 X_GPIO0_3/SDA_1 J2 X_GPIO0_4/PWM0/GPS_START U13 X_GPIO0_5/PWM1/GPS_STOP V14 X_GPIO0_6/PWM2/GPS_INT U14 X_GPIO0_7/PWM3 V13 X_GPIO0_8/WARM_RST_B R17 X_GPIO0_9/TMS/EF_CS_B R16 X_GPIO0_10/TDI/EF_DIN R15 X_GPIO0_11/TDO/EF_DOUT P18 X_GPIO0_12/NSRST P17 X_GPIO0_13/RTCK/EF_PGM P16 X_GPIO0_14/NTRST P15 X_GPIO0_15/TCK/EF_SCLK K16 X_GPS_SGN/X_GPIO3_20 G1 X_GPS_MAG/X_GPIO3_21 H2 X_GPS_SAMPLE_CLK/X_GPIO3_22 G2 X_GPS_CLK/X_GPIO4_28 H1 X_CKO_0 U9 X_RESET_B T9 X_PWR_EN R4 X_RTC_ALARM T13 X_XIN U12 X_XOUT V12 X_XINW V8 X_XOUTW V9 X_TEST_MODE[0] R12 X_TEST_MODE[1] T11 X_TEST_MODE[2] R11 X_TEST_MODE[3] T10 X_TEST_MODE[4] R10 X_TEST_MODE[5] R9 X_SCAN_EN R13 X_RXD_0/X_GPIO3_15 R2 X_TXD_0 R1 X_RXD_1/X_GPIO3_16 P4 X_TXD_1 R3 X_SDA_0/X_GPIO3_18 K17 X_SCL_0/X_GPIO3_19 K18 Y112MHz_30ppmY112MHz_30ppm 13 4 2 Y232K768Y232K768 12 3 R7499RR7499R C2 22pF_C0G_5%C2 22pF_C0G_5% C1 15pF_C0G_5%C1 15pF_C0G_5% R62MR62M R8200KR8200K AT8401 U1B AT8401 U1B X_L_PCLK/X_FCE_B A1 X_L_LCK/X_FWE_B A2 X_L_FCK/X_FOE_B B1 X_L_DE/X_FA_[1]/X_GPIO3_23 B2 X_LDD[0]/X_FD[0] C2 X_LDD[1]/X_FD[1] C3 X_LDD[2]/X_FD[2] C1 X_LDD[3]/X_FD[3] D1 X_LDD[4]/X_FD[4] D2 X_LDD[5]/X_FD[5] E1 X_LDD[6]/X_FD[6] E2 X_LDD[7]/X_FD[7] D3 X_LDD[8]/X_FD[8] F1 X_LDD[9]/X_FD[9] F2 X_LDD[10]/X_FD[10] E3 X_LDD[11]/X_FD[11] E4 X_LDD[12]/X_FD[12] F3 X_LDD[13]/X_FD[13] F4 X_LDD[14]/X_FD[14] G3 X_LDD[15]/X_FD[15] G4 X_VIP_PXCLK/X_GPIO4_18 V18 X_VIP_HSYNC/X_GPIO4_17 V17 X_VIP_VSYNC/X_GPIO4_16 U18 X_VIP_PXD[0]/X_GPIO4_15 T17 X_VIP_PXD[1]/X_GPIO4_14 U17 X_VIP_PXD[2]/X_GPIO4_13 T16 X_VIP_PXD[3]/X_GPIO4_12 V16 X_VIP_PXD[4]/X_GPIO4_11 U16 X_VIP_PXD[5]/X_GPIO4_10 T15 X_VIP_PXD[6]/X_GPIO4_9 V15 X_VIP_PXD[7]/X_GPIO4_8 U15 X_VIP_PXD[8]/X_GPIO4_7 T14 X_VIP_PXD[9]/X_GPIO4_6 R14 X_SD_CD_B_1/X_GPIO1_7 J1 X_SD_VCC_ON_1/X_GPIO1_8 K3 X_SD_WP_B_1/X_GPIO1_9 K4 X_SD_CLK_1/X_GPIO1_10 K1 X_SD_CMD_1/X_GPIO1_11 K2 X_SD_DAT_1[0]/X_GPIO1_12 L2 X_SD_DAT_1[1]/X_GPIO1_13 L1 X_SD_DAT_1[2]/X_GPIO1_14 L3 X_SD_DAT_1[3]/X_GPIO1_15 L4 X_CPH_FS_CLK/X_GPIO2_4 R18 X_CPH_CLK/X_GPIO2_3 T18 X_USB_VBUS R5 X_USB_DP V4 X_USB_DN U4 X_USB_ID T5 X_USB_RREFEXT U6 X_USB_TEST_GPANAIO R6 55 44 33 22 11 D D C C B B A A VBATT GND 1,3,4,5,7,8,9,10,11,12,13,14,15,16,17 X_AUX1 Light_Sensor 8 X_AUX0 VBATT 16 TitleSize Document Number Rev Date: Sheet of CPU(2) V01 YF Atlas-IV 标准平台(PA08) A 217 Friday, December 04, 2009 TitleSize Document Number Rev Date: Sheet of CPU(2) V01 YF Atlas-IV 标准平台(PA08) A 217 Friday, December 04, 2009 TitleSize Document Number Rev Date: Sheet of CPU(2) V01 YF Atlas-IV 标准平台(PA08) A 217 Friday, December 04, 2009 深圳市远峰计算机技术有限公司 Near to Atlas-IV 靠近 CPU 放置 靠近 CPU 放置 C7 105_X5R_0402 C7 105_X5R_0402 R10 100K_1% R10 100K_1% C6 104_X7R_10% C6 104_X7R_10% AT8401 U1D AT8401 U1D X_DF_ALE/X_SD_CMD0 B5 X_DF_CLE/X_SD_CLK0 A5 X_DF_RE_B/X_SD_CMD2 C4 X_DF_WE_B/X_SD_CLK2 A4 X_DF_RY_BY B4 X_DF_WP_B/X_SD_VCC_ON0 D4 X_DF_AD[0]/X_SD_DAT_0_2[0] D5 X_DF_AD[1]/X_SD_DAT_0_2[1] C5 X_DF_AD[2]/X_SD_DAT_0_2[2] D6 X_DF_AD[3]/X_SD_DAT_0_2[3] A6 X_DF_AD[4]/X_SD_DAT_0_2[4] C6 X_DF_AD[5]/X_SD_DAT_0_2[5] B6 X_DF_AD[6]/X_SD_DAT_0_2[6] D7 X_DF_AD[7]/X_SD_DAT_0_2[7] C7 X_SD_CLK_3/X_GPIO1_2 M1 X_SD_CMD_3/X_GPIO1_3 M2 X_SD_DAT_3[0]/X_SPI_EN_0/X_GPIO1_28 M3 X_SD_DAT_3[1]/X_SPI_CLK_0/X_GPIO1_29 M4 X_SD_DAT_3[2]/X_SPI_DIN_0/X_GPIO1_0 N2 X_SD_DAT_3[3]/X_SPI_DOUT_0/X_GPIO1_1 N3 X_DF_CS_B[0] A3 X_DF_CS_B[1] B3 X_USCLK_0/I2S_EXTCLK/X_GPIO0_18 V1 X_UTXD_0/X_GPIO0_19 T1 X_URXD_0/X_GPIO0_20 U1 X_UTFS_0/USB1_UTMI_DRVVBUS/X_GPIO0_21 U2 X_URFS_0/I2S_DOUT[1]/X_GPIO0_22/RTS_0 V2 X_USCLK_1/X_GPIO0_23 V3 X_UTXD_1/X_GPIO0_24 U3 X_URXD_1/X_GPIO0_25 T2 X_UTFS_1/X_GPIO0_26 T3 X_URFS_1/I2S_DOUT[2]/X_GPIO0_27/CTS_0 T4 X_CKO_1/I2S_MCLK/X_GPIO1_20 N1 X_AC97_BIT_CLK/I2S_BCLK P1 X_AC97_SYNC/I2S_LRCLK P3 X_AC97_DIN/I2S_DIN P2 X_AC97_DOUT/I2S_DOUT[0] N4 X_XN N18 X_XP N17 X_YN L18 X_YP L17 X_AUX0 L16 X_AUX1 N16 X_AUX2 M15 R12 10K R12 10K C8 DNP 105_X5R_0402 C8 DNP 105_X5R_0402 R11 100K_1% R11 100K_1% AT8401 U1C AT8401 U1C X_MCS_B[0] H18 X_MCLK_O A11 X_MCLKB_O B11 X_MCKE J15 X_MRAS_B J16 X_MCAS_B J17 X_MWE_B J18 X_M_BA[0] C10 X_M_BA[1] C11 X_MA[0] A7 X_MA[1] B8 X_MA[2] B7 X_MA[3] A8 X_MA[4] C9 X_MA[5] C8 X_MA[6] B10 X_MA[7] D8 X_MA[8] B9 X_MA[9] A10 X_MA[10] D9 X_MA[11] D10 X_MA[12] A9 X_MD[0] B12 X_MD[1] D14 X_MD[2] C12 X_MD[3] C13 X_MD[4] D12 X_MD[5] D13 X_MD[6] A12 X_MD[7] A13 X_MD[8] A14 X_MD[9] C15 X_MD[10] B14 X_MD[11] A15 X_MD[12] B15 X_MD[13] A16 X_MD[14] C16 X_MD[15] D16 X_MD[16] B17 X_MD[17] B18 X_MD[18] C18 X_MD[19] C17 X_MD[20] D18 X_MD[21] D17 X_MD[22] E16 X_MD[23] E17 X_MD[24] F18 X_MD[25] G17 X_MD[26] G16 X_MD[27] F15 X_MD[28] F17 X_MD[29] G18 X_MD[30] H17 X_MD[31] H16 X_MDQM[0] C14 X_MDQM[1] B16 X_MDQM[2] F16 X_MDQM[3] H15 X_MDQS[0] B13 X_MDQS[1] D15 X_MDQS[2] E18 X_MDQS[3] G15 R9 33R R9 33R C5 105_X5R_0402 C5 105_X5R_0402 RA21 33R RA21 33R 1 8 2 7 3 6 4 5 R135.1K_1%R135.1K_1% 55 44 33 22 11 D D C C B B A A VDD_TSCREF25 VDD_IO VDD_IO_LCD VDD_IO_NAND VDD_USBA33VDD_TSCA25VDD_TSCIO25VDD_TSCD12 VDD_RTC VDD_PREVDD_PDN VDD_USBA25VDD_PLLDVDD_PLLA2VDD_PLLA1 VDD_LVR VDD_RTCIOVDD_PLLIOVDD_REFVDD_SSTLIO VDD_LVRVDD_RTCIOVDD_PREVDD_SSTLIOVDD_REFVDD_IOVDD_IO_LCDVDD_IO_NANDVDD_PLLIOVDD_PDNVDD_TSCD12VDD_PLLDVDD_PLLA1VDD_PLLA2VDD_TSCREF25VDD_TSCA25VDD_TSCIO25VDD_USBA25VDD_USBA33 VDD_Q VDD_RTCIO VDD_PRE VDD_REF VDD_IO VDD_IO_NAND VDD_PLLIO VDD_IO_LCD VDD_PDN VDD_TSCD12 VDD_PLLD VDD_PLLA1 VDD_PLLA2 VDD_Q VDD_USBA33 VDD_TSCREF25 VDD_TSCA25 VDD_TSCIO25 VDD_USBA25 VDD_SSTLIO GNDA GNDA_TSCGNDA_USB GNDA_TSCGNDA_USBGNDA GNDA_U…

Text truncated - open the document above for the full version.

Test Report

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : YF International Limited Address : 17th Floor, Zhongke Building, China Academy of Science& Tech Development, High Tech South Street 1, Shenzhen, China, 518057 Product Name: GPS Portable Navigation Device Model Name: 84A-53, 84A-1, 84A-2, 84A-3, 84A-4, 84A-5, 84A-6, 84A-7, 84A-8, 84A-9, 84A-54, 84A-56, 84A-57, 84A-58, 84A-59, PA08-6001, HD5001, KMG 2902, KMG 2907 Brand Name : N/A FCC ID : VUP-G08001 Report No. : MOST/STS091207F2 Date of Issue : January 18, 2010 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: VUP-G08001 Report No.: MOST/STS091207F2 Page 2 of 20 TABLE OF CONTENTS 1.VERIFICATION OF CONFORMITY .............................................................................................................. 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST FACILITY.............................................................................................................................................. 6 4. TEST EQUIPMENT LIST ............................................................................................................................... 7 5. 47 CFR Part 15 C Requirements.................................................................................................................... 8 5.1 26dB Bandwidth ........................................................................................................................................... 8 5.1.1 Definition ................................................................................................................................................... 8 5.1.2 Test Description ......................................................................................................................................... 8 5.1.3 Test Result................................................................................................................................................. 8 5.2 Frequency Range....................................................................................................................................... 10 5.2.1 Definition ................................................................................................................................................. 10 5.2.2 Test Description ....................................................................................................................................... 10 5.2.3 Test Result............................................................................................................................................... 10 5.3.1 Definition ..................................................................................................................................................11 5.3.2 Test Configuration ................................................................................................................................... 12 5.3.3 Test Description ....................................................................................................................................... 13 5.3.4 Test Result............................................................................................................................................... 13 5.4 Conducted Emission .................................................................................................................................. 16 5.4. 1 Definition ................................................................................................................................................ 16 5.4. 1 Block Diagram of Test Setup .................................................................................................................. 16 5.4. 2 Preliminary Procedure of Line Conducted Emission Test ....................................................................... 17 5.4.3 Final Procedure of Line Conducted Emission Test .................................................................................. 17 5.4.4 Test Result of Line Conducted Emission Test.......................................................................................... 18 5.5 Antenna Requirement........................................................................................................ ......................... 20 5.5.1 Definition ................................................................................................................................................. 20 5.5.2 Evaluation Procedure .............................................................................................................................. 20 5.5.3 Evaluation …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 Radiated Emission Test Setup FCC ID: VUP-G08001 Report No.: MOST/STS091207F3 Conducted Emission Test Setup

Contact Information

Applicant

XING YE(ENGINEER)
[email protected]86-755-26995946Fax: 86-755-26995947

Test Firm

Most Technology Service Co., Ltd.Mark Wen
[email protected]86-755-86170306Fax: 86-755-86170310

Technical Specifications

#Rule PartsFrequency RangePower Output
115C88.1 MHz - 107.9 MHz-
