VUP-N43C302BBLUETOOTH GPS NAVIGATION

User Manual 1 NOTICE USING YOUR NAVIGATOR at the first time 1. Charge completely 2. Install into your vehicle 3. Initialize software as described in the manual 4. Make sure that the car is outside the garage and it is not covered by anything (treed, bridges, etc) 5. Normally it takes a bit longer to receive the GPS signal the first time you turn on the unit. Your device has to locate 3 satellites to function. This time to find the satellites is significantly shorter after the first time you use the device. If you move your unit over 300km without it being used, it may need a little more time to locate the satellites again. 2 Introduction This manual is a complete instruction for the device. Please read this manual carefully before using. Contents: Safety and Regulatory Information 1. Getting Started 1.1 Unpacking 1.2 Over View 1.3 Using Your Device in a Vehicle 1.3.1 Using the Car bracket 1.3.2 Connecting the Car Charger 1.4 Starting up 1.5 Power saving 2.Main Menu Selection 2.1 Navigation 2.2 Media 2.2.1 Music 2.2.2 Photo 2.2.3Ebook 2.2.4 Mp4 2.3 Bluetooth 2.4 System 3 Safety and Regulatory Information Important Safety Notices and Warnings Global Positioning System The Global Positioning System (GPS) is a satellite-based system that provides location and timing information around the Globe. GPS is operated and controlled under the sole responsibility of the Government of the United States of America, who are responsible for its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of your device .We cannot accept any liability for the availability and accuracy of GPS. Precautions and Notices For your own safety, do not operate the controls of the product while driving. Use this product prudently. The product is intended to be used only as a navigation aid. It is not for precise measurement of direction, distance, location or topography. The calculated route is for references only. It is the user's responsibility to follow the traffic signs and local regulations along the roads When you get off the car, do not leave your device on the dashboard or the car glass that is subject to direct sunlight. The overheating of the battery can cause malfunction and /or danger. GPS is operated by the United States government, which is solely responsible for the performance of GPS. Any change to the GPS system can affect the accuracy of all GPS equipments. GPS satellite signals can not pass through solid materials (except glass).When you are inside a tunnel or building, GPS positioning is not available. A minimum of 4 GPS satellite signals is needed to determine current GPS position. Signal reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees and tall buildings) The wireless devices might interfere the reception of satellite signals and cause the reception of the signal to be unstable. For better signal reception, it is recommended that you use a car antenna (option) Aircraft and Hospitals Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many other locations. The device must not be used in these environments. 4 1. Getting Started 1.1 Unpacking Unpack your device box and identify the contents. You should have: (1) Unit. Its main features are a touch-sensitive LCD screen, 1 SD card slot, 1 volume control switch. Details see the photo below. (2) Holderto hold the device. (3) Bracket, its main features is to fix the device on a car . (4) Car Charger. With 12V cigarette lighter adapter. This is the normal way of providing power to your device when it's in your vehicle. (5) AC adapter (Option), included for you to charge and work with your device even when It's not in your vehicle. When you use the adapter, please make sure it is cooled by placing it in a ventilated area. (6) USB data cable for connecting your device to a Windows PC (7) User Manual. *Note: please check optional accessories with local retailer/importer/distributor. 1.2 Over View 5 (1) Charger Indicator Light (2) Power Switch (3) External GPS Antenna Connector (4)Speaker (5)SD Card Slot: for accessing data as maps. Note: Before using GPS navigation software and maps, you need to insert the storage Card included with your device. Do not remove the card during GPS operation. (6)Earphone Jack (7)Reset Key (8)USB Connector Do not expose the device to high temperatures. We recommend that you do not leave the device in direct sunlight for long periods or in an unattended car on sunny days. High temperatures can cause permanent damage. Do not attempt to service the device yourself! Do not open, puncture or disassemble it. Doing so may be dangerous and will invalidate your warranty. 1.3 Using Your Device in a Vehicle A stand and a car charger are supplied with your device. 1.3.1 Using the Car Bracket Caution: -- Select an appropriate location for the stand. Never place the stand where the driver's field of vision is blocked. -- If the car's windshield is tinted with a reflective coating, an external antenna (optional) may be needed to route the roads. The external antenna is stick to the top of the car through a window. When closing the car window, be careful not to pinch the antenna cable (Cars with an anti-jam window design may automatically leave adequate space as needed.). 1.3.2 Connecting the Car Charger The car charger supplies power to your device when you are using the device in a car. Caution: To protect your device against sudden surges in current, connect the car charger only after the car engine has been started. Connect one end of the car charger to the power connector of your device. Connect the other end to the cigarette lighter in the car to power and charge your device. 6 1.4 Starting up Insert the supplied SD card (optional) into the slot at the bottom of device. Tap "OK "then enter into the "Main Function Operation Screen " as below. Then select the functions you need and t…

Text truncated - open the document above for the full version.

Enternal Photographs EUT - Front View EUT - Rear View

FCC ID Label Sample for FCCID: VUP-N43C302B FCCID: VUP-N43C302B Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

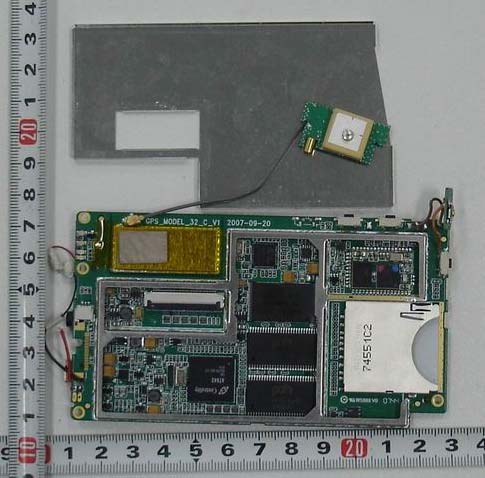

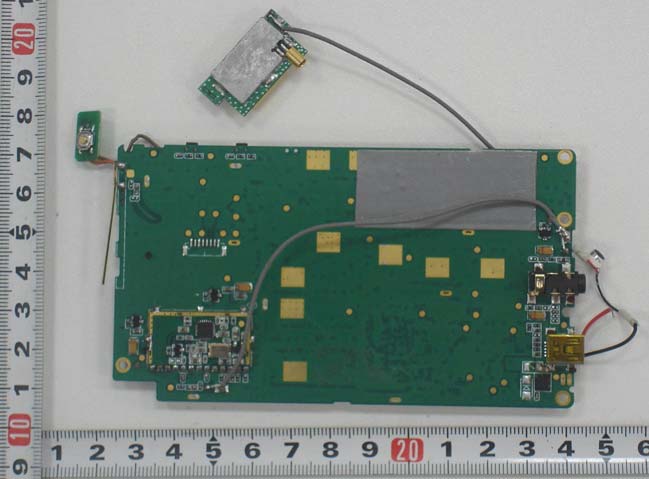

Internal Photographs EUT – Uncover View EUT – PCB View

GPS_MODEL_32_C技术参数 第 1 页 / 共 2 页 GPS_MODEL_32_C CPU Centrality Atlas-III AT642D/372MHz FLASH 64Mbytes SDRAM 64Mbytes LCD 4.3inch(16:9) 64K TFT TSP Touch Screen Supported USB USB Client 2.0, Full speed (12Mbps), Mini Slot With USB Mass Storage Function or ActiveSync SD SD / Multimedia Card Slot FM Transmitter /TMC Option Bule Tooth Hand free with Echo Cancellers(Option) Audio Mono 1W@8ohm or 2W@4ohm Speaker Stereo 20 mW/32ohm Headphone Button 1 Buttons GPS Receiver Module and Antenna Built In External Antenna Connector YES GPS Sensitivity: Tracking:-161dBm(11dB-Hz) Hot Start:-146 dBm(24dB-Hz) Warm Start: -146 dBm(24dB-Hz) Cold Start: :-146 dBm(24dB-Hz) Reacquisition: :-156 dBm(16dB-Hz) GPS_MODEL_32_C技术参数 第 2 页 / 共 2 页 Battery 1100~2000mAH/3.7V Li rechargeable battery Charging current=500~550mA Charging 5V DC Power Jack AC Adapter 120/230V universal AC/DC adapter Car Adapter 12VDC to 5VDC 2A LED Status Blue Tooth LED Adapter plug in and Battery Charging (Red LED On, Green LED Off) Adapter plug in and Battery Full(Red LED Off, Green LED On) Temperature Operating: 0 °C to 60 °C Storage: -20 °C to 60 °C Dimensions TBD(similar to LCD) O/S WinCE.Net 5.0 Core Language … Simplified Chinese Character + English … Traditional Chinese + English … Italy、France 、Spanish、Germany、Portugal、Nertherland、 Denmark、Sweden、Norway、Greece Navigation Software Third Party Video Player WMV9, DIVX 5.0, 4.0, 3.11, XVID and MPEG2 up to 480*272 resolutions Audio Player WMA9, MP3 up to 320k bps and WAV Photo Viewer JPG, GIF, BMP and PNG Ebook Reader TXT System Setting Backlight/Date Time/Volume/Power/Sys Info OS update via SD card AP update via SD card Logo update via SD card

Schematic Diagram FCCID: VUP-N43C302B Model No.: N43C302B -32C-2 5 5 4 4 3 3 2 2 1 1 DD CC BB AA TSPY_9712 LOUTN TSMX_9712TSMY_9712 LOUTP TSPX_9712 AC97_RST_B IRQ_9712 HPOUTL HPOUTR AC97_DO_9712 VO2 LOUTN LOUTP VO1 AC97_SYNC_9712 AC97_DI_9712 FM_RIGHT FM_LEFT FM_LEFT FM_RIGHT VDD_AUDIO VDD_AUDIO VDD_AUDIO VDDPA VDD_AUDIO DGND DGND DGND VDDPA DGND DGND DGND DGND DGND VDDIOVDD_AUDIO DGND VCC_AUDIO VCC_AUDIO VCC_AUDIO VCC_AUDIO DGND DGND DGND DGND DGND DGND DGNDDGND DGND DGND DGND DGND DGND VBATT DGND X_RXD12 TSPX9 X_SCLK12 TSMY9 TSMX9 X_TFS12 CODEC_RST2 X_TXD12 TSPY9 X_GPIO42 X_GPIO232 PA_SD2 BT_SPK_P11 BT_SPK_N11 TMC_AUDIO_R10 TMC_AUDIO_L10 CODEC_ON2 VDDIO8,9,10,13 VBATT13 VDDPA15 Title SizeDocument NumberRev Date:Sheet of V1 B 615Monday, October 08, 2007 Title SizeDocument NumberRev Date:Sheetof V1 B 615Monday, October 08, 2007 Title SizeDocument NumberRev Date:Sheetof V1 B 615Monday, October 08, 2007 X_SCLK1==AC97_BITCLK X_TXD1==AC97_DADATA X_RXD1==AC97_ADDATA X_TFS1==AC97_FRAM_SYNC + TC247uF/6V3 + TC247uF/6V3 12 R441K5R441K5 C60 220pF C60 220pF R5915K_1%R5915K_1% C80105C80105 C74 475 C74 475 C84105C84105 V RV1 MLVS0402E10 V RV1 MLVS0402E10 C81105C81105 R49 10K R49 10K R5047KR5047K C75 104 C75 104 C123474(DNP)C123474(DNP) CON1 KJ-327A-X1 CON1 KJ-327A-X1 L 4 SW 3 COM 1 R 2 SL 5 R45 10K R45 10K R52499RR52499R R5815K_1%R5815K_1% R51 22.1K_1% R51 22.1K_1% RP122RRP122R 18 27 36 45 R57 4K7 R57 4K7 + TC4 47uF/10V + TC4 47uF/10V 1 2 C78 102 C78 102 R561K5R561K5 R41 100K R41 100K H18 PAD_SPK+(DNP) H18 PAD_SPK+(DNP) 1 U8 DNP U8 DNP /SHUTDN 1 NC 2 IN+ 3 IN- 4 Vo+ 5 VDD 6 GND1 7 Vo- 8 GND2 9 C66 104 C66 104 C76 104 C76 104 C64 104 C64 104 U9 EUA6204JIR1 U9 EUA6204JIR1 /SHUTDN 1 NC 2 IN+ 3 IN- 4 Vo+ 5 VDD 6 GND1 7 Vo- 8 GND2 9 Y3 24.545MHz Y3 24.545MHz 13 4 2 C67 22pF(C0G) C67 22pF(C0G) + TC1 10uF/10V + TC1 10uF/10V 1 2 R430RR430R U7 WM9715LGEFL U7 WM9715LGEFL DBVDD 1 XIN 2 XOUT 3 DGND1 4 SDATA_OUT 5 BIT_CLK 6 DGND2 7 SDATA_IN 8 DCVDD 9 SYNC 10 /RESET 11 AUX4 12 TPVDD 13 X+/BR 14 Y+/TR 15 X-/TL 16 Y-/BL 17 TPGND 18 PCBEEP 19 PHONE 20 MIC1 21 MIC2 22 LINEINL 23 LINEINR 24 AVDD 25 AGND 26 VREF 27 MICBIAS 28 COMP1/AUX1 29 COMP2/AUX2 30 BMON/AUX3 31 CAP2 32 MONOOUT 33 SPKGND 34 LOUT2 35 ROUT2 36 OUT3 37 SPKVDD 38 HPOUTL 39 HPGND2 40 HPOUTR 41 AGND2 42 HPVDD 43 GPIO1 44 IRQ/GPIO2 45 PENDET/GPIO3 46 MASK/GPIO4 47 SPDIF/GPIO5 48 GND 49 PAD1 50 PAD2 51 PAD3 52 PAD4 53 PAD5 54 PAD6 55 PAD7 56 PAD8 57 R4722RR4722R+ TC347uF/6V3 + TC347uF/6V3 12 C70 104 C70 104 R53 82.5K_1% R53 82.5K_1% G S D Q1MI2305 G S D Q1MI2305 1 23 C69 104 C69 104 C136474(DNP)C136474(DNP) C68 22pF(C0G) C68 22pF(C0G) FB3BLM18PG121SN1FB3BLM18PG121SN1 R421RR421R FB2BLM18PG121SN1FB2BLM18PG121SN1 C77 102 C77 102 R48 10K R48 10K R4622RR4622R C71 104 C71 104 C83105C83105 C79 475/10V C79 475/10V TP3VDD_AUDIO(DNP)TP3VDD_AUDIO(DNP) 1 C72 475 C72 475 C82105C82105 R54DNPR54DNP TP12 FM_ANT TP12 FM_ANT 1 L5 2.2uH_5% L5 2.2uH_5% C85105C85105 R5510KR5510K H17 PAD_SPK-(DNP) H17 PAD_SPK-(DNP) 1 C61 220pF C61 220pF

Test Report of FCC Part 15 C for FCC Certificate On Behalf of YF INTERNATIONAL LIMITED Product description: Bluetooth GPS Navigation Model No.: YFN43C302B-32C-2 FCC ID: VUP-N43C302B Prepared for: YF INTERNATIONAL LIMITED 7th Fl., China Academy of Science &Technology Development, High Tech South Street 1, Shenzhen, GuangDong, China Prepared by: Bontek Compliance Laboratory Ltd Rm 802~804, 8/F, Jinmin Bld., Zizhu 6 th Rd.,Zhuzi Lin, Futian, Shenzhen 518040, P.R. China. Tel: 86-755-82871080 Fax: 86-755-82871368 Report No.: BCT07KR-731E Issue Date: December 14, 2007 Test Date: November 28~December 13, 2007 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1. GENERAL INFORMATION....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S)..................................................................................................................4 1.3 TEST METHODOLOGY...........................................................................................................................................5 1.4 TEST FACILITY......................................................................................................................................................5 2. SYSTEM TEST CONFIGURATION......................................................................................................................6 2.1 EUT CONFIGURATION..........................................................................................................................................6 2.2 EUT EXERCISE....................................................................................................................................................6 2.3 GENERAL TEST PROCEDURES.............................................................................................................................6 2.4 LIST OF MEASURING EQUIPMENTS USED............................................................................................................7 3. SUMMARY OF TEST RESULTS...........................................................................................................................8 4. ANTENNA REQUIREMENT...................................................................................................................................9 4.1 STANDARD APPLICABLE.......................................................................................................................................9 4.2 ANTENNA CONNECTED CONSTRUCTION..............................................................................................................9 5. TEST OF CONDUCTED EMISSION...................................................................................................................10 5.1 APPLICABLE STANDARD.....................................................................................................................................10 5.2 TEST SETUP DIAGRAM.......................................................................................................................................10 5.3 INSTRUMENT SETTING........................................................................................................................................10 5.4 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................11 5.5 TEST PROCEDURE..............................................................................................................................................11 5.6 TEST DATA.........................................................................................................................................................11 6. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................14 6.1 APPLICABLE STANDARD.....................................................................................................................................14 6.2 EUT SETUP........................................................................................................................................................14 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................14 6.4 TEST PROCEDURE..............................................................................................................................................14 6.5 TEST RESULT.....................................................................................................................................................14 7. TEST OF HOPPING CHANNEL SEPARATION...............................................................................................17 7.1 APPLICABLE STANDARD.....................................................................................................................................17 7.2 EUT SETUP........................................................................................................................................................17 7.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................17 7.4 TEST PROCEDURE..............................................................................................................................................17 7.5 TEST RESULT.....................................................................................................................................................17 8. TEST OF NUMBER OF HOPPING FREQUENCY...........................................................................................19 8.1 APPLICABLE STANDARD.........................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
