VW4A0906642.4GHz, 802.15.4/Zigbee OEM- Module

8226C–MCU Wireless–09/10 ZigBit™ 2.4 GHz Wireless Modules .................................................................................................................... ATZB-24-A2/B0 Datasheet ZigBit™ 2.4 GHz Wireless Modules1-2 8226C–MCU Wireless–09/10 ZigBit™ 2.4 GHz Wireless Modulesi 8226C–MCU Wireless–09/10 Table of Contents Section 1 1.1Summary............................................................................................................................ 1-1 1.2Applications........................................................................................................................ 1-1 1.3Key Features...................................................................................................................... 1-2 1.4Benefits .............................................................................................................................. 1-2 1.5Abbreviations and Acronyms ............................................................................................. 1-2 1.6Related Documents ...........................................................................................................1-4 Section 2 2.1Overview ............................................................................................................................ 2-5 Section 3 3.1Electrical Characteristics.................................................................................................... 3-7 3.1.1Absolute Maximum Ratings ................................................................................. 3-7 3.1.2Test Conditions.................................................................................................... 3-7 3.1.3RF Characteristics ............................................................................................... 3-8 3.1.4ATmega1281V Microcontroller Characteristics ................................................... 3-8 3.1.5Module Interfaces characteristics ........................................................................ 3-8 3.2Physical/Environmental Characteristics and Outline ......................................................... 3-9 3.3Pin Configuration ............................................................................................................. 3-11 3.4Mounting Information ....................................................................................................... 3-15 3.5Sample Antenna Reference Designs............................................................................... 3-16 3.5.1General recommendations ................................................................................ 3-17 3.6Antenna specifications ..................................................................................................... 3-18 3.6.1ATZB-24-B0....................................................................................................... 3-18 3.6.2ATZB-24-A2....................................................................................................... 3-20 Section 4 4.1UNITED STATES (FCC).................................................................................................. 4-22 4.2EUROPEAN UNION (ETSI)............................................................................................. 4-23 4.3Approved Antenna List..................................................................................................... 4-24 Section 5 5.1Ordering Information ........................................................................................................5-25 ZigBit™ 2.4 GHz Wireless Modules1-1 8226C–MCU Wireless–09/10 Section 1 Introduction 1.1Summary ZigBit ™ is an ultra-compact, low-power, high-sensitivity 2.4 GHz IEEE 802.15.4/ZigBee ® OEM module based on the innovative Atmel’s mixed-signal hardware platform. It is designed for wireless sensing, control and data acquisition applications. ZigBit modules eliminate the need for costly and time-consum- ing RF development, and shortens time to market for a wide range of wireless applications. Two different versions of 2.4 GHz ZigBit modules are available: ATZB-24-B0 module with balanced RF port for applications where the benefits of PCB or external antenna can be utilized and ATZB-24-A2 module with dual chip antenna satisfying the needs of applications requiring integrated, small-footprint antenna design. 1.2Applications ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self- organizing mesh network, while optimizing network traffic and minimizing power consumption. Atmel offers two stack configurations: BitCloud and SerialNet. BitCloud is a ZigBee PRO certified software development platform supporting reliable, scalable, and secure wireless applications running on Atmel’s ZigBit modules. SerialNet allows programming of the module via serial AT-command interface. The applications include, but are not limited to: • Building automation & monitoring – Lighting controls – Wireless smoke and CO detectors – Structural integrity monitoring •HVAC monitoring & control •Inventory management •Environmental monitoring •Security •Water metering •Industrial monitoring – Machinery condition and performance monitoring – Monitoring of plant system parameters such as temperature, pressure, flow, tank level, humidity, vibration, etc. •Automated meter reading (AMR) Introduction ZigBit™ 2.4 GHz Wireless Modules1-2 8226C–MCU Wireless–09/10 1.3Key Features •Ultra compact size (24 x 13.5 x 2.0 mm for ATZB-24-A2 module and 18.8 x 13.5 x 2.0 mm for ATZB-24-B0 module) •Innovative (patent-pending) balanced dual chip antenna design with antenna gain of approximately 0 dBi (for ATZB-24-A2 version) •High RX sensitivity (-101 dBm) •Outperforming link budget (104 dB) •Up to 3 dBm output power •Very low power consumption: – < 6 μA in Sleep mode, – 19 mA in RX mode, – 18 mA in TX mode •Ample memory resources (128K bytes of flash memory, 8K bytes RAM, 4K bytes EEPROM) •W…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 2 Page 1 of 2 Product Block Diagram www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 2 von 2 Page 2 of 2 IC Block Diagram

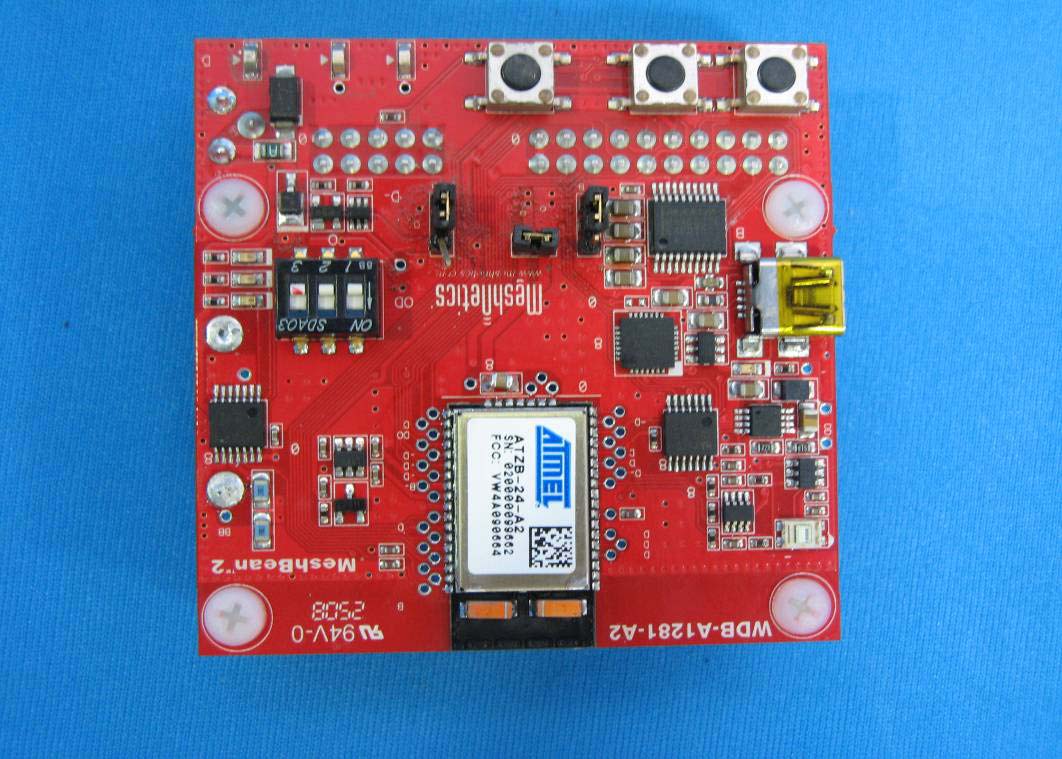

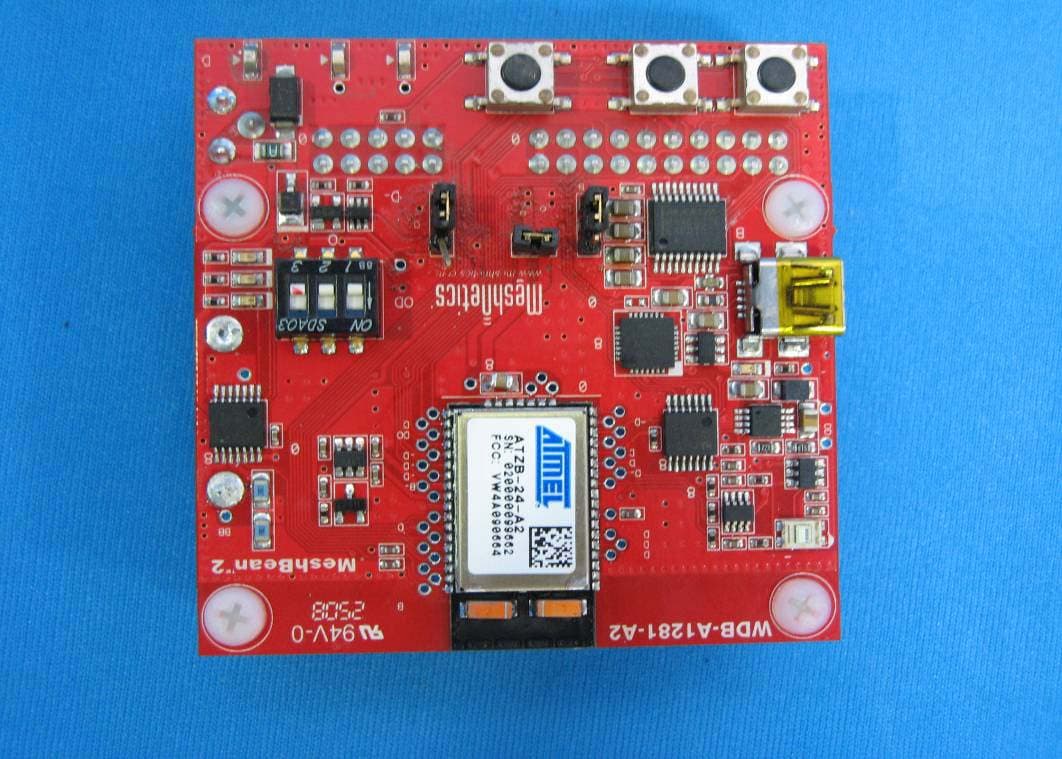

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 5 Page 1 of 5 Side View Top view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 2 von 5 Page 2 of 5 Bottom View Overall Front View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 3 von 5 Page 3 of 5 Connector View Dimensional View Length and Breadth www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 4 von 5 Page 4 of 5 Dimensional View Height EUT Top View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 5 von 5 Page 5 of 5 EUT Bottom View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 1 Page 1 of 1 Module with Enclosure removed Inner View of Enclosure

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 1 Page 1 of 1 Specifications of EUT Operating Frequency 2400 – 2483.5 Hz No. of channel 16 Channel Spacing 5MHz Transmitted Power +3.0 dBm Modulation DSSS Data Rate 250Kbps Antenna Type Dual Chip Antenna Number of antenna Two Antenna Gain 0 dBi Supply Voltage 1.8V to 3.6V DC Dimensions 24.0 x 13.5 x 2.0 mm Environmental Operating : -20°C to +70°C Relative Humidity : - Not more than 80%

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2440 MHz was measured 02.61dBm which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 1.82mW<24.59(=60/2.440) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products TÜV Rheinland LGA Products GmbH x Tillystraße 2 x D - 90431 Nürnberg x Tel.: +49 911 655 5225 x Fax: +49 911 655 5226 Mail: [email protected] x Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02422686 001 Seite 1 von 48 Test Report No.: Page 1 of 48 Auftraggeber: Client: Atmel Norway AS Vestre Rosten 79 7075 Tiller Norway Gegenstand der Prüfung: Test item: Zigbit Bezeichnung: Identification: ATZB-24-A2 Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403010455 Eingangsdatum: Date of receipt: 2010-06-09 Prüfort: Testing location: Refer Page 4 of 48 for test facilities Prüfgrundlage: Test specification: FCC 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, # 7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 2010-10-12 Vinay.N Test Engineer 2010-10-12 G Kalyan Varma Project Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : VW4A090664 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02422686 001 Date: 2010-10-12 Page 2 of 2 Test Result Summary Clause Test Item Result 15.247(b) (3) Conducted Peak RF Output Power Test Pass 15.247 (a) (2) 6Db Bandwidth Pass 15.247 (e) Power Spectral Density Pass 15.247 (d) Band-edge Compliance Pass 15.209 Spurious Radiated Emissions Pass www.tuv.com Test Report No.:02422686 001 Date: 2010-10-12 Page 3 of 3 Content List of Test and Measurement Instruments ..............................................................4 General Product Information .....................................................................................6 Product Function and Intended Use.............................................................................................6 Ratings and System Details ..........................................................................................................6 Operation Descriptions ..............................................................................................7 Test Set-up and Operation Mode ...............................................................................8 Principle of Configuration Selection ............................................................................................8 Test Operation and Test Software ................................................................................................8 Special Accessories and Auxiliary Equipment ...........................................................................8 Countermeasures to achieve EMC Compliance..........................................................................8 Test Methodology .......................................................................................................9 Radiated Emission Test .................................................................................................................9 Test Results...............................................................................................................10 Conducted Peak Output Power Section 15.247(b)(3) ...................10 6 dB Bandwidth Section 15.247(a)(2) ...................17 Power Spectral Density Section 15.247(e) ........................28 Band-edge Compliance Section 15.247 (d).......................35 Spurious Radiated Emissions Section 15.209 ...........................43 Appendix 1: Test Setup Photos Appendix 2: EUT External Photos Appendix 3: EUT Internal Photos Appendix 4: FCC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Information www.tuv.com Test Report No.:02422686 001 Date: 2010-10-12 Page 4 of 4 List of Test and Measurement Instruments HCL Technologies, Chennai List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Receiver R&S ESIB26 100360 14/09/2010 Log Periodic Antenna ETS LINDGREN -- 00104828 08/03/2011 Biconical antenna ETS LINDGREN 3104C 00101516 11/01/2011 Wipro Technologies, Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 24.07.2011 Hybrid Log Periodic Antenna TDK HLP3003C 130334 17.02.2011 Broadband Horn Antenna Schwarzbeck Mess-Electronik BBHA9170 9170- 344,2007 14.02.2011 Double Ridged Horn Antenna Schwarzbeck Mess-Electronik BBHA9120D 2008 14.08.2011 Pre-Amplifier TDK-RFSolution PA-02 100008 15.02.2011 SAMEER-Center for Electromagnetics, Chennai List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Receiver Rohde & Schwarz ESIB7 100319 06.03.2011 Loop Antenna ETS Lingdren 6507 1484 12.10.2011 Testing Facilities 1) HCL Technologies Limited 73-74, Ground Floor,South Phase, Ambattur Industrial Estate, Ambattur Chennai - 600058 2) Wipro Technologies Survey No. 70, 77, 78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India 3) SAMEER-Center for Electromagnetics C.I.T.Campus, Taramani, 2nd …

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 1 von 2 Page 1 of 2 Test setup Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422686 001 Seite 2 von 2 Page 2 of 2 Test setup
