VW4A090971ATZB-EVB-24-PCB, MeshBean 2.4GHz PCB Evaluation Board with Antenna

ZigBit Development Kits ATZB-EVB-24-SMA, ATZB-EVB-900-SMA, ATZB-EVB-A24-SMA, ATZB-EVB-24-PCB, ATZB-EVB-24-A2 User Manual ZigBit Development Kits User Manual Rev. [0.5]-AVR-[09/11] 2 ATZB-EVB-XXX-XXX User Manual AVR-09-2011 1 Introduction Intended Audience and Purpose This document is intended for engineers and software developers working with the ZigBit™ Development Kit (ZDK). The Kit is used to evaluate the performance and features of ZigBit modules and the BitCloud software, and to implement custom applications on top of BitCloud API. Safety and Precautions The product contains electronics, which are electrically sensitive. Please take necessary precautions when using such devices. Atmel does its best to protect the product components from electrostatic discharge phenomena, but we encourage our users to follow common guidelines to avoid electrostatics by using proper grounding etc. The product complies with the FCC (Part 15), IC and ETSI (CE) rules applicable to the devices radiating in the uncontrolled environment. Please find out if the product complies with your local regulations. Any modifications of the hardware, its components or improper use of the product can cause an uncontrolled violation of the in-band or out-band radiation levels. It can result in progressing violation of emission level limits, thus causing harmful interference. Precautions The product radiates power in the microwave band. Although the levels are considered to be low (less than 2 mW), it is reasonable to protect the operating personnel from possible harmful impact of the electromagnetic field. When the parts of the product are turned on, an operator should avoid touching the PCB antenna and the board itself. The recommended distance between an operator and antenna should be more than 20 centimeters. AC/DC adapters which can be used with the product contain high voltage circuits. General precautions should be taken against electric shock before the product hardware is mains powered. The ZigBit Development Kit contains fragile components. Please handle with care. Related documents [1] ZigBit™ OEM Modules. Product Datasheet. Atmel Doc. M-251~01 [2] BitCloud™ IEEE802.15.4/ZigBee Software. Product Datasheet. Atmel Doc. M-251~08 [3] BitCloud™ Software 1.0. SerialNet. Reference Manual. AT- Command Set. Atmel Doc. P-ZBN-452~03 [4] BitCloud™ Software 1.0. BitCloud Stack Documentation. Atmel Doc. P-ZBN-452~02 [5] BitCloud Developer's Guide. Atmel Doc. P-ZBN-452~01 3 ATZB-EVB-XXX-XXX User Manual AVR-09-2011 [6] ZigBit™ OEM Module. Application Note. ZigBit Power Consumption Testing. Atmel Doc. AN-481~01 [7] BitCloud™ Software 1.0. Serial Bootloader User’s Guide. Atmel Doc. P-ZBN-451~02 [8] ZigBit™ OEM Module. Application Note. Using ZigBit Module with Analog Sensors. Atmel Doc. AN-481~06 [9] BitCloud™ Software 1.0. Range Measurement Tool User’s Guide. Atmel Doc. P-ZBN-451~01 [10] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007 [11] Serial asynchronous automatic dialing and control. ITU-T Recommendation V.250, 05/99 [12] IEEE Std 802.15.4-2003 IEEE Standard for Information technology – Part 15.4 Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) [13] TSL2550 Ambient Light Sensor With Smbus Interface. TAOS Datasheet TAOS029E. February 2006 http://www.taosinc.com/images/product/document/tsl2550- e67.pdf [14] LM73 2.7V, SOT-23, 11-to-14 Bit Digital Temperature Sensor with 2-Wire Interface. National Semiconductor Corporation Datasheet DS201478. July 2006 http://www.national.com/pf/LM/LM73.html#Datasheet [15] CP2102, Single-Chip USB to UART Bridge, Rev. 1.1 9/05. www.silabs.com [16] AVR Studio. User Guide. Available in HTML Help within the product. [17] JTAGICE mkII Quick Start Guide. http://www.atmel.com/dyn/resources/prod_documents/doc2562 .pdf [18] avr-libc Reference Manual 1.4.3 [19] WinAVR User Manual – 20070525/ By Eric B. Weddington [20] Using the GNU Compiler Collection/ By Richard M. Stallman and the GCC Developer Community 4 ATZB-EVB-XXX-XXX User Manual AVR-09-2011 Abbreviations and Acronyms AC/DC Alternating Current / Direct Current converter ADC Analog-to-Digital Converter API Application Programming Interface Channel Mask Channel mask is a number that defines the set of working channels Coordinator Within ZigBee networks, the ZigBee coordinator is responsible for starting the network and for choosing certain key network parameters. The network may be extended through the use of ZigBee router. DIP Dual In-line Package EEPROM Electrically Erasable Programmable Read-Only Memory End device In ZigBee networks, the ZigBee end device provides sensor data sent to a router. End device is often subject to power management restrictions, so it may be in sleeping mode most of the time. ESD Electrostatic Discharge GPIO General Purpose Input/Output GUI Graphical User Interface HAL Hardware Abstraction Layer I 2 C Inter-Integrated Circuit IDE Integrated Development Environment IEEE Institute of Electrical and Electronics Engineers IRQ Interrupt Request JTAG Digital interface for debugging of embedded devices, also known as IEEE 1149.1 standard interface LED Light Emitting Diode LQI Link Quality Indicator MAC Medium Access Control layer MCU Microcontroller Unit. In this document, it also means the processor, which is the core of ZigBit Amp module MIPS Million Instructions per Second NWK Network layer 5 ATZB-EVB-XXX-XXX User Manual AVR-09-2011 OEM Original Equipment Manufacturer OTA Over-The-Air upgrade PAN ID Personal Area Network Identifier. In ZigBee, it is 16-bit number which must be unique for each one of multiple networks working on the same frequency channel PCB Printed Circuit Board PHY Physical layer RAM Random Access Memory RF Radio Frequency RISC Reduced Instruction Set Computing microprocessor Router In ZigBee networks, routers transfer data and control messages through the network using a hierarchical routing strategy.…

Text truncated - open the document above for the full version.

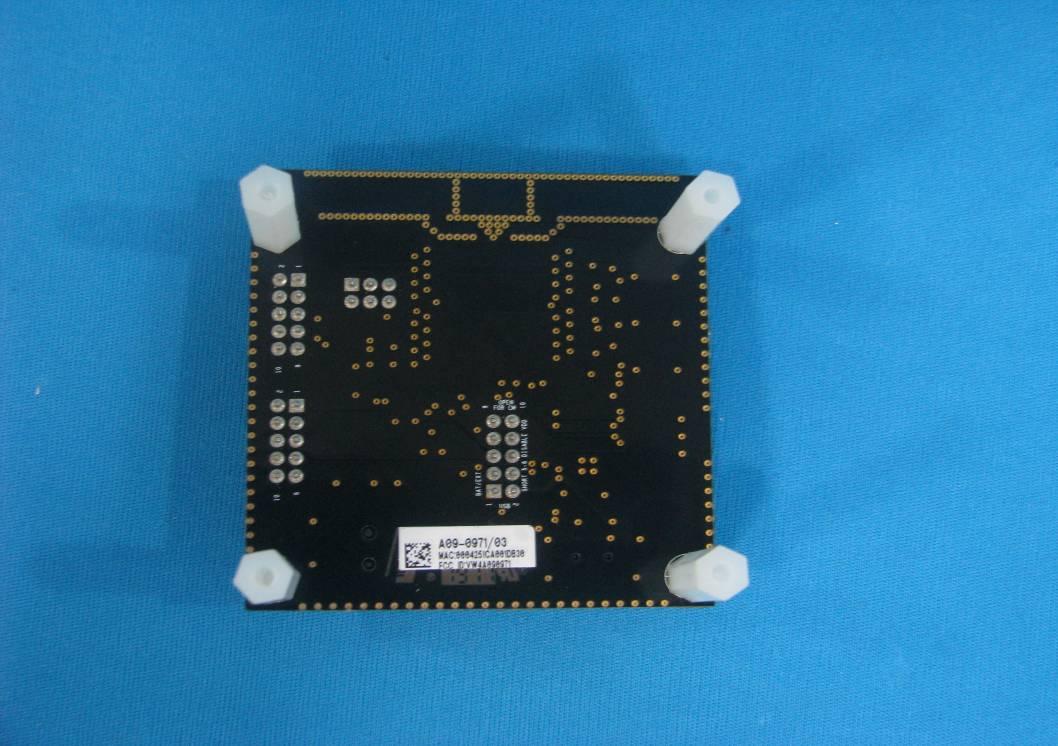

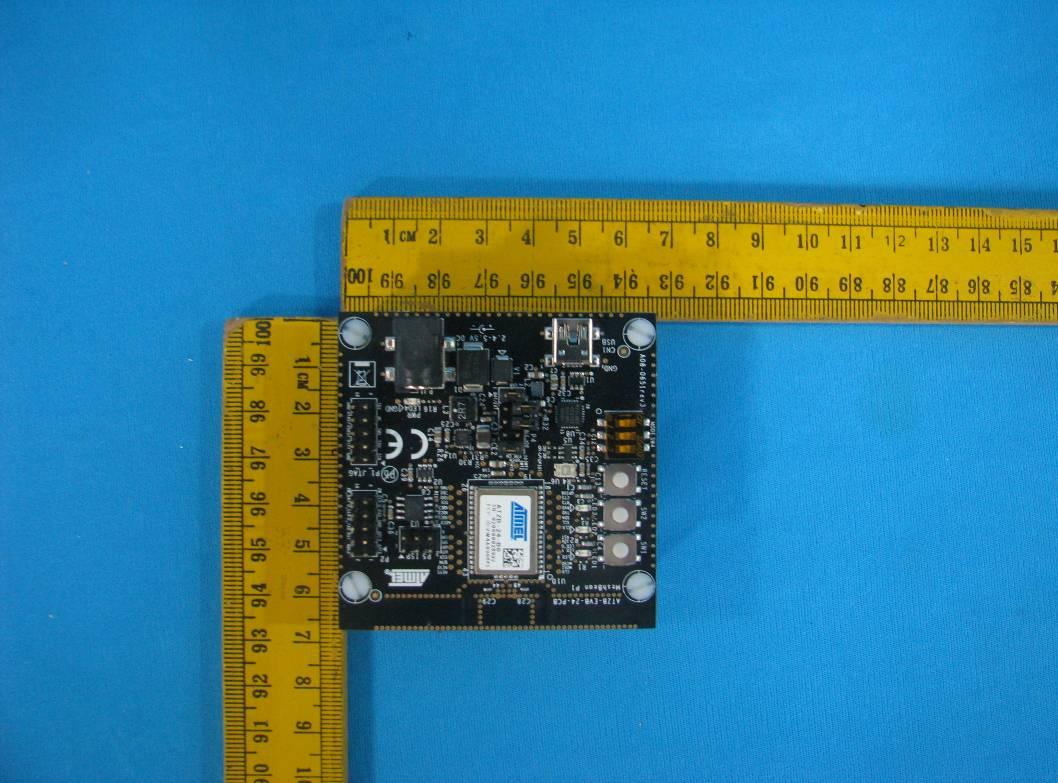

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 1 von 2 Page 1 of 2 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 2 von 2 Page 2 of 2 EUT Dimensional View EUT Dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram Label Location

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 1 von 2 Page 1 of 2 Module with Enclosure removed Inner View of Enclosure www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 2 von 2 Page 2 of 2 Module with Enclosure Bottom View of Module

Operational Description Product: ATZB-EVB-24-PCB, MeshBean 2.4GHz PCB Antenna FCC ID: VW4A090971 The MeshBean board is intended to evaluate the performance of the ZigBit Module (ATZB-24-B0, FCC ID VW4A090665). The ZigBit module on the MeshBean board provides wireless connectivity, enabling the MeshBean board to be apart of a Zigbee network. ATZB-EVB-PCB (MeshBean) board is intended to evaluate the performance of a ZigBit module. In turn, a ZigBit module with the embedded BitCloud software provides wireless connectivity for ATZB-EVB (MeshBean) board, enabling it as a node in a Zigbee network. MeshBeans also serve as a reference hardware platform for the customer’s target devices utilizing ZigBit modules for wireless communication. The ATZB-EVB-PCB (MeshBean) board can be configured to operate as a network coordinator, a router or an end device, by setting of DIP switches and/or sending AT-commands. The node’s role is defined by the embedded application.

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2405 MHz was measured 1.73 mW which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 1.73mW<24.94(=60/2405) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02423364 001 Seite 1 von 40 Test Report No.: Page 1 of 40 Auftraggeber: Client: Atmel Norway AS, Vestre Rosten 79, 7075 Tiller, Trondheim, Norway Tel +91-44-30637229 Fax +91-44-30637264 Gegenstand der Prüfung: Test item: ATZB-EVB-24-PCB, MeshBean 2.4GHz PCB Evaluation Board with Antenna Bezeichnung: Identification: ATZB-EVB-24-PCB Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403015991 Eingangsdatum: Date of receipt: 11.08.2011 Prüfort: Testing location: Refer Page 4 of 40 for test facilities Prüfgrundlage: Test specification: FCC 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test items passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, # 7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 16.08.2011 Saibaba Siddapur Test Engineer 17.08.2011 G Kalyan Varma Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : VW4A090971 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02423364 001 Date: 16.08.2011 Page 2 of 40 Test Result Summary Clause Test Item Result 15.247(b) (3) Conducted Peak Output Power Pass 15.247 (a) (2) 6dB Bandwidth Pass 15.247 (e) Power Spectral Density Pass 15.247 (d) Band-edge Compliance Pass 15.209 Spurious Radiated Emissions Pass www.tuv.com Test Report No.:02423364 001 Date: 16.08.2011 Page 3 of 40 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 7 Principle of Configuration Selection ............................................................................................ 7 Test Operation and Test Software ................................................................................................ 7 Special Accessories and Auxiliary Equipment ............................................................................ 7 Countermeasures to achieve EMC Compliance .......................................................................... 7 Test Methodology ....................................................................................................... 8 Radiated Emission Test ................................................................................................................. 8 Test Results ................................................................................................................. 9 Conducted Peak Output Power Section 15.247(b)(3) ...................... 9 6 dB Bandwidth Section 15.247(a)(2) .................... 14 99% Occupied Bandwidth Section 2.1049 ............................. 18 Power Spectral Density Section 15.247(e) ........................ 23 Band-edge Compliance Section 15.247 (d) ....................... 28 Spurious Radiated Emissions Section 15.209/15.205 ................. 38 Appendix 1: Test Setup Photos Appendix 2: EUT External Photos Appendix 3: EUT Internal Photos Appendix 4: FCC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Information www.tuv.com Test Report No.:02423364 001 Date: 16.08.2011 Page 4 of 40 List of Test and Measurement Instruments Wipro Technologies, Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 24.03.2012 Hybrid Log Periodic Antenna TDK HLP3003C 130334 21.03.2012 Broadband Horn Antenna Schwarzbeck Mess-Electronik BBHA9170 9170-344 21.03.2012 Double Ridged Horn Antenna Schwarzbeck Mess-Electronik BBHA9120D 9120D- 687 21.03.2012 Pre-Amplifier TDK-RFSolution PA-02 100008 15.02.2012 Spectrum Analyser Agilent Technologies E4407B US41192 772 27.01.2012 Testing Facilities 1) Wipro Technologies Survey No. 70, 77, 78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India www.tuv.com Test Report No.:02423364 001 Date: 16.08.2011 Page 5 of 40 General Product Information Product Function and Intended Use The MeshBean 2.4GHz PCB Antenna board is used as a carrier board for ATZB-24-B0 Zigbit to be used as a Zigbee sensor node or a coordinator in a Zigbee network. This product is used by a customer for Zigbee network development and Evaluation. Ratings and System Details Test Conditions: Supply Voltage from USB Port Environmental conditions: Temperature: +23 º C and RH: 62% Operating Frequency 24…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 1 von 3 Page 1 of 3 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 2 von 3 Page 2 of 3 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423364 001 Seite 3 von 3 Page 3 of 3 Radiated Test setup
