VW4A091078ATAVRRZ600-232

AVRXXXX: RZ600-232 HW Manual Features Contains the Reference design for AT86RF232 Transceiver  Option of ordering Single Transceiver board, over ordering the entire set found in the main RZ600 Kit.  Order as many of RZ600-232 Board alone as required.  Stub antenna included  AT32UC3A3256 based USB host boards orderable separately as AVRRZ600-USB  Ideal for PC to RF gateways, packet sniffers and network commissioning tools  On board ID chip for easy IEEE MAC address 1 Introduction The AVRRZ600-232 Subkit is an evaluation kit for the Atmel AT86RF232 radio frequency device. The box contains one Single RF232 2.4GHz board with the required accessories (connectors and Antenna). These are highly acclaimed networking devices within low power personal area networks. That being said; this RZ600-232 radio board also sports an Atmel standardized 10-pin connector that will enable the RF boards to be connected to any AVR microcontroller. A wide range of the standard Atmel AVR design tools have the host end of the standardized 10-pin connector – so as a customer of Atmel, you are empowered to evaluate Atmel radio transceivers in virtually any application segment. The RZ600-232 kit enables RF4CE, IEEE 802.15.4, ZigBee® and 6lowPAN network technologies to run on the full Atmel portfolio of low power AVR microcontrollers. Figure 1-1. RZ600 HW Overview AVRRZ600-232 AVRRZ600-232 Hardware User Manual Rev. NNNNN 2 AVRRZ600-232 NNNNN2 2 Related items AVR32 Studio (Atmel’s free IDE) http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4116 AVR32 GNU Toolchain (Atmel’s free Compiler and Utilities) http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4118 JTAGICE mkII (On-chip programming and debugging tool) http://www.atmel.com/dyn/products/tools_card.asp?tool_id=3353 AVR ONE! (On-chip programming and debugging tool) http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4279 FLIP 3.4.2(Flexible In System Programmer) http://www.atmel.com/dyn/products/tools_card.asp?tool_id=3886 3 Overview This section gives an overview of the RZ600-232 kit from a system perspective as well as what the kit contains and its minimum requirements. A set of condensed instructions are then given on how to get the evaluation application for the kit up and running in the shortest time possible. Figure 3-1 shows how the two processor boards (AVRRZ600-USB) paired with the radio frequency boards (AVRRZ600-232) can form a wireless peer to peer data connection over USB. The application that is pre programmed by Atmel on the AT32UC3A3256 is indeed such a USB to RF gateway. Figure 3-1 RZ600 used in conjunction with PC AVRRZ600-232 3 NNNNN 3.1 Kit contents The RZ600-232 kit contains the following pieces of hardware:  1 unit AT86RF232 radio board: miniature carrier board with the AT86RF232 radio transceiver mounted, SMA antenna connector, one wire ID chip and Atmel standard 10-pin connector.  1 pc. 2.4GHz SMA stub antenna  1 pc. Bag with wires and squid cable: The squid cable fits the radio frequency boards and will enable wiring to a hardware that does not contain the standard Atmel 10-pin accessory header. 3.2 System Requirements Table 3-1 contains the minimum system requirements for the RZ600 kit when connected to a PC for application development on the AT32UC3A3256 microcontroller. Table 3-1 Minimum System Requirements Parameter Value Comment Hardware PC/CPU Intel Pentium III or better,800 MHz PC/RAM 128 Mbytes PC/Video 1024×768,SVGA PC/Hard disk free space 200 Mbytes On-Chip Debugger & Programmer AVR JTAG ICE mkII or AVR ONE! AVR JTAG ICE mkII or AVR ONE! is required if the user wishes to debug and do custom application development. Software Operating System Windows 2000/XP/Vista/7 IDE AVR 32 Studio or IAR Embedded Workbench for Atmel AVR32 AVR 32 Studio with compiler utilities or IAR EWB is required for application development Programmer FLIP 3.4.2 Batch ISP command line tool with FLIP 3.4.2 can be used for reprogramming the processor board controller 3.3 Quick Start Guide RZ600 processor board – RZ600-USB is programmed for AT86RF231 radio boards in the factory. For using the AT86RF232 transceiver boards, processor board needs to be reprogrammed. Refer section “7.5.2 Bootloader Programming using BatchISP” and “Table 6-1 Firmware layout” table for programming the processor board using preprogrammed boot loader available on the processor board controller. The following sequence is suggested when testing the evaluation application on the RZ600-232 kit: 1. Unpack the kit and verify contents 2. Connect 2 RZ600-232 boards each to 2 RZ600-USB boards. 4 AVRRZ600-232 NNNNN2 3. Connect the RF Board to the appropriate antenna. Refer Section 4.3 for selecting proper antenna for the radio transceiver. 4. Insert the assembly into a free USB port on the computer. 5. Let the devices enumerate – they should become available as two CDC virtual COM ports. 6. Open two terminal windows and start typing. Verify that the text in the two terminals is the same. 4 Hardware Description This chapter walks through the different pieces of hardware that you will find in the RZ600 kit in greater detail. 4.1 Radio Frequency Board AT86RF232: Third generation 2.4GHz ISM band radio transceiver with front ends for antenna diversity and external power amplifier and encryption accelerators. This board and the RZ600-230, 231, 212 radio transceivers share the same printed circuit board with slightly different component values mounted for each of them. See Figure 4-2 for full schematics of the radio frequency board. AVRRZ600-232 5 NNNNN 4.2 Connectors There are two main connectors on the board; one is the female SMA antenna connector and in the opposite direction of the board is a 10-pin dual row header. See Table 4-1 for pin out of this header. Table 4-1. Radio Frequency 10-pin header 6 AVRRZ600-232 NNNNN2 There are also two single row headers on the board: • J103 (Not mounted): Two pin header that can be soldered in to do current measurement with an ampere mete…

Text truncated - open the document above for the full version.

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 19 th January 2012 To whomsoever it may concern Product Block diagram This document features the internal block diagram of the product mentioned below. Product name: ATAVRRZ600-232 Product Model: ATAVRRZ600-232 FCC ID: VW4A091078 Product Block diagram: 10 Pin Conn 2-Way Sync. Serial Comm SMA Connector Sincerely, Saravanakumar Marudhachalam Staff Engineer, Atmel Norway AS

Applicant/Grantee Atmel Norway AS FCC ID: VW4A091078 Section 15.212 Modular Transmitters Request for Single Modular Approval Request for Limited Single Modular approval SI.no Requirements EUT Conditions Comply (Y/N) 01 The radio elements of the modular transmitter must have their own Shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements Refer Appendix 2_EUT External Photos. N 02 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation All Modulation and data input(S) are buffered. Refer Block diagram and schematic Diagram. Y 03 The modular transmitter must have its Own power supply regulation. The AT86RF230 RF transceiver IC has internal regulator as shown in the internal block diagram. Refer Appendix 5_ Block diagram. Y 04 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and The antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited Modular approvals under paragraph (b) of this section. Refer Appendix 9_User Manual and Antenna data Sheet. N 05 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance With Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the Module (see Section 15.27(a)). The length of these lines shall be the length Refer Appendix 1_Test setup Photos Y typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be Unmodified and commercially available (see Section 15.31(i)). 06 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to The enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording That expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain This requirement. In the latter case, a copy of these instructions must be included in the Application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the Device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed Module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same Meaning may be used. The user manual must include instructions on how to access Label with its own FCC ID number. Refer Appendix 4_Label Diagram. Y the Electronic display. A copy of these instructions Must be included in the application for equipment authorization. 07 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such Requirements. A copy of these Instructions must be included in the application for equipment authorization. Refer Appendix 9_User manual. Y 08 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration Refer Appendix 10_Maximum Permissible Exposure Information. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured Sincerely, SARAVANAKUMAR MARUDHACHALAM Staff Engineer Atmel Norway AS Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway TIf: +47 72 88 43 88 Fax +47 72 88 43 99

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 19 th January 2012 TO: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 Subject: Declaration Letter for professional installation for ATAVRRZ600-232 FCC ID- VW4A091078 To Whomsover It May Concern: ATMEL NORWAY AS declares that ATAVRRZ600-232 requires a special set of skills for Antenna installation on the device. This product is intended to be used by professional users who are developing either Hardware or Firmware or Software using Atmel’s AT86RF232 chip for which the ATAVRRZ600-232 is a reference design. Sincerely, Saravanakumar Marudhachalam Staff Engineer, Atmel Norway AS

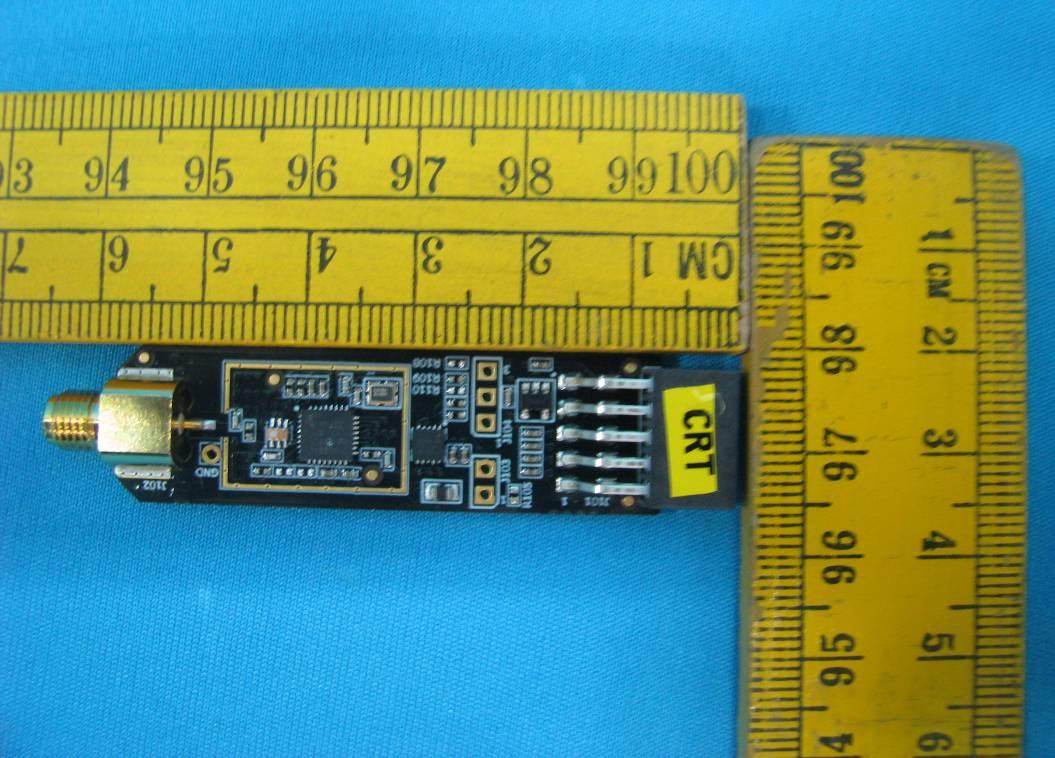

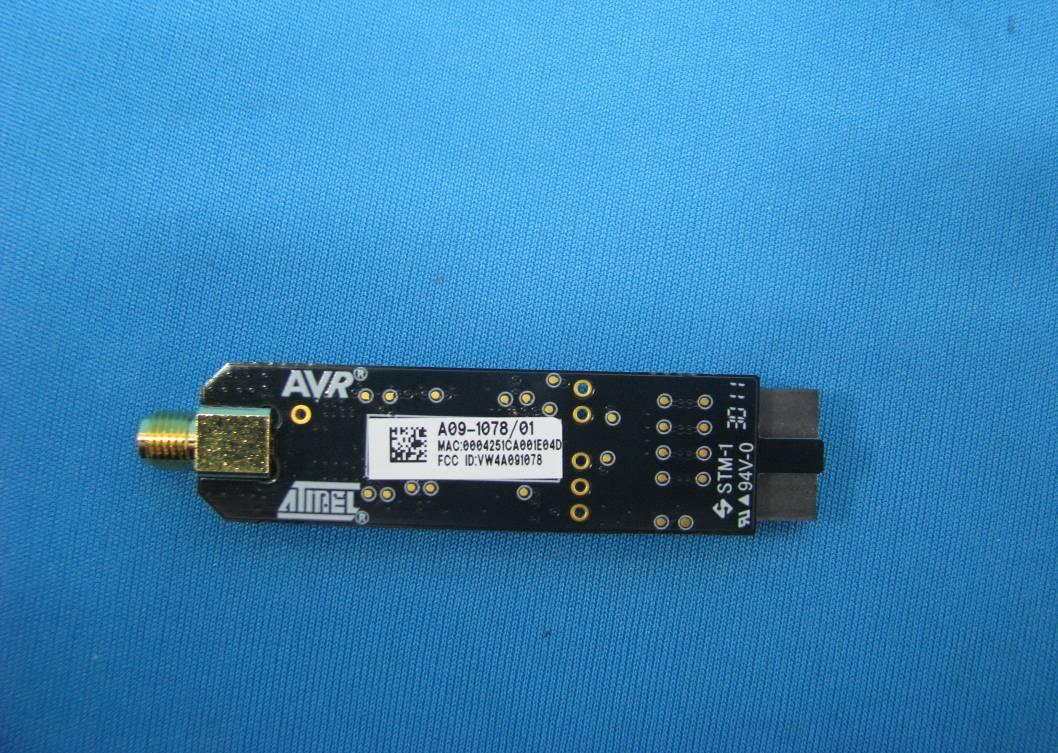

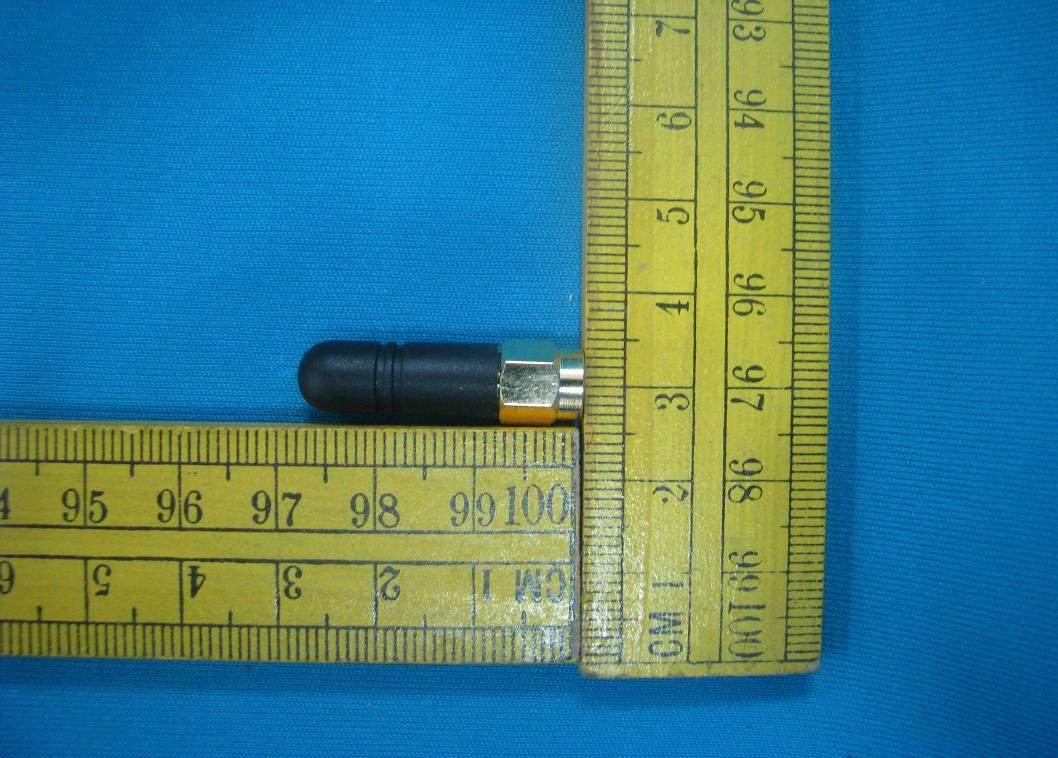

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 1 von 3 Page 1 of 3 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 2 von 3 Page 2 of 3 EUT Dimensional View EUT Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 3 von 3 Page 3 of 3 Antenna Dimensional View

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram Label Location

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 1 von 2 Page 1 of 2 EUT Top View EUT Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 2 von 2 Page 2 of 2 RF Section

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 19 th January 2012 Product operation - ATAVRRZ600-232, VW4A091078 The ATAVRRZ600-232 is a an evaluation board for AT86RF232 Radio transceiver IC, operating at 2.4 GHz. Band, designed in compliance with IEEE standard 802.15.4, ZigBee, 6LoWPAN applications. This hardware is designed as a reference for the end user to follow on his design and to develop software for the AT86RF230 transceiver. The design contains a serial interface to the host controller board through a 10-pin connector on one side to receive configuration and RF data from the microcontroller board. This design also has the RF circuit implemented in an optimum way to carry the differential RF signal from the transceiver IC to the single ended 50 Ohm Antenna connector. Sincerely, ____________________________________ Saravanakumar Marudhachalam Staff Engineer

www.tuv.com Appendix 6 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 1 von 1 Page 1 of 1 Specifications of EUT Operating Frequency 2405 -2480MHz No. of channel 16 Channel Spacing 5 MHz Transmitted Power 3.789 dBm Modulation DSSS [O-QPSK] Data Rate 250kbps Antenna Type Whip Number of antenna one Antenna Gain 0 dBi Supply Voltage Power Supply from USB Port Dimensions 65.2 mm x 16 mm x 7 mm Environmental Operating temperature: -20°C to 70°C Humidity : Not more than 80%

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 Product Name: ATAVRRZ600-232, RZ600 RF232 Subkit Model: ATAVRRZ600-232 Atmel Part Number: A09-1078 FCC ID: VW4A091078 PCB Assembly BOM Qty Component Name Location Description Manufacturing Part Number Manufacturer 2 A01-0005 C116, C105 Ceramic capacitor, SMD 0402, NP0, 50V, +/-0.25pF, 1.5p 2 A01-0016 C103, C104 Ceramic capacitor, SMD 0402, NP0, 50V, +/-5%, 12p 1 A01-0050 C111 Ceramic capacitor, SMD 0402, X7R, 25V, +/-10%, 10n 2 A01-0246 C110, C115 Ceramic capacitor, SMD 0402, X7R, 16V, +/-10%, 100n C0402C104K4RACTU Kemet 9 A01-0286 C101, C102, C106, C107, C108, C109, C112, C113, C114 Ceramic capacitor, SMD 0402, X5R, 6.3V, +/-10%, 1u C0402C105K9PAC Kemet 1 A01-0328 C117 Multi Layer High Q Capacitor, SMD 0402, 50V, +/-5%, 22pF 500R07S220JV4 Johanson Technology 6 A02-0163 R101, R102, R103, R105, R107, R109 Thick film resistor, SMD 0402, 1/16W, 1%, 0R 1 A02-0204 R106 Thick film resistor, SMD 0402, 1/16W, 1%, 470R 1 A02-0220 R111 Thick film resistor, SMD 0402, 1/16W, 1%, 2.2k 1 A02-0236 R113 Thick film resistor, SMD 0402, 1/16W, 1%, 10k 1 A03-0004 L101 SMD RF inductor 0805. Z=1000Ohm (@100MHz), Max R(dc)=0.45Ohm, Max current=200mA, BLM21AG102SN1D BLM21AG102SN1D Murata 1 A03-0050 L102 2,4 - 2,5GHZ FilterBalun, 2x1,25mm, 2,4GHz FilterBalun 2450FB15L0001E Johanson Technology 1 A06-0580 U101 2.4GHz Zigbee/802.15.4 Transceiver, AT86RF232-ZX AT86RF232-ZX ATMEL 1 A06-0227 U102 LDO 3.3V 150mA SOT23-5 (cer. cap), LP2985A-33DBV LP2985A-33DBV Texas Instruments Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 Qty Component Name Location Description Manufacturing Part Number Manufacturer 1 A06-0509 U103 ATtiny13A - 8 bit AVR Microcontroller with 1K Bytes ISP Flash, ATtiny13A-MMU ATtiny13A-MMU ATMEL 1 A07-0040 XC101 SMT Crystal Resonator, 16.000 MHz,10 ppm,12 pF, 2520(Q) , 16MHz SCQ18D48- 16.000MHZ TR SUNTSU FREQUENCY CONTROL 1 A08-0559 J101 Samtec SMH 2x5 Pin Socet Right-angle 2,54mm Pitch, SMH- 105-02-T-D-TR RZ600pinout SMH-105-02-T-D-TR SAMTEC 1 A08-0671 PCB101 RZ600 RF board PCB, RZ600 RF board PCB NCAB 1 A08-0673 J102 SMA PCB mounted connector, LTI- SASF56GT LTI-SASF56GT Lighthorse Technologies inc. 1 A09-0847 Z102 Label for use on wireless PCBA that needs 64 bit MAC and FCC ID , Label PCBA with MAC64 and FCC ID 505462 ACT Logimark AS

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02423541 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 2405 MHz was measured 3.789 dBm which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 2.392mW<24.94(=60/2405) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA A12-0171 Copy of A08-0671 Rev4-RF232.SchDoc 111/26/20129:43:30 AM RF Board PAGE:of TITLE: Document number:Revision:Rev 4 Date: 12 34 56 78 910 SMH-105-02-T-D-TR J101 UnBal 1 GND 2 BAL1 3 BAL2 4 GND 5 GND/NC 6 L102 2450FB15L0001 1 2 3 CD75014 1X3 J104 1 24 3 SCQ18D48-16.000MHz TR XC101 RF_VCC 12pF C104 12pF C103 1uF C101 1uF C102 1uF C112 1uF C113 RF_VCC VCC 1uF C114 VCC 2.2K R111 VCC IRQ SEL MOSI MISO SCLK CLKM 1uF C106 100nF C110 RSTRST SLP_TR RST IRQ SEL MISO SLP_TR MOSI SCLK 12 CD075014 1X2 J103 RF_VCC TST ID LTI-SASF56GT RF 1 GND 2 GND 3 J102 0R / NM R108 0R R109 0R / NM R110 MISC MISC Private & Confidential BLM21AG102SN1D L1010R R105 470R R106 0R / NM R107 0R R103 0R R101 1.5pF C105 1uF C107 1uF C108 1uF C109 0R R102 GND 2 GND 1 GND 3 GND 4 Z101 Z102 PCBA Label Place Label on the Bottom Side Place EMI Shield on Top Side IN 1 OUT 5 2 BYP 4 ON/OFF 3 GND LP2985AIM5-3.3/NOPB U102 10nF C111 TP112 TP104TP105 TP109 TP113 TP101 TP102 TP107TP111 TP108 TP106 RF_P RF_N A a TP114 MISC RST SLP_TR MISC CLKM TP115 0R / NM R112 TP116TP117TP118TP119TP120TP121TP122 SCLKMOSISLP _T R SEL MISOIRQ RST TP123 MISC Transciever Current Measurement: Mount J103 & Remove R105 22pF C117 TP124 TP125 100nF C115 (PCINT/RESET/ADC0/dW) PB5 1 (PCINT3/CLKI/ADC3) PB3 2 (PCINT4/ADC2) PB4 4 GND 5 (MOSI/AIN0/OC0A/PCINT0) PB0 6 (MISO/AIN1/OC0B/PCINT1) PB1 7 (SCK/ADC1/T0/PCINT2) PB2 9 VCC 10 DNC 3 DNC 8 U103 ATtiny13A-MMU TP126 TP127 C117: place near pin2 of balun. ISP_MOSI ISP_MISO ISP_SCK ISP_RST ISP Test Points: Place close to AVR ATTiny13A to avoid long loops. PCB101 A08-0671 VCC i PCB Rule i PCB Rule 10K R113 AVSS 1 AVSS 2 AVSS 3 RFP 4 RFN 5 AVSS 6 DVSS 7 RST 8 DIG1 9 DIG2 10 SLP_TR 11 DVSS 12 DVDD 13 DVDD 14 DEVDD 15 DVSS 16 CLKM 17 DVSS 18 SCLK 19 MISO 20 DVSS 21 MOSI 22 SEL 23 IRQ 24 XTAL2 25 XTAL1 26 AVSS 27 EVDD 28 AVDD 29 AVSS 30 AVSS 31 AVSS 32 AVSS 33 U101 AT86RF232-ZU 0R R104 i PCB Rule i PCB Rule 1.5pF C116 No TST signal Product Name: ATAVRRZ600-232, RZ600 RF232 Subkit Model: ATAVRRZ600-232 FCC ID: VW4A091078
