VW4A092074ATZB-S1-256-3-0-U 2.4GHz ZigBit with ATmega256RFR2 and UFL connector

ZigBit 2.4GHz Single chip Wireless Module ATZB-S1-256-3-0-U DATASHEET Features  Ultra compact size (30.0 × 20.0 mm)  High RX sensitivity (-98 dBm)  Outperforming link budget (up to 102 dB)  Up to +4dBm output power  Very low power consumption:  17 mA in RX mode (1)  16.4 mA in TX mode (1)  0.6 μA in sleep mode (2)  Ample memory resources (256K Bytes In-System, Self-Programmable Flash memory, 8K Bytes EEPROM, 32K Bytes SRAM)  Wide range of interfaces (both analog and digital)  4- wire SPI, TWI  ISP, JTAG  2 Analog comparator Input  UART, USART  Timer, PWM  4 ADC lines  External Clock Input, Internal Clock Output  Upto 31 lines configurable as GPIO  Preassigned Atmel MAC address that can be used on end product  Capability to use MAC address into the internal EEPROM  IEEE ® 802.15.4 compliant Transceiver  2.4GHz ISM band  Serial bootloader  High Performance Low power AVR 8-bit Microcontroller  U.FL Antenna Connector to select approved antennae upto 5dBi  Small physical footprint and low profile for optimum fit in very small application boards  Mesh networking capability  Easy-to-use low cost development kit  Single source of support for HW and SW  Worldwide license-free operation Note: 1. MCU is in active state with 3V Supply, CPU clock @ 16MHz, RX RPC enabled (for RX current), PHY_TX_PWR=0x0 (for TX current), All digital outputs pulled high. 42199AWIRELESS10/2013 ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 2 Note: 2. Controller Sleep Mode – SLEEP_MODE_PWR_DOWN Table of Contents 1. Introduction ........................................................................................ 3 1.1 Summary ........................................................................................................... 3 1.2 Abbreviations and Acronyms ............................................................................ 3 1.3 Related Documents ........................................................................................... 4 2. ZigBit Module Overview ..................................................................... 5 2.1 Overview ........................................................................................................... 5 3. Specifications ..................................................................................... 7 3.1 Electrical Characteristics ................................................................................... 7 3.1.1 Absolute Maximum Ratings ................................................................ 7 3.1.2 Power Supply ...................................................................................... 7 3.2 RF Characteristics ............................................................................................. 8 3.2.2 Microcontroller Characteristics ............................................................ 8 3.2.3 Module Interfaces Characteristics ....................................................... 9 3.3 Physical/Environmental Characteristics and Outline ......................................... 9 3.4 Pin Configuration ............................................................................................... 9 3.5 Mounting Information ...................................................................................... 11 3.6 List of Approved Antennas .............................................................................. 12 3.7 Soldering Profile .............................................................................................. 12 4. Schematics ...................................................................................... 13 4.1 Handling Instructions ....................................................................................... 14 4.2 General Recommendations ............................................................................ 14 5. Persistence Memory ........................................................................ 14 6. Ordering Information ........................................................................ 16 7. Agency Certifications ....................................................................... 17 7.1 United States (FCC) ........................................................................................ 17 7.2 European Union (ETSI) ................................................................................... 17 7.3 Industry Canada (IC) Compliance statements ................................................ 18 8. Revision History ............................................................................... 19 ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 3 1. Introduction 1.1 Summary ATZB-S1-256-3-0-U ZigBit ® is an ultra-compact and low-power 2.4GHz IEEE 802.15.4/ZigBee ® OEM module from Atmel ® . Based on the innovative mixed-signal hardware platform from Atmel, this module uses the ATmega256RFR2 SoC with the AVR 8-Bit Microcontroller and a high data rate transceiver for the 2.4GHz ISM band. The radio transceiver provides high data rates from 250kb/s up to 2Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power enabling a very robust wireless communication. The module is designed for wireless sensing, monitoring, control, data acquisition applications, to name a few. This ZigBit module eliminates the need for costly and time- consuming RF development, and shortens time-to-market for wireless applications. The module has an U.FL RF connector that can be used to connect any of the approved antenna – cable assembly. This give freedom to applications to choose the external antenna 1 that can be mounted on an end product. The ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing mesh network, while optimizing network traffic and minimizing power consumption. For detailed Software support information, please visit www…

Text truncated - open the document above for the full version.

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 26 th Sep 2013 To whomsoever it may concern Product Block diagram This document features the internal block diagram of the product mentioned below. Product name: 2.4GHz ZigBit with ATmega256RFR2 and UFL connector Product Model: ATZB-S1-256-3-0-U FCC ID: VW4A092074 Product Block diagram: IC ATMEGA256RFR2 S P I JTAG GPIO CTRL GPIO R E S E T GPIOI/O BALUN OSC32KOSC0 32kHz crystal16 MHz crystal I/O U A R T T W I U.FL-R-SMT-1(10) Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 Internal Block diagram of ATmega256RFR2 RF Transceiver IC, showing Internal Voltage Regulator – AVREG, DVREG Sincerely, Saravanakumar Marudhachalam Manager, Tools HW Development, Atmel Norway AS

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 Applicant/Grantee Atmel Norway AS FCC ID: VW4A092074 Section 15.212 Modular Transmitters Request for Single Modular Approval Request for Limited Single Modular approval SI. No Requirements EUT Conditions Comply (Y/N) 01 The radio elements of the modular transmitter must have their own Shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements The Module has its own shielding. Y 02 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation All Modulation and data input(s) are buffered. Refer block diagram and schematic diagram. Y 03 The modular transmitter must have its Own power supply regulation. The Atmega256RFR2 IC has internal power supply regulator of 1.8V, that is used to power the Radio core Y 04 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and The antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited Modular approvals under paragraph (b) of this section. RF signal is coming to U.FL-R- SMT(1) connector. Please refer attached query response from FCC in appendix. Y 05 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance With Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the Y Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 Module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be Unmodified and commercially available (see Section 15.31(i)). 06 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is Installed must also display a label referring to The enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording That expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate Instructions along with the module which explain This requirement. In the latter case, a copy of these instructions must be included in the Application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the Device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module Refer ATZB-S1-256-3-0-U User Manual document. Y Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 is installed must display a label referring to the enclosed Module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same Meaning may be used. The user manual must include instructions on how to access the Electronic display. A copy of these instructions Must be included in the application for equipment authorization. 07 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such Requirements. A copy of these Instructions must be included in the application for equipment authorization. . Refer UFL ZigBit User Manual document. Y 08 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured Sincerely, Saravanakumar Marudhachalam Manager, Tools HW development

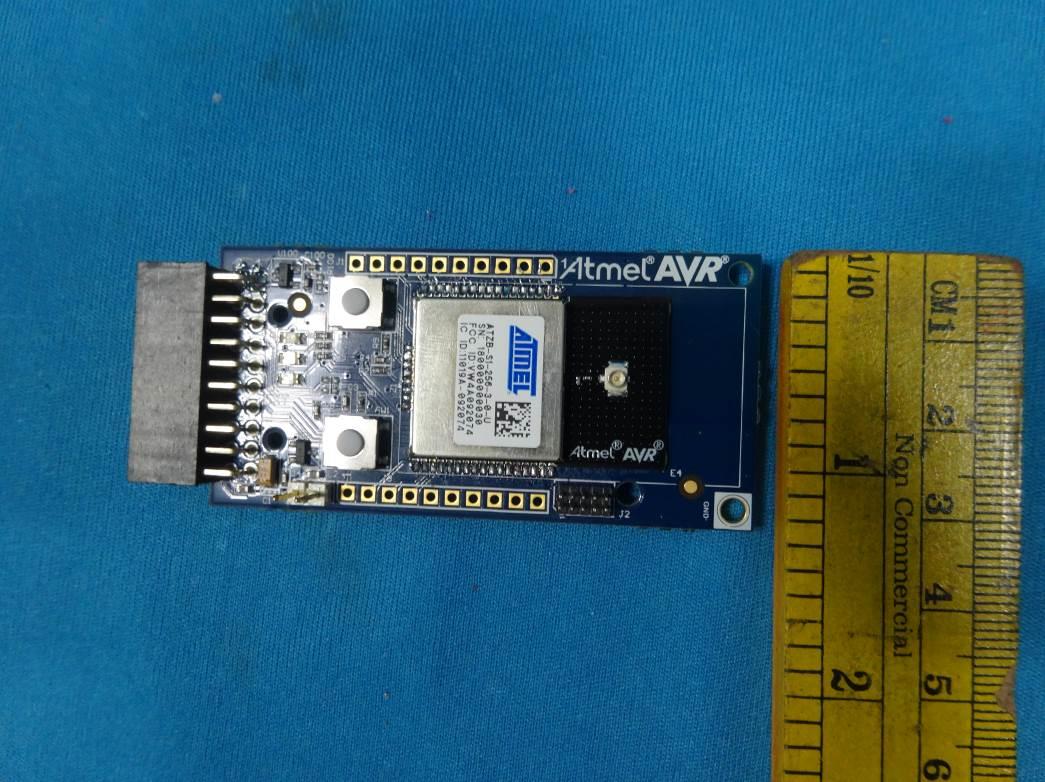

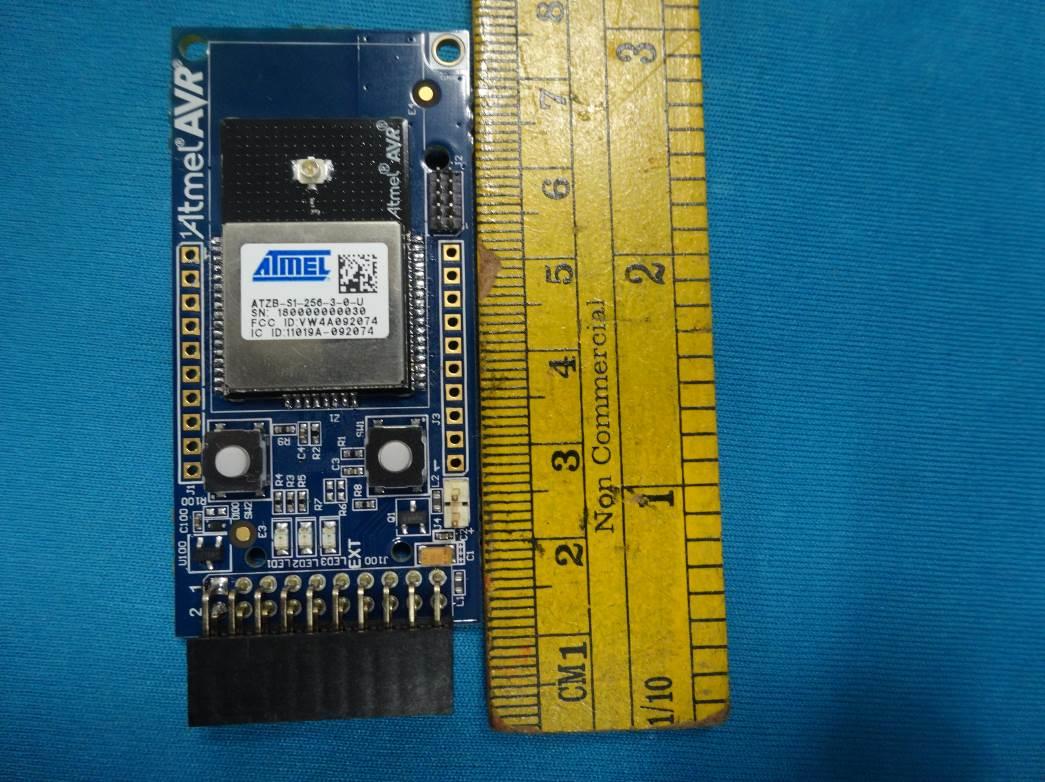

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 1 von 4 Page 1 of 4 EUT Top View EUT bottom View- PCB Layer www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 2 von 4 Page 2 of 4 EUT Bottom View EUT dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 3 von 4 Page 3 of 4 EUT dimensional View Antenna – 0dBi www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 4 von 4 Page 4 of 4 Antenna – 5dBi

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 1 von 1 Page 1 of 1 Label Diagram Label Location

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 1 von 1 Page 1 of 1 Module Photo – Shield removed Bottom View of the module

Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 26 th Sep 2013 To whomsoever it may concern Product Application This document explains the nature of intended application of the product mentioned below. Product name: 2.4GHz ZigBit with ATmega256RFR2 and UFL connector Product Model: ATZB-S1-256-3-0-U FCC ID: VW4A092074 Product Application: The ZigBit RFR2 UFL is a Zigbit module of the Atmel ATmega256RFR2. The IC integrates a powerful, 8-bit AVR ® RISC microcontroller, an IEEE 802.15.4-compliant transceiver, and additional peripheral features. The built-in radio transceiver supports the worldwide accessible 2.4GHz ISM band. The system is designed standard-based applications such as ZigBee/IEEE 802.15.4, ZigBee RF4CE, and 6LoWPAN, as well as high data rate ISM applications. Module has a unique antenna connector- U.FL (U.FL-R-SMT-1(10)). Sincerely, Saravanakumar Marudhachalam Manager, Tools HW Development, Atmel Norway AS Atmel Norway AS Vestre Rosten 79, 7075 Tiller, Norway Tlf:+47 72 88 43 88 Fax +47 72 88 43 99 26-Sep-2013 Theory of Operation/Technical Description – FCC ID: VW4A092074 - RF circuit function: The IEEE 802.15.4 compliant ATmega256RFR2 SoC( micro controller and RF transceiver in single chip) generates a modulated carrier wave at 2.4000- 2.4835 GHz with 16 IEEE 802.15.4 channels. This transceiver circuit is used by system applications as a physical layer for ZigBee applications. - RF signal flow: RF SoC IC outputs a differential RF signal- RFP & RFN passes through tuning elements to the RF path till the UFL antenna connector(U.FL-R-SMT-1(10)) and gets radiated or vice versa during reception - Description of Antenna system: RF signal from/to the SoC goes to U.FL-R-SMT-1(10) Antenna connector and then through tuning elements to the chip antenna. Tuning elements are present to ensure compliance. - Compliance with 15.203 antenna requirements: FCC 15.203 requirements for this design are tested and verified during FCC compliance testing. - Description of all modulation schemes used in the product: Module uses O-QPSK with half-sine pulse shaping. Saravanakumar Marudhachalam Manager, Tools HW Development www.tuv.com Appendix 6 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 1 von 1 Page 1 of 1 Specifications of EUT Operating Frequency 2400MHz – 2483.5MHz No. of channels 16 Channel Spacing 5MHz Modulation DSSS ( O-QPSK) Transmitted Power 5.15dBm Data Rate 250 kbps Antenna Type Refer Page 6 of 29 (Test Report) Number of antenna Two Antenna Gain Refer Page 6 of 29 (Test Report) Supply Voltage 1.8V to 3.6VDC Dimensions 20x30mm Environmental -20 to +85 degrees C range

ANT-24G-S21P ANT-24G-S21P-1 Applications ∑ WiFi Applications ∑ General Low Power Radio ∑ M2M Applications Ordering Information Features ∑ 1/4 Wave Monopole Antenna ∑ 21mm long ∑ 50mm PIGtail to IPEX (ufl) ∑ Rugged Flexible Plastic Finish. ∑ VSWR <=2.0 ∑ Omni-Directional Design ∑ 50ohm Impedance ∑ Nominal Gain 0dBi ∑ Omni-Directional Design ∑ Operating Temp –40 to +70 o C ∑ Insulation resistance 500MΩ @500Vdc ∑ Custom Cables on request 2.4GHz Miniature PIGTail Antenna PART No Description ANT-24G-S21-P5FL Stubby Antenna straight 50mm RG178 to iPEX (ufl) Custom Versions Custom versions are available, for example, alternative cable type and length (RG178 with varying OD) Alternative connectors e.g. MMCX, MCX, SMA etc or open ended DS-24GS21P-1 ANT-24G-S21P Mechanical Data Test Setup for Measurements Characteristics for this antenna were taken with the following conditions: 1. Antenna mounted on a ground plane 100x100mm. 2. Measurement Equipment: HP 8753ET 300KHZ~6 GHZ 3. Cable: CFD200, 500mm, SMA(M) to SMA(M) Mounting Thread is M4.5 x 0.5P, Length 6mm DS-24GS21P-1 ANT-24G-S21P Return Loss VSWR ANT-24G-S21P Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, R.F.Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. R.F.Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice. Buyers and other users should determine for them- selves the suitability of any such information or products for their own particular requirements or specification(s). R.F.Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or use R.F.Solutions Ltd’s products. Use of R.F.Solutions Ltd products or components in life support and/or safety applications is not authorised except with express written approval. No licences are created, implicitly or otherwise, under any of R.F.Solutions Ltd’s intellectual property rights. Liability for loss or damage resulting or caused by reliance on the information contained herein or from the use of the product (including liability resulting from negligence or where R.F.Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict R.F.Solutions Ltd’s liability for death or personal injury resulting from its negligence. RF Solutions Ltd. Recycling Notice Meets the following EC Directives: DO NOT Discard with normal waste, please recycle. ROHS Directive 2002/95/EC Specifies certain limits for hazardous substances. WEEE Directive 2002/96/EC Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Solutions Ltd., fulfils its WEEE obligations by membership of an ap- proved compliance scheme.

Page 1 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. SPECIFICATION FOR APPROVAL CUSTOMER DESCRIPTION 2.4GHz 5dBi Rubber Antenna with pigtail cable (Flying Lead) PART NO. M07-FL DATE DESIGNER DIRECTOR Approved by Customer/date: Page 2 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 1 GENERAL DESCRIPION 1.1 Type No. : M07-FL 1.2 Customer P/N : 2 DESCRIPTION & APPLICATION This antenna assembly is designed for use in 2.4GHz 3 ELECTRICAL CHARACTERISTICS 3.1 Antenna type: Dipole Antenna 3.2 Frequency Rang: 2.5~2.5GHz 3.3 V.S.W.R: < 2.0 3.4 Impedance: 50 OHM 3.5 Type of Radiation: Omni-directional 3.6 Electrical Wave: 1/4 3.7 Gain: 5 dBi 3.8 Cable / Connector: OEM, Optional 3.9 Size: 188.6*OD13mm 3.10 Color: Black 4 ENVIRONMENTAL CHARACTERISTICS 4.1 Operating temperature range -20 to + °C65°C 5 QUALIFICATION TESTING 5.1 All products shall be able to withstand the following testing. 5.2 Physical dimensions identified within this specification. 6 PACKING STYLE 6.1 Packing: Poly Bag. Page 3 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 7 ANTENNA PHOTO Holder/clip: Optional Cable TYPE: OD1.13 / OD1.32 / OD1.37 / RG178...etc Connector: iPEX, SMA, MMCX...etc or soldering end Page 4 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 8 DRAWING, DIMENSION Page 5 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 9 TEST-VSWR/Return Loss Page 6 of 6 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 10 PATTERN

FittedDesignatorQuantityMPNManufacturerValueDescriptionComment FittedB11 2450BM15A0015EJohanson Technology2450BM15A0015E Filtered Balun to match AT86RF232/ 233 (35288) New part development in cooperation ATMEL/ JTI Fitted C1, C9, C10, C11, C12, C146 C0201C104K9PACTUKemet100n CAP CER 0.1UF 6.3V 10% X5R 0201CAP-NONPOL FittedC2, C3, C6, C74 GRM0335C1E100JA0 1DMurata10 pF Ceramic capacitor, SMD 0201, C0G, 25V, +/ - 0.25pFreplacement for A01-0315 FittedC4, C52 0603YD105KAT2AAVX1uF CAP CER 1UF 16V 10% X5R 0603CAP-NONPOL FittedC81 GJM0335C1E3R0CB0 1DMurata3 pF Ceramic capacitor, SMD 0201, C0G, 25V, +-0.25pFCAP-NONPOL FittedC131 T491A475K010ATKemet4.7uF/ 10V SMD tantalum capacitor, ESR = 5, 3216-18 (EIA) 1206, polarizedCAP-POL FittedE11FIDUCIAL 1.5mm Fiducial point for PCB coordinates 1.5mm pad and 3mm hole in maskFIDUCIAL FittedFIXTURE11 Xplained PRO MCU board Jupiter Test FixtureESCATEC Xplained PRO MCU board Jupiter Test Fixture Xplained PRO MCU board Jupiter Test FixtureJIG FittedL11 BLM15BB221SN1MurataBLM15BB221SN1 SMD RF inductor 0402. Z=220Ohm (@100MHz), Max R(dc)=0.80Ohm, Max current=200mAINDUCTOR FittedL21 LQP03TN3N3C00DMurata3.3nH Chip Inductor, 3.3 nH, +- 0.2nH, 0201INDUCTOR FittedLABEL11 505494ACT Logimark ASLabel ZigBit Shield ZigBit Identification label. 15x10mm fireproof label w/blue Atmel logoHT_PCBA_LABEL FittedP11 U.FL-R-SMT-1(10)HIROSEU.FL-R-SMT-1(10) UFL (Small Coax Connec tor)Copy of A08-0629 FittedPCB11 ZigBit XmegaRFR2 board PCB ZigBit XmegaRFR2 board PCBPCB FittedQ11 FC-135 32.768 kHzEpson ToyocomFC-135 32.768 kHz FC-135 32.768 kHz 20ppm 12.5pfFLoad CapAlternate part for A07-0041 FittedQ21 TSX-3225 16.0000MF09Z-AC3Epson Toyocom16.0MHz 16MHz uXtal, 3.2 x 2.5 mm SMD, CL=9pF, 15PPM, ESR=80ohm(Max.TSX-3225 FittedR11 RC0201JR-07100KLYAGEO CORP100K RES 100K OHM 1/ 20W 5% 0201 SMDR2 FittedR2, R32 MCR006YZPJ103+ROHM10 k Thick film resistor, SMD 0201, 1/ 20W, 5%Copy of A02-0535 FittedU11 ATMEGA256RFR2ZUATMELATMEGA256RFR2ZU AVR Microcontroller with Low Power 2.4GHz Transceiver for IEEE 802.15.4 (de35289)ATmega256RFR2 FittedZ11ZB_RFR2_OUTLINE FittedZ21EMI ShieldEMI ShieldEMI_SHIELD

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 1 von 2 Page 1 of 2 RF Exposure Report RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660037 001 Seite 2 von 2 Page 2 of 2 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Test Results Highest measured power at 2440MHz i.e. 5.15dBm Gain (G) = 0dBi=1(Linear) Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 2440 3.2734 0.000651 1.000 Gain (G) = 5dBi=3.162(Linear) Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 2440 3.2734 0.002059 1.000

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA * A08-1876_TopLevel.SchDoc 147/22/20133:01:15 PM Zigbit mega256RFR2 UFL ATMEL INDIA CHENNAI INDIA PAGE:of TITLE: Document number:Revision:1 Date: OJAS MSK * SPI CLK IO UART0 UART1 ANALOG COMPARATOR Timer/Counter ADC PCINT/ PWM TWI JTAG wk_INT RFR2 A08-1876_megaRFR2.SchDoc SPI CLK IO UART0 UART1 ANALOG COMPARATOR Timer/Counter ADC PCINT/ PWM TWI JTAG wk_INT Connector A08-1876_Connector.SchDoc B a FIDUCIAL 1.5mm E1 ZigBit XmegaRFR2 board PCB PCB1 Product number/revision Serial number Label ZigBit Shield LABEL1 GND_RF 1234 EMI Shield Z2 EMI_SHIELDA13-0086 FIXTURE1 PIE101 COE1 COFIXTURE1COLABEL1 COPCB1 PIZ201PIZ202PIZ203PIZ204 COZ2 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA * A08-1876_Connector.SchDoc 247/22/20133:01:15 PM Zigbit Mega256RFR2 UFL ATMEL INDIA CHENNAI INDIA PAGE:of TITLE: Document number:Revision:1 Date: OJAS MSK * PE3_AIN1_OC3A PD3_TXD1_INT3 PD5_XCK1 PD4_ICP1 PG2_AMR PB4_OC2A_PCINT4 PB6_OC1B_PCINT6 PE0_PCINT8 CLKI PF0_ADC0 PF1_ADC1 PF2_ADC2_DIG2 PF3_ADC3_DIG4 PF5_ADC5_TMS PF6_ADC6_TDO PF7_ADC7_TDI AREF VCC_3V3 PD6_T1 PE2_AINO PD2_RXD1_INT2 PB7_OC0A_OC1C_PCINT7 PF4_ADC4_TCK PE7_ICP3_INT7_CLKO PB3_MISO_PDO_PCINT3 PB2_MOSI_PDI_PCINT2 PB0_SSN_PCINT0 PB1_SCK_PCINT1 PD0_SCL_INT0 PD1_SDA_INT1 PG5_OC0B GND 1 GND 2 VDD 3 VDD 4 RSTN 5 PE2/XCK0/AIN0 10 PE3/OC3A/AIN1 11 GND 12 PD2/RXD1/INT2 13 PD3/TXD1/INT3 14 PD5/XCK1 15 PD4/ICP1 16 PD6/T1 17 PG2/AMR 18 PB4/OC2A/PCINT4 19 PB6/OC1B/PCINT6 20 PB7/OC0A/OC1C/PCINT7 21 PE0/RXD0/PCINT8 22 PE1/TXD0 23 AREF 24 PF0/ADC0 25 PF2/ADC2/DIG2 27 PF3/ADC3/DIG4 28 GND 29 PF4/ADC4/TCK 30 PF5/ADC5/TMS 31 PF6/ADC6/TDO 32 PF7/ADC7/TDI 33 PG5/OC0B 34 PE4/OC3B/INT4 35 PF1/ADC1 26 PD0/SCL/INT0 36 CLKI 38 PE7/ICP3/INT7/CLKO 39 PD1/SDA/INT1 37 PD7/T0 40 GND 42 GND 41 PB3/MISO/PDO/PCINT3 8 PB1/SCK/PCINT1 9 PB2/MOSI/PDI/PCINT2 7 PB0/SSN/PCINT0 6 Z1 ZB_RFR2_OUTLINE GND_RF GND_RF GND_RF GND_RF PE1_TXD0 SCK MISO MOSI SS SPI SPI AIN0 AIN1 Analog Comparator I/P ANALOG COMPARATOR XLK1 UART_RX1 UART_TX1 UART1 UART1 T0/IRQ T1 AMR/input TC2 PWM Out TC0 Trigger Input TC1 Timer/Counter Timer/Counter PWM/INT4 PWM/INT6 PWM/INT7 PCINT/ PWM output PCINT/ PWM UART_RXD0 UART_TXD0 UART0 UART0 ADC0 ADC1 ADC2 ADC3 AREF ADC ADC TCK TDI TDO TMS nRST JTAG JTAG SCL SDA TWI TWI …
