42270AWIRELESS03/2014 ZIGBIT 900MHZ WIRELESS MODULES ATZB-RF-212B-0-U DATASHEET Features  Compact size (30.0 x 20.0mm)  MCU less Tranceiver module with SPI interface  High RX sensitivity (-103dBm)  Outperforming link budget (up to +112dB)  Up to +9.0dBm output power  Very low power consumption:  8.7mA in RX mode (1)  27mA in TX mode (1)  0.7μA in sleep mode (2)  Internal Clock Output  Preassigned Atmel ® MAC address that can be used on end product  Capability to use MAC address into the internal EEPROM  IEEE ® 802.15.4 compliant Transceiver  900MHz ISM band  Serial bootloader  U.FL Antenna Connector to select approved antennae upto 2dBi  Small physical footprint and low profile for optimum fit in very small application boards  Mesh networking capability  Easy-to-use low cost development kit  Single source of support for HW and SW  Worldwide license-free operation Note: 1. RX RPC enabled (for RX current), PHY_TX_PWR=0x0 (for TX current). 2.Controller Sleep Mode: SLEEP_MODE_PWR_DOWN ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules] 42270AWIRELESS03/2014 2 Table of Contents 1. Introduction ........................................................................................ 3 1.1 Summary ........................................................................................................... 3 1.2 Applications ....................................................................................................... 3 1.3 Abbreviations and acronyms ............................................................................. 4 1.4 Related documents ........................................................................................... 5 2. ZigBit Module Overview ..................................................................... 6 2.1 Overview ........................................................................................................... 6 3. Specification....................................................................................... 8 3.1 Electrical Characteristics ................................................................................... 8 3.1.1 Absolute Maximum Ratings ................................................................ 8 3.1.2 Power Supply ...................................................................................... 8 3.1.3 RF Characteristics .............................................................................. 9 3.2 Physical/environmental characteristics and outline ......................................... 10 3.3 Pin Configuration ............................................................................................. 10 3.4 Mounting information ....................................................................................... 10 3.5 List of Approved Antennae .............................................................................. 12 3.6 Soldering profile .............................................................................................. 13 4. Schematics ...................................................................................... 13 4.1 Handling Instructions ....................................................................................... 14 4.2 General recommendations .............................................................................. 14 5. Persistence Memory ........................................................................ 14 6. Ordering Information ........................................................................ 16 Ordering information .................................................................................................. 16 7. Agency Certifications ....................................................................... 17 7.1 United States (FCC) ........................................................................................ 17 7.2 European Union (ETSI) ................................................................................... 18 7.3 Industry Canada (IC) Compliance statements ................................................ 18 Appendix A. Revision history ........................................................... 20 ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules] 42270AWIRELESS03/2014 3 1. Introduction 1.1 Summary ATZB-RF-212B-0-U ZigBit ® is an ultra-compact and low-power 900MHz IEEE 802.15.4/ZigBee ® OEM module from Atmel. Based on the innovative mixed-signal hardware platform from Atmel, this module uses the AT86RF212B [3] 700/800/900MHz ISM band Transceiver alone on a very compact module design that provides the customer to integrate the module to any of the recommended Atmel Microcontrollers that the application fits. The radio transceiver provides high data rates from 20kb/s up to 1Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power enabling a very robust wireless communication. The module is designed for wireless sensing, monitoring, control, data acquisition applications, to name a few. This ZigBit module eliminates the need for costly and time-consuming RF development, and shortens time-to-market for wireless applications. The module has a U.FL RF connector that can be used to connect any of the approved antennae 1 – cable assembly. This gives freedom for applications to choose the right type of external antenna that can be mounted on an end product. 1.2 Applications The ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing mesh network, while optimizing network traffic and minimizing power consumption. For detailed Software support information, please visit http://www.atmel.com/products/wireless. The applications include, but are not limited to:  Building automation & monitoring o Lighting controls o Wireless smoke- and CO-detectors o Structural integrity monitoring  HVAC monitoring & control  Inventory management  Environmental monitoring  Security  Water metering  Industrial monit…

Text truncated - open the document above for the full version.

Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com 24-Apr-14 To whomsoever it may concern Product Block diagram This document features the internal block diagram of the product mentioned below. Product name: ZigBit AT86RF212B Product Model: ATZB-RF-212B-0-U FCC ID: VW4A092201 Product Block diagram: S P I T R X C T R L R E S E T XOSC - 16 MHz crystal C L K M D I G 1 - 4 AT86RF212B Transceiver Balun RFN AVREG 1.8VDVREG 1.8V RFP UFL Connector Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com Internal Block diagram of AT86RF212B RF Transceiver IC, showing Internal Voltage Regulator – AVREG, DVREG Sincerely, Saravanakumar Marudhachalam Manager, Tools HW Development, Atmel Norway AS

Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com Applicant/Grantee Atmel Norway AS FCC ID: VW4A092201 Section 15.212 Modular Transmitters Request for Single Modular Approval Request for Limited Single Modular approval SI. No Requirements EUT Conditions Comply (Y/N) 01 The radio elements of the modular transmitter must have their own Shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements The Module has its own shielding. Y 02 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation All Modulation and data input(s) are buffered. Refer block diagram and schematic diagram. Y 03 The modular transmitter must have its Own power supply regulation. The AT86RF212B IC has internal power supply regulator of 1.8V, that is used to power the Radio core Y 04 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and The antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited Modular approvals under paragraph (b) of this section. The Antenna connector is a unique connector. Please refer FCC response at the end of this document Y 05 The modular transmitter must be tested in a stand-alone configuration, i.e., the Y Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com module must not be inside another device during testing for compliance With Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the Module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be Unmodified and commercially available (see Section 15.31(i)). 06 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is Installed must also display a label referring to The enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording That expresses the same meaning Refer Zigbit RF212B User Manual document. Y Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate Instructions along with the module which explain This requirement. In the latter case, a copy of these instructions must be included in the Application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the Device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed Module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same Meaning may be used. The user manual must include instructions on how to access the Electronic display. A copy of these instructions Must be included in the application for equipment authorization. 07 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such Requirements. A copy of these Instructions must be included in the application for equipment authorization. . Refer Zigbit RF212B User Manual document. Y 08 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration Y A limited modular approval may be granted for single or split modular transmitters that do Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured Sincerely, Saravan…

Text truncated - open the document above for the full version.

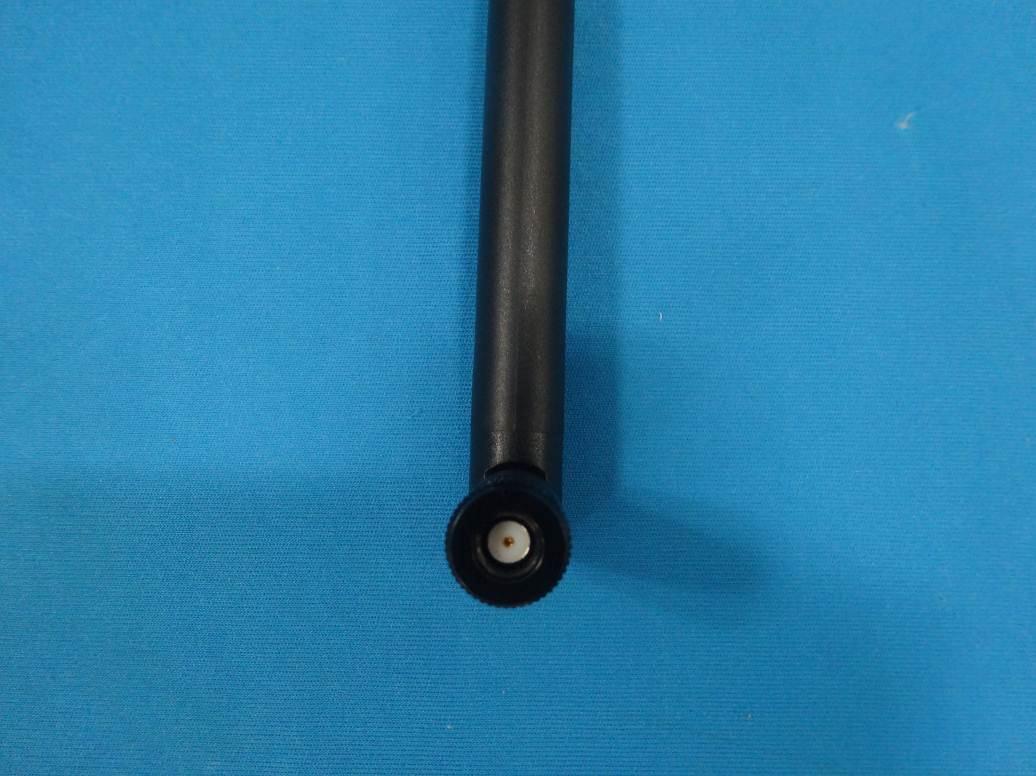

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 1 von 3 Page 1 of 3 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 2 von 3 Page 2 of 3 EUT dimensional View Antennas www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 3 von 3 Page 3 of 3 Whip Antenna With RP SMA Connection Antenna dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 1 von 1 Page 1 of 1 Label Diagram Label Location

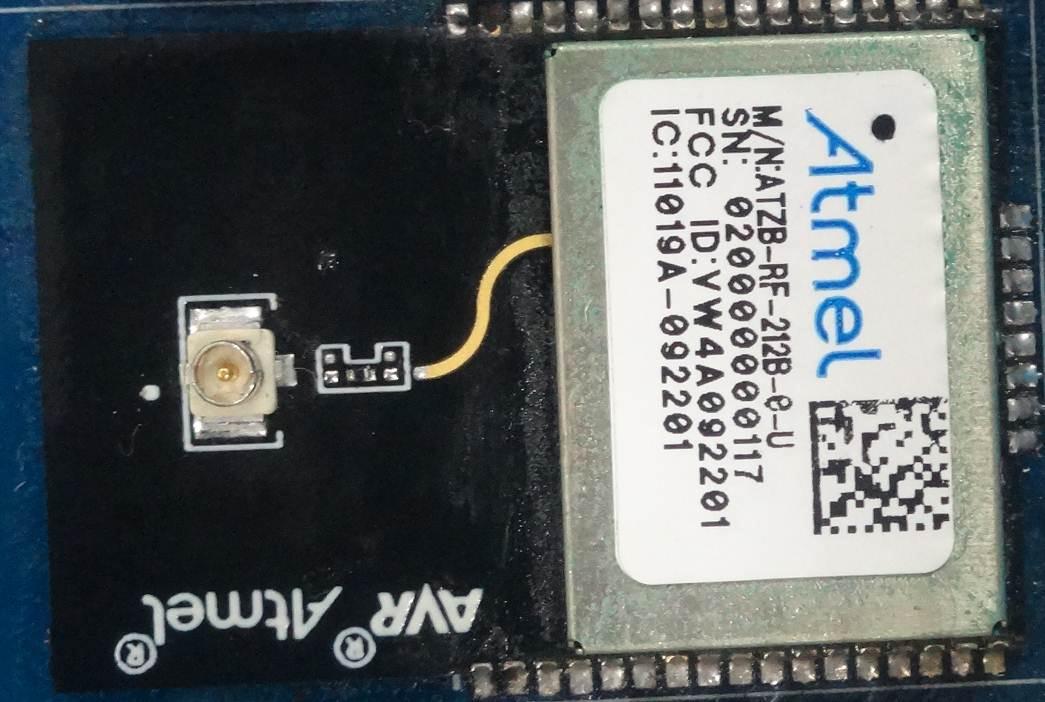

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 1 von 2 Page 1 of 2 Module Photo – with removed Module Photo – with shield removed www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 2 von 2 Page 2 of 2 Module - Bottom View

Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com 05-May-14 Theory of Operation/Technical Description – FCC ID: VW4A092201 - RF circuit function: The IEEE 802.15.4 compliant AT86RF212B transceiver generates a modulated carrier wave at 906- 924MHz with 10 IEEE 802.15.4 channels. This transceiver circuit is used by system applications as a physical layer for ZigBee applications. - RF signal flow: The Transceiver IC outputs a differential RF signal- RFP & RFN which is converted to single ended by the balun and then passes through the RF path till the antenna and gets radiated or vice versa during reception - Description of Antenna system: RF signal from/to the SoC goes to U.FL-R-SMT-1(10) Antenna connector. Tuning elements are present to ensure compliance. - Compliance with 15.203 antenna requirements: FCC 15.203 requirements for this design are tested and verified during FCC compliance testing. - Description of all modulation schemes used in the product: Module uses BPSK. Saravanakumar Marudhachalam Manager, Tools HW Development www.tuv.com Appendix 6 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 1 von 1 Page 1 of 1 Specifications of EUT Operating Frequency 902 - 928 MHz No. of channel 10 Channel Spacing 2 MHz Modulation BPSK Transmitted Power 08.50dBm Data Rate 40 kbps Antenna Type Refer page 6 of 29 (Test Report) Number of antenna Refer page 6 of 29 Test Report) Antenna Gain Refer page 6 of 29 (Test Report) Supply Voltage 1.8VDC – 3.6VDC Dimensions 30mm X 20mm Environmental 85C to -25C Atmel Norway AS Vestre Rosten 79 7075 Tiller NORWAY T: (+47) 72 88 43 88 F: (+47) 72 88 43 99 www.atmel.com 24-Apr-14 To whomsoever it may concern Product Application This document explains the nature of intended application of the product mentioned below. Product name: ZigBit RF212B Product Model: ATZB-RF-212B-0-U FCC ID: VW4A092201 Product Application: The ZigBit RF212B is a Zigbit module of the Atmel AT86RF212B radio transceiver. The radio transceiver supports the worldwide accessible 900MHz ISM band. The system is designed standard-based applications such as ZigBee/IEEE 802.15.4, ZigBee RF4CE, and 6LoWPAN, as well as high data rate ISM applications. Sincerely, Saravanakumar Marudhachalam Manager, Tools HW Development, Atmel Norway AS

This document was generated on 02/25/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 105262-0002 Status: Active Description:ISM 868/915 MHz Antenna, 150mm Cable Length Documents: 3D ModelPackaging Specification PK-105262-001 (PDF) Drawing (PDF)RoHS Certificate of Compliance (PDF) Product Specification PS-105262-002 (PDF)Product Literature (PDF) General Product FamilyAntennas Series105262 Component TypeStand Alone Antenna with Cable Mates With73412-0110 Microcoaxial RF, 50 Ohm Product Literature Order No987650-7461 Product NameISM 868/915 MHz Stand Alone TypeISM Band Antenna UPC887191106540 Physical Cable Length150.00mm Depth0.10mm Length79.00mm Mounting StyleAdhesive Net Weight0.690/g Packaging TypeTray PolarizationLinear Radiation PatternOmnidirectional Weight0.75g Width10.00mm Electrical Band#1 F_End (MHz)870 Band#1 F_Start (MHz)863 Band#2 F_End (MHz)928 Band#2 F_Start (MHz)902 Electrical ConnectivityCable Impedance50# Number of Bands2 Peak Gain (dBi)1.3 Return Loss - S11 (dB)< -11, < -13 Total Efficency (dB)> -3.1, > -1.9 Material Info Reference - Drawing Numbers Packaging SpecificationPK-105262-001 Product SpecificationPS-105262-002 Sales DrawingSD-105262-001 Series image - Reference only EU RoHSChina RoHS ELV and RoHS Compliant REACH SVHC Not Reviewed Low-Halogen Status Low-Halogen Need more information on product environmental compliance? Email [email protected] For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Search Parts in this Series 105262Series This document was generated on 02/25/2014 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 105262-0002

Wireless External Antenna for 900 MHz Applications Pulse Part Number: W1063 © 2008 All Rights Reserved. W1063 Datasheet Version 1.1. February 2008 Feat ures - Ideal for lower frequency wireless applications in the ISM 900 MHz band - Omni-directio nal radiation pattern provides broad 360° c overage - One-eighth wavelength dipole configuration - Connection and color options easily integrate with OEM designs Color Option s - Black* - Gray (Pantone cool gray 8C) - Gray (Pantone 429C) - Gray (Pantone cool gray 7C) Connector Option s - Reverse SMA (Male)* - SMA (Male) * Default Configuration – Please contact Pulse Applications Engineering for assistance in ordering colo rs and connectors Weight......................................................25.6 grams Carton...........................................20/bag; 500/carton Dimensions: Inches mm Unless otherwise specified, all to lerances are ± .010 0.25 Black Frequency [MHz] VSWRElectrical Length Impedance [Nom] Color 868 – 928 ≤ 2. 01/4, dipole50 Ω Electrical Specifications @ 25 ºC Note: This par t number is lead- free and RoHS compliant. No additional suffix or identifier is required. Gain [dBi] 3.0 Radiatio n Omni Polarization Vertical Antenna Part No. W1063 Pulse Antennas Takatie 6 90440 K empele Finland Tel: +358 207 935 500 www.pulseeng.com/antennas Exte rnal Antennas Sales Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228 Wireless External Antenna for 900 MHz Applications Pulse Part Number: W1063 © 2008 All Rights Reserved. W1063 Datasheet Version 1.1. February 2008 Vertical Position Horizontal Position Gain Perf ormance W1063 Omni-directional antennas provide a uniform, donut- shaped, 360° radiation pattern. The omni-directional pattern is suitable for point-to-multipoint broadcasting in all directions. This antenna is primarily used for WLAN applications. However, it can also be used for a variety of other applications within the specified frequency range. When used as an access point, the antenna is ideally located at the center of the coverage area. Application Notes 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 902MHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 915 MHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 928MHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 902MHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 915 MHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB 928 MHz Pulse Antennas Takatie 6 90440 K empele Finland Tel: +358 207 935 500 www.pulseeng.com/antennas External Antennas Sales Contacts USA858 674 8100 UK44 1483 401 700 France33 3 84 35 04 04 Singapore65 6287 8998 Shanghai86 21 32181071 China86 769 5538070 Taiwan886 2 26980228

Component list Bill of Materials Print For Variant [UFL_Series0] of Project [RFonly_212B.PrjPCB] (No PCB Document Selected) Source Data From:RFonly_212B.PrjPCB Project:RFonly_212B.PrjPCB Variant:UFL_Series0 Report Date:10-02-201414:28:39 Print Date:10-02-201414:28:37 #De s ignatorQuantityValueManufacturerMPNDescription 1B110896FB15A0100Johanson Technology0896FB15A 0100868/900MHz FilterBalun, SMD 1.25x2.0mm (de26948) 2C1, C2, C6, C741uFA V X0603Y D105KA T2ACA P CER 1UF 16V 10% X5R 0603 3C312.2 pFKemetCBR02C229C9GACCAP CER 2.2PF 6.3V NP0 0201 4C5, C8210 pFMurataGRM0335C1E100JA01DCeramic capacitor, SMD 0201, C0G, 25V, +-0.25pF 5C91100nKemetC0201C104K9PACTUCAP CER 0.1UF 6.3V 10% X5R 0201 6C101100pFAVX04023A101JAT2ACeramic capacitor, SMD 0402, NP0, 50V, +/-10% (High Dens ity) 7DOC11UFL RF212B Zigbit PCBA (A 08-2001) UFL RF212B Zigbit PCBA (A08-2001) 8L31BLM15BB221SN1MurataBLM15BB221SN1SMD RF inductor 0402. Z=220Ohm (@100MHz), Max R(dc )=0.80Ohm, Max current=200mA 9LABEL11Label ZigBit ShieldACT Logimark AS505494ZigBit Identif ication label. 15x10mm fireproof label w/blue Atmel logo 10P11U.FL-R-SMT-1(10)HIROSEU.FL-R-SMT-1(10)UFL (Small Coax Connec tor) 11PCB11RF212B UFL ZigbitRF212B UFL Zigbit 12Q1116.0MHzEpson ToyocomTSX-3225 16.0000MF09Z-AC316MHz uXtal, 3.2 x 2.5 mm SMD, CL=9pF, 15PPM, ESR=80ohm(Max . 13R11680RYAGEO CORPRC0201JR-07680RLRES 680 OHM 1/20W 5% 0201 SMD 14R210RROHMMCR006YZPJ000Thick film resistor, SMD 0201, 1/20W, 5% 15R5, R6210 kROHMMCR006Y ZPJ103+Thick film resistor, SMD 0201, 1/20W, 5% 16TEST11ZigBit 2.0 test SWProduction test SW for ZigBit 2.0 17TESTDOC11ZigBit 2.0 Pr oduc tion test procedure Production test instruction for ZigBit 2.0 18U11AT86RF212B-ZUATMELAT86RF212B-ZULow Pow er 700/800/900 MHz Transceiver for IEEE 802.15.4, ZigBee, 6LoWPAN, and ISM Applications (de34572) 19U21AT24MAC602-STUM-TATMELAT24MAC602-STUM-T2kbit Serial (TWI) EEPROM, AT24C02B, 1.8-5V 20Z11ATZB-RF-4-0-C-915ATMELATZB-RF-4-0-C-915ZigBit RF-only SUB_GHz-915 21Z21EMI ShieldDUFU INDUSTRIES SDN BHDEMI Shield ZigBit RF212B 22L1, L203.3nHMurataLQP03TN3N3C00DChip Induc tor, 3.3 nH, +-0.2nH, 0201 26 Notes Approved

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 1 von 2 Page 1 of 2 RF Exposure Report RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660079 001 Seite 2 von 2 Page 2 of 2 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Test Results 1. External Antenna Gain (G) = 3dBi= 1.995262315(Linear) Highest measured power at 914MHz i.e. 8.50dBm Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 914 7.0794578 0.002810 1.000 2. UFL-cable integrated with Antenna Gain (G) = 1.3dBi= 1.348962883(Linear) Highest measured power at 240MHz i.e. 8.50dBm Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 914 7.0794578 0.001900 1.000

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA A08-2001 RFonly_212B_TopLevel.SchDoc 1310-02-201414:28:26 RF212B-UFL-Zigbit ATMEL Chennai RMZ Millenia Perungudi India PAGE:of TITLE: Document number:Revision:1 Date: Ganesh Skandha MSK * RF_IO MACID RF Front End Control TRX_MISC_CTRL SPI Sheet1 RFonly_212B_Connector.SchDoc RF_IO MACID RF Front End Control TRX_MISC_CTRL SPI Sheet2 RFonly_212B.SchDoc ZigBit 2.0 test SW $ >_ A11-0200 TEST1 Documentation B a A08-2001 RF212B UFL Zigbit PCB1 A12-0829 DOC1 Product number/revision Serial number Label ZigBit Shield LABEL1 A12-0669 TESTDOC1 FCC ID : VW4A092201 IC ID : 11019A-092201 CODOC1 COLABEL1 COPCB1 COTEST1 COTESTDOC1 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA A08-2001 RFonly_212B.SchDoc 2310-02-201414:28:26 RF212B-UFL Zigbit ATMEL Chennai RMZ Millenia 2 PERUNGUDI,CHENNAI INDIA PAGE:of TITLE: Document number:Revision:1 Date: Ganesh Skandha MSK * GND GND i PCB Rule i PCB Rule DIG4 2 AVSS 3 RFP 4 RFN 5 AVSS 6 DVSS 7 /RST 8 D I G 1 9 D I G 2 1 0 S L P _ T R 1 1 D V S S 1 2 D V D D 1 3 D V D D 1 4 D E V D D 1 5 D V S S 1 6 CLKM 17 DVSS 18 SCLK 19 MISO 20 DVSS 21 MOSI 22 /SEL 23 IRQ 24 X T A L 2 2 5 X T A L 1 2 6 A V S S 2 7 E V D D 2 8 A V D D 2 9 A V S S 3 0 A V S S 3 1 A V S S 3 2 DIG3 1 P A D 3 3 AT86RF212B-ZU U1 GND GND AN_VCC_3V3VCC_3V3 BLM15BB221SN1 L3 2.2 pF C3 10 pF C5 10 pF C8 680R R1 RF_N RF_P GND GND GNDGND GNDGND GND 1 3 2 4 16.0MHz Q1 1234 EMI Shield Z2 SCLK MISO MOSI nSEL SPI TRX_MISC_CTRL RF_IO RF_IO RF_IO SPI GND VCC_3V3 1uF C2 GND GND GND GND VCC_3V3 CLKM SLP_TR IRQ RESET_N TRX_MISC_CTRL GND 1uF C1 DVDD DVDD 1uF C6 AVDD GND AVDD AN_VCC_3V3 1uF C7 GND AN_VCC_3V3 CLKM SCLK MISO MOSI nSEL IRQ RF_N RF_P DIG2 DIG1 DIG3 DIG4 RF_Front_End_Control RF Front End Control DIG2 DIG1 nRST DIG4 DIG3 SCLK MOSI MISO nSEL CLKM IRQ nRST SLP_TR GND VCC_3V3 GND GND 2 SDA 3 SCL 1 WP 5 VCC 4 AT24MAC602-STUM-T U2 VCC_3V3 GND 100nC9 1 0 k R 5 1 0 k R 6 SCL SDA MACID MACID Decoupling Capacitors RF Section MACID Section SLP_TR DIG1 DIG2 DIG3 DIG4 3.3nH L2 3.3nH L1 50Ohm 1 G N D 2 Bal 3 Bal 4 G N D 5 G N D 6 0896FB15A0100B1 100pF C10 0R R2 Place de-coupling closer to TRX Place de-coupling closer to TRX Place xtal circuit closer to TRX . Isolate from digital signals. BoM varients for Balun: Jap/NA Band 0896FB15A0100 European Band 0896FB15A0100 Chinese Band 0783FB15A0100 PIB101 PIB102 PIB103 PIB104 PIB105PIB106 COB1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC501PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801PIC802 COC8 PIC901PIC902 COC9 PIC1001PIC1002 COC10 PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIL301PIL302 COL3 PIQ101 PIQ102 PIQ103 PIQ104 COQ1 PIR101PIR102 COR1 PIR201PIR202 COR2 PIR501 PIR502 COR5 PIR601 PIR602 COR6 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109PIU1010PIU1011PIU1012PIU1013PIU1014PIU1015PIU1016 PIU1017 PIU1018 PIU1019 PIU1020 PIU1021 PIU1022 PIU1023 PIU1024 PIU1025PIU1026PIU1027PIU1028PIU1029PIU1030PIU1031PIU1032PIU1033 COU1 PIU201 PIU202 PIU203 PIU204 PIU205 COU2 PIZ201PIZ202PIZ203PIZ204 COZ2 POMACIDPOMACID0SCLPOMACID0SDA PORF0IOPORF0IO0RF0IO PORF FRONT END CONTROLPORF FRONT END CONTROL0DIG1PORF FRONT END CONTROL0DIG2PORF FRONT END CONTROL0DIG3PORF FRONT END CONTROL0DIG4 POSPIPOSPI0MISOPOSPI0MOSIPOSPI0NSELPOSPI0SCLK POTRX0MISC0CTRLPOTRX0MISC0CTRL0CLKMPOTRX0MISC0CTRL0IRQPOTRX0MISC0CTRL0RESET0NPOTRX0MISC0CTRL0SLP0TR 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA A08-2001 RFonly_212B_Connector.SchDoc 3310-02-201414:28:26 RF212B-UFL Zigbit ATMEL Chennai RMZ Millenia Perungudi INDIA PAGE:of TITLE: Document number:Revision:1 Date: Ganesh Skandha MSK * GND VCC_3V3 GND 1 nRST 5 VDD 3 GND 2 DIG2 34 SLP_TR 35 SCL 36 SDA 37 MISO 8 MOSI 7 nSEL 6 FEM_SEL 38 GND 41 VDD 4 IRQ 40 GND 42 CLKM 39 SCLK 9 DIG1 10 FEM_CSD 11 DIG4 33 DIG3 32 ATZB-RF-4-0-C-915 Z1 3 2 1 U.FL-R-SMT-1(10) P1 SCLK MISO MOSI nSEL SPI TRX_MISC_CTRL SPI C L K M S L P _ T R I R Q R E S E T _ N TRX_MISC_CTRL D I G 2 D I G 1 D I G 3 D I G 4 RF_Front_End_Control RF Front End Control SCL SDA MACID MACID RF_IO RF_IO RF_IO GND GND GND PIP101 PIP102 PIP103 COP1 PIZ101 PIZ102 PIZ103 PIZ104 PIZ105 PIZ106 PIZ107 PIZ108 PIZ109 PIZ1010 PIZ1011PIZ1032 PIZ1033 PIZ1034 PIZ1035 PIZ1036 PIZ1037 PIZ1038 PIZ1039 PIZ1040 PIZ1041 PIZ1042 COZ1 POMACIDPOMACID0SCLPOMACID0SDA PO…
