VWPKW-B25BTBluetooth Speaker

KENWIN INDUSTRIAL (H.K.) LTD.

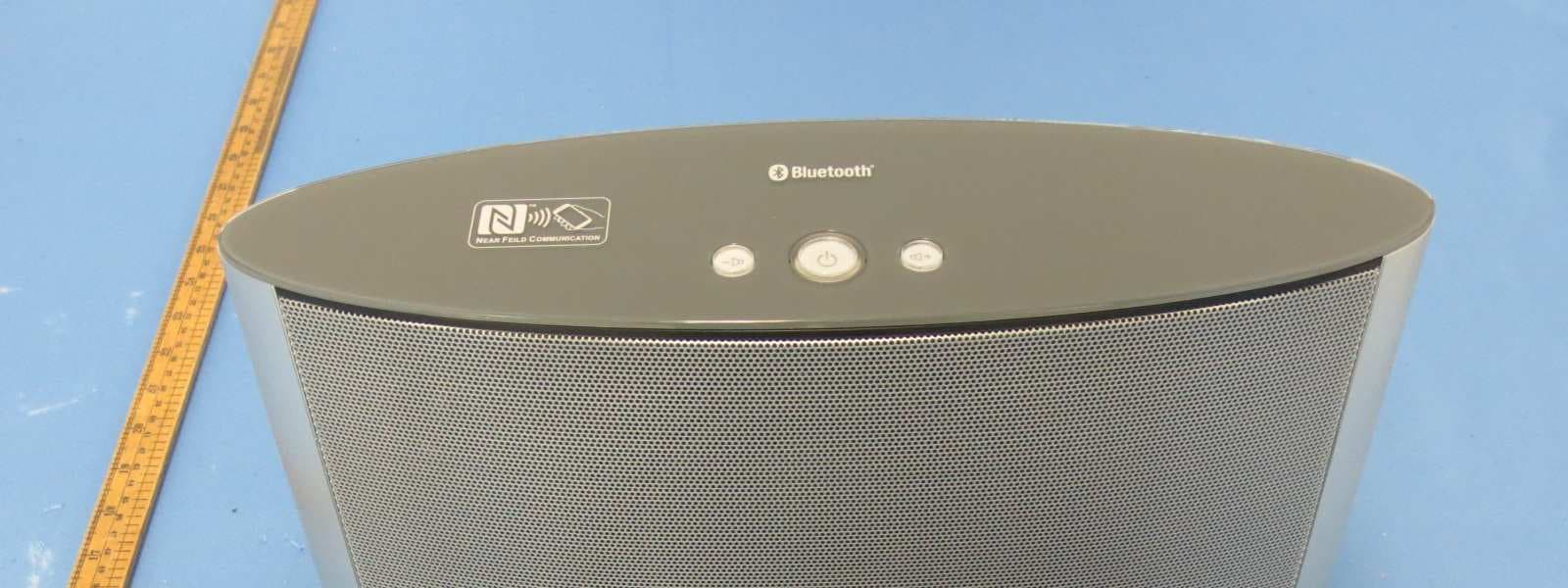

Bluetooth Speaker - FCC ID VWPKW-B25BT - KENWIN INDUSTRIAL (H.K.) LTD.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
May 30, 2013
Application Purpose
Original Equipment
Date of Application
May 30, 2013
Equipment Note
Bluetooth Speaker
Frequency Range
2402.00000000 - 2480.00000000
Company
KENWIN INDUSTRIAL (H.K.) LTD.
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—
β†—

Test Setup Photos

β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual KW-B25BT Bluetooth Speaker English 2 Safety Instructions 1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. 2. Ventilation – The unit should be situated so that its location or position does not ni terfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, w hich may impede the flow of air through the ventilation openings. 3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. 4. Power Sources – The unit should be connected to a power supply only of the type described in the o perating instructions or as marked on the appliance. 5. Power Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket. 6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleani ng instructions. 7. Objects and Liquid Entry – Care should be taken so that ob jects do not fall and liquids are not spilled into any openings or vents located on the product. 8 Attachments – Do not use attachments not recommended by the product manufacturer. 9 Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system dur ing a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges. 10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this ca n result in a risk of fire or electric shock. 11. Damage Requiring Service – The unit should be serviced by qualified service personnel when: A. the power supply cable or plug has been damaged. B. objects have fallen into or liquid has been spilled into the enclosure. C. the unit has been exposed to rain. D. the unit has been dropped or the enclosure damaged. E. the unit exhibits a marked change in performance or does not operate normally. 12. Periods of None Use – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent damage or corrosion. 13 14. WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 15. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable. 16. When not in use and during movement, please take care of the power corset, e.g. tie up the power cordset with cable tie or something like that. It shall be free from sharp edges and the like that can cause abrasion of the power corset. When put into use again, please make sure the power cordset being not damaged, If any damages found, please look for the service person to replace the power corset specified by the manufacturer or have the same characteristics as the original one. 17. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. . Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. English 3 Safety Instructions 18. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons. 3 English Controls TOP PANEL REAR REMOTE CONTROL PANEL FRONT PANEL AUX(Gree…

Text truncated - open the document above for the full version.

Cover Letter(s)

KENWIN INDUSTRIAL (H.K.) LTD. Rm.1512, 15,17&19,15/F., Shatin Galleria,18-24 Shan Mei St.,Fotan, N.T., Hong Kong 2013-04-03 To whom it may concern, Letter of Agency I, an officer of KENWIN INDUSTRIAL (H.K.) LTD. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in Β§1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Name] Ambert Fok [Title] Sales Manager

External Photos

External photos

Internal Photos

Internal photos

RF Exposure Info

1 INTERTEK TESTING SERVICES RF Exposure report The equipment under test (EUT) is a Bluetooth Speaker. The EUT was powered by AC 100-240V, 50/60Hz, 140W. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK Bluetooth Version: 2.1 with EDR function and without AFH mode Antenna Type: Integral antenna Antenna Gain: 2.12dBi The nominal radiated output power (e.i.r.p) specified: 0dBm (Tolerance: +/- 3dB) The worst-case radiated emission for the EUT is 95.2dBV/m at 3m in the frequency 2.441GHz = [(FS*D) ^2 / 30] mW = -0.03 dBm which is within the production variation. The minimum radiated emission for the EUT is 94.7dBV/m at 3m in the frequency 2.480GHz = [(FS*D) ^2 / 30] mW = -0.53 dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. The maximum radiated output power = 3 dBm = 2.0mW The source-based time averaged maximum radiated power (including the tune-up tolerance) = 2.0 * Duty Cycle = 1.7 mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: = 1.7 mW / 4Ο€R^2 = 0.0003 mW/cm^2 The MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be 2 ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1 with EDR function), transmitter duty cycle is dependent of packet type (DH1, DH3 and DH5). For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 The following RF exposure statement is proposed to be included in the user manual: β€œFCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Test Report

β€’ The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. β€’ This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. β€’ For Terms And Conditions of the services, it can be provided upon request. β€’ The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com KENWIN INDUSTRIAL (H.K.) LTD. Application For Certification FCC ID: VWPKW-B25BT Bluetooth Speaker Model: KW-B25BT 2.4GHz Transceiver Report No.: 130322011SZN -001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file Jenner Liu Testing Engineer Billy Li Supervisor Date: 09 May 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: VWPKW-B25BT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: VWPKW-B25BT ii MEASUREMENT/TECHNICAL REPORT KENWIN INDUSTRIAL (H.K.) LTD. - MODEL: KW-B25BT FCC ID: VWPKW-B25BT This report concerns (check one :) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator βˆ’ the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0645 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: VWPKW-B25BT iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 2 1.4 Test Facility........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software.................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs................................................................................... 19 5.0 Product Labelling.............................................................................................. 21 6.0 Technical Specifications .........…

Text truncated - open the document above for the full version.

Contact Information

Applicant

AMBERT FOK
[email protected]852-2690 1380Fax: 852-2690 1081

Technical Contact

Intertek Testing Services Shenzhen Ltd. Kejiyuan BShawn Xing
[email protected](86-755)86140603

6F, D Block, Huahan Building, Langshan Road Β· Shenzhen Β· China

Non-Technical Contact

Intertek Testing Services Shenzhen Ltd. Kejiyuan BShawn Xing
[email protected](86-755)86140603

Test Firm

Intertek Testing Services Shenzhen Ltd.Shawn Xing
[email protected]86-75586140603Fax: 86 755 8601 6751

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
